JCM 301 Ductile Iron Flanged Coupling Adapter
Ductile iron · standard or restrained · 3 to 12 in
150 PSI Working Pressure
Ductile Iron Sleeve and Flange
SBR Gasket
-40°F to +150°F Temperature
Low-Alloy Steel Bolts
Optional Restraining Set Screws
AWWA C219
3 to 12 in
17-94 lb Weight
Description
The JCM 301 flanged coupling adapter combines a flange with a ductile iron flexible coupling to connect plain-end pipe to flanged fittings, meters, valves and equipment. It absorbs vibration, accommodates deflection and expansion, allows easy equipment removal and eliminates exact measurements.
Restrained builds, offered on most sizes, add retainer set screws that anchor the adapter on steel, cast iron and ductile iron pipe, eliminating extra tie rods or harnessing; the set screws are not exposed to the line and need no drilling. Set screws are not for asbestos cement, HDPE or PVC pipe.
Typical application: Valve insertions, equipment connections and offset adjustment, converting flanged fittings to MJ or push-on, dampening vibration, field-fitting flange spools.
Key Features
- Special flange gasket with a lip that seals tighter as pressure rises
- Wide-range gaskets interchange with JCM ductile iron couplings
- Special flange design suits wafer valves; many sizes use half the standard flange bolts
- Laying length allows field cutting yet fits close quarters
- Meets or exceeds ANSI/AWWA C219 as applicable
What Ships and What It Needs to Run
Included: the ductile iron flanged body, follower, gaskets, and coupling bolts and nuts; restrained builds include the set screws.
Flange bolts, ordered separately. The adapter bolts to the mating flange with standard flange bolts; the lip-seal flange gasket is included.
Pipe anchorage, provided at install. Standard builds do not restrain the pipe; use the restrained build on steel, cast iron or ductile iron where thrust must be held.
Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Warranty
Covered for 12 months from the date of purchase against defects in materials and workmanship. Keep the dated invoice as proof of purchase.
Working Pressure
150 PSI working pressure. JCM rates the 301 for 150 PSI working pressure when installed per its instructions; higher pressures are available from JCM on request.
Materials Specifications
| Sleeve and flange |
Ductile iron, ASTM A536 |
| Gaskets |
SBR per ASTM D2000, -40°F to +150°F constant, 180°F intermittent |
| Bolts and nuts |
Corrosion-resistant high-strength low-alloy, ASTM A242 (AWWA C111, ANSI A21.11), A563 nuts; 304 stainless optional |
| Finish |
Heavy coat of corrosion-resistant metal primer; fusion epoxy optional |
| Restraint set pins |
AISI Type 1022 carbon steel |
From the JCM 301 material specification.
Pipe Applications
Steel, cast iron, ductile iron, C900 PVC, PVC, HDPE and A/C (set screws: steel, cast iron and ductile iron only).
Sizes
| Nominal |
Pipe OD |
Builds |
| 3 in |
3.50 in |
Standard and Restrained |
| 3 in |
3.80-4.17 in |
Standard and Restrained |
| 4 in |
4.00 in |
Standard |
| 4 in |
4.50 in |
Standard and Restrained |
| 4 in |
4.80-5.10 in |
Standard and Restrained |
| 6 in |
6.00 in |
Standard |
| 6 in |
6.63 in |
Standard and Restrained |
| 6 in |
6.90-7.20 in |
Standard and Restrained |
| 8 in |
8.00 in |
Standard |
| 8 in |
8.63 in |
Standard and Restrained |
| 8 in |
9.05-9.40 in |
Standard and Restrained |
| 10 in |
10.75 in |
Standard and Restrained |
| 10 in |
11.10-11.40 in |
Standard and Restrained |
| 12 in |
12.75 in |
Standard and Restrained |
| 12 in |
13.20-13.50 in |
Standard and Restrained |
Restrained (set screw) builds are offered only where JCM lists them; 4.00, 6.00 and 8.00 in ODs are standard only.

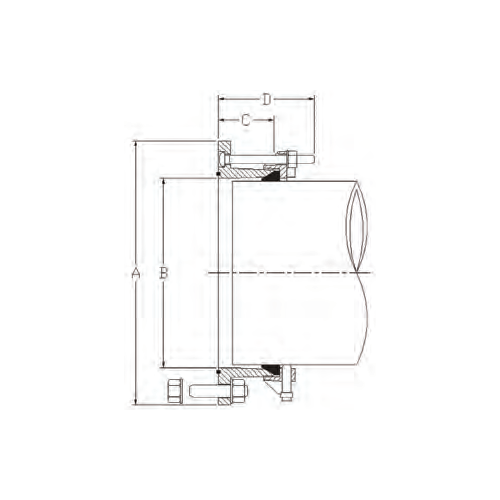

Dimensions
| Nominal |
A |
B |
C |
D |
| 3 in |
8-1/8 |
4-1/4 |
3 |
5-1/2 |
| 4 in |
9-1/8 |
5-1/4 |
3 |
5-1/2 |
| 6 in |
11-1/8 |
7-5/16 |
3-1/2 |
5-1/2 |
| 8 in |
13-1/2 |
9-9/16 |
3-1/2 |
5-1/2 |
| 10 in |
16-1/4 |
11-9/16 |
4 |
7 |
| 12 in |
19 |
13-5/8 |
4 |
7 |
Inches, from the JCM 301 dimension table (see the drawing in the images).
Before You OrderConfirm the pipe OD and type; choose the restrained build only on steel, cast iron or ductile iron.
Anchor the pipe: the coupling joins the pipe but does not restrain it, so JCM calls for proper anchorage wherever the pipe could move out of the coupling.
For a submittal or an odd OD, email sales@watermainsupply.com with the pipe OD, pipe type and line content.
