Franklin Electric BT4 Pump Ends for 56C Motors

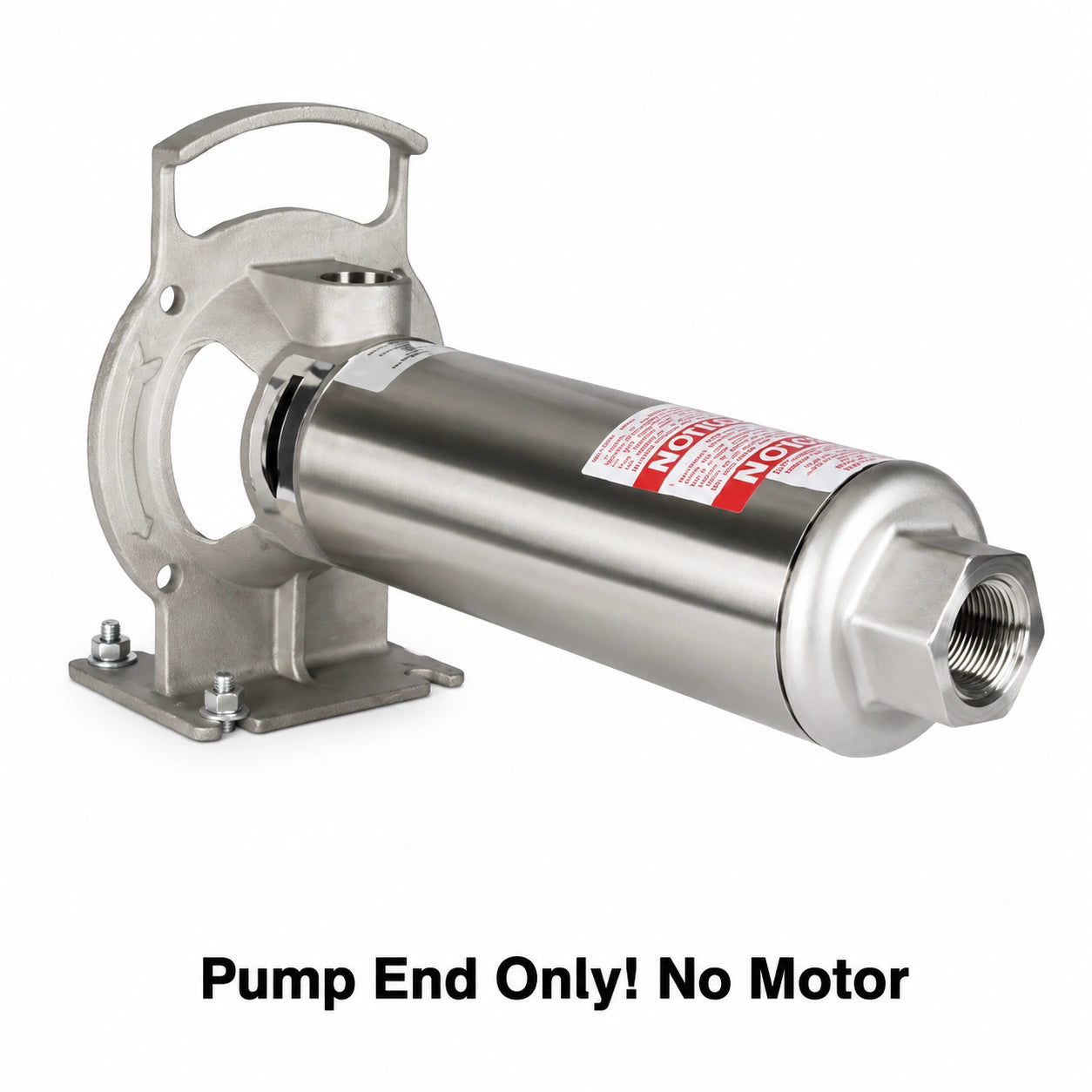

Bare BT4 pump-end kits for use with a customer-supplied NEMA 56C keyed shaft motor. All BT4 pump sizes available as pump ends only.
1/3 – 3 HP
5 – 45 GPM
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial distributor.
Overview
Bare pump-end kits for use with a customer-supplied NEMA 56C keyed shaft motor. All BT4 pump sizes are available to order as pump ends only.

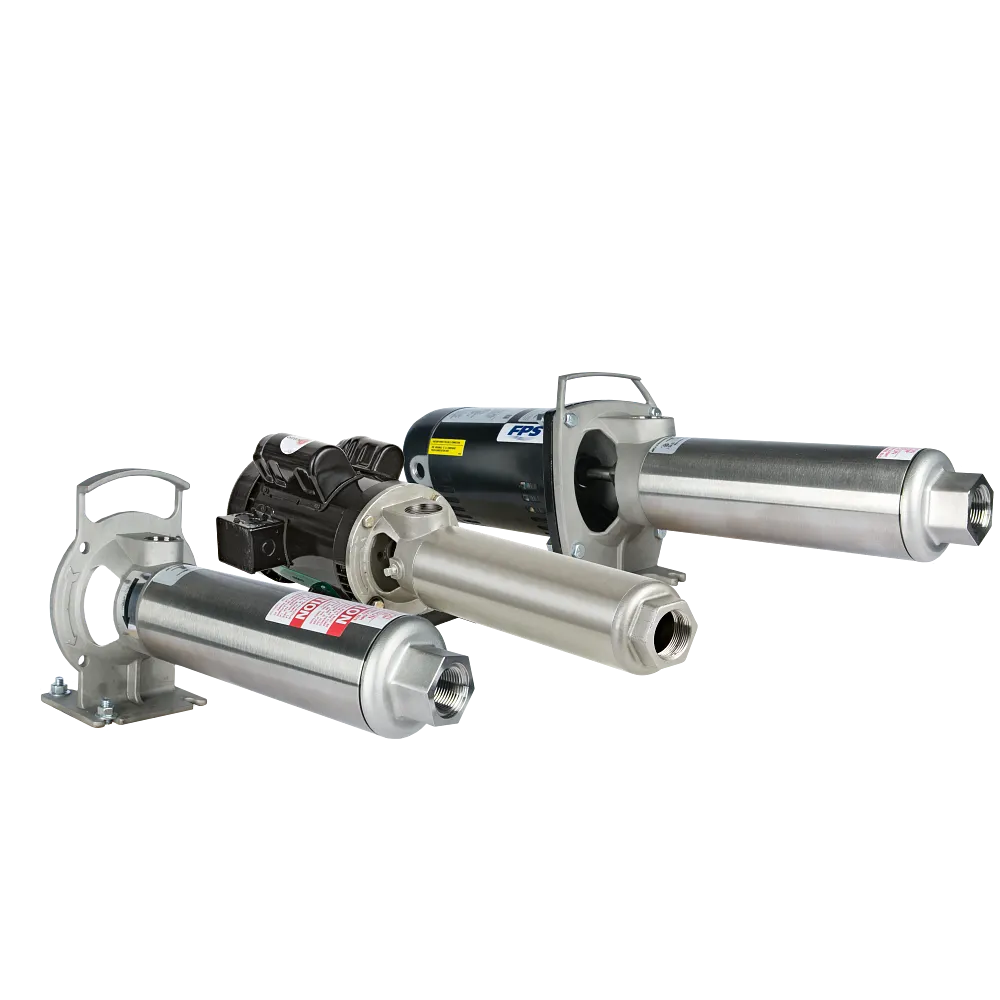

Shares the BT4 hydraulic platform, including the patented Tri-Seal floating stage system, stainless steel shell and discharge, and carbon/ceramic FKM mechanical seal.
What Ships and What It Needs to Run
Included: the part, kit or assembly selected above, identified by its Franklin part number in the last option.
Key Advantages
-
All BT4 pump sizes — All BT4 pump sizes are available to order as pump ends only
-
Utilizes any customer-supplied NEMA 56C keyed shaft — Utilizes any customer-supplied NEMA 56C keyed shaft motor
Order Information
Full list (36 items)
| Item |
Model |
Horse Power |
Nominal Flow |
Model Code |
| 95920507 |
5BT03S4-PE |
1/3 HP |
5 GPM |
5BT03S4-PE |
| 95920509 |
5BT05S4-PE |
1/2 HP |
5 GPM |
5BT05S4-PE |
| 95920512 |
5BT07S4-PE |
3/4 HP |
5 GPM |
5BT07S4-PE |
| 95920515 |
5BT1S4-PE |
1 HP |
5 GPM |
5BT1S4-PE |
| 95920708 |
7BT05S4-PE |
1/2 HP |
7 GPM |
7BT05S4-PE |
| 95920710 |
7BT07S4-PE |
3/4 HP |
7 GPM |
7BT07S4-PE |
| 95920714 |
7BT1S4-PE |
1 HP |
7 GPM |
7BT1S4-PE |
| 95920719 |
7BT15S4-PE |
1.5 HP |
7 GPM |
7BT15S4-PE |
| 95921007 |
10BT05S4-PE |
1/2 HP |
10 GPM |
10BT05S4-PE |
| 95921008 |
10BT07S4-PE |
3/4 HP |
10 GPM |
10BT07S4-PE |
| 95921011 |
10BT1S4-PE |
1 HP |
10 GPM |
10BT1S4-PE |
| 95921015 |
10BT15S4-PE |
1.5 HP |
10 GPM |
10BT15S4-PE |
| 95921018 |
10BT2S4-PE |
2 HP |
10 GPM |
10BT2S4-PE |
| 95921506 |
15BT07S4-PE |
3/4 HP |
15 GPM |
15BT07S4-PE |
| 95921508 |
15BT1S4-PE |
1 HP |
15 GPM |
15BT1S4-PE |
| 95921512 |
15BT15S4-PE |
1.5 HP |
15 GPM |
15BT15S4-PE |
| 95921515 |
15BT2S4-PE |
2 HP |
15 GPM |
15BT2S4-PE |
| 95922005 |
20BT07S4-PE |
3/4 HP |
20 GPM |
20BT07S4-PE |
| 95922007 |
20BT1S4-PE |
1 HP |
20 GPM |
20BT1S4-PE |
| 95922010 |
20BT15S4-PE |
1.5 HP |
20 GPM |
20BT15S4-PE |
| 95922012 |
20BT2S4-PE |
2 HP |
20 GPM |
20BT2S4-PE |
| 95922015 |
20BT3S4-PE |
3 HP |
20 GPM |
20BT3S4-PE |
| 95922506 |
25BT1S4-PE |
1 HP |
25 GPM |
25BT1S4-PE |
| 95922508 |
25BT15S4-PE |
1.5 HP |
25 GPM |
25BT15S4-PE |
| 95922510 |
25BT2S4-PE |
2 HP |
25 GPM |
25BT2S4-PE |
| 95922513 |
25BT3S4-PE |
3 HP |
25 GPM |
25BT3S4-PE |
| 95923503 |
3503BT1S4-PE |
1 HP |
35 GPM |
3503BT1S4-PE |
| 95923505 |
3505BT15S4-PE |
1.5 HP |
35 GPM |
3505BT15S4-PE |
| 95923507 |
3507BT2S4-PE |
2 HP |
35 GPM |
3507BT2S4-PE |
| 95923509 |
3509FBT3S4-PE |
3 HP |
35 GPM |
3509FBT3S4-PE |
| 95924502 |
4502FBT1S4-PE (2-stg.) |
1 HP |
45 GPM |
4502FBT1S4-PE (2-stg.) |
| 95924503 |
4503FTB1S4-PE (3-stg.) |
1 HP |
45 GPM |
4503FTB1S4-PE (3-stg.) |
| 95924504 |
4504BT15S4-PE |
1.5 HP |
45 GPM |
4504BT15S4-PE |
| 95924505 |
4505BT2S4-PE (5-stg) |
2 HP |
45 GPM |
4505BT2S4-PE (5-stg) |
| 95924506 |
4506BT2S4-PE (6-stg.) |
2 HP |
45 GPM |
4506BT2S4-PE (6-stg.) |
| 95924507 |
4507BT3S4-PE |
3 HP |
45 GPM |
4507BT3S4-PE |
Ordering NotesThese are bare pump ends supplied without a motor and require a customer-supplied NEMA 56C keyed shaft motor. Note that the range extends to 45 GPM, wider than the 5-25 GPM implied by the Franklin catalog heading. Franklin publishes model 4503FTB1S4-PE with the letters FTB where FBT is used elsewhere in the series; it is reproduced here exactly as published.
Before You OrderMatch the pump model on the nameplate and the motor frame you will mount it on. Send us the nameplate photo or the old part number and we will confirm the kit.
