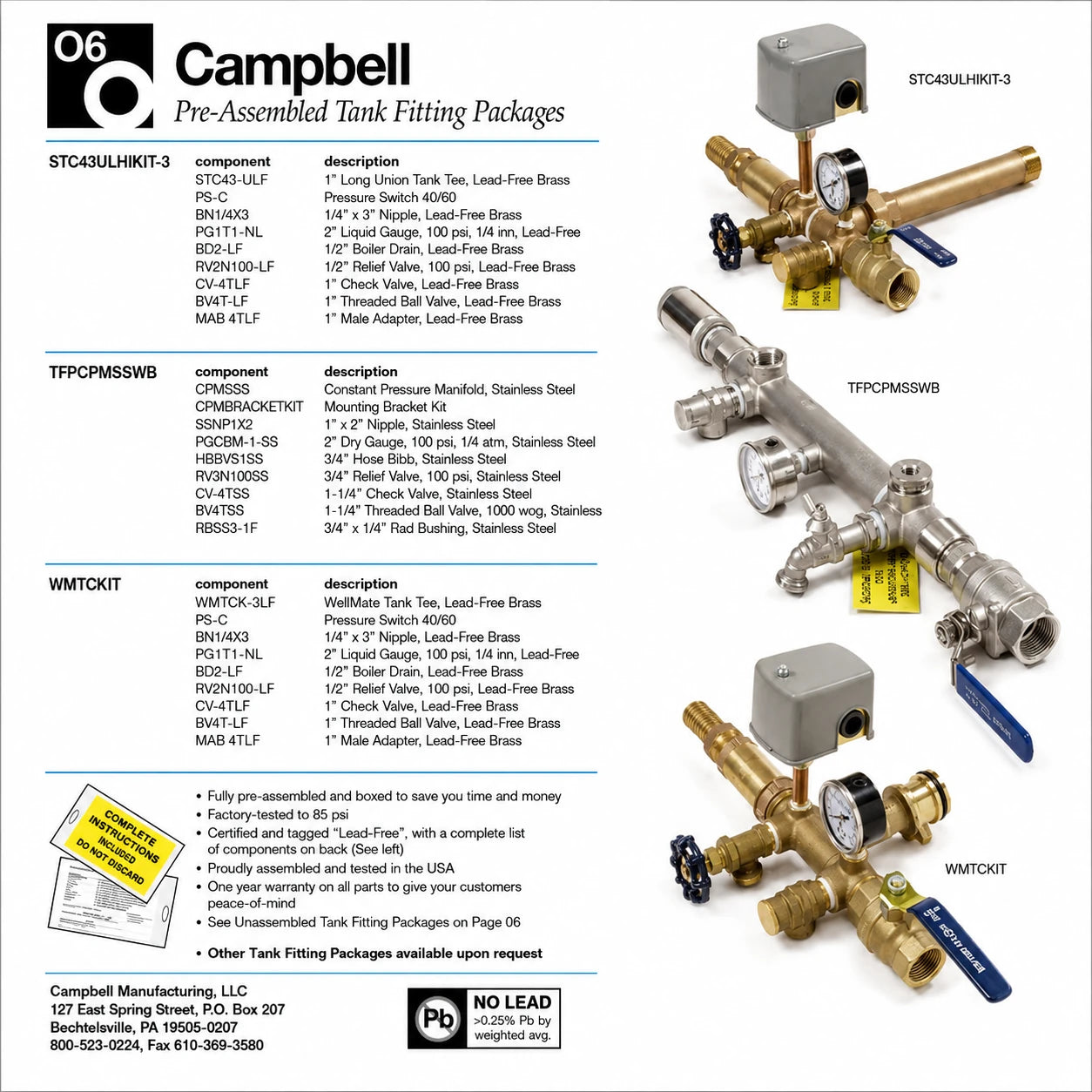

Campbell Pre-Assembled Tank Fitting Packages arrive fully built, pressure-tested, and ready to install — no bench assembly, no missing fittings, no leak-hunting. Each kit combines the tank tee or manifold, pressure switch, gauge, drain, relief valve, check valve, and isolation ball valve into one boxed, warranty-backed unit. Drop it on the tank and connect two lines.
| Kit | Size | Body / Tee | Material | Best For |
|---|---|---|---|---|
| 1 in Union Tee | 1 in | Union tank tee | LF brass | Full plumb-and-go with isolation ball valve |
| Constant-Pressure (CPM) | 1-1/4 in valves | CPM constant-pressure manifold | Stainless | Constant-pressure / VFD systems, corrosive water |
| WellMate Tank Tee | 1 in | WellMate tank tee | LF brass | WellMate pressure tanks |

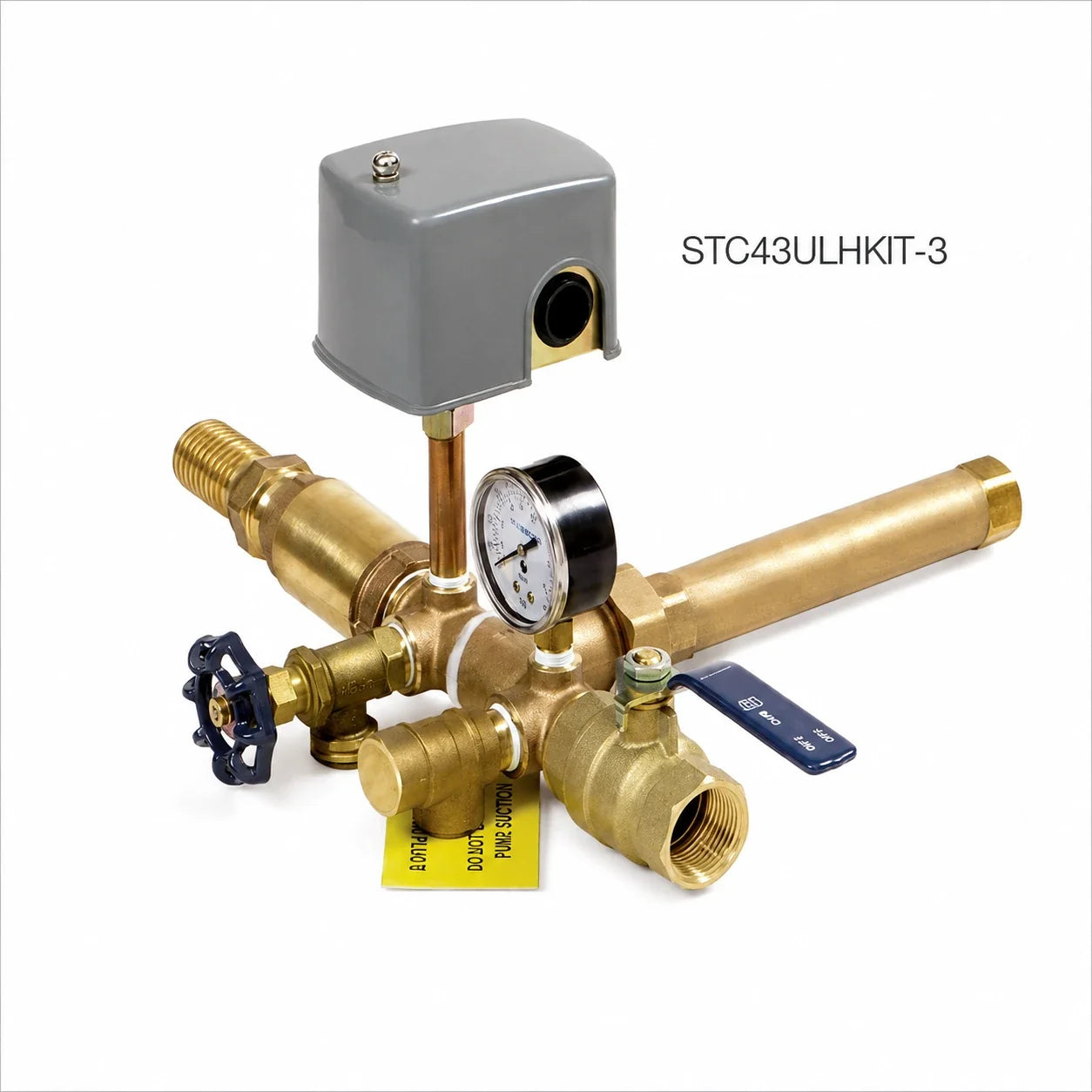

| 1 in Long Union Tank Tee | Lead-free brass |
| Pressure switch | 40/60 pre-set |
| 1/4 in x 3 in nipple | Lead-free brass |
| 2 in liquid-filled gauge | 100 psi, lead-free |
| 1/2 in boiler drain | Lead-free |
| 1/2 in relief valve | 100 psi, lead-free brass |
| 1 in check valve | Lead-free brass |
| 1 in threaded ball valve | Lead-free brass |
| 1 in male adapter | Lead-free brass |

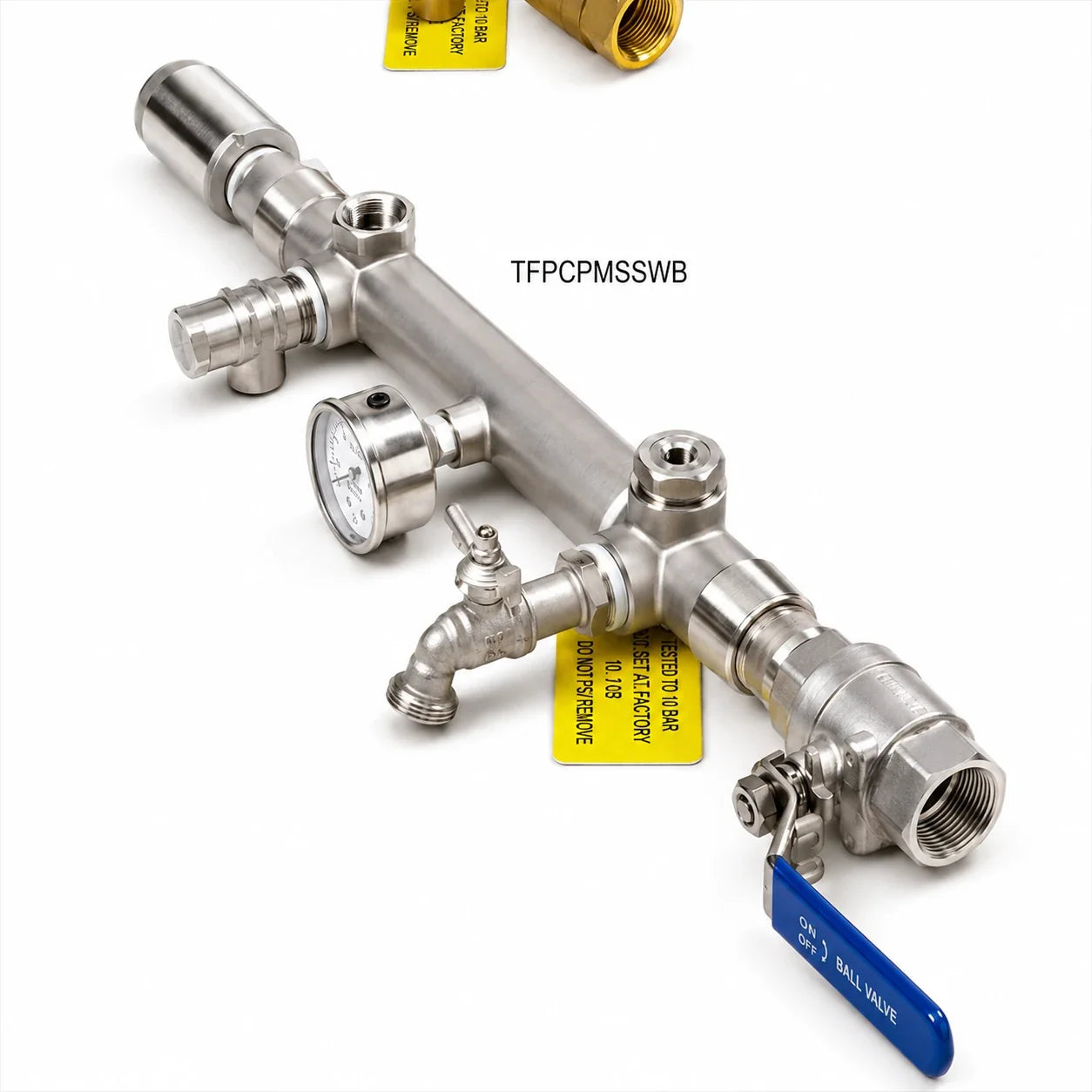

| Constant-pressure manifold (CPM5) | Stainless steel |
| Mounting bracket kit | Stainless |
| 1 in x 2 in nipple | Stainless steel |
| 2 in dry gauge | 100 psi, stainless |
| 3/4 in hose bibb | Stainless steel |
| 3/4 in relief valve | 100 psi, stainless |
| 1-1/4 in check valve | Stainless steel |
| 1-1/4 in threaded ball valve | 1000 WOG, stainless |
| 3/4 in x 1 in red bushing | Stainless steel |

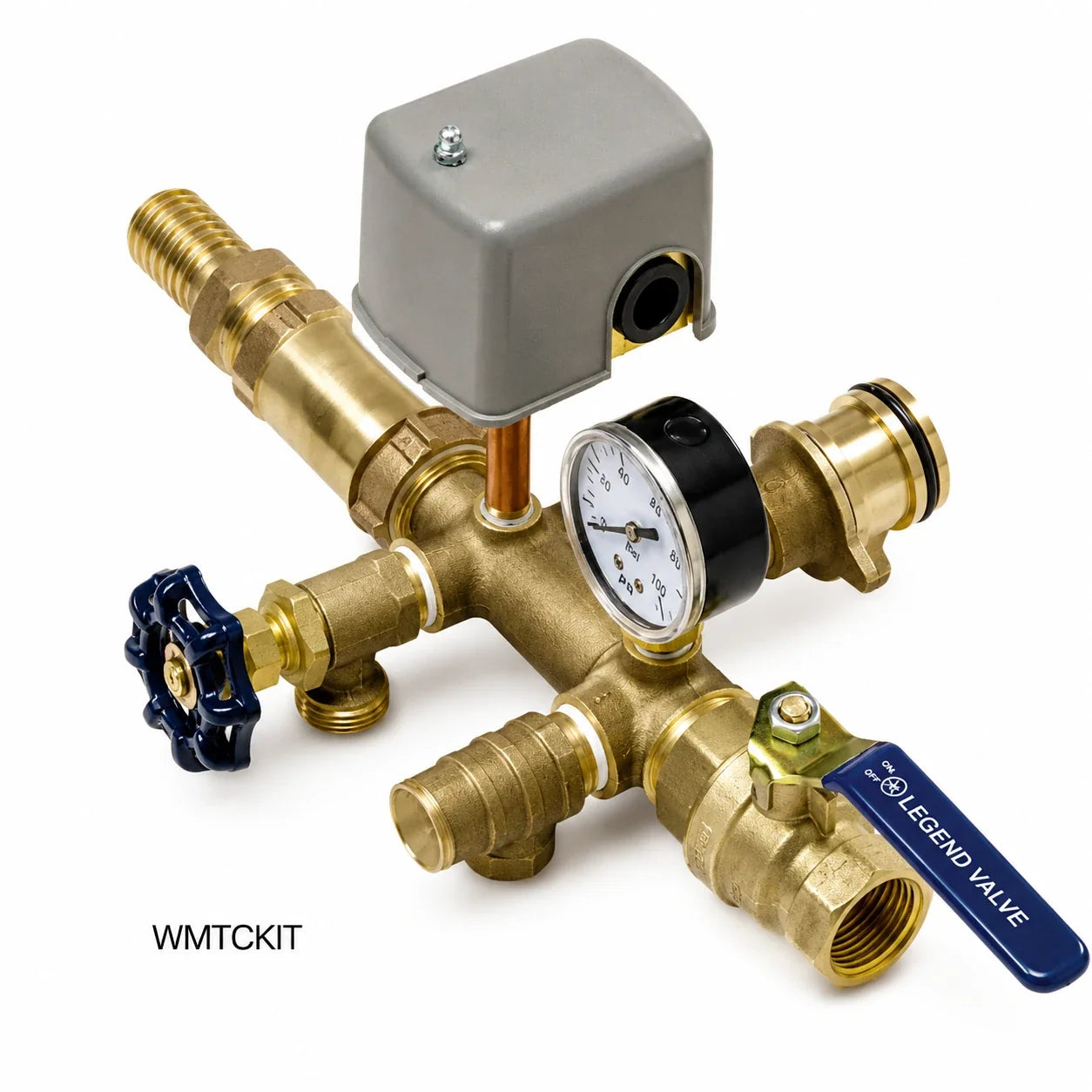

| WellMate tank tee | Lead-free brass |
| Pressure switch | 40/60 pre-set |
| 1/4 in x 3 in nipple | Lead-free brass |
| 2 in liquid-filled gauge | 100 psi, lead-free |
| 1/2 in boiler drain | Lead-free brass |
| 1/2 in relief valve | 100 psi, lead-free brass |
| 1 in check valve | Lead-free brass |
| 1 in threaded ball valve | Lead-free brass |
| 1 in male adapter | Lead-free brass |
Need help matching a kit to your tank and pump? Email sales@watermainsupply.com or call 281.664.8000. Prefer to build your own? See our unassembled Campbell tank fitting packages.
