JCM Industries · Full Repair Clamp

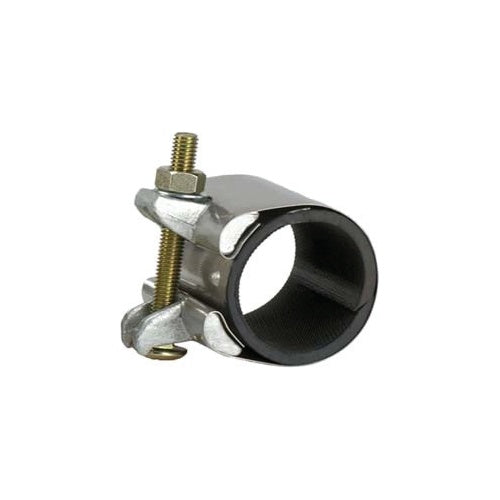

JCM 111 Full Repair Clamp
Full-circle armored Buna-N gasket · 304 stainless band · IPS and CTS sizes
-40°F to +180°F Temperature
Buna-N Full-Circle Gasket, SS Armor
304 Stainless Band
Ductile Iron Lug
Galvanized or Stainless Bolts, or All Stainless
IPS and CTS Sizes
0.84-2.38 in Pipe OD
0.7-2.7 lb Weight
Description
The JCM 111 full repair clamp is a fast, economical permanent repair for steel pipe with extensive corrosion, splits, punctures or pin holes. A heavy full-circumference Buna-N gasket with a hardened recessed armor gives extra sealing on heavily damaged pipe and pipe whose OD has been reduced by corrosion.
It comes with electro-galvanized steel bolts, stainless steel bolts, or as an all stainless steel clamp, in iron pipe (IPS) and copper tube (CTS) sizes from 1/2 to 2 in.
Typical application: Repair, temporary or permanent: breaks, pinholes, corroded areas, holes, longitudinal splits and cracks.
Key Features
- Full-circle Buna-N gasket with hardened recessed armor for heavily corroded pipe
- Seals pipe whose OD has been reduced by corrosion
- Three builds: galvanized bolts, stainless bolts or all stainless
- Iron pipe and copper tube sizes; one clamp often fits both

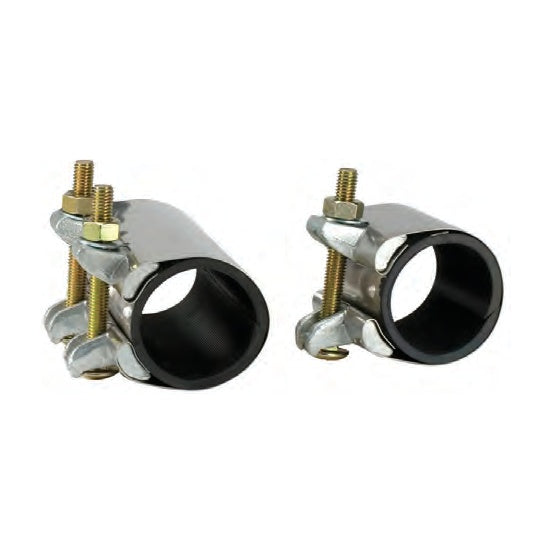

- 3 and 6 in widths
What Ships and What It Needs to Run
Included: the clamp with its full-circle armored Buna-N gasket, lug, and track-head bolt, nut and washer in the build selected.
Pipe anchorage, provided at install. The clamp seals the damage but does not restrain the pipe.
Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Warranty
Covered for 12 months from the date of purchase against defects in materials and workmanship. Keep the dated invoice as proof of purchase.
Working Pressure
Rated by application. JCM rates the pressure capability of this clamp for each installation: it depends on pipe size and type, the type and extent of the damage or joint condition, line content, temperature and installation. Send us the pipe OD and type and the working and test pressures, and we will obtain JCM's rating and a submittal for your application.
Materials Specifications
| Band |
18-8 Type 304 stainless steel |
| Lug |
Ductile iron, ASTM A536; CF8 stainless in the all stainless build |
| Gasket |
NBR (Buna-N) per ASTM D2000, full circumference, with molded stainless armor |
| Temperature |
-40°F to +180°F |
| Hardware |
Replaceable electro-galvanized steel track-head bolt, nut and washer; stainless steel in the SS and all stainless builds |
From the JCM 110 and 111 typical specifications.
Pipe Applications
Steel pipe (IPS) and copper tube (CTS).
Sizes
| Pipe size |
OD |
Widths |
| 1/2 in IPS |
0.84 in |
3 in, 6 in |
| 3/4 in CTS |
0.88 in |
3 in, 6 in |
| 3/4 in IPS |
1.05 in |
3 in, 6 in |
| 1 in CTS |
1.13 in |
3 in, 6 in |
| 1 in IPS |
1.32 in |
3 in, 6 in |
| 1-1/2 in CTS 1.63 or 1-1/4 in IPS 1.66 in OD |
|
3 in, 6 in |
| 1-1/2 in IPS |
1.90 in |
3 in, 6 in |
| 2 in IPS |
2.38 in |
3 in, 6 in |
IPS = iron pipe size; CTS = copper tube size. Where JCM lists one clamp number for both, one clamp fits both. Each size comes in all three builds.
Before You OrderChoose the build: galvanized bolts for general service, stainless bolts or all stainless for corrosive conditions.
Anchor the pipe: the clamp seals the full circumference but does not hold the pipe against lateral movement, so JCM calls for proper anchorage wherever the pipe could move out of the clamp.
For a submittal or an odd OD, email sales@watermainsupply.com with the pipe OD, pipe type and line content.
