JCM 143 Bell Joint Leak Clamp
Cast iron, ductile iron and C900 PVC bell joints · 4 to 36 in
NBR (Buna-N) Gasket, Large Sizes
Ductile Iron Split Rings, 4-12 in
Fabricated Steel, 14-36 in
Installs Under Pressure
For CI, DI and C900 PVC Bells
4 to 36 in
18-600 lb Weight
Description
The JCM 143 bell joint leak clamp repairs leaking bell and spigot joints on ductile iron, caulked-joint cast iron and C900 PVC pipe, and can be installed under pressure, as a repair or as low-cost insurance on older joints exposed during other work.

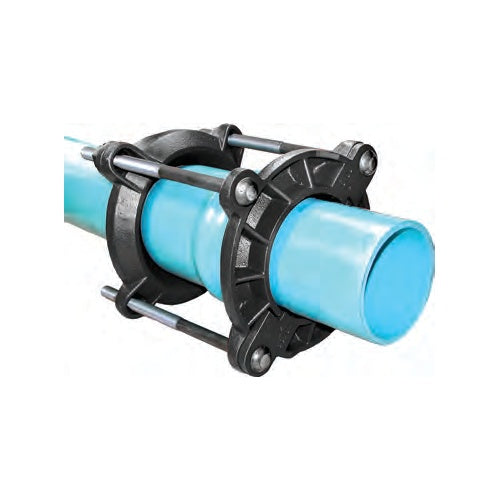

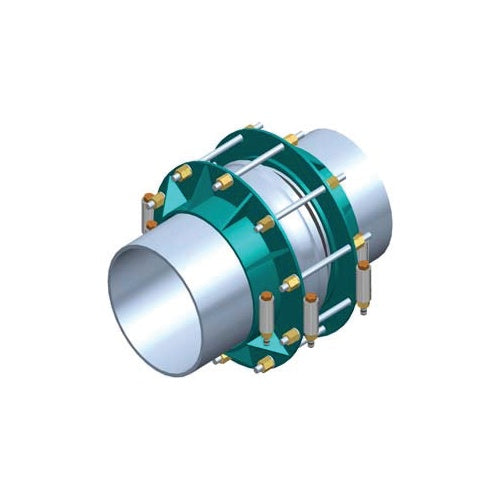

From 4 through 12 in it is a split, interlocking ductile iron ring design with a pre-cut gasket, complete for its nominal size with no special-order bolts or gaskets. From 14 through 36 in it is a fabricated steel, split bolt-on design whose sections compress the furnished gasket into the bell and spigot joint; these can be built for oversized, undersized or out-of-round pipe.
Typical application: Repair, temporary or permanent: leaking bell and spigot joints; especially recommended for large diameter pipe and high working pressures.
Key Features
- Split, interlocking rings give maximum gasket compression and need no field cutting
- Comes complete for cast iron, ductile iron and C900 PVC in its nominal size: no special-order bolts or gaskets
- Installs under pressure on a leaking joint
- Large sizes built to the measured bell and spigot ODs for an exact fit
- Suitable for water, air, chemical and other fluid lines (large sizes)
What Ships and What It Needs to Run
Included: the split clamp rings or fabricated sections with the gasket and bolting, complete for the nominal size.
Bell and spigot ODs, 14 in and larger. Large sizes are based on industry-standard pipe tolerances; send the measured bell and spigot ODs so JCM can confirm the fit.
Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Warranty
Covered for 12 months from the date of purchase against defects in materials and workmanship. Keep the dated invoice as proof of purchase.
Working Pressure
Rated by application. JCM rates the pressure capability of this clamp for each installation: it depends on pipe size and type, the type and extent of the damage or joint condition, line content, temperature and installation. Send us the pipe OD and type and the working and test pressures, and we will obtain JCM's rating and a submittal for your application.
Materials Specifications
| Body, 4-12 in |
Ductile iron split interlocking rings |
| Body rings, 14 in and larger |
ASTM A516 Grade 70, ASTM A36 or equal; 304 or 316 stainless optional |
| Bolts, 14 in and larger |
Corrosion-resistant high-strength low-alloy, ASTM A242, A193 B5 or B7; A193 B8 304 or 316 stainless optional |
| Gasket, 14 in and larger |
NBR (Buna-N) per ASTM D2000, pressure-activated hydromechanical design, bonded into a cavity |
| Temperature, 14 in and larger |
-40°F to +212°F |
| Finish, 14 in and larger |
Shop-coat primer, a base for bitumastic or coal tar field coatings; fusion epoxy optional |
Large-size materials from the JCM 143 fabricated bell joint leak clamp specification. Request the JCM data sheet for 4-12 in material detail.
Pipe Applications
Ductile iron, caulked-joint cast iron and C900 PVC bell and spigot joints.
Sizes
| Nominal |
Pipe OD |
Construction |
| 4 in |
4.80-5.00 in |
Ductile Iron Split Rings |
| 6 in |
6.90-7.10 in |
Ductile Iron Split Rings |
| 8 in |
9.05-9.30 in |
Ductile Iron Split Rings |
| 10 in |
11.10-11.40 in |
Ductile Iron Split Rings |
| 12 in |
13.20-13.50 in |
Ductile Iron Split Rings |
| 14 in |
15.30 in |
Fabricated Steel |
| 16 in |
17.40 in |
Fabricated Steel |
| 18 in |
19.50 in |
Fabricated Steel |
| 20 in |
21.60 in |
Fabricated Steel |
| 24 in |
25.80 in |
Fabricated Steel |
| 30 in |
32.00 in |
Fabricated Steel |
| 36 in |
38.30 in |
Fabricated Steel |
From the JCM 143 size table. Larger sizes and ranges are built to order.
Before You OrderFor 14 in and larger, send the measured bell and spigot outside diameters with the order.
Anchor the pipe: the clamp seals the full circumference but does not hold the pipe against lateral movement, so JCM calls for proper anchorage wherever the pipe could move out of the clamp.
For a submittal or an odd OD, email sales@watermainsupply.com with the pipe OD, pipe type and line content.
