JCM 106 Bell Joint Leak Clamp
IPS PVC bell, solvent weld and threaded coupling joints · 4 to 8 in
Interlocking Ductile Iron Body
SBR Gasket
Epoxy-Coated Low-Alloy Bolts
E-Coat Electrocoat Epoxy Finish
For IPS PVC Bell Joints
4 to 8 in
12-21 lb Weight
Description
The JCM 106 bell joint leak clamp repairs leaking rubber-joint IPS PVC bells (SDR 26 and SDR 21), PVC solvent weld joints and couplings, and many standard threaded steel couplings. It also serves as joint assurance on joints that have been excavated or disturbed.

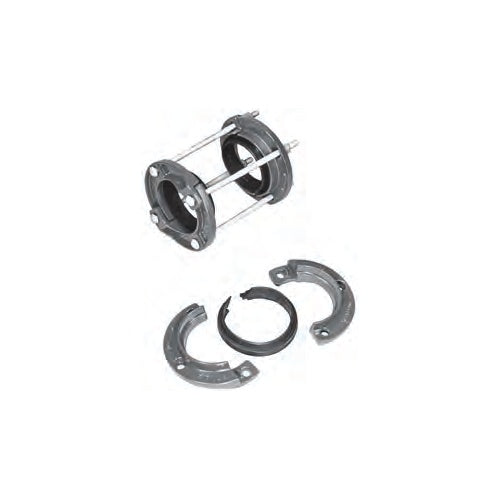

Interlocking ductile iron body segments carry a self-centering gasket at both ends, which avoids notching the PVC pipe.
Typical application: Repair, temporary or permanent: leaking bell and spigot joints and selected threaded joints.
Key Features
- Fits rubber-joint bells, solvent weld joints and standard threaded steel couplings
- Self-centering gaskets at both ends; no notching of PVC pipe
- Interlocking ductile iron segments for corrosion resistance and versatility
- Black electrocoat epoxy (E-Coat) finish standard on 4 through 8 in
- Certified to ANSI/NSF 61 and ANSI/NSF 372 (JCM 100 series)
What Ships and What It Needs to Run
Included: the interlocking clamp body segments with their gaskets and epoxy-coated low-alloy bolts and nuts.
Pipe anchorage, provided at install. The clamp seals the joint but does not restrain the pipe.
Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Warranty
Covered for 12 months from the date of purchase against defects in materials and workmanship. Keep the dated invoice as proof of purchase.
Working Pressure
Rated by application. JCM rates the pressure capability of this clamp for each installation: it depends on pipe size and type, the type and extent of the damage or joint condition, line content, temperature and installation. Send us the pipe OD and type and the working and test pressures, and we will obtain JCM's rating and a submittal for your application.
Materials Specifications
| Body |
Ductile iron, ASTM A536, interlocking segments |
| Bolts and nuts |
Epoxy-coated low-alloy steel |
| Gasket |
Virgin SBR, compounded for water, salt solutions, mild acids and bases |
| Temperature |
-40°F to +150°F constant; 180°F intermittent |
| Finish |
Black E-Coat electrocoat epoxy |
From the JCM 106 typical specification.
Pipe Applications
IPS PVC rubber-joint pipe (SDR 26 and SDR 21), PVC solvent weld joints and couplings, and standard threaded steel couplings.
Sizes and Dimensions
| Nominal |
Pipe OD |
Max bell OD |
Max lip OD |
Overall length |
Max std coupling length |
| 4 in |
4.50 in |
6.13 in |
5.43 in |
11-1/2 in |
7 in |
| 6 in |
6.63 in |
8.25 in |
7.56 in |
11-1/2 in |
7 in |
| 8 in |
8.63 in |
10.88 in |
9.56 in |
11-1/2 in |
7 in |
From the JCM 106 size table. Overall length changes when studs are used.
Before You OrderMeasure the bell OD and lip OD and check them against the maximums in the table before ordering.
Anchor the pipe: the clamp seals the full circumference but does not hold the pipe against lateral movement, so JCM calls for proper anchorage wherever the pipe could move out of the clamp.
For a submittal or an odd OD, email sales@watermainsupply.com with the pipe OD, pipe type and line content.
