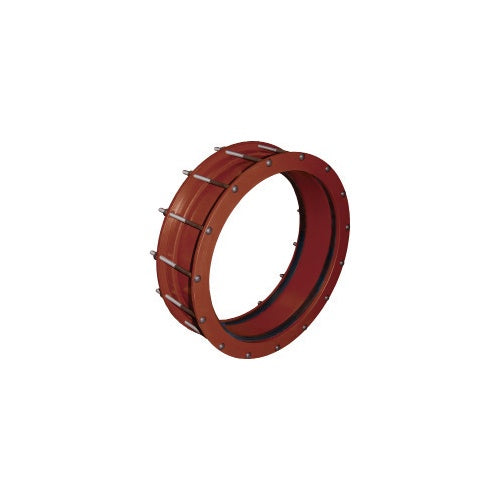

JCM 203 Steel Transition Coupling
Cast iron to ductile iron, same nominal size · 14 to 24 in
ASTM A36 Steel Middle Ring
0.38 x 7 in Sleeve
Joins Two ODs, Same Nominal
AWWA C219
14 to 24 in
104-175 lb Weight
Description
The JCM 203 steel transition coupling joins plain-end pipe of the same nominal size but different outside diameters, especially old cast iron pipe to ductile iron pipe.
A 7 in middle ring 0.38 in thick carries the transition between the two ODs, and the coupling meets or exceeds ANSI/AWWA C219. For smaller sizes, see the JCM 212 ductile iron transition coupling.
Typical application: Connection or repair: joins plain-end pipe, transitions between two ODs, installs a repair section.
Key Features
- Joins cast iron to ductile iron at the same nominal size
- Most common sizes listed; other sizes built to order
- No beveling, threading or exact pipe alignment needed; installs with a wrench
- Gaskets absorb vibration and pipe movement and let curves be laid with straight pipe
- Meets or exceeds ANSI/AWWA C219
What Ships and What It Needs to Run
Included: the middle ring, two followers, two gaskets, and the bolts and nuts.
Pipe anchorage, provided at install. The coupling joins but does not restrain the pipe.
Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Warranty
Covered for 12 months from the date of purchase against defects in materials and workmanship. Keep the dated invoice as proof of purchase.
Working Pressure
Rated by application. Built to ANSI/AWWA C219; send the two ODs, pipe types and pressures and we will obtain JCM's rating.
Materials Specifications
| Middle ring |
Steel, ASTM A36, 0.38 in x 7 in |
| Followers |
Steel, ASTM A36 |
| Bolts |
Corrosion-resistant high-strength low-alloy per AWWA C111 |
| Gaskets |
SBR per ASTM D2000; Buna-N and EPDM optional |
| Finish |
Shop-coat primer; fusion epoxy optional |
Middle ring from the JCM 203 table; other materials per the JCM steel coupling specification for 14 in and larger.
Pipe Applications
Cast iron to ductile iron, and other plain-end pipe of the same nominal size and different ODs.
Sizes
| Nominal |
From OD |
To OD |
| 14 in |
15.65 in |
15.30 in |
| 16 in |
17.80 in |
17.40 in |
| 18 in |
19.92 in |
19.50 in |
| 20 in |
22.06 in |
21.60 in |
| 24 in |
26.32 in |
25.80 in |
From the JCM 203 size table.
Before You OrderMeasure both pipe ODs before ordering.
Anchor the pipe: the coupling joins the pipe but does not restrain it, so JCM calls for proper anchorage wherever the pipe could move out of the coupling.
For a submittal or an odd OD, email sales@watermainsupply.com with the pipe OD, pipe type and line content.
