All Smith-Blair products are Made to Order and Non-Returnable

Items typically shipped in 5 - 10 business days

Product Features:

• Product Features
• A repair clamp designed to repair pinholes punctures or splits in a rigid pipe like Steel plastic or Copper tube.
• Application Works on Steel PVC HDPE and Copper tube.
• Built to a specific pipe O.D.
• Drop-in bolts help ease installation
• Standard widths are 3 6 9 and 12
• Available in IPS and Copper tube
• Provides 360 coverage covering the full pipe surface
• Use 6 long or longer clamps to join pipe ends of like size
• 18-8 Type 304 Stainless Steel band for corrosion resistance
• Economical means of repairing pinhole leaks punctures and splits in pipe

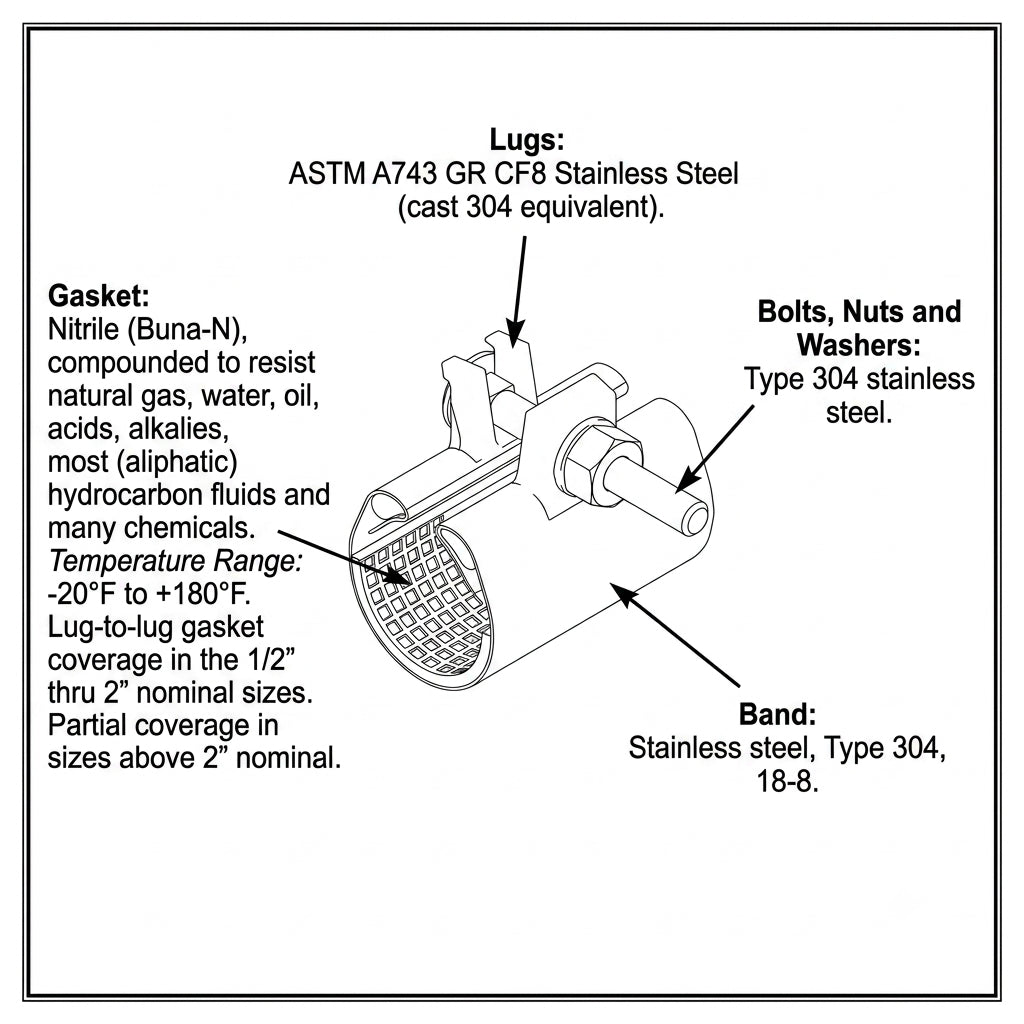

Materials:

• BAND Stainless Steel Type 304
• LUGS ASTM A743 GRFC8 Cast Stainless (304 equivalent)
• GASKET Nitrile (Buna N) compounded to produce resist oil natural gas acids alkalis most (aliphatic) hydrocarbon fluids water and many chemicals
• Temperature Range -20F to +180F
• NUTS/BOLTS 304 Stainless Steel with fluoropolymer coated nuts to prevent galling
• WORKING PRESSURE Up to 150 PSI
• Pipe Applications Steel PVC HDPE and Copper tube

Specifications:

• OD range: 0.84" to 4.50"
• All Stainless Steel - 304 SS lugs, band and hardware
• Standard widths: 3", 6", 9", 12"
• Gasket: Nitrile (Buna-N), -20°F to +180°F
• Working pressure: up to 150 PSI
• Fluoropolymer coated nuts to prevent galling
