Smith-Blair Style 264 Tapped Repair Clamp - SS Bolts, 3-8 in

All Smith-Blair products are Made to Order and Non-Returnable

Items typically shipped in 5 - 10 business days

Product Features:

• 3/4 NPT
• A single-band clamp designed to provide 360 pressure and complete leak repair Application For leaks at service outlets.
• Standard widths 7.5 through 30
• Can be used to repair pipe or join pipe ends
• Can be manufactured to odd size pipe O.D.'s
• All 304 Stainless Steel construction for corrosion resistance
• A 360 Gasket seal provides maximum support and reinforcement
• A wide variety of outlet sizes and thread types available to meet demand
• Keeper bar helps pull clamp around the pipe and closes the clamp during installation
• Range up to 40
• Larger clamps have a greater range to help reduce inventory

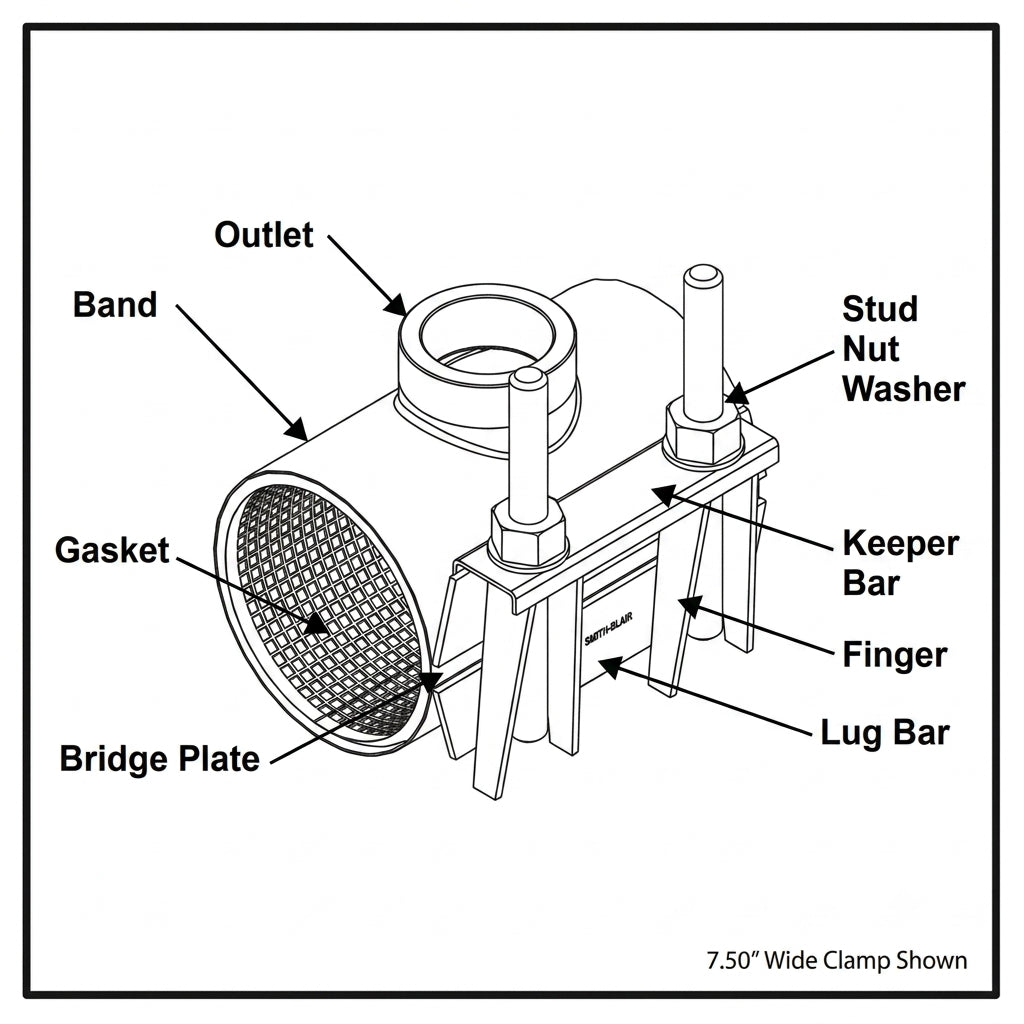

Materials:

• BAND 304 Stainless Steel
• LUGS 304 Stainless Steel
• KEEPER BARS 304 Stainless Steel
• GASKET Nitrile (Buna N) to produce superior storage and performance characteristics while resisting water acids alkalies most (aliphatic) hydrocarbon and other chemicals.
• Temperature Range -20 F to +180 F
• BRIDGE PLATE 304 Stainless Steel recessed flush and bonded to the gasket.
• STUD BOLTS 304 Stainless Steel Epoxy coated NUTS fluoropolymer coated to prevent galling
• Working Pressure Up to 150 PSI
• Pipe Applications Cast & Ductile Iron Asbestos Cement PVC HDPE* Steel Copper Fiberglass and other types of pipes.
• NOTE OTHER TAP SIZES (3/4 CC 1 NPT 1 CC 1.25 NPT 1.25 CC 1.5 NPT 1.5 CC 2 NPT 2 CC) ARE ALSO AVAILABLE. CALL OUR NUMBER TO PURCHASE THESE SIZES.

Specifications:

• Nominal sizes: 4" through 12"
• All Stainless Steel - Tapped Single Band
• Outlet: 304 Stainless Steel, NPT/CC/AWWA threads
• Gasket: Nitrile (Buna-N), -20°F to +180°F
• Working pressure: up to 300 PSI
