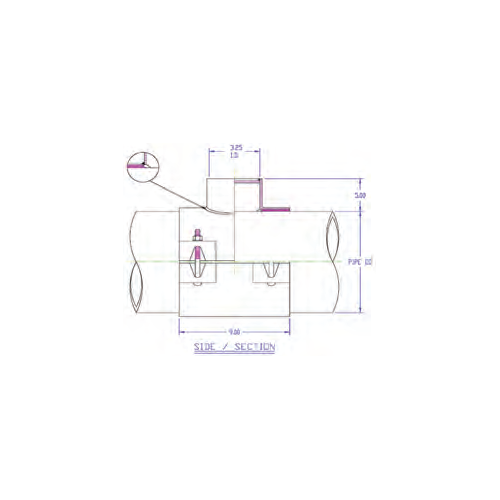

JCM 159 Cap Sleeve for Abandoned Corporation Stops - parts callout drawing
JCM 159 Cap Sleeve for Abandoned Corporation Stops - product photo
JCM 159 Cap Sleeve for Abandoned Corporation Stops - parts callout drawing

JCM 159 Cap Sleeve for Abandoned Corporation Stops

Nominal Size - OD Range: 4 in - 4.74-5.00 in OD
Cap Size: 3 in Cap, 5 in High
Type - Part No.: T1 Stainless, Full Gasket - 159-0480X3T1

Product variant with selected options does not exist!
$1,624.63
SKU: 159-0480X3T1
Weight : 35.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
JCM Industries · Cap Sleeve
JCM 159 Cap Sleeve for Abandoned Corporation Services
250 PSI · 3 and 6 in caps · 4.74-14.56 in pipe OD
250 PSI Working Pressure
3/4 in Test Port on Cap
Seals 3/4 to 2 in Services
T1 and T3 All 304 Stainless
T2 Carbon Steel
4.74-14.56 in Pipe OD
30-120 lb Weight
Description

The JCM 159 cap sleeve goes over an abandoned corporation stop and permanently seals the service area, giving a long-term watertight seal and preventing infiltration at the discarded service. Standard fittings seal over 3/4 through 2 in direct service connections.

Choose the cap size to clear the corporation stop (3 in cap, 5 in high, or 6 in cap, 8 in high), then the type: T1 all 304 stainless with a full circumferential gasket; T2 carbon steel with shop-coat primer, low-alloy bolts and an outlet seal gasket; T3 all 304 stainless with an outlet seal gasket.

Typical application: Permanently sealing abandoned corporation stops and service connections.

Key Features

  • Rated for 250 PSI working pressure
  • 3/4 in test port on the cap confirms a watertight seal after installation
  • Three constructions: all stainless full gasket, carbon steel, or all stainless outlet gasket
  • Ranges can be modified for unique or exotic pipe diameters
  • EPDM gasket available
What Ships and What It Needs to Run

Included: the sleeve with its cap, gasket (full circumferential on T1, outlet seal on T2 and T3), 3/4 in test port and bolting.

Corporation stop dimensions, before ordering. Confirm the height and width of the abandoned corporation stop so the cap clears it.

Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Warranty

Covered for 12 months from the date of purchase against defects in materials and workmanship. Keep the dated invoice as proof of purchase.

Working Pressure

250 PSI working pressure; 300 PSI hydrostatic test. JCM rates the 159 cap sleeve for 250 PSI working pressure; higher pressures are available from JCM on request.

Materials Specifications
T1 All 18-8 Type 304 stainless steel, full circumferential gasket; 316 optional
T2 Carbon steel, shop-coat primer, high-strength low-alloy bolts (ASTM A242, ANSI A21.11, AWWA C111); stainless or electro-coated bolts and fusion epoxy optional
T3 All 18-8 Type 304 stainless steel, outlet seal gasket; 316 optional
Gasket, T1 Virgin SBR per ASTM D2000 M4AA 607, -40°F to +150°F constant, 180°F intermittent; EPDM optional
Gasket, T2 and T3 NBR (Buna-N) per ASTM D2000, pressure-activated hydromechanical design, -40°F to +212°F; EPDM optional

From the JCM 159 specification.

Pipe Applications

Cast iron, ductile iron, C900 PVC, steel and other pipe within the listed ODs.

Sizes

54 builds from 4.74 to 14.56 in pipe OD. Open the table for every range, cap and type.

All 54 sizes
Nominal Pipe OD range Cap Type Sleeve width
4 in 4.74-5.00 in 3 in cap, 3.25 in ID x 5 in high T1 Stainless, Full Gasket 15 in
4 in 4.80 in 3 in cap, 3.07 in ID x 5 in high T2 Carbon Steel 9 in
4 in 4.80 in 3 in cap, 3.25 in ID x 5 in high T3 Stainless, Outlet Gasket 9 in
6 in 6.83-7.16 in 3 in cap, 3.25 in ID x 5 in high T1 Stainless, Full Gasket 15 in
6 in 6.83-7.16 in 3 in cap, 3.07 in ID x 5 in high T2 Carbon Steel 12 in
6 in 6.83-7.16 in 3 in cap, 3.25 in ID x 5 in high T3 Stainless, Outlet Gasket 9 in
6 in 6.83-7.16 in 6 in cap, 6.36 in ID x 8 in high T1 Stainless, Full Gasket 15 in
6 in 6.83-7.16 in 6 in cap, 6.13 in ID x 8 in high T2 Carbon Steel 12 in
6 in 6.83-7.16 in 6 in cap, 6.36 in ID x 8 in high T3 Stainless, Outlet Gasket 12 in
6 in 7.05-7.40 in 3 in cap, 3.25 in ID x 5 in high T1 Stainless, Full Gasket 15 in
6 in 7.05-7.40 in 3 in cap, 3.07 in ID x 5 in high T2 Carbon Steel 12 in
6 in 7.05-7.40 in 3 in cap, 3.25 in ID x 5 in high T3 Stainless, Outlet Gasket 9 in
6 in 7.05-7.40 in 6 in cap, 6.36 in ID x 8 in high T1 Stainless, Full Gasket 15 in
6 in 7.05-7.40 in 6 in cap, 6.13 in ID x 8 in high T2 Carbon Steel 12 in
6 in 7.05-7.40 in 6 in cap, 6.36 in ID x 8 in high T3 Stainless, Outlet Gasket 12 in
8 in 8.98-9.37 in 3 in cap, 3.25 in ID x 5 in high T1 Stainless, Full Gasket 15 in
8 in 8.98-9.37 in 3 in cap, 3.07 in ID x 5 in high T2 Carbon Steel 12 in
8 in 8.98-9.37 in 3 in cap, 3.25 in ID x 5 in high T3 Stainless, Outlet Gasket 9 in
8 in 8.98-9.37 in 6 in cap, 6.36 in ID x 8 in high T1 Stainless, Full Gasket 15 in
8 in 8.98-9.37 in 6 in cap, 6.13 in ID x 8 in high T2 Carbon Steel 12 in
8 in 8.98-9.37 in 6 in cap, 6.36 in ID x 8 in high T3 Stainless, Outlet Gasket 12 in
8 in 9.27-9.69 in 3 in cap, 3.25 in ID x 5 in high T1 Stainless, Full Gasket 15 in
8 in 9.27-9.69 in 3 in cap, 3.07 in ID x 5 in high T2 Carbon Steel 12 in
8 in 9.27-9.69 in 3 in cap, 3.25 in ID x 5 in high T3 Stainless, Outlet Gasket 9 in
8 in 9.27-9.69 in 6 in cap, 6.36 in ID x 8 in high T1 Stainless, Full Gasket 15 in
8 in 9.27-9.69 in 6 in cap, 6.13 in ID x 8 in high T2 Carbon Steel 12 in
8 in 9.27-9.69 in 6 in cap, 6.36 in ID x 8 in high T3 Stainless, Outlet Gasket 12 in
10 in 11.00-11.40 in 3 in cap, 3.25 in ID x 5 in high T1 Stainless, Full Gasket 15 in
10 in 11.00-11.40 in 6 in cap, 6.36 in ID x 8 in high T1 Stainless, Full Gasket 15 in
10 in 11.03-11.47 in 3 in cap, 3.07 in ID x 5 in high T2 Carbon Steel 12 in
10 in 11.03-11.47 in 3 in cap, 3.25 in ID x 5 in high T3 Stainless, Outlet Gasket 9 in
10 in 11.03-11.47 in 6 in cap, 6.13 in ID x 8 in high T2 Carbon Steel 12 in
10 in 11.03-11.47 in 6 in cap, 6.36 in ID x 8 in high T3 Stainless, Outlet Gasket 12 in
10 in 11.36-11.80 in 3 in cap, 3.25 in ID x 5 in high T1 Stainless, Full Gasket 15 in
10 in 11.36-11.80 in 3 in cap, 3.07 in ID x 5 in high T2 Carbon Steel 12 in
10 in 11.36-11.80 in 3 in cap, 3.25 in ID x 5 in high T3 Stainless, Outlet Gasket 9 in
10 in 11.36-11.80 in 6 in cap, 6.36 in ID x 8 in high T1 Stainless, Full Gasket 15 in
10 in 11.36-11.80 in 6 in cap, 6.13 in ID x 8 in high T2 Carbon Steel 12 in
10 in 11.36-11.80 in 6 in cap, 6.36 in ID x 8 in high T3 Stainless, Outlet Gasket 12 in
12 in 13.10-13.50 in 3 in cap, 3.25 in ID x 5 in high T1 Stainless, Full Gasket 15 in
12 in 13.10-13.50 in 6 in cap, 6.36 in ID x 8 in high T1 Stainless, Full Gasket 15 in
12 in 13.13-13.60 in 3 in cap, 3.07 in ID x 5 in high T2 Carbon Steel 12 in
12 in 13.13-13.60 in 3 in cap, 3.25 in ID x 5 in high T3 Stainless, Outlet Gasket 9 in
12 in 13.13-13.60 in 6 in cap, 6.13 in ID x 8 in high T2 Carbon Steel 12 in
12 in 13.13-13.60 in 6 in cap, 6.36 in ID x 8 in high T3 Stainless, Outlet Gasket 12 in
12 in 13.60-14.09 in 3 in cap, 3.07 in ID x 5 in high T2 Carbon Steel 12 in
12 in 13.60-14.09 in 3 in cap, 3.25 in ID x 5 in high T3 Stainless, Outlet Gasket 9 in
12 in 13.70-14.09 in 3 in cap, 3.25 in ID x 5 in high T1 Stainless, Full Gasket 15 in
12 in 14.08-14.40 in 3 in cap, 3.25 in ID x 5 in high T1 Stainless, Full Gasket 15 in
12 in 14.08-14.56 in 3 in cap, 3.07 in ID x 5 in high T2 Carbon Steel 12 in
12 in 14.08-14.56 in 3 in cap, 3.25 in ID x 5 in high T3 Stainless, Outlet Gasket 9 in
12 in 14.08-14.40 in 6 in cap, 6.36 in ID x 8 in high T1 Stainless, Full Gasket 15 in
12 in 14.08-14.56 in 6 in cap, 6.13 in ID x 8 in high T2 Carbon Steel 12 in
12 in 14.08-14.56 in 6 in cap, 6.36 in ID x 8 in high T3 Stainless, Outlet Gasket 12 in

From the JCM 159 size tables.

Before You OrderFittings are non-returnable (JCM). Confirm the corporation stop dimensions to select the cap size and height.
For a submittal or an odd OD, email sales@watermainsupply.com with the pipe OD, pipe type and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
