JCM 110 Patch Clamp
Partial patch gasket · 304 stainless band · IPS and CTS sizes
150 PSI Water, 100 PSI Gas
-40°F to +180°F Temperature
Buna-N Patch Gasket
304 Stainless Band
Ductile Iron Lug
Galvanized or Stainless Bolts, or All Stainless
IPS and CTS Sizes
0.63-12.75 in Pipe OD
0.6-14.8 lb Weight
Description

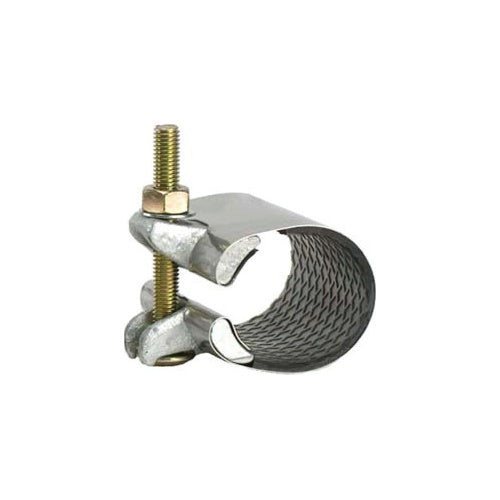

The JCM 110 patch clamp is a fast, economical repair for pinholes, punctures, splits and corroded areas on steel and PVC pipe. A partial gasket forms a patch that goes directly over the damage, and the stainless band conforms to the pipe so bolt torque goes straight into the gasket.
It comes with electro-galvanized steel bolts, stainless steel bolts, or as an all stainless steel clamp, in IPS sizes from 1/2 to 12 in and copper tube (CTS) sizes from 1/2 to 2 in. For larger sizes, see the JCM 112 and 113 heavy duty patch clamps.
Typical application: Repair, temporary or permanent: pinholes, corroded areas, holes, longitudinal splits and cracks.
Key Features
- Partial gasket patch placed directly over the damage
- Buna-N gasket for water, natural gas, oil, mild acids, bases and sewage
- Three builds: galvanized bolts, stainless bolts or all stainless
- Iron pipe and copper tube sizes; one clamp often fits both

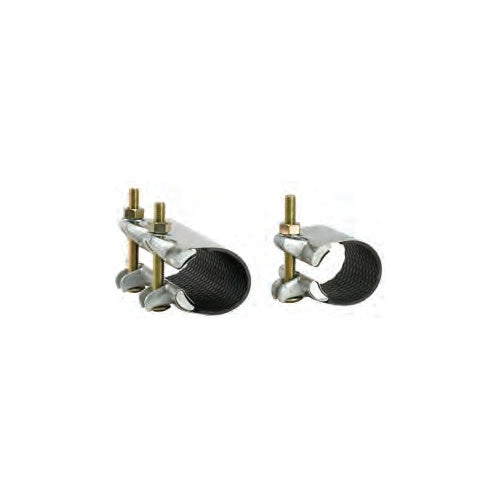

- 3 and 6 in widths; 9 and 12 in on 2 in and larger
What Ships and What It Needs to Run
Included: the clamp with its Buna-N patch gasket, lug, and track-head bolt, nut and washer in the build selected.
Pipe anchorage, provided at install. The clamp seals the damage but does not restrain the pipe.
Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Warranty
Covered for 12 months from the date of purchase against defects in materials and workmanship. Keep the dated invoice as proof of purchase.
Working Pressure
150 PSI water; 100 PSI gas. JCM's installation instructions recommend the 110 patch clamp for water service to 150 PSI and gas service to 100 PSI. Allowable pressure also depends on the pipe, the damage and installation.
Materials Specifications
| Band |
18-8 Type 304 stainless steel |
| Lug |
Ductile iron, ASTM A536; CF8 stainless in the all stainless build |
| Gasket |
NBR (Buna-N) per ASTM D2000, partial patch gasket; for natural gas, oil, mild acids, bases, water and sewage; Viton, EPDM and Hypalon available |
| Temperature |
-40°F to +180°F |
| Hardware |
Replaceable electro-galvanized steel track-head bolt, nut and washer; stainless steel in the SS and all stainless builds |
From the JCM 110 and 111 typical specifications.
Pipe Applications
Steel and PVC pipe in iron pipe sizes, and copper tube sizes.
Sizes
16 pipe sizes. Open the table for every size and width.
All 16 sizes
| Pipe size |
OD |
Widths |
| 1/2 in CTS |
0.63 in |
3 in, 6 in |
| 1/2 in IPS 0.84 or 3/4 in CTS 0.88 in OD |
|
3 in, 6 in |
| 3/4 in IPS 1.05 or 1 in CTS 1.13 in OD |
|
3 in, 6 in |
| 1 in IPS 1.32 or 1-1/4 in CTS 1.38 in OD |
|
3 in, 6 in |
| 1-1/2 in CTS 1.63 or 1-1/4 in IPS 1.66 in OD |
|
3 in, 6 in |
| 1-1/2 in IPS |
1.90 in |
3 in, 6 in |
| 2 in CTS |
2.13 in |
3 in, 6 in |
| 2 in IPS |
2.38 in |
3 in, 6 in, 9 in, 12 in |
| 2-1/2 in IPS |
2.88 in |
3 in, 6 in, 9 in, 12 in |
| 3 in IPS |
3.50 in |
3 in, 6 in, 9 in, 12 in |
| 4 in IPS |
4.50 in |
3 in, 6 in, 9 in, 12 in |
| 5 in IPS |
5.56 in |
3 in, 6 in, 9 in, 12 in |
| 6 in IPS |
6.63 in |
3 in, 6 in, 9 in, 12 in |
| 8 in IPS |
8.63 in |
3 in, 6 in, 9 in, 12 in |
| 10 in IPS |
10.75 in |
3 in, 6 in, 9 in, 12 in |
| 12 in IPS |
12.75 in |
3 in, 6 in, 9 in, 12 in |
IPS = iron pipe size; CTS = copper tube size. Where JCM lists one clamp number for both, one clamp fits both. Each size comes in all three builds.
Before You OrderChoose the build: galvanized bolts for general service, stainless bolts or all stainless for corrosive conditions.
Anchor the pipe: the clamp seals the full circumference but does not hold the pipe against lateral movement, so JCM calls for proper anchorage wherever the pipe could move out of the clamp.
For a submittal or an odd OD, email sales@watermainsupply.com with the pipe OD, pipe type and line content.
