JCM 262 Fabricated Stainless Steel Coupling
304 stainless middle ring · coated followers · 4.00-14.40 in pipe OD
150 PSI Working Pressure
304 Stainless Middle Ring
Fusion Plastic Coated Steel Followers
E-Coat Low-Alloy Bolts
SBR Gaskets
AWWA C219 (JCM Test Procedure)
4.00-14.40 in Pipe OD
18-44 lb Weight
Description

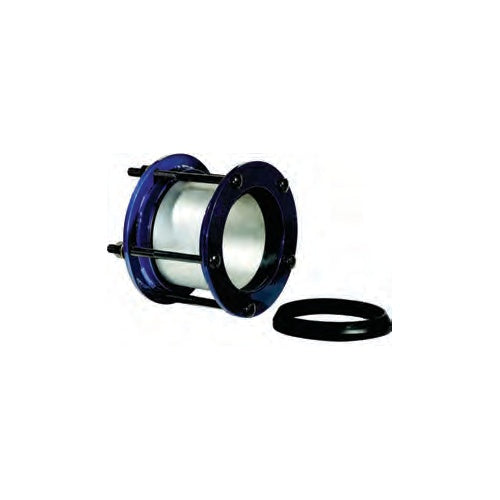

The JCM 262 fabricated stainless steel coupling joins two plain-end pipes with a Type 304 stainless middle ring, carbon steel end rings with a resilient fusion plastic coating, and electrocoated alloy hardware, for the harshest soils, corrosive line contents, or both.
Straight builds join the same OD; reducing builds use the JCM G212 transition gaskets to join different ODs of the same nominal size. Oversized builds fit old cast iron, larger classes of A/C and other oversized pipe.
Typical application: Connection or repair in corrosive soils or line contents; transitions and oversized pipe.
Key Features
- 304 stainless middle ring with fusion plastic coated end rings
- Straight, transition and oversized builds
- Uses the JCM G212 transition gasket system
- Pneumatically tested to 25 PSI minimum; built to the JCM test procedure for ANSI/AWWA C219
- EPDM gaskets, all 304 (4262) and all 316 (6262) versions on request
What Ships and What It Needs to Run
Included: the stainless middle ring, two coated followers, two gaskets, and the electrocoated bolts and nuts.
Pipe anchorage, provided at install. The coupling joins but does not restrain the pipe.
Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Warranty
Covered for 12 months from the date of purchase against defects in materials and workmanship. Keep the dated invoice as proof of purchase.
Working Pressure
150 PSI working pressure. JCM rates the 262 for 150 PSI working pressure when installed per its instructions; higher pressures are available from JCM. Inspection of pipe integrity is the installer's responsibility.
Materials Specifications
| Followers |
Steel, ASTM A36 or A516 Gr 70 or equal; ductile iron ASTM A536 optional |
| Middle ring |
Type 304 stainless steel, ASTM A240 |
| Follower coating |
Fusion-bonded high-density blue plastic, 12 mils minimum, dielectric strength over 12,000 volts, water absorption under 0.20% |
| Gasket |
SBR per ASTM D2000, -40°F to +150°F constant, 180°F intermittent; EPDM optional (add M) |
| Hardware |
Powercron 590-534 black cationic electrocoat, 5/8 in high-strength low-alloy oval-neck track bolts (ASTM A242, AWWA C111) and A563 heavy hex nuts; 304 or 316 stainless optional |
From the JCM 262 material specification.
Pipe Applications
Cast iron, ductile iron, C900 PVC, IPS PVC, steel, A/C and oversized pipe.
Sizes
46 builds. Open the table for every build.
All 46 sizes
| Nominal |
End 1 OD |
End 2 |
Sleeve |
| 4 in |
4.50 in |
Same Both Ends |
Standard |
| 4 in |
4.50 in |
To 4.22 in |
Standard |
| 4 in |
4.50 in |
To 4.00 in |
Standard |
| 4 in |
4.80-5.10 in |
Same Both Ends |
Standard |
| 4 in |
4.80-5.10 in |
To 4.50 in |
Standard |
| 4 in |
4.80-5.10 in |
To 4.22 in |
Standard |
| 4 in |
4.80-5.10 in |
To 4.00 in |
Standard |
| 4 in |
5.10-5.40 in |
Same Both Ends |
Oversized |
| 4 in |
5.10-5.40 in |
To 4.80 in |
Oversized |
| 4 in |
5.10-5.40 in |
To 4.50 in |
Oversized |
| 6 in |
6.63 in |
Same Both Ends |
Standard |
| 6 in |
6.63 in |
To 6.30 in |
Standard |
| 6 in |
6.63 in |
To 6.00 in |
Standard |
| 6 in |
6.90-7.20 in |
Same Both Ends |
Standard |
| 6 in |
6.90-7.20 in |
To 6.63 in |
Standard |
| 6 in |
6.90-7.20 in |
To 6.30 in |
Standard |
| 6 in |
6.90-7.20 in |
To 6.00 in |
Standard |
| 6 in |
7.20-7.55 in |
Same Both Ends |
Oversized |
| 6 in |
7.20-7.55 in |
To 6.90 in |
Oversized |
| 6 in |
7.20-7.55 in |
To 6.63 in |
Oversized |
| 8 in |
8.63 in |
Same Both Ends |
Standard |
| 8 in |
8.63 in |
To 8.40 in |
Standard |
| 8 in |
8.63 in |
To 8.00 in |
Standard |
| 8 in |
9.05-9.40 in |
Same Both Ends |
Standard |
| 8 in |
9.05-9.40 in |
To 8.63 in |
Standard |
| 8 in |
9.05-9.40 in |
To 8.40 in |
Standard |
| 8 in |
9.05-9.40 in |
To 8.00 in |
Standard |
| 8 in |
9.40-9.75 in |
Same Both Ends |
Oversized |
| 8 in |
9.40-9.75 in |
To 9.05 in |
Oversized |
| 8 in |
9.40-9.75 in |
To 8.63 in |
Oversized |
| 10 in |
10.75 in |
Same Both Ends |
Standard |
| 10 in |
10.75 in |
To 10.50 in |
Standard |
| 10 in |
11.10-11.40 in |
Same Both Ends |
Standard |
| 10 in |
11.10-11.40 in |
To 10.75 in |
Standard |
| 10 in |
11.10-11.40 in |
To 10.50 in |
Standard |
| 10 in |
11.60-12.05 in |
Same Both Ends |
Oversized |
| 10 in |
11.60-12.05 in |
To 11.10 in |
Oversized |
| 10 in |
11.60-12.05 in |
To 10.75 in |
Oversized |
| 12 in |
12.75 in |
Same Both Ends |
Standard |
| 12 in |
12.75 in |
To 12.50 in |
Standard |
| 12 in |
13.20-13.50 in |
Same Both Ends |
Standard |
| 12 in |
13.20-13.50 in |
To 12.75 in |
Standard |
| 12 in |
13.20-13.50 in |
To 12.50 in |
Standard |
| 12 in |
13.92-14.40 in |
Same Both Ends |
Oversized |
| 12 in |
13.92-14.40 in |
To 13.20 in |
Oversized |
| 12 in |
13.92-14.40 in |
To 12.75 in |
Oversized |
From the JCM price list.
Before You OrderJCM notes that a purchase order for the 262 accepts its test procedure for ANSI/AWWA C219 (25 PSI pneumatic test); certification testing is available at extra charge.
Anchor the pipe: the coupling joins the pipe but does not restrain it, so JCM calls for proper anchorage wherever the pipe could move out of the coupling.
For a submittal or an odd OD, email sales@watermainsupply.com with the pipe OD, pipe type and line content.
