Included: the Pumptec-Plus unit in its enclosure with the motor contactor (Baker part 6617-143, Franklin Electric 5800060100).

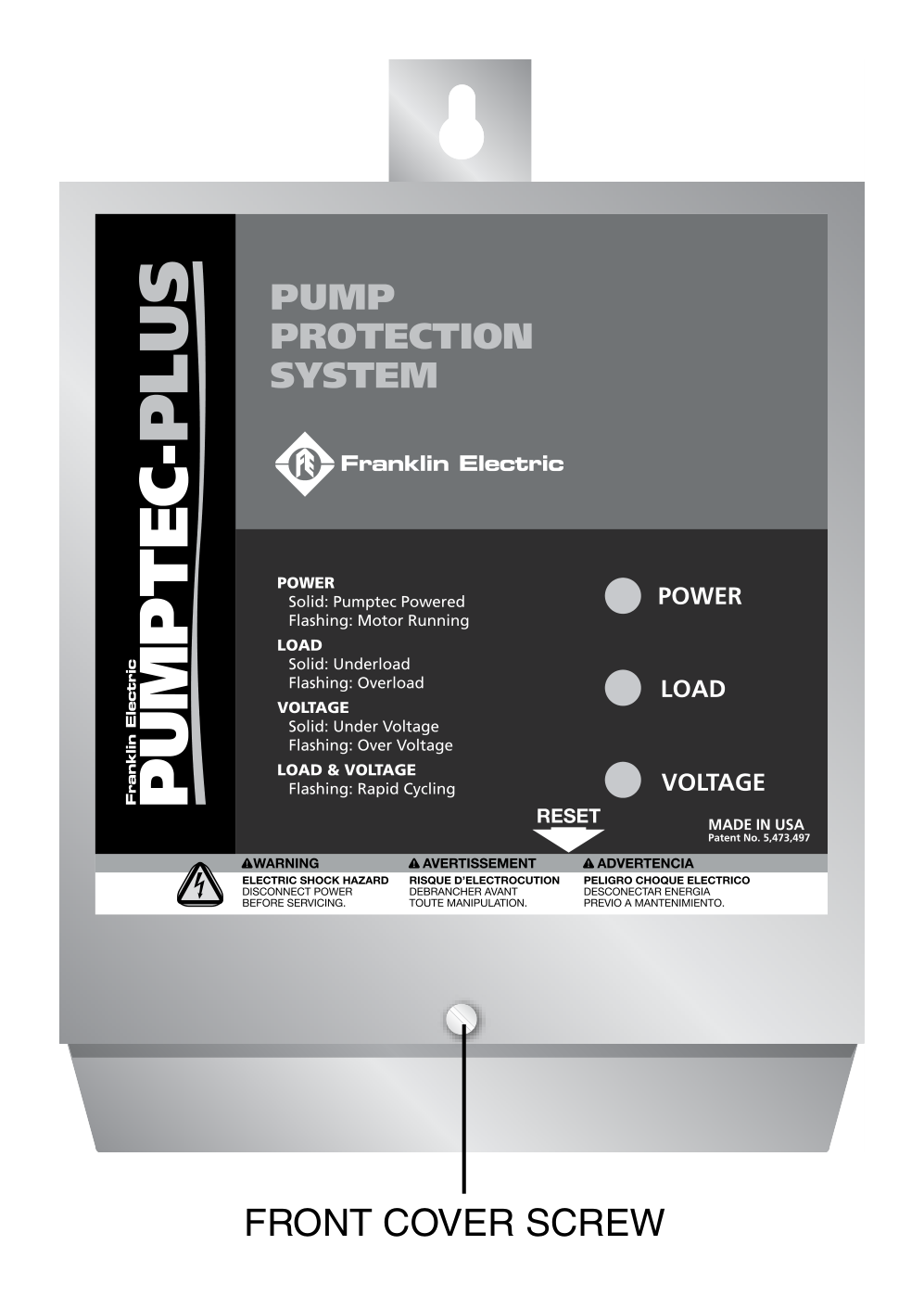

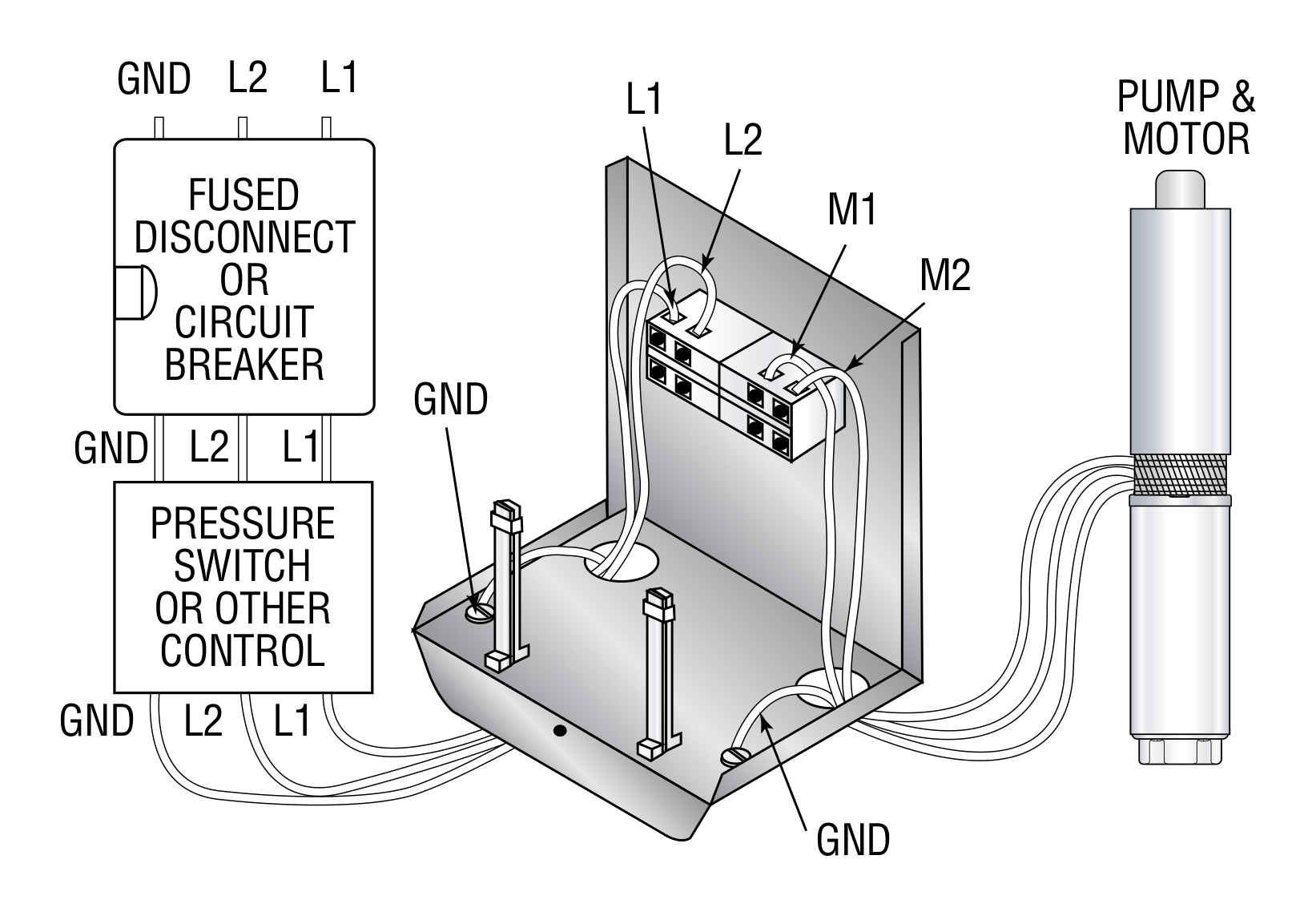

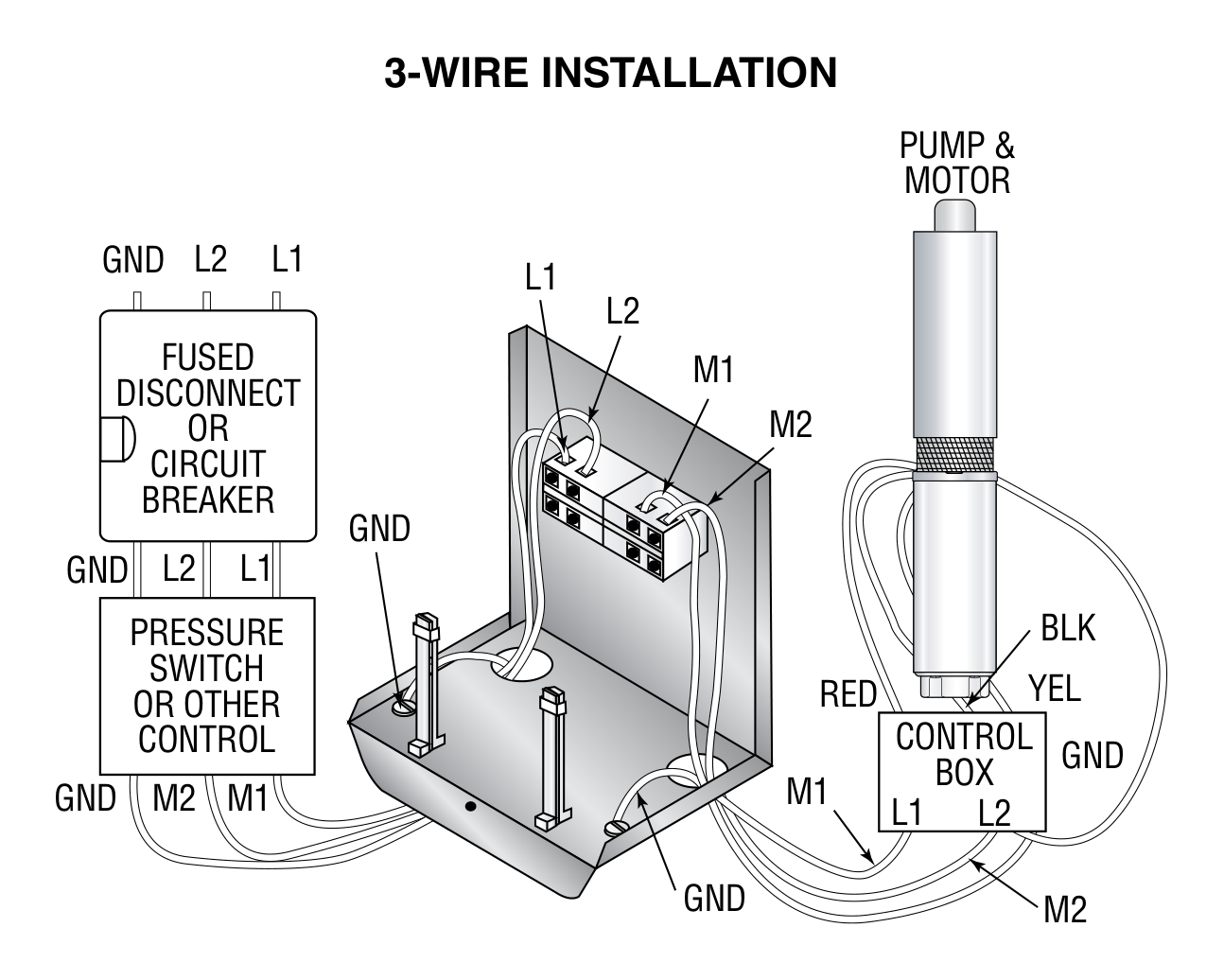

Fits: single-phase submersible motors, 1/2 to 5 HP, 230V 60 Hz: PSC, split-phase CSCR and CSIR, 2-wire or 3-wire.

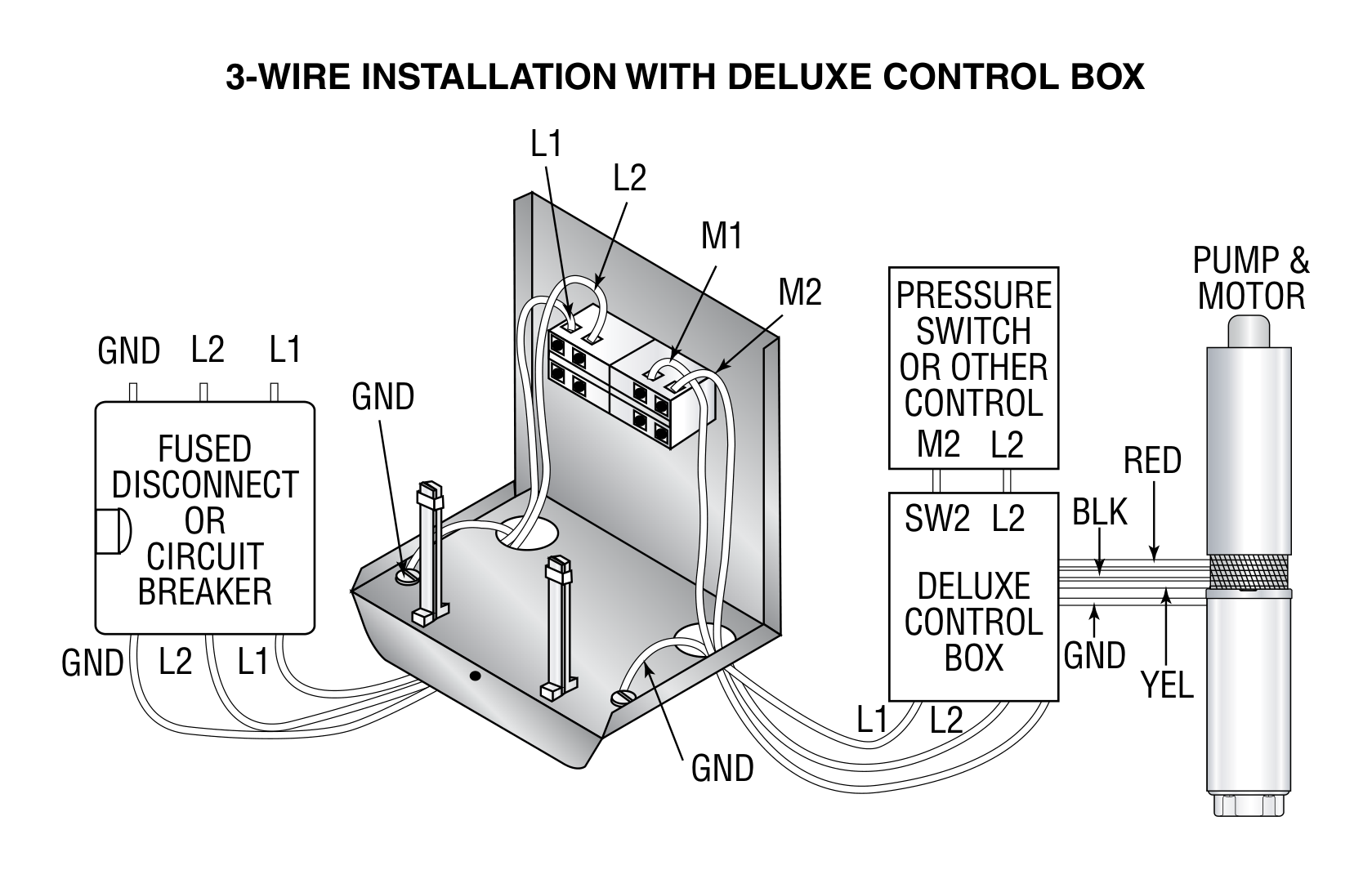

Still required: the motor’s control box (3-wire motors) and motor overload protection to NEC Article 430. Pumptec-Plus replaces neither.
At start-up: a one-time snapshot calibration on a normally running, fully recovered well. The unit will not protect the pump until it is calibrated.
Pumptec-Plus is a solid-state pump protection system for 1/2 to 5 HP single-phase submersible motors. It measures the actual motor power in watts, not amps or power factor, and compares it with a snapshot taken while the system runs normally. If the power draw moves more than 25% either side of that snapshot, or the line voltage leaves its range, it opens its contactor and stops the motor. Run and fault lights on the cover make diagnosis quick.
Covered for 12 months from the date of installation, and no more than 24 months from the date of manufacture, under Franklin Electric’s standard limited warranty. A.Y. McDonald warrants items it does not manufacture to the extent of the original manufacturer’s warranty.
This is Baker part 6617-143, supplied by A.Y. McDonald under the Baker number. Franklin Electric sells the same unit as order number 5800060100 (230V, 60 Hz). The 220V, 50 Hz version, 5800060502, is a different unit and is not this listing.

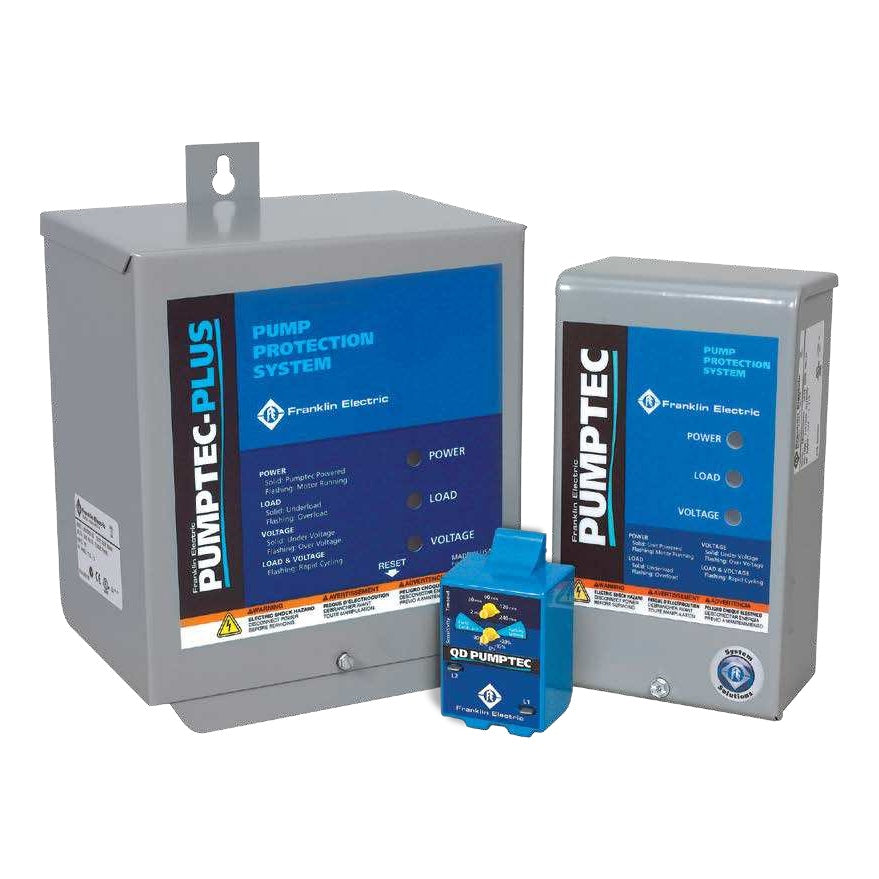

| Protects against | QD Pumptec | Pumptec | Pumptec-Plus |
|---|---|---|---|
| Air or gas locked pump (cavitation) | ● | ● | ● |
| Broken shaft or coupling | ● | ● | ● |
| Clogged well screen | ● | ● | ● |
| Drop in water level | ● | ● | ● |
| Faulty check valve | — | ● | ● |
| High voltage | ● | ● | ● |
| Low voltage | ● | ● | ● |
| Low yield wells | ● | ● | ● |
| Rapid cycling | — | ● | ● |
| Waterlogged tank | — | ● | ● |
| Worn pump parts | ● | ● | ● |
| Motor size | 1/3 to 1 HP | 1/3 to 1 1/2 HP | 1/2 to 5 HP |
| Supply | 230V, 60 Hz | 115V or 230V, 50/60 Hz | 230V, 60 Hz |
| Mounting | Inside a Franklin QD relay control box | Indoor or outdoor enclosure | Indoor or outdoor enclosure |
| Indicator lights | No | Yes: power, load, voltage | Yes: green, yellow, red |
| Underload setting | Factory, ±20% or field calibrate | Adjustable 40 to 90% SFL | Snapshot calibration, ±25% |
| Restart timer | 2 to 240 min | 2 to 120 min | Manual, or 1 min to 4 hr 16 min |
| Alarm contacts | No | Yes, 1 A | No |
Source: Franklin Electric Single-Phase Pump Protection brochure M1409 (01/17) and the three owner’s manuals. SFL = motor service factor load.
| Baker part number | 6617-143 |
| Franklin Electric order number | 5800060100 |
| Motor horsepower | 1/2 to 5 HP |
| Motor types | PSC, split-phase CSCR and CSIR; 2-wire or 3-wire |
| Operating voltage | 230 VAC |
| Frequency | 60 Hz |
| Power consumption | 5 W |
| Over / underload trip | ±25% of the calibration snapshot load |
| Over / under voltage trip | ±10% (253V / 207V) |
| Trip response time | 2.5 seconds |
| Rapid cycle trip | 4 starts per minute |
| Automatic restart time | Manual, or 1 minute to 4 hours 16 minutes |
| Voltage fault retry | 2 minutes |
| Calibration abort time | 3 minutes |
| Calibration memory | 10 years |
| Contactor rating | 5 hp (30 A) |
| Indicator lights | Green (run), yellow (load fault), red (voltage fault) |
| Operating temperature | -15 °F to 140 °F |
| Listing | UL Listed (E104778); UL/CSA per brochure |
| Weight | 6 lb |
Sources: Franklin Electric Pumptec-Plus Installation and Operating Guide 223424101 Rev. 9 (03-19); Single-Phase Pump Protection brochure M1409 (01/17); Pumps by Baker catalog rev 3/26, p. 134.

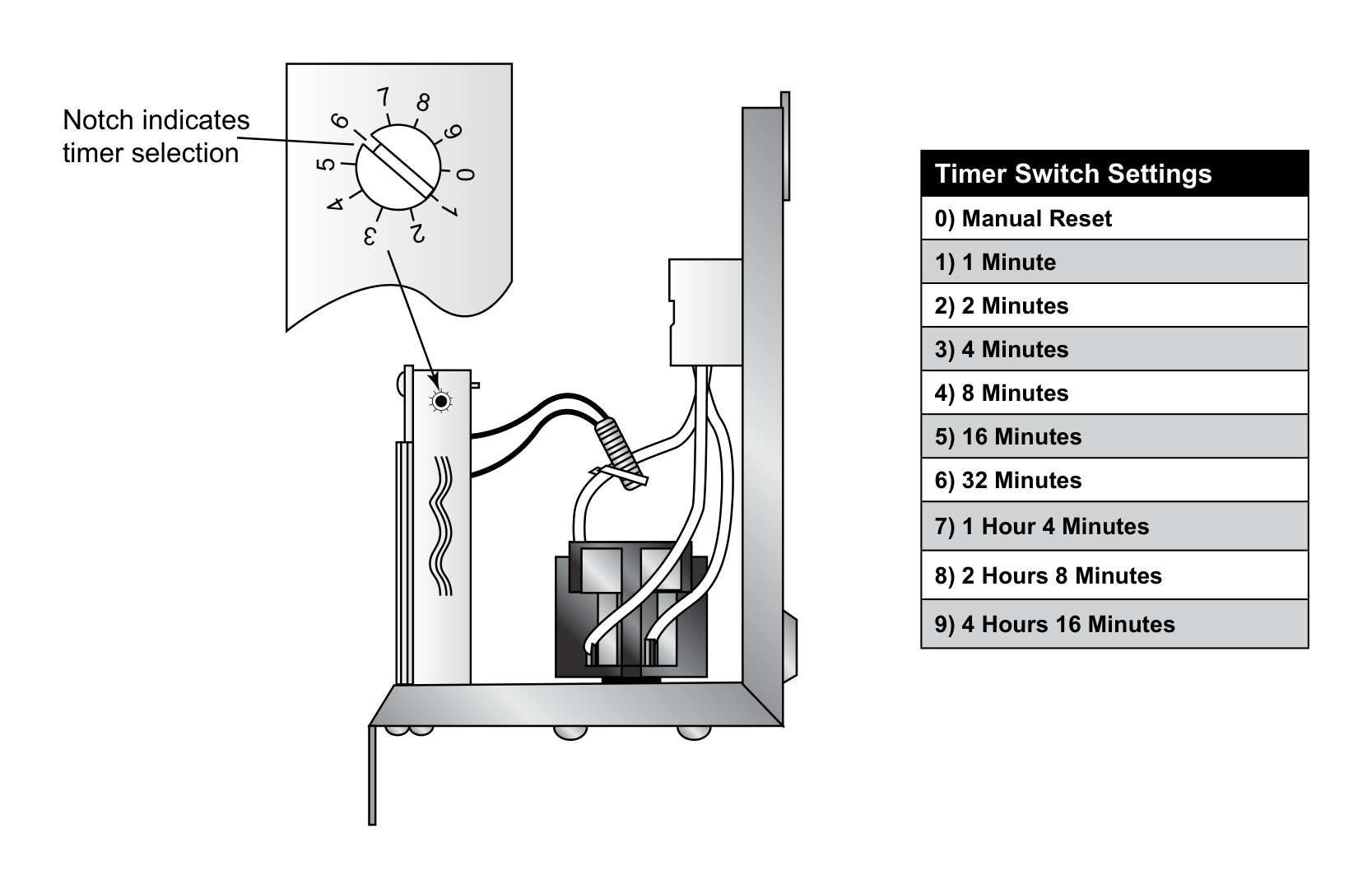

| Switch position | Restart after a dry-well trip |
|---|---|
| 0 | Manual reset |
| 1 | 1 minute |
| 2 | 2 minutes |
| 3 | 4 minutes |
| 4 | 8 minutes |
| 5 | 16 minutes |
| 6 | 32 minutes |
| 7 | 1 hour 4 minutes |
| 8 | 2 hours 8 minutes |
| 9 | 4 hours 16 minutes |

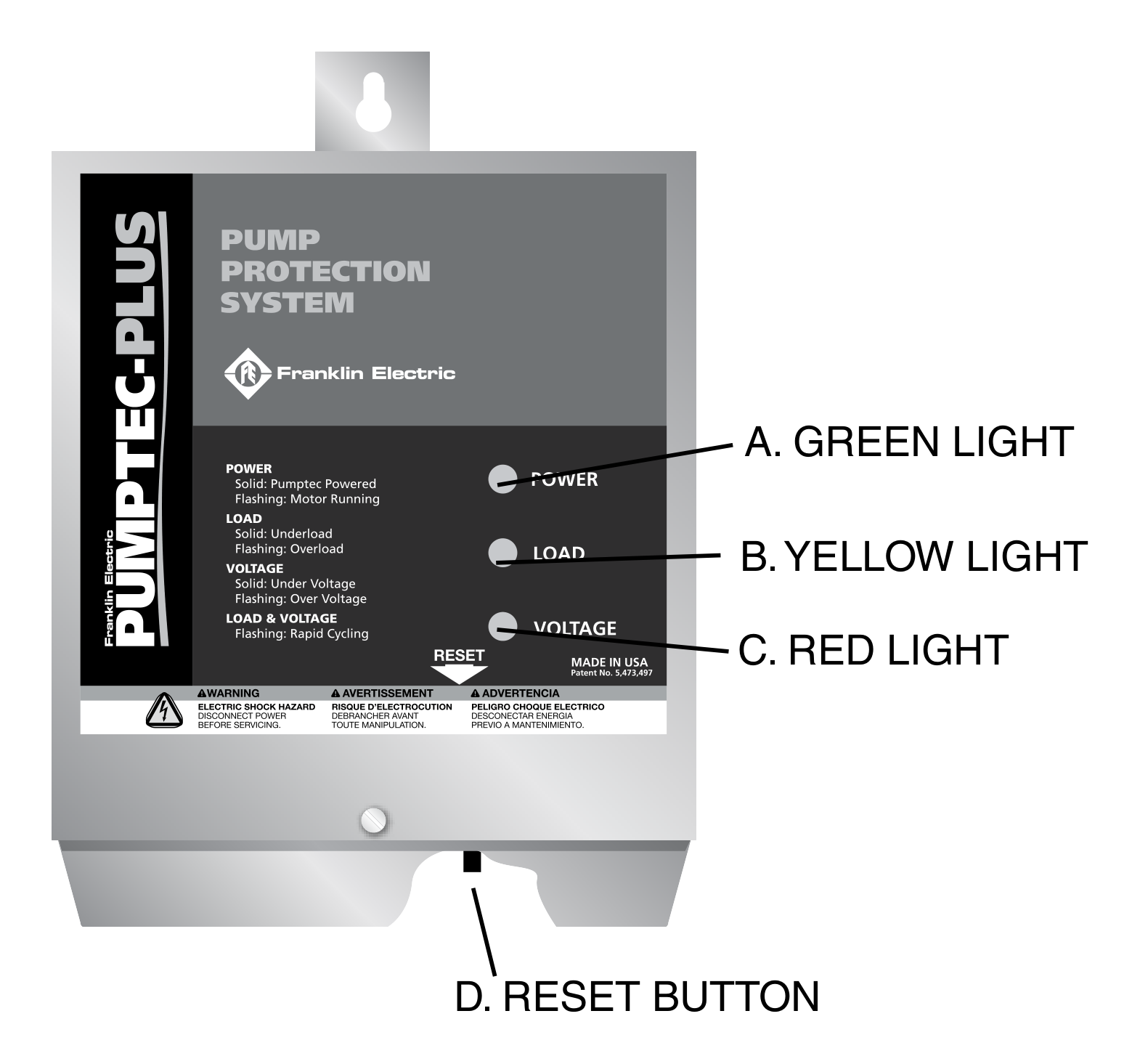

| Light | Meaning |
|---|---|
| Green solid | Powered, contactor closed, motor not running (the pressure switch wired after the unit is open) |
| Green flashing | Motor running normally at the calibrated power draw |
| Yellow solid | Underload (dry well). Restarts per the timer switch, or press reset if set to manual |
| Yellow flashing | Overload: power draw more than 25% above calibration for 2.5 seconds. Press reset to restart |
| Red solid | Under voltage, below 207V for 2.5 seconds. Retries within 2 minutes |
| Red flashing | Over voltage, above 253V for 2.5 seconds. Retries within 2 minutes |
| Red and yellow flashing together | Rapid cycling, 4 or more starts per minute |
| Reset button | Press and release to reset a trip; hold over 10 seconds to enter calibration mode |
| Symptom | What to check |
|---|---|
| No lights | No power at L1 and L2, or the pressure switch wired ahead of the unit is open |
| Flashing yellow at first start | Not calibrated yet: calibrate on a fully recovered well at maximum flow; flow restrictors are not recommended |
| Flashing yellow during calibration | Some 2-wire motors: press and release reset; the green light should start flashing |
| Solid yellow | Dry well (wait for the restart timer), blocked intake or discharge, failed check valve, broken shaft, severe rapid cycling or worn pump parts (repair, then recalibrate) |
| Flashing yellow in service | Stalled motor (sand or mud locked), bobbing float switch on a 2-wire motor, or a ground fault: check insulation resistance |
| Solid red | Low line voltage or loose connections at breakers, fuse clips, pressure switch and the L1 / L2 terminals; a loaded generator can also cause it |
| Flashing red | High line voltage, or an unloaded generator |
| Red and yellow flashing | Waterlogged tank (ruptured bladder, air volume control), a leak, a stuck check valve, a bobbing float switch or repeated power cycling during installation |
