Grundfos TPE3 Inline Variable Speed Pump - Stainless Steel

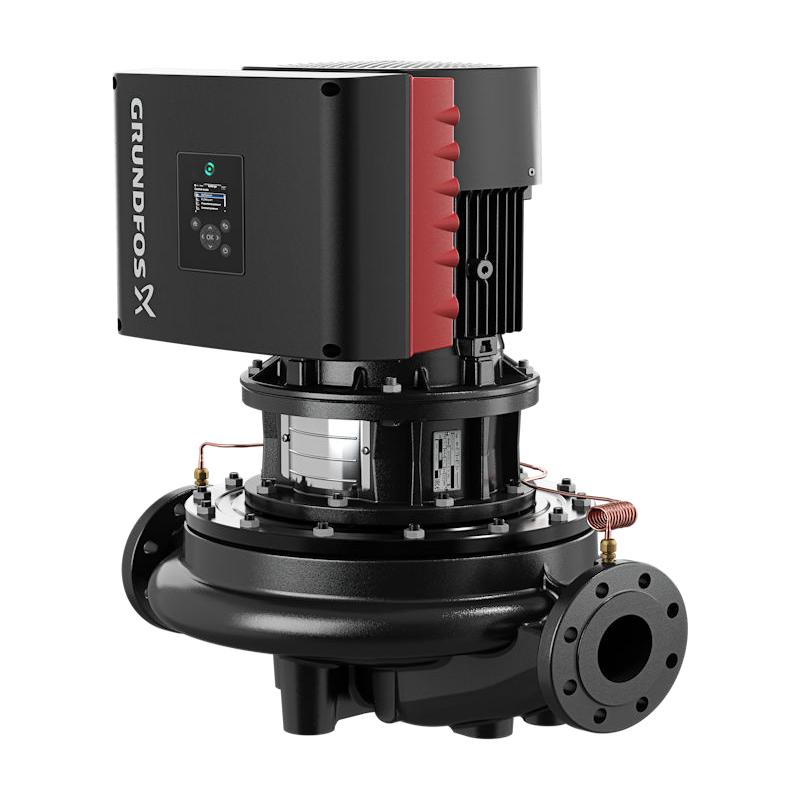

The TPE3 is Grundfos’s single-head, in-line circulator with the speed control built in: a permanent-magnet MLE motor (efficiency class IE5) with an integrated frequency converter, and a differential-pressure and temperature sensor in the pump. It ships set to AUTOADAPT, which finds the lowest head the system needs and keeps adjusting to it, so the pump runs slower and quieter at part load. This build has the stainless steel (CF8) pump housing and motor stool that Grundfos specifies for domestic hot water circulation. For duty-standby on one pipe, see the twin-head TPE3 D.

• Control modes: AUTOADAPT, FLOWADAPT, proportional pressure, constant differential pressure, constant pressure, constant temperature, constant differential temperature, constant flow and constant curve
• FLOWLIMIT caps the flow without a balancing valve; heat energy monitor and flow estimation are built in
• Color display control panel, plus Grundfos GO by radio
• Multi-pump control of up to four pumps over wireless GENIair, with no external controller
• Built-in GENIbus; Modbus, BACnet, LonWorks, PROFIBUS, PROFINET, EtherNet/IP or cellular through a CIM module

Find your model in its pump size, then read across: each figure is the total head the pump adds at that flow on its maximum-speed curve. The TPE3 runs anywhere below that curve: its built-in drive slows the pump to hold the head your control mode asks for.

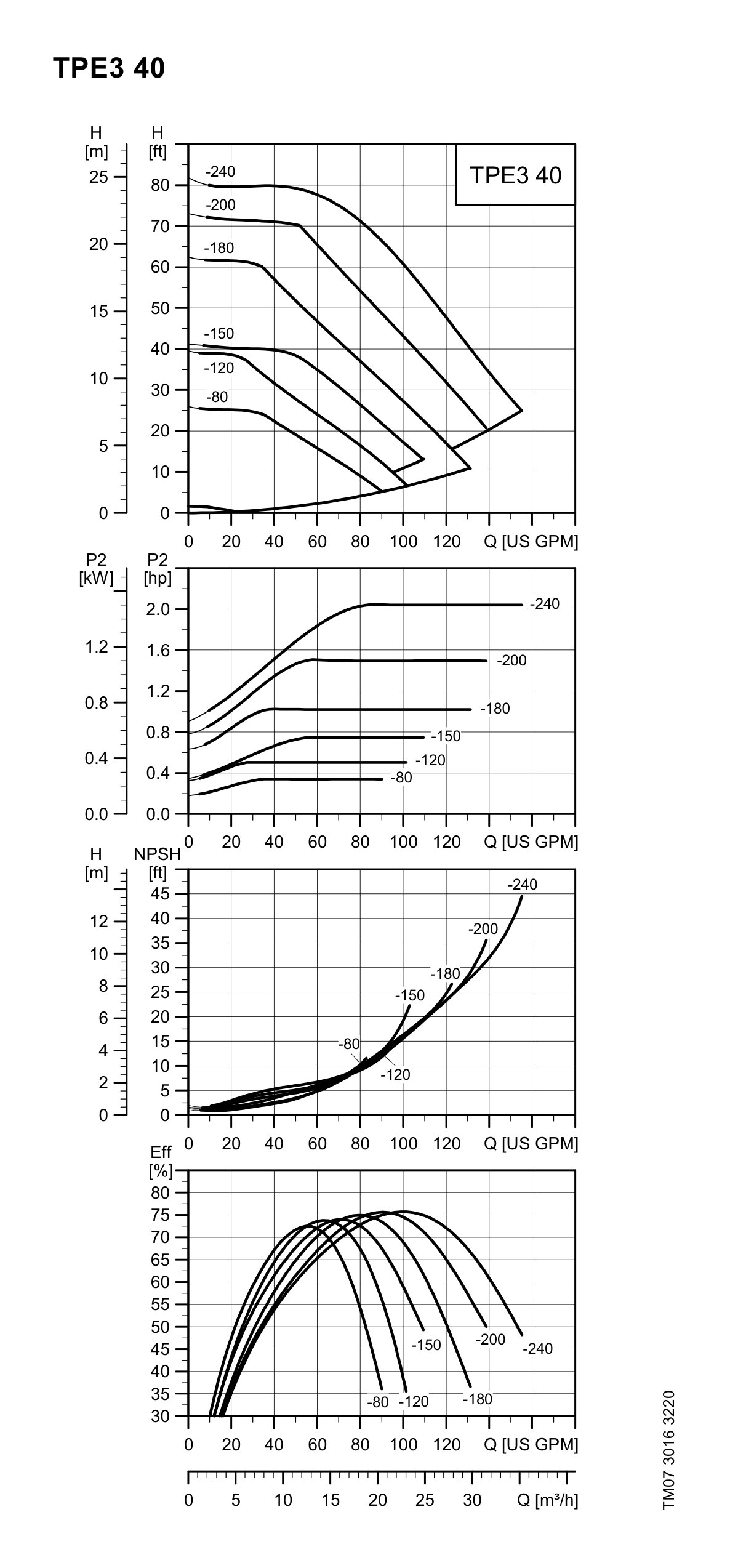

TPE3 40 — total head in feet

Curve ends: 40-80 89 GPM; 40-120 101 GPM; 40-150 109 GPM; 40-180 131 GPM; 40-200 138 GPM; 40-240 155 GPM. Digitized from the published curve in the Grundfos data booklet TPE3, TPE3 D, 60 Hz, North America, p. 78, and rounded down.

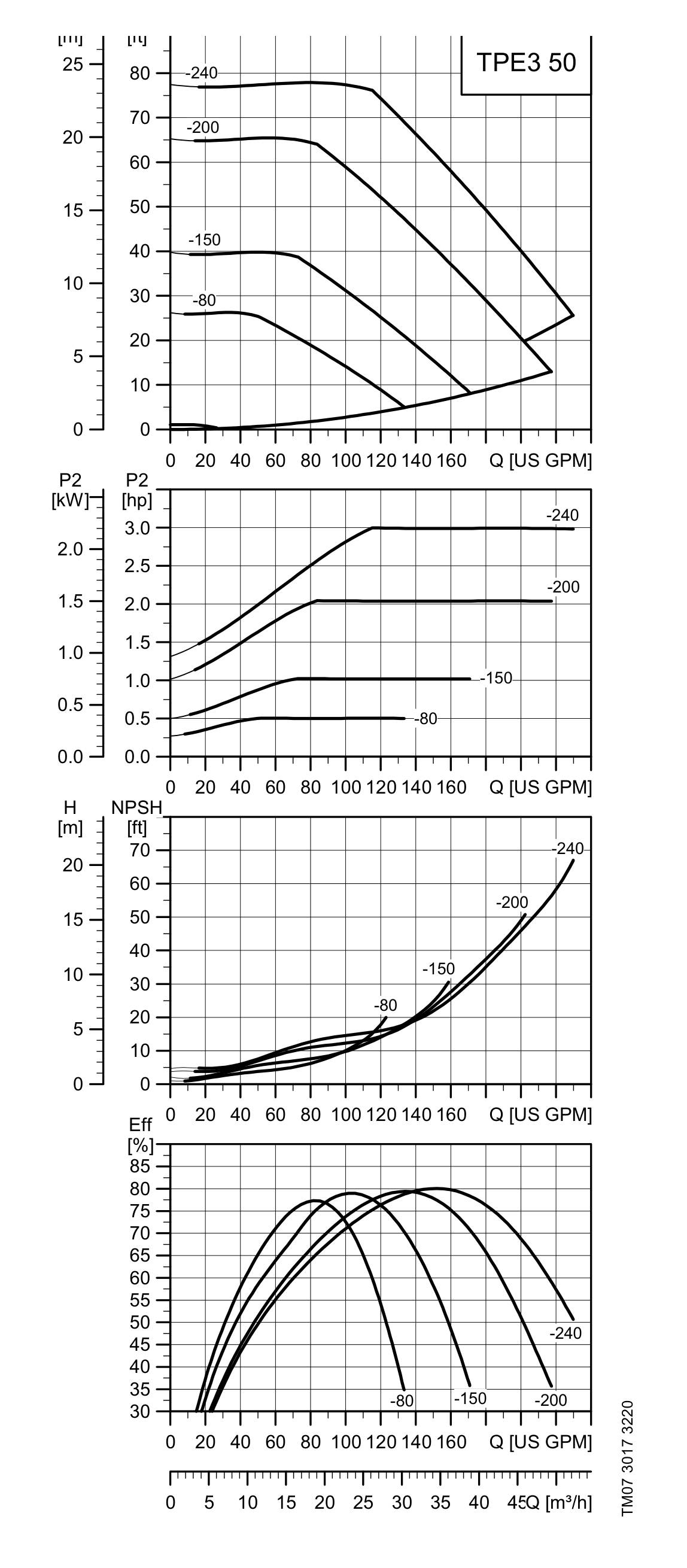

TPE3 50 — total head in feet

Curve ends: 50-80 133 GPM; 50-150 170 GPM; 50-200 217 GPM; 50-240 229 GPM. Digitized from the published curve in the Grundfos data booklet TPE3, TPE3 D, 60 Hz, North America, p. 80, and rounded down.

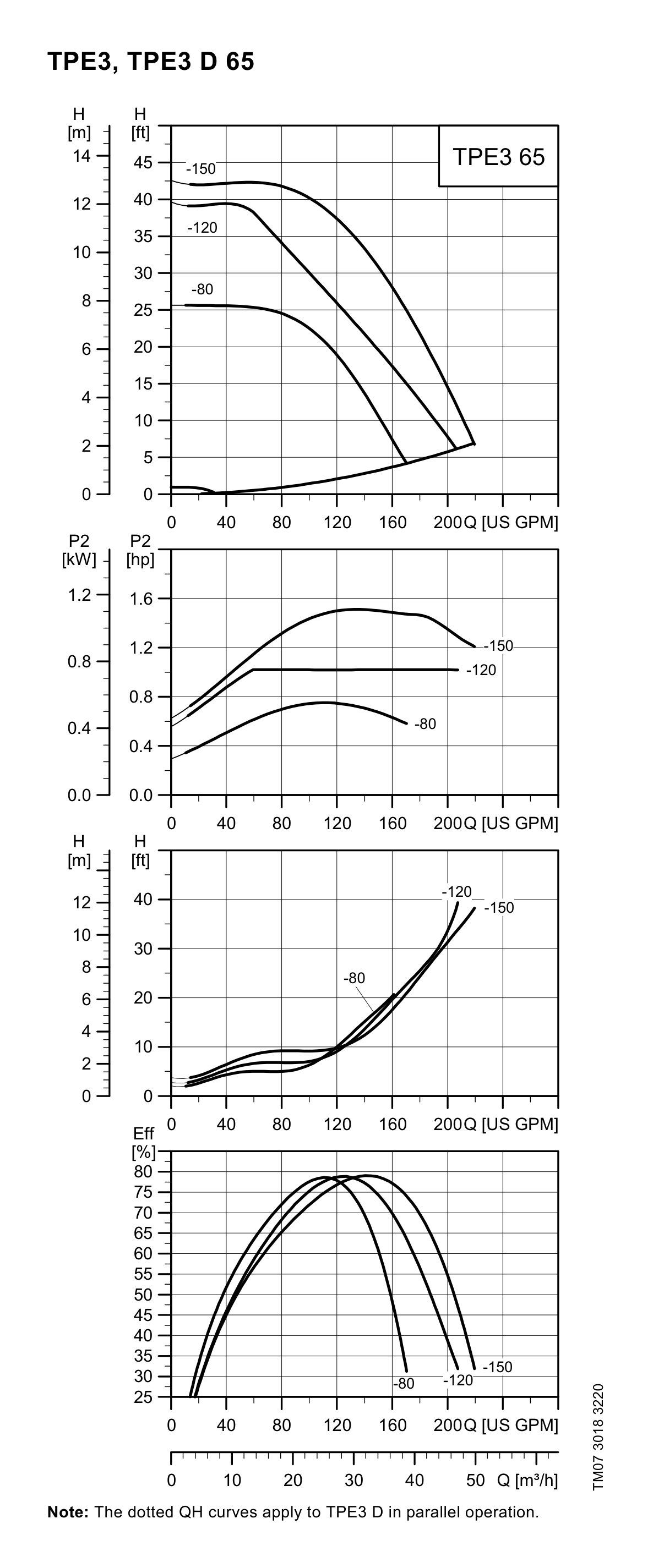

TPE3 65 — total head in feet

Curve ends: 65-80 170 GPM; 65-120 205 GPM; 65-150 219 GPM. Digitized from the published curve in the Grundfos data booklet TPE3, TPE3 D, 60 Hz, North America, p. 82, and rounded down.

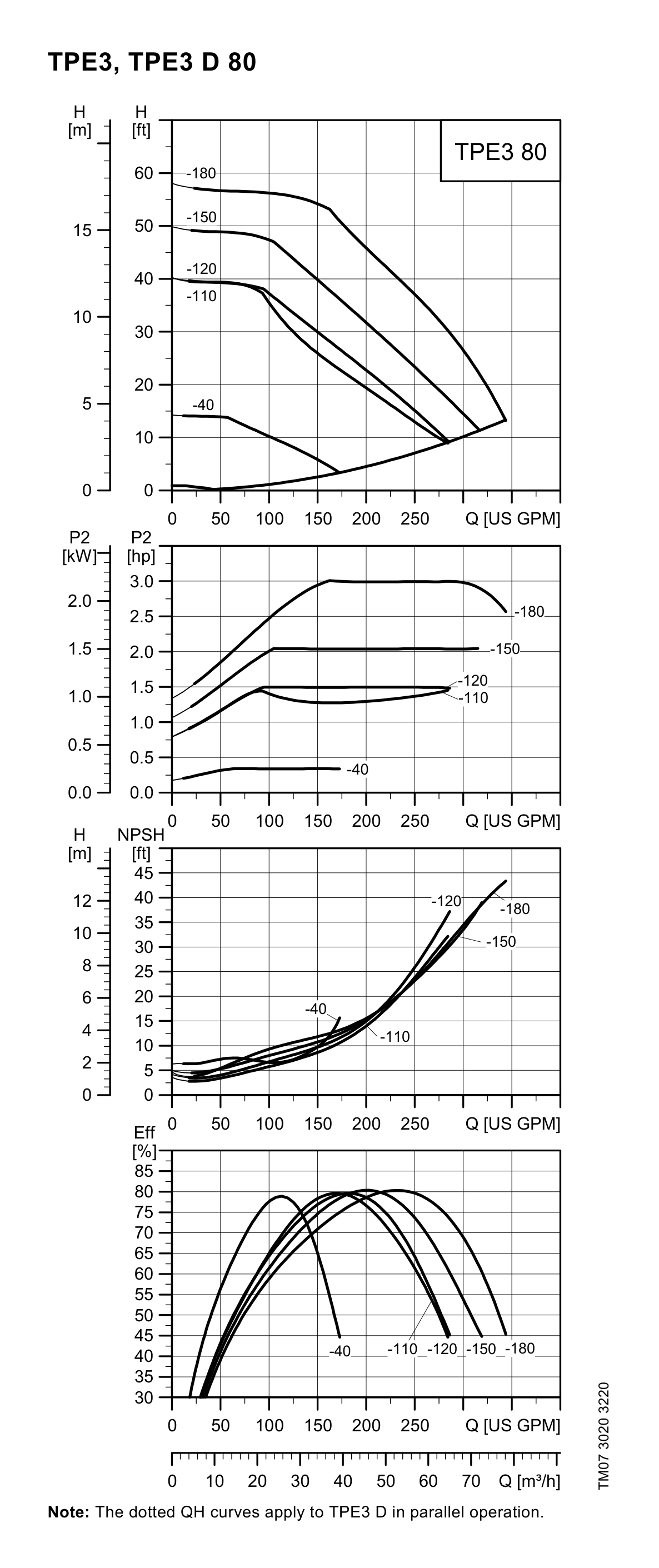

TPE3 80 — total head in feet

Curve ends: 80-40 171 GPM; 80-110 283 GPM; 80-120 285 GPM; 80-150 315 GPM; 80-180 343 GPM. Digitized from the published curve in the Grundfos data booklet TPE3, TPE3 D, 60 Hz, North America, p. 85, and rounded down.

Flows are the points nearest 20%, 50% and 75% of the longest curve in each size, then that curve’s end. Bold = the last column that model’s curve reaches; — = beyond its curve end. Grundfos prints no shut-off figure, so 0 GPM is where the curve starts. PSI = feet ÷ 2.31.

Best operating range: the efficiency curves under each H-Q chart in the image gallery show where each model runs best; Grundfos prints no single BEP figure.

• Flush the pipe system with clean water before first start, without using the pump to do it.
• Fill and vent the pump before starting, with the vent screw in the motor stool pointing up.
• Where two single-head pumps run in parallel or alternate, fit a non-return valve in series with each pump.
• Above 3,280 ft the motor cannot run at full output; check the derating curve in the data booklet.

From Grundfos Installation and Operating Instructions TPE2, TPE2 D, TPE3, TPE3 D (93076014) and the TPE3 data booklet.

Heating and district heating, air-conditioning, chilled water and district cooling, domestic hot water circulation, water supply, industrial processes and industrial cooling.

From Grundfos Service Kit Catalogue TPE2, TPE2 D, TPE3, TPE3 D (96488862, 12.2023).

The pump is set up and run from its own color control panel, with no app required. Grundfos GO adds guided setup, live operating data, alarm troubleshooting and reports on a smartphone. The panel’s radio button connects the pump to Grundfos GO; Grundfos lists the MI 301 mobile interface as the phone accessory for this. It is sold separately.
