Style 662 - Tapping Sleeve - Stainless Steel Body - Carbon Steel MJ Outlet | Integrated MJ Gasket

Nominal Size: 4 x 4
OD Range: 4.46 - 4.86 in

Product variant with selected options does not exist!

Price
$1,145.36
SKU: 662-048004MJ-200
Weight : 38.0 lb
Free Shipping $499 or more
Need it fast? Call for same-day shipping options: 281.664.8000
Description

All Smith-Blair products are made to order and non-returnable. Items typically ship in 5–10 business days.

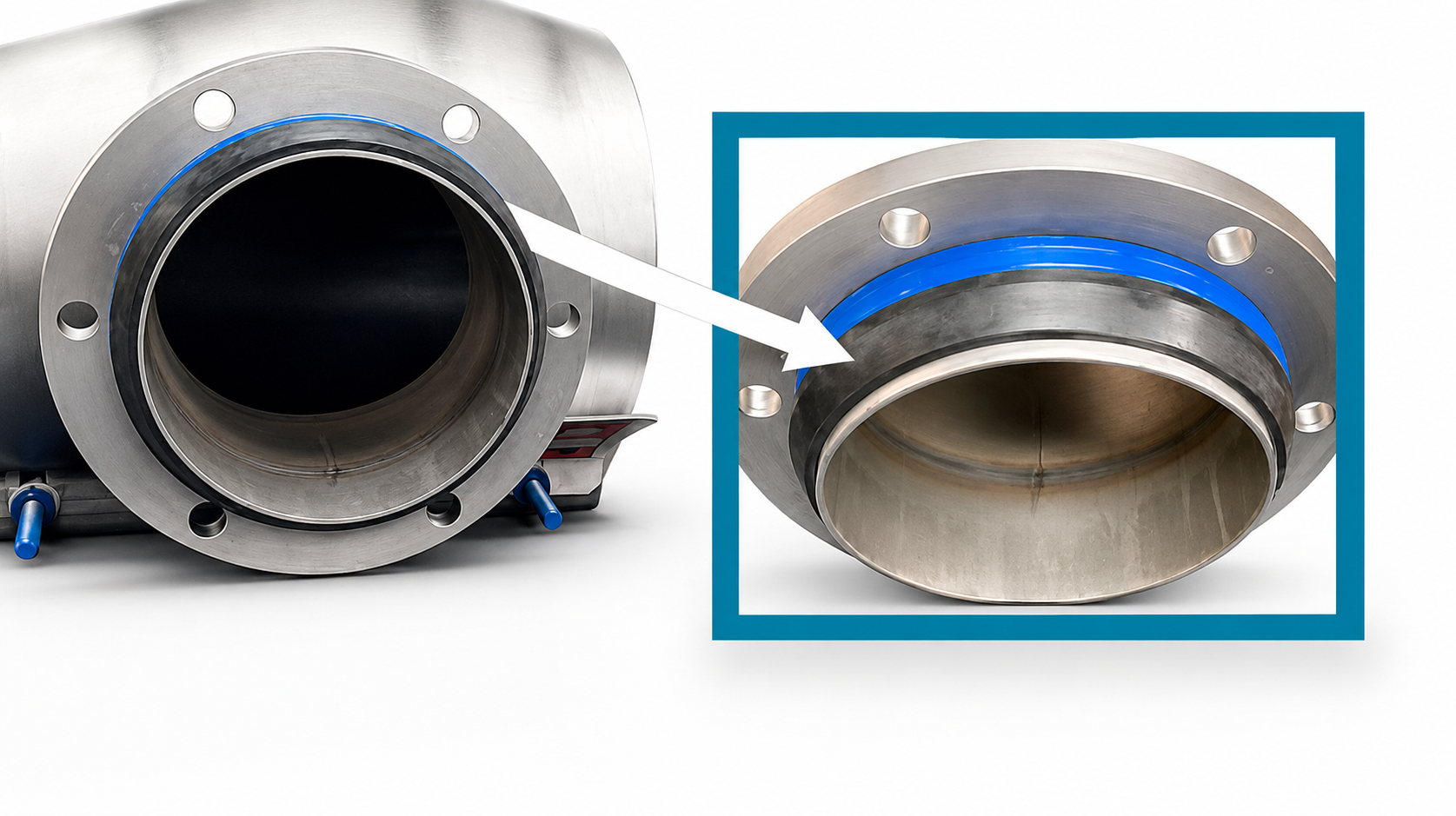

Integrated MJ Gasket — Included: All Smith-Blair MJ outlet tapping sleeves now come with an integrated MJ gasket that secures the pusher ring. We recognized you’ve got enough to track down on a job site. Now you don’t need to source a separate gasket or worry about whether someone remembered to grab it. Everything you need for a complete, leak-free connection is in one package.

Product Features:

  • All 304 stainless steel tapping sleeve with mechanical joint outlet
  • For tapping water mains under pressure
  • 360 degree seal with molded-in ring gasket
  • Test outlet for hydrostatic pressure test before tapping
  • Meets AWWA C223 standards

Materials:

  • BODY 304 Stainless Steel
  • OUTLET Mechanical Joint
  • GASKET Nitrile (Buna-N) NSF 61 approved
  • BOLTS AND NUTS 304 Stainless Steel
Technical Details

Specifications:

  • Pipe Sizes: 4" through 24"
  • Outlet Sizes: 4" through 12"
  • Working Pressure: 150 PSI
  • Temperature Range: -20°F to 180°F

Standards & Approvals:

  • Conforms to AWWA C223
  • NSF 61 approved gasket material
  • 304 Stainless Steel body
