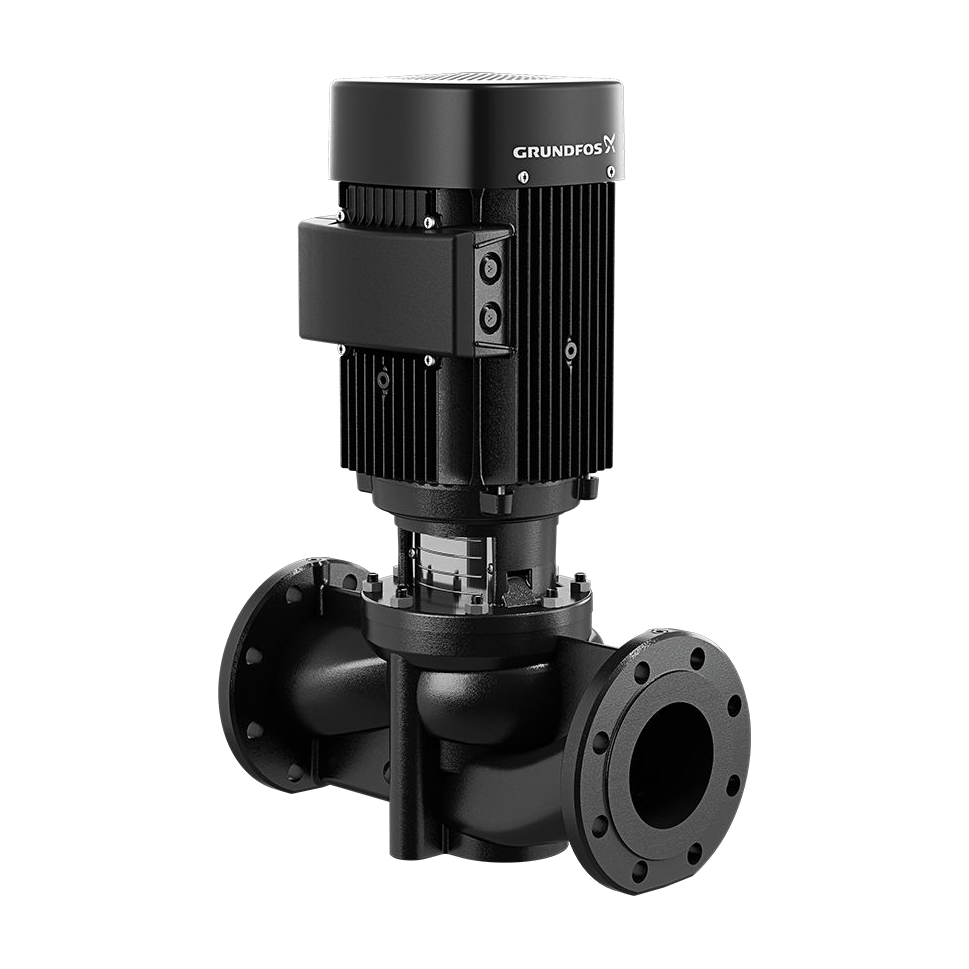

The VersaFlo TP is Grundfos’s single-stage, in-line circulator with a standard TEFC NEMA C-face motor, for systems that run at a constant flow. It is a top-pull-out design: the motor, motor stool and impeller lift out as one unit without disturbing the piping, so one person can service even the largest size. The model number reads size and head: TP 50-160/2 has 50 mm ports, about 16 m (52 ft) of nominal head, and a 2-pole (3450 RPM) motor; /4 is 4-pole (1725 RPM). This build has the bronze pump housing Grundfos specifies for domestic hot water circulation. The TP has no electronics and no app; for variable-flow systems see the TPE3.
Included: the pump with its TEFC NEMA C-face motor (bronze pump housing), close-coupled and assembled.
Flange set, ordered separately: Grundfos sells the companion flanges as a set of two flanges, two gaskets and eight nuts and bolts per pump size (see Accessories), threaded to the pipe size.
Sized at install: a mounting bracket or base plate wherever the piping cannot carry the pump (product guide p. 8).
Covered for 12 months from the date of purchase under Grundfos’s published warranty terms. Grundfos publishes its terms in its US Terms and Conditions of Sale.
| Pump type | Single-stage, in-line centrifugal circulator, top-pull-out, standard motor, mechanical shaft seal |
| Motor | TEFC NEMA C-face (ODP optional from Grundfos), insulation class F; Baldor or Grundfos brand by build |
| Speed | 1725 RPM (/4 models) or 3450 RPM (/2 models), 60 Hz |
| Flanges | 1-1/4 in 2-bolt (TP 32-40, 32-80); 1-1/2 in 2-bolt (TP 32-160, TP 40); 2 in 4-bolt (TP 50); 3 in and 4 in ANSI 125 lb raised face (TP 80, TP 100) |
| Maximum working pressure | 145 psi |
| Liquid temperature | 32 to 284°F with the standard BUBE seal |
| Maximum ambient temperature | 104°F |
| Maximum relative humidity | 95% |
| Housing surface treatment | Bronze housing; cast iron motor stool, electrocoated |
Find your model in its size, then read across: each figure is the total head the pump adds at that flow. A fixed-speed pump runs at the point where this curve meets your system curve.
TP 32 — total head in feet
| Model | 0 GPM (Shut-off) | 15 GPM | 35 GPM | 50 GPM | 70 GPM (Max) |
|---|---|---|---|---|---|
| TP 32-40/4 | 12 ft | 11 ft | 8 ft | 3 ft | — |
| TP 32-80/2 | 24 ft | 23 ft | 20 ft | 13 ft | — |
| TP 32-160/2 | 46 ft | 45 ft | 40 ft | 32 ft | 18 ft |
Curve ends: 32-40/4 50 GPM; 32-80/2 55 GPM; 32-160/2 70 GPM. Digitized from the published curve in the Grundfos VersaFlo TP product guide, 60 Hz (L-TP-PG-001), p. 12, and rounded down.

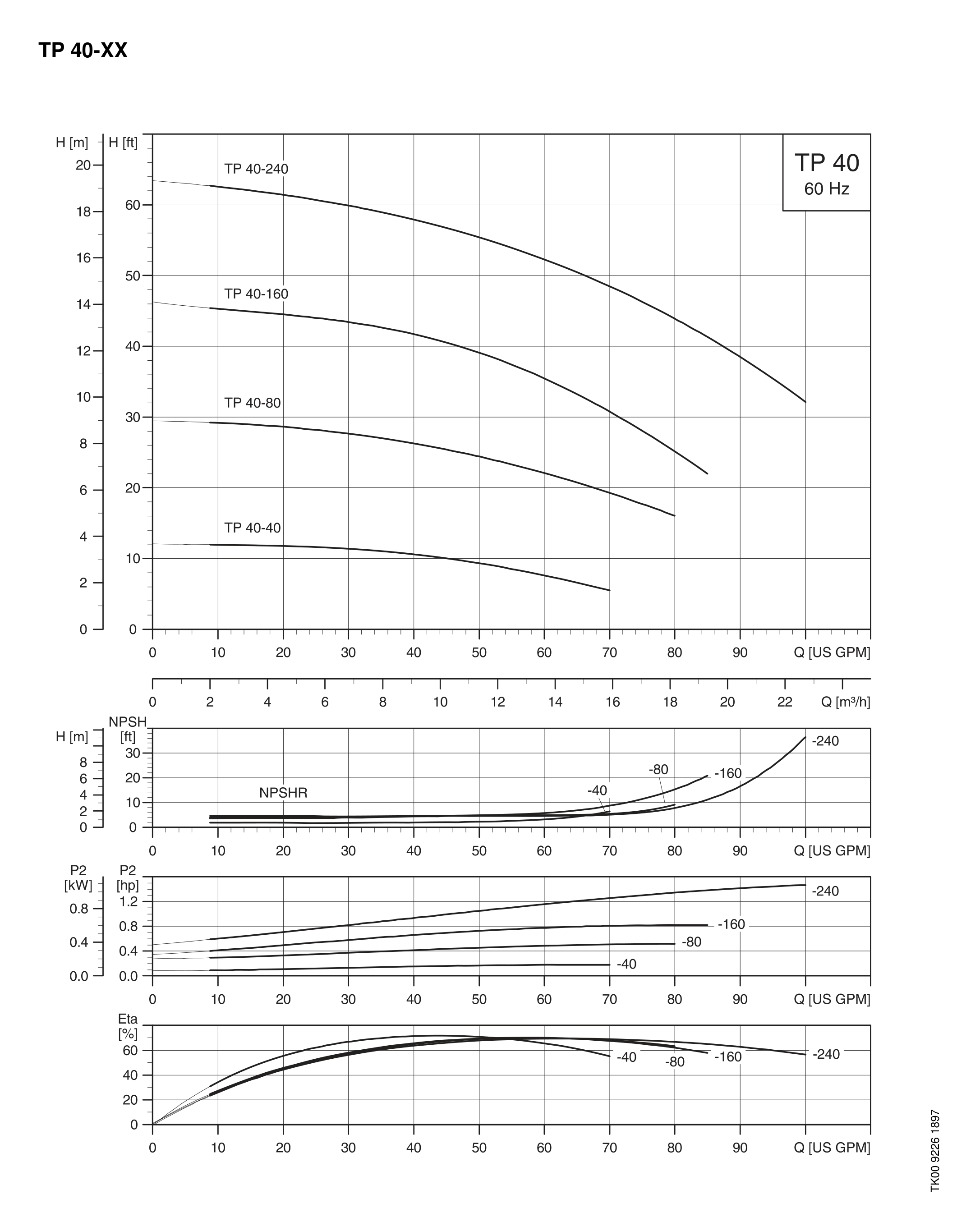

TP 40 — total head in feet
| Model | 0 GPM (Shut-off) | 20 GPM | 50 GPM | 75 GPM | 100 GPM (Max) |
|---|---|---|---|---|---|
| TP 40-40/4 | 12 ft | 11 ft | 9 ft | — | — |
| TP 40-80/2 | 29 ft | 28 ft | 24 ft | 17 ft | — |
| TP 40-160/2 | 46 ft | 44 ft | 39 ft | 28 ft | — |
| TP 40-240/2 | 63 ft | 61 ft | 55 ft | 46 ft | 32 ft |
Curve ends: 40-40/4 70 GPM; 40-80/2 80 GPM; 40-160/2 85 GPM; 40-240/2 100 GPM. Digitized from the published curve in the Grundfos VersaFlo TP product guide, 60 Hz (L-TP-PG-001), p. 14, and rounded down.

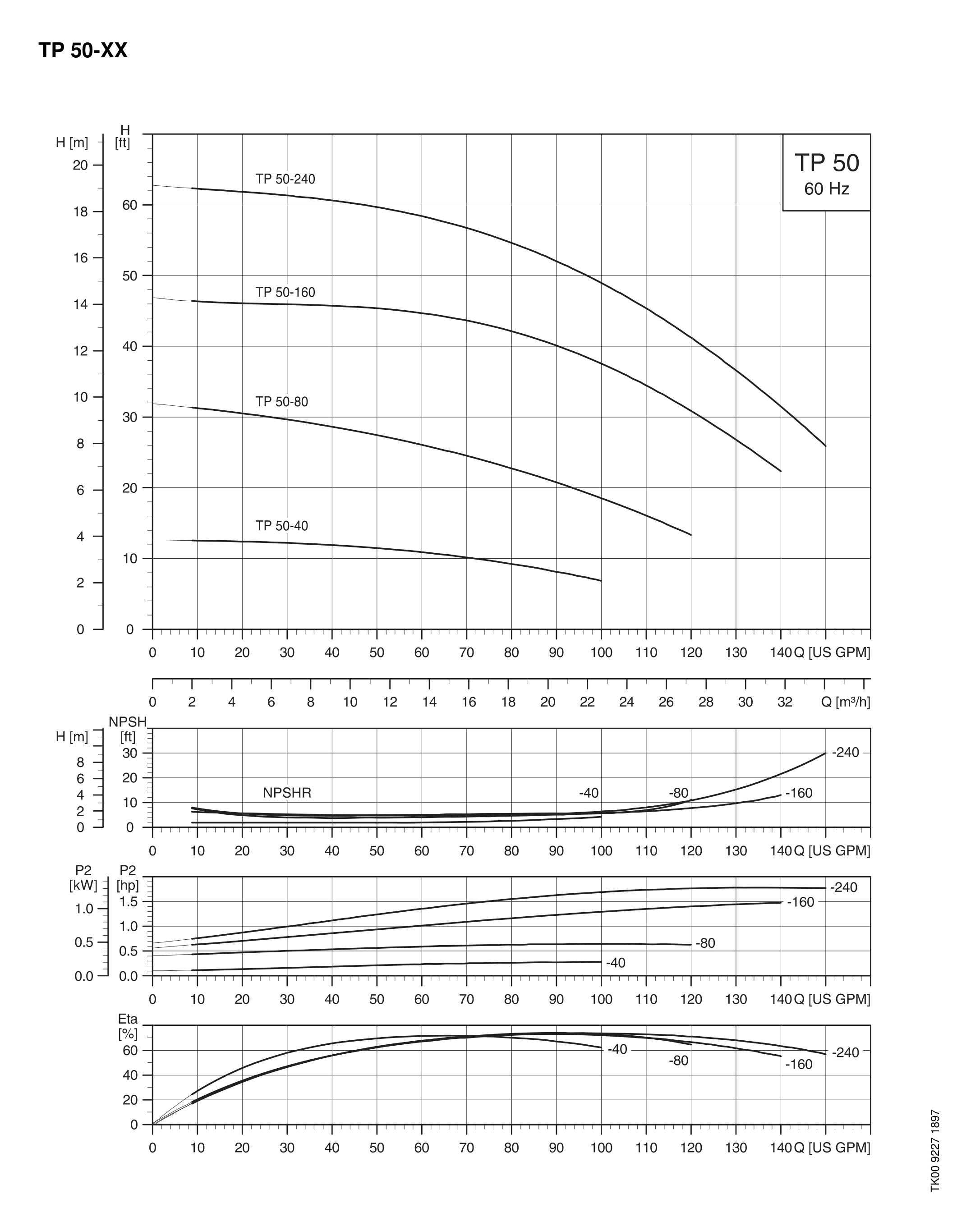

TP 50 — total head in feet
| Model | 0 GPM (Shut-off) | 30 GPM | 75 GPM | 110 GPM | 150 GPM (Max) |
|---|---|---|---|---|---|
| TP 50-40/4 | 12 ft | 12 ft | 9 ft | — | — |
| TP 50-80/2 | 31 ft | 29 ft | 23 ft | 16 ft | — |
| TP 50-160/2 | 46 ft | 45 ft | 42 ft | 34 ft | — |
| TP 50-240/2 | 62 ft | 61 ft | 55 ft | 45 ft | 26 ft |
Curve ends: 50-40/4 100 GPM; 50-80/2 120 GPM; 50-160/2 140 GPM; 50-240/2 150 GPM. Digitized from the published curve in the Grundfos VersaFlo TP product guide, 60 Hz (L-TP-PG-001), p. 16, and rounded down.

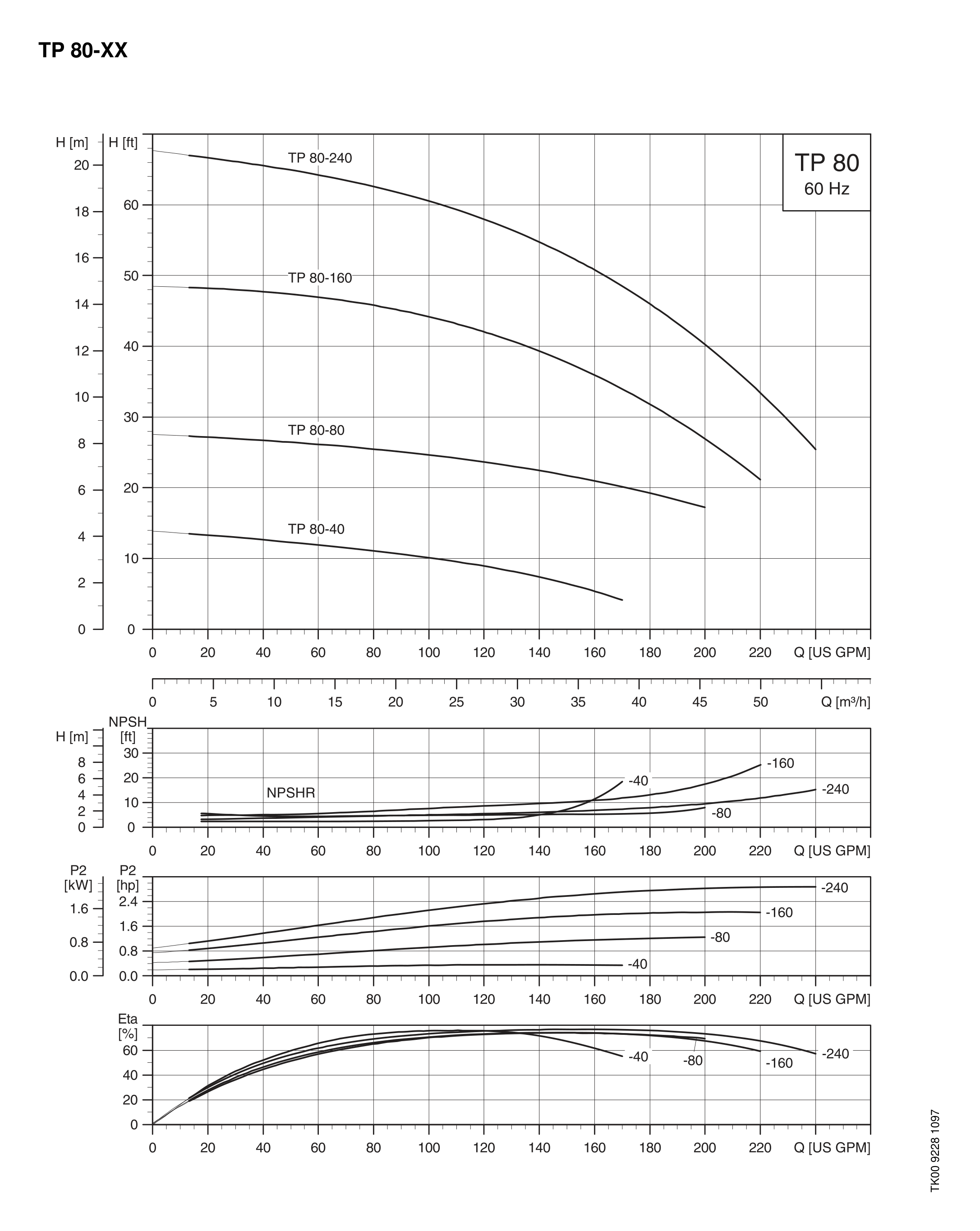

TP 80 — total head in feet
| Model | 0 GPM (Shut-off) | 50 GPM | 120 GPM | 180 GPM | 240 GPM (Max) |
|---|---|---|---|---|---|
| TP 80-40/4 | 13 ft | 12 ft | 8 ft | — | — |
| TP 80-80/4 | 27 ft | 26 ft | 23 ft | 19 ft | — |
| TP 80-160/2 | 48 ft | 47 ft | 42 ft | 31 ft | — |
| TP 80-240/2 | 67 ft | 64 ft | 57 ft | 46 ft | 25 ft |
Curve ends: 80-40/4 170 GPM; 80-80/4 200 GPM; 80-160/2 220 GPM; 80-240/2 240 GPM. Digitized from the published curve in the Grundfos VersaFlo TP product guide, 60 Hz (L-TP-PG-001), p. 18, and rounded down.
TP 100 — total head in feet
| Model | 0 GPM (Shut-off) | 60 GPM | 150 GPM | 225 GPM | 300 GPM (Max) |
|---|---|---|---|---|---|
| TP 100-40/4 | 13 ft | 12 ft | 10 ft | — | — |
| TP 100-80/4 | 28 ft | 27 ft | 25 ft | 23 ft | 17 ft |
| TP 100-160/2 | 49 ft | 47 ft | 43 ft | 36 ft | 24 ft |
Curve ends: 100-40/4 200 GPM; 100-80/4 300 GPM; 100-160/2 300 GPM. Digitized from the published curve in the Grundfos VersaFlo TP product guide, 60 Hz (L-TP-PG-001), p. 20, and rounded down.
Flows are the points nearest 20%, 50% and 75% of the longest curve in each size, then that curve’s end. Bold = the last column that model’s curve reaches; — = beyond it. 0 GPM is where the curve starts; every value sits inside the head and flow ranges Grundfos prints for each model on p. 5 of the guide. PSI = feet ÷ 2.31.
| Duty | Constant-flow circulation; the fixed speed suits a loop whose flow does not swing |
| Liquid | Heating water, chilled water, water-glycol and cooling liquids, domestic hot water |
| Temperature | 32 to 284°F liquid with the standard BUBE seal; ambient up to 104°F |
| Pressure | 145 psi maximum working pressure |
| Power | 1 x 115/208-230 V (1 x 115/230 V on TP 50-240/2 and TP 100-80/4) or 3 x 208-230/460 V, 60 Hz |
| Not included | Companion flange set, ordered separately |
From the Grundfos VersaFlo TP product guide, 60 Hz (L-TP-PG-001), pp. 6-8.
Boiler and hydronic heating, chilled water, air-conditioning, cooling towers, domestic hot water, radiant floor heat, solar and snow-melt systems.
| Pump housing | Bronze |
| Motor stool | Cast iron |
| Impeller | Stainless steel AISI 304 |
| Shaft | Stainless steel AISI 431 |
| Neck ring | Stainless steel / Teflon |
| Coupling | Sintered metal |
| Coupling guard | Stainless steel AISI 304 |
| Shaft seal | Tungsten carbide / carbon, EPDM (BUBE) |
| O-ring / flat gasket | EPDM |
| Accessory | Code | Fits |
|---|---|---|
| Flange set, bronze, 1-1/4 in | 96409356 | TP 32-40, TP 32-80 |
| Flange set, bronze, 1-1/2 in | 539615 | TP 32-160, TP 40 |
| Flange set, bronze, 2 in | 96409355 | TP 50 |
| Flange set, bronze, 3 in ANSI 125 | 569611 | TP 80 |
| Flange gasket (single) | 510179 / 530244 / 96409353 / 560185 / 570008 | 1-1/4 / 1-1/2 / 2 / 3 / 4 in |
Each flange set holds two flanges, two gaskets and eight nuts and bolts (product guide p. 23).
| Part | Code | Fits |
|---|---|---|
| Shaft seal kit, O-ring type, tungsten carbide / tungsten carbide, EPDM (AUUE) | 96409266 | All VersaFlo TP |
| Shaft seal kit for water-glycol, reduced face, EPDM and FKM (RUUE/V) | 985844 | All VersaFlo TP |
