GRUNDFOS · VERTICAL MULTISTAGE CENTRIFUGAL PUMP
CRN 95
Vertical multistage centrifugal pump in 316 stainless steel. 500 GPM rated flow at 60 Hz, 20 models from CRN 95-1-1 to CRN 95-8, 15 to 125 HP, TEFC motor, HQQE or HQQV cartridge seal, 4 in ANSI flanged or Victaulic ports.
500 GPM Rated Flow
Up to 1,177 ft Shut-off Head
15 to 125 HP
NSF/ANSI 61
316 Stainless Steel
Overview
Vertical, multistage centrifugal pump with suction and discharge ports on the same level, so it drops into a straight pipe run. Pump head and base are cast 316 stainless steel (ASTM A351 CF8M) with AISI 316 chambers, impellers and shaft; the cast iron loose flange rings and base plate do not touch the pumped liquid.
The CRN 95 frame is rated at 500 GPM. The family number is Grundfos’s nominal duty in cubic metres per hour, not a GPM figure — size the pump from the performance table below, not from the model number.
20 models are offered, from CRN 95-1-1 to CRN 95-8, covering 15 to 125 HP on NEMA C-face TEFC motors (three-phase). Models with a -1, -2 or -3 suffix use that many reduced-diameter impellers to trim head between full stage counts. Connections are 4 in ANSI flanges (150 lb or 300 lb class, by model), or 4 in Victaulic-type grooved couplings.
CRN 90 drop-in replacement: options marked "CRN 90 Drop-in" are CRN 95 pumps built to the installation dimensions of the discontinued CRN 90, so they replace an existing CRN 90 without re-piping. Choose them only when replacing a CRN 90; otherwise choose the standard CRN 95.
Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
What Ships and What It Needs to Run
Each part number is a complete pump: pump end, motor, coupling, coupling guard and cartridge shaft seal, factory assembled.
Not included: ANSI companion flanges or Victaulic couplings (4 in) — order separately. Motor starter or VFD, overload protection, pressure switch or sensor, isolation valves, check valve and foundation bolts are also not included.
To run it needs: a three-phase supply matching the motor voltage shown in the selected option, a correctly sized starter with overload protection, flooded suction or adequate NPSH, and a level, rigid foundation. Grundfos requires the 100, 125 HP models to be started through a soft starter or variable speed drive. These are fixed-speed pumps; for integrated variable-speed control see the CRE range.
Specifications
| Specification |
Value |
| Rated flow at 60 Hz |
500 GPM |
| Shut-off head range |
119 to 1,177 ft |
| Motor power range |
15 to 125 HP |
| Motors |
NEMA C-face, TEFC, 2-pole, service factor 1.25 |
| NEMA frames |
254TC, 256TC, 284TSC, 286TSC, 324TSC, 326TSC, 364TSC, 365TSC, 405TSD, 444TSD |
| Frequency |
60 Hz, 2-pole (about 3,500 rpm) |
| Suction and discharge port |
4 in, in-line |
| Connection |
4 in ANSI flanges (150 lb or 300 lb class, by model), or 4 in Victaulic-type grooved couplings |
| Maximum operating pressure |
232 psi / 363 psi / 580 psi depending on model and connection |
| Liquid temperature range |
−4 °F to 248 °F with HQQE; −4 °F to 194 °F with HQQV |
| Maximum ambient temperature |
104 °F |
| Pump orientation |
Vertical |
| Approvals |
NSF/ANSI 61 (HQQE seal versions), NSF/ANSI 372 |
| Curve tolerance |
ISO 9906:2012 grade 3B |
Performance — Will It Do What You Need
Find the head you need in feet at your flow and pick the first model that meets it. Points are read from the Grundfos 60 Hz curve for each model at 20%, 50% and 75% of its maximum flow; shut-off is the head at zero flow, not a working point.

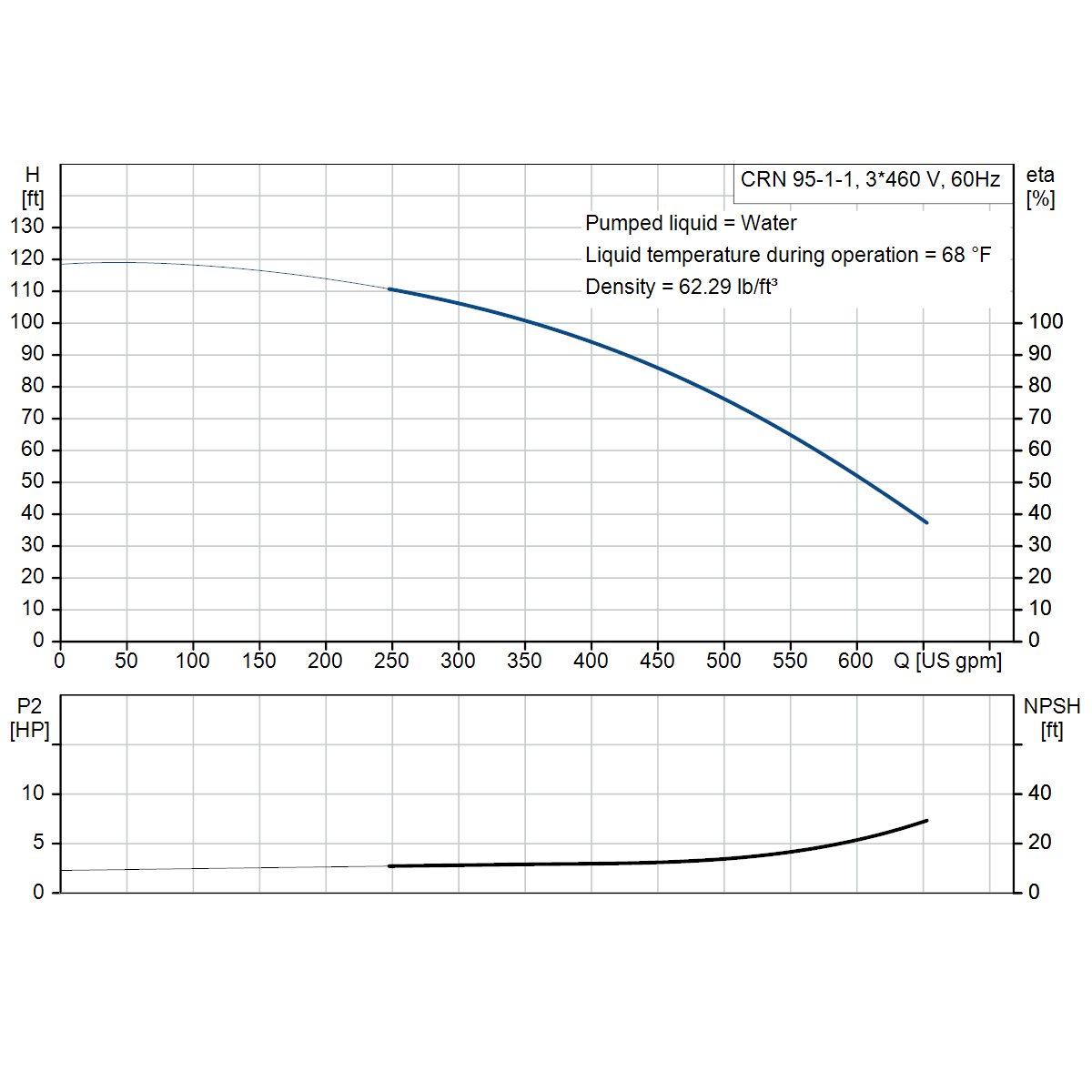

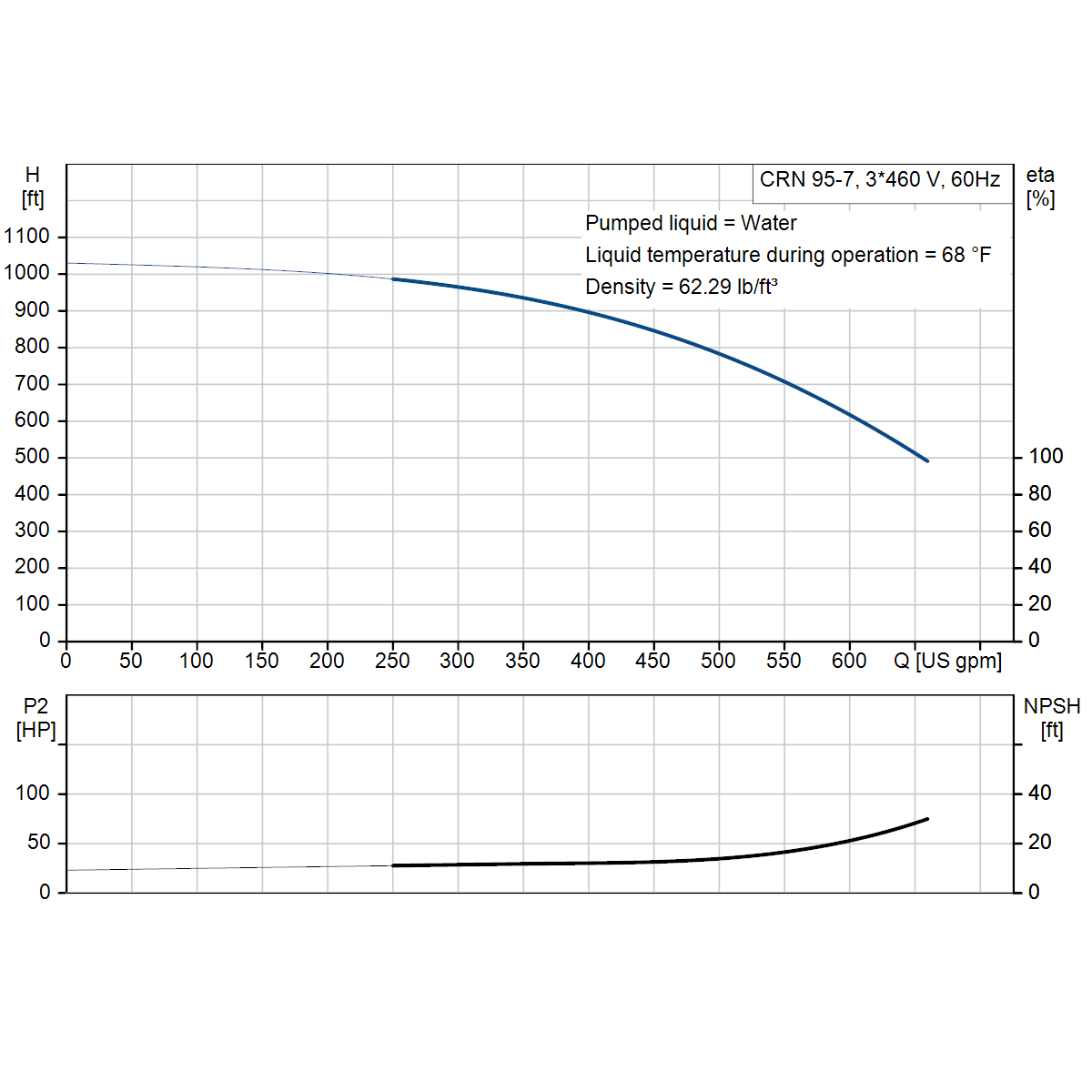

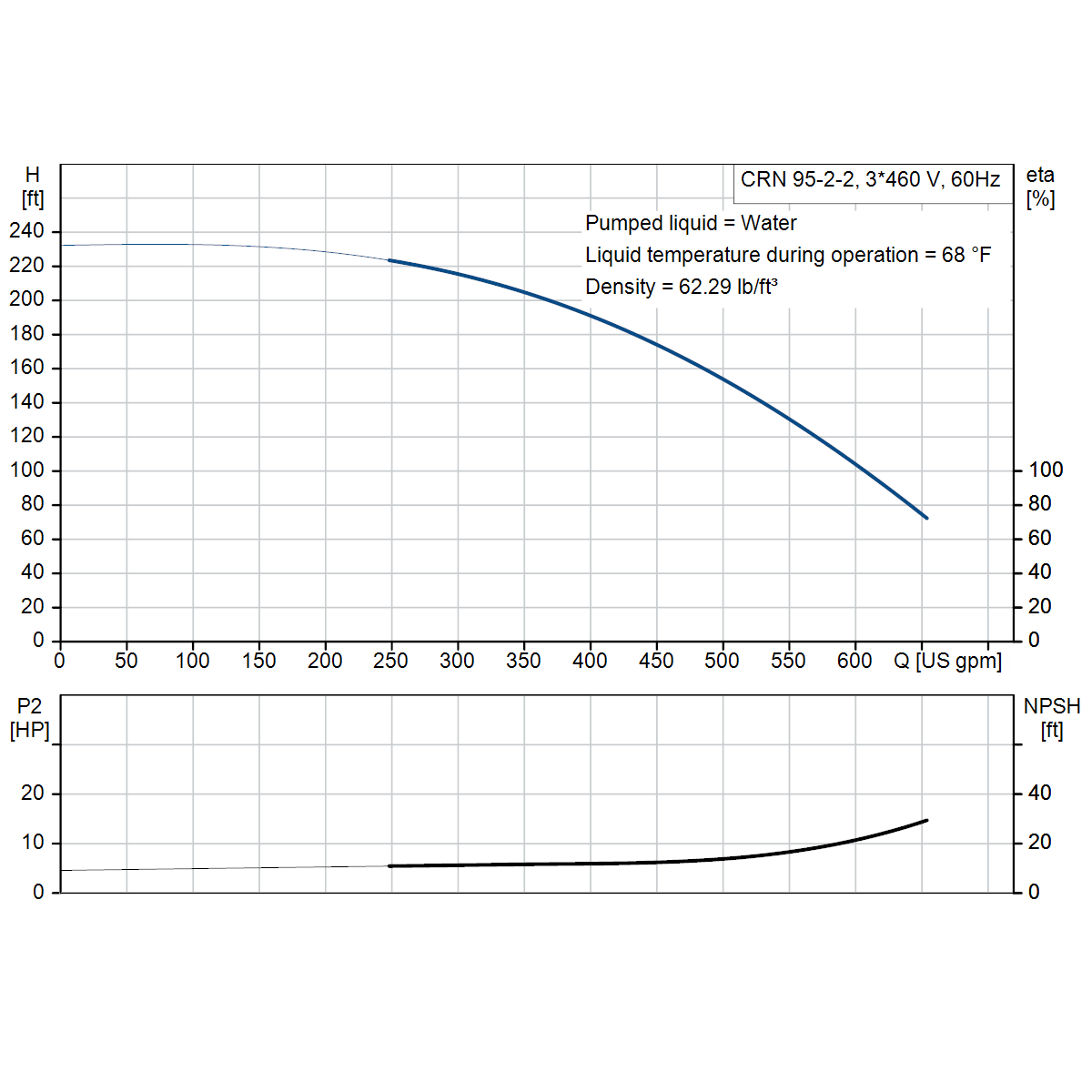

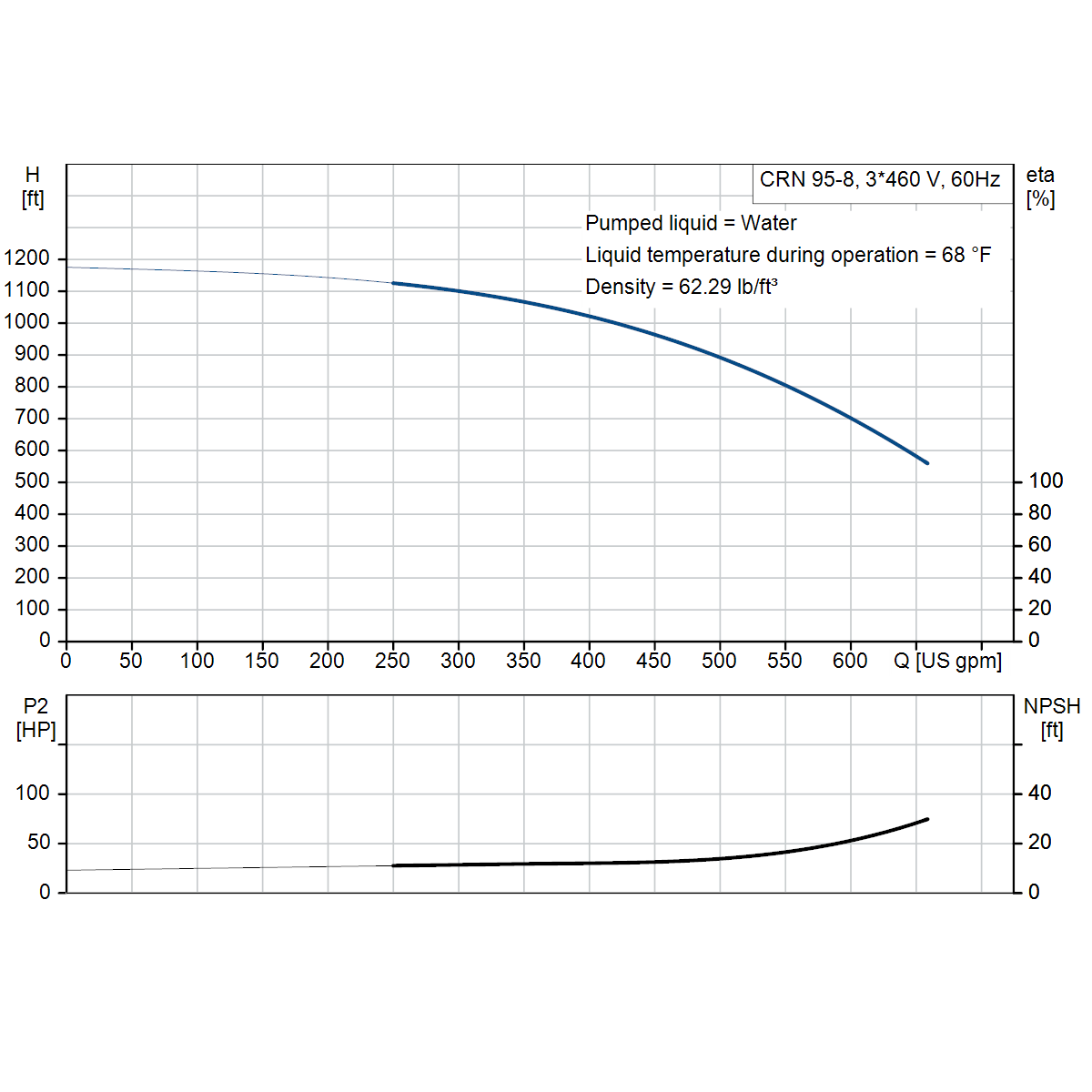

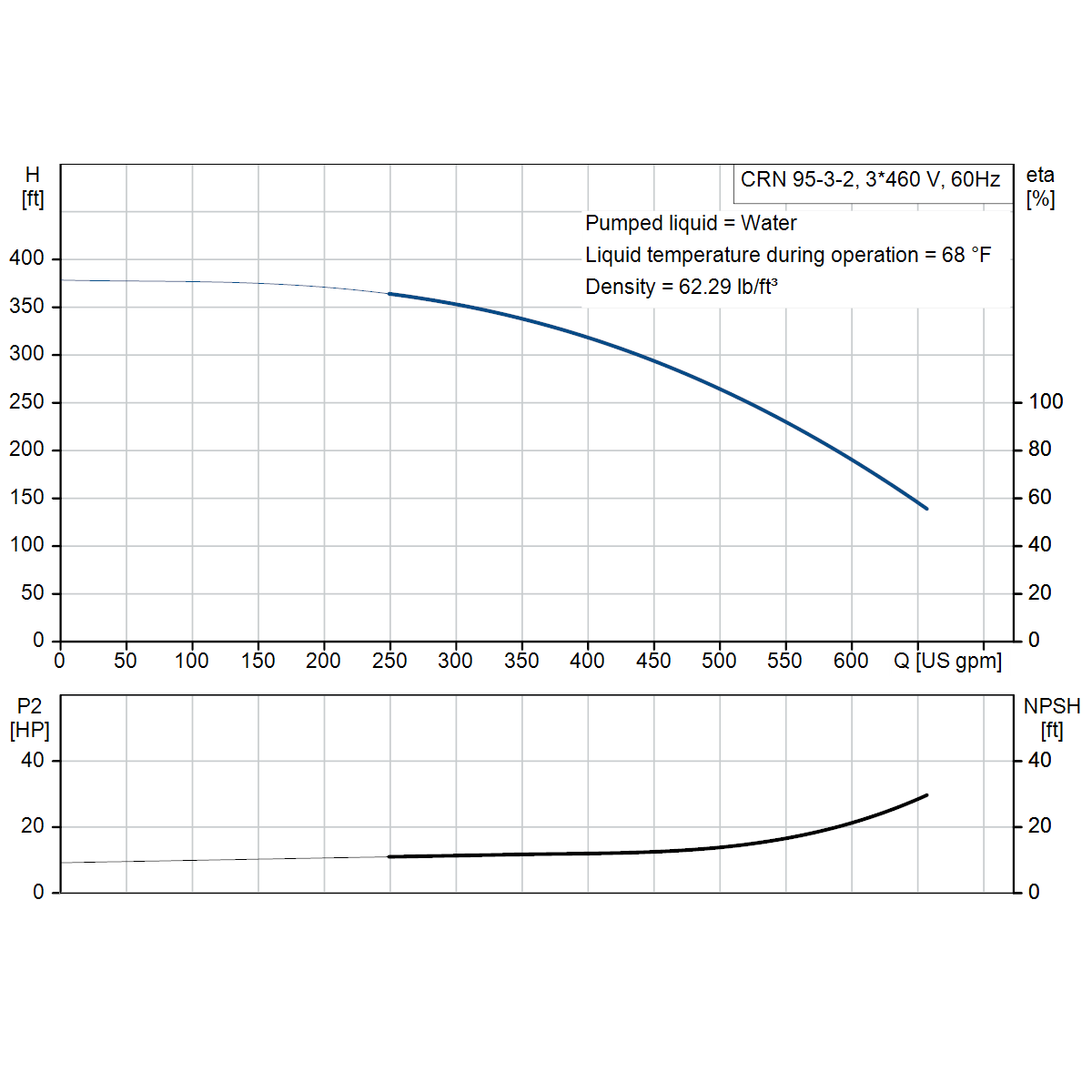

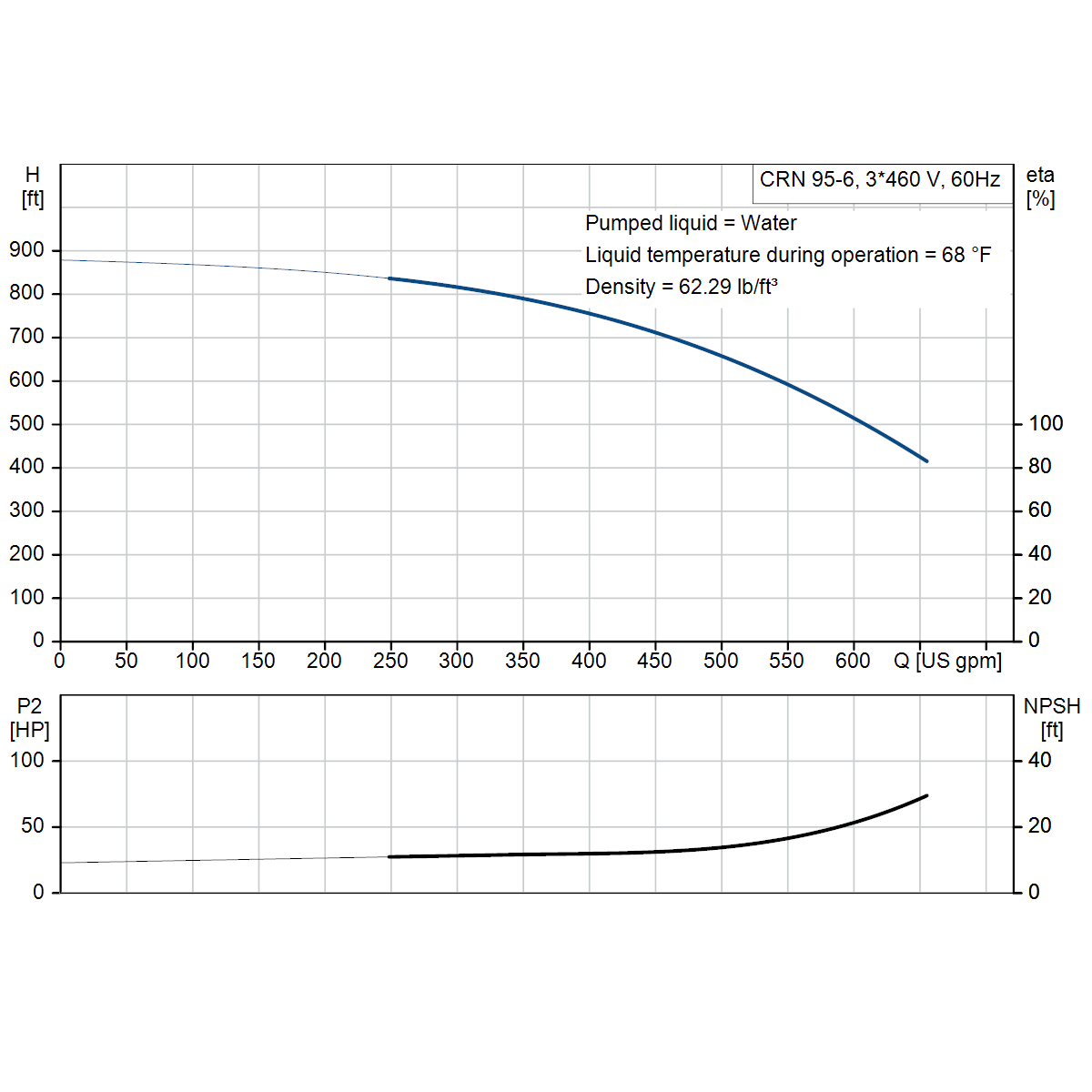

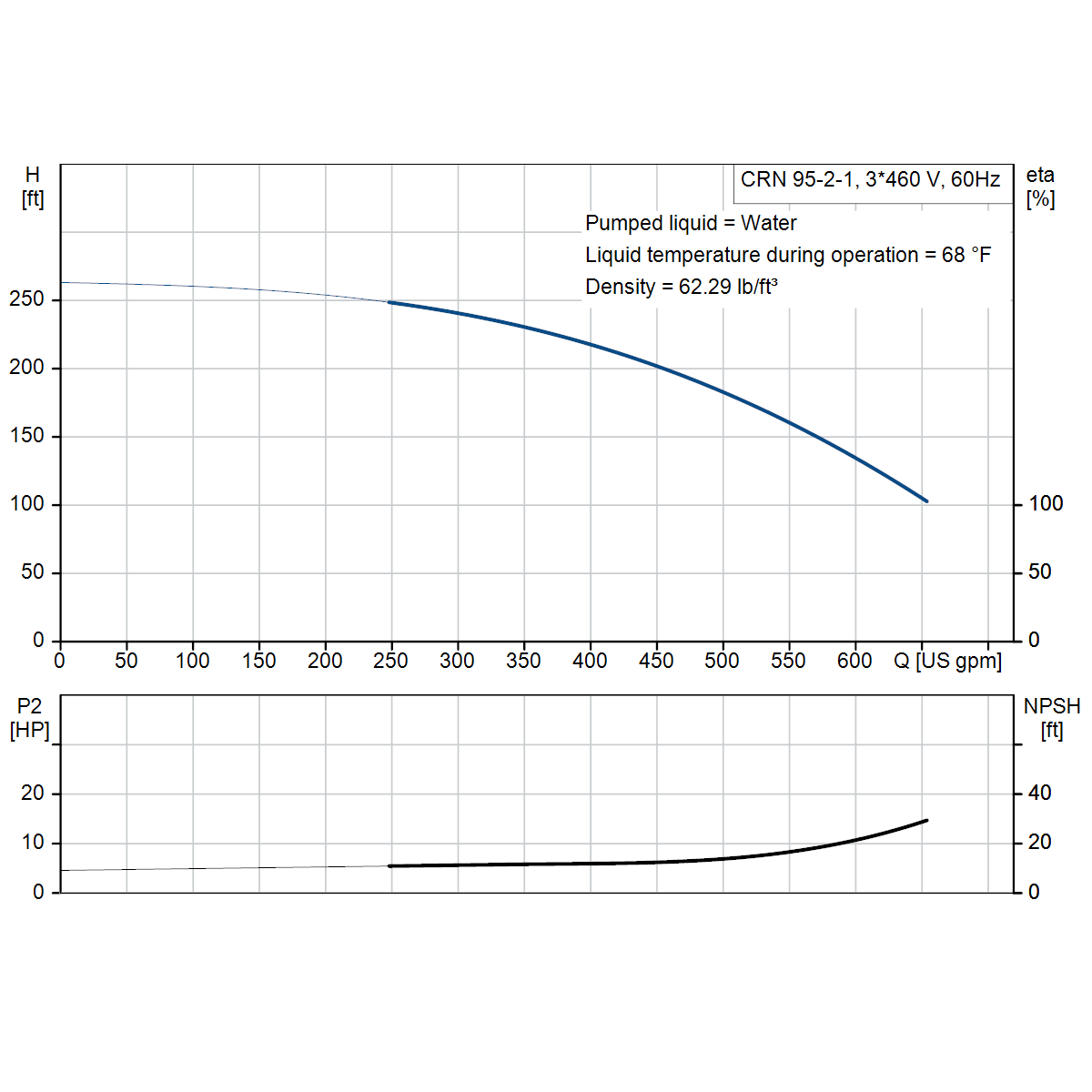

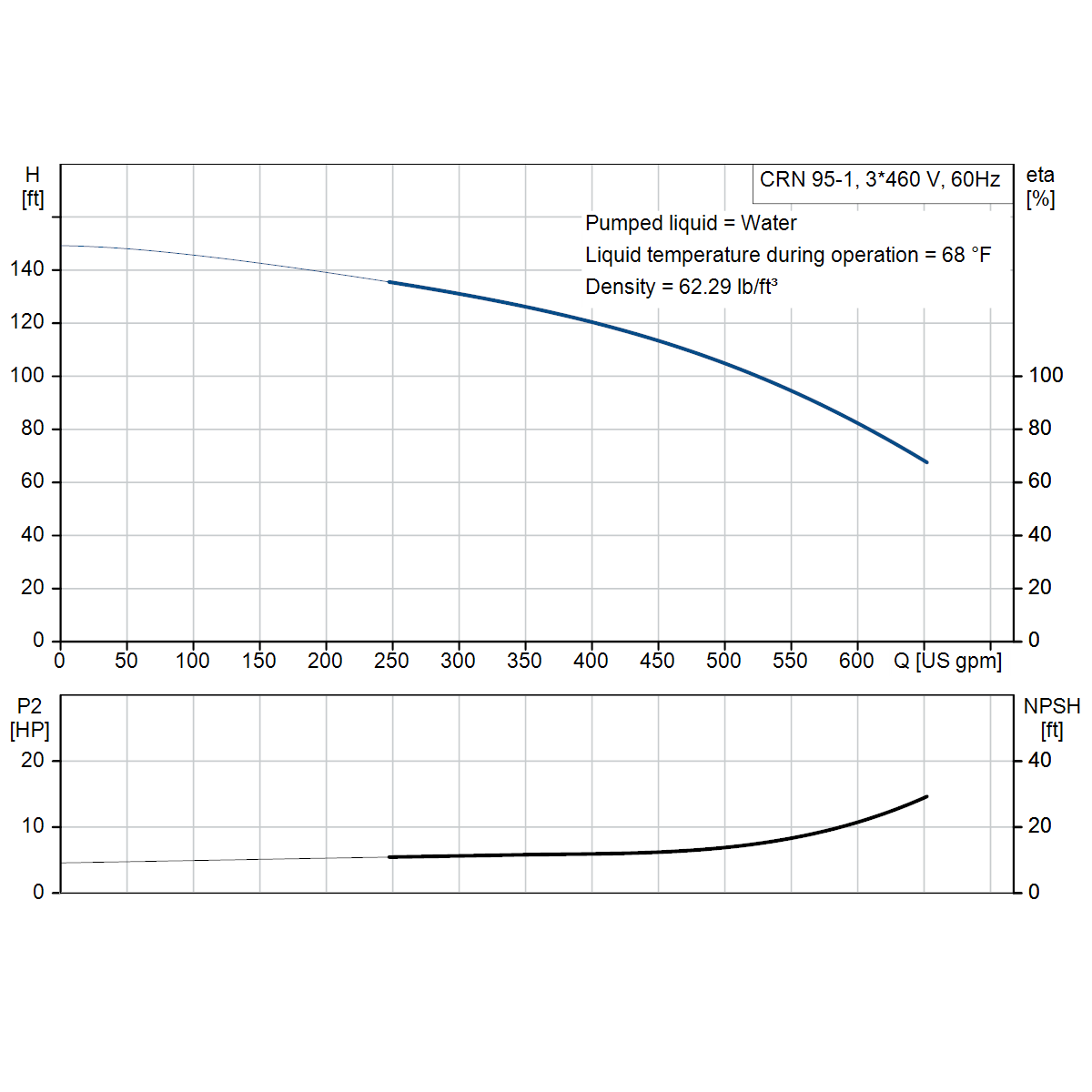

Performance table — all models
| Model |
HP |
20% flow |
50% flow |
75% flow |
Shut-off head |
| CRN 95-1-1 |
15 |
131 gpm · 117 ft |
328 gpm · 103 ft |
491 gpm · 78 ft |
119 ft |
| CRN 95-1 |
20 |
131 gpm · 144 ft |
327 gpm · 129 ft |
490 gpm · 107 ft |
149 ft |
| CRN 95-2-2 |
25 |
131 gpm · 232 ft |
328 gpm · 210 ft |
491 gpm · 158 ft |
232 ft |
| CRN 95-2-1 |
30 |
131 gpm · 259 ft |
328 gpm · 236 ft |
491 gpm · 186 ft |
263 ft |

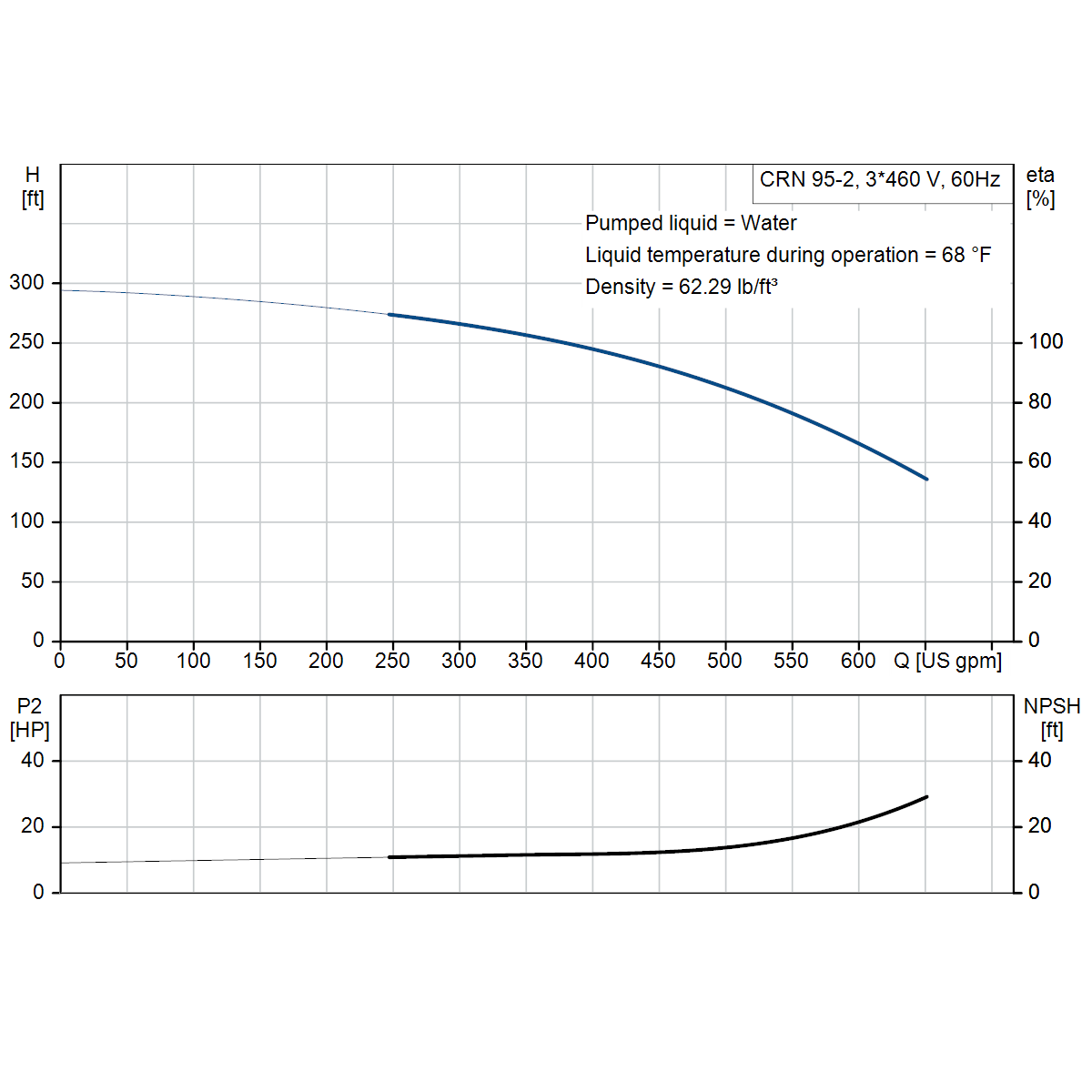

| CRN 95-2 |
30 |
130 gpm · 286 ft |
326 gpm · 261 ft |
489 gpm · 217 ft |
294 ft |
| CRN 95-3-2 |
40 |
132 gpm · 376 ft |
329 gpm · 344 ft |
494 gpm · 268 ft |
378 ft |

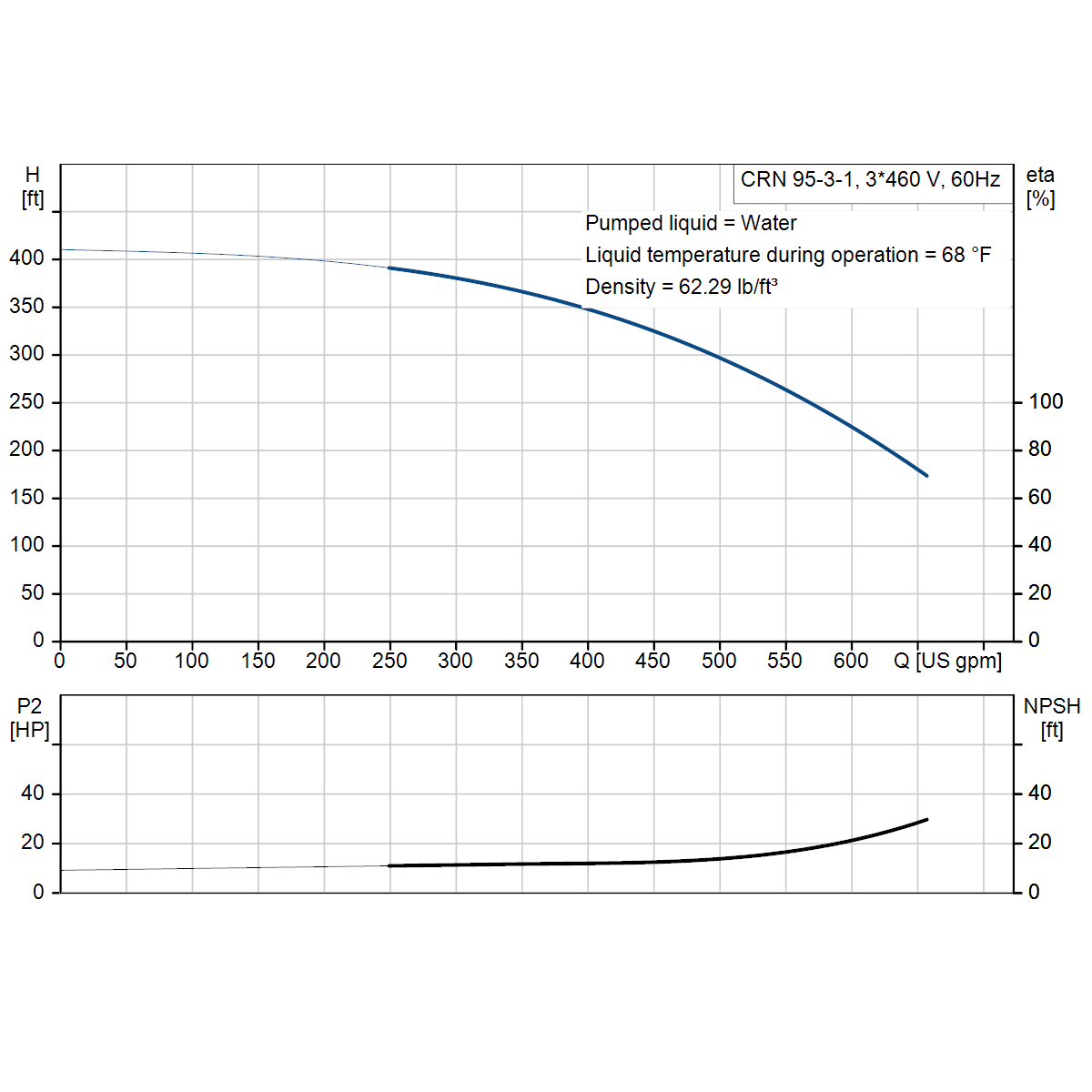

| CRN 95-3-1 |
50 |
132 gpm · 404 ft |
329 gpm · 372 ft |
494 gpm · 300 ft |
410 ft |
| CRN 95-3 |
50 |
131 gpm · 432 ft |
328 gpm · 399 ft |
493 gpm · 332 ft |
441 ft |
| CRN 95-4-2 |
60 |
132 gpm · 521 ft |
330 gpm · 482 ft |
494 gpm · 382 ft |
525 ft |
| CRN 95-4-1 |
60 |
132 gpm · 550 ft |
330 gpm · 509 ft |
494 gpm · 414 ft |
557 ft |
| CRN 95-4 |
75 |
132 gpm · 579 ft |
330 gpm · 537 ft |
494 gpm · 447 ft |
589 ft |

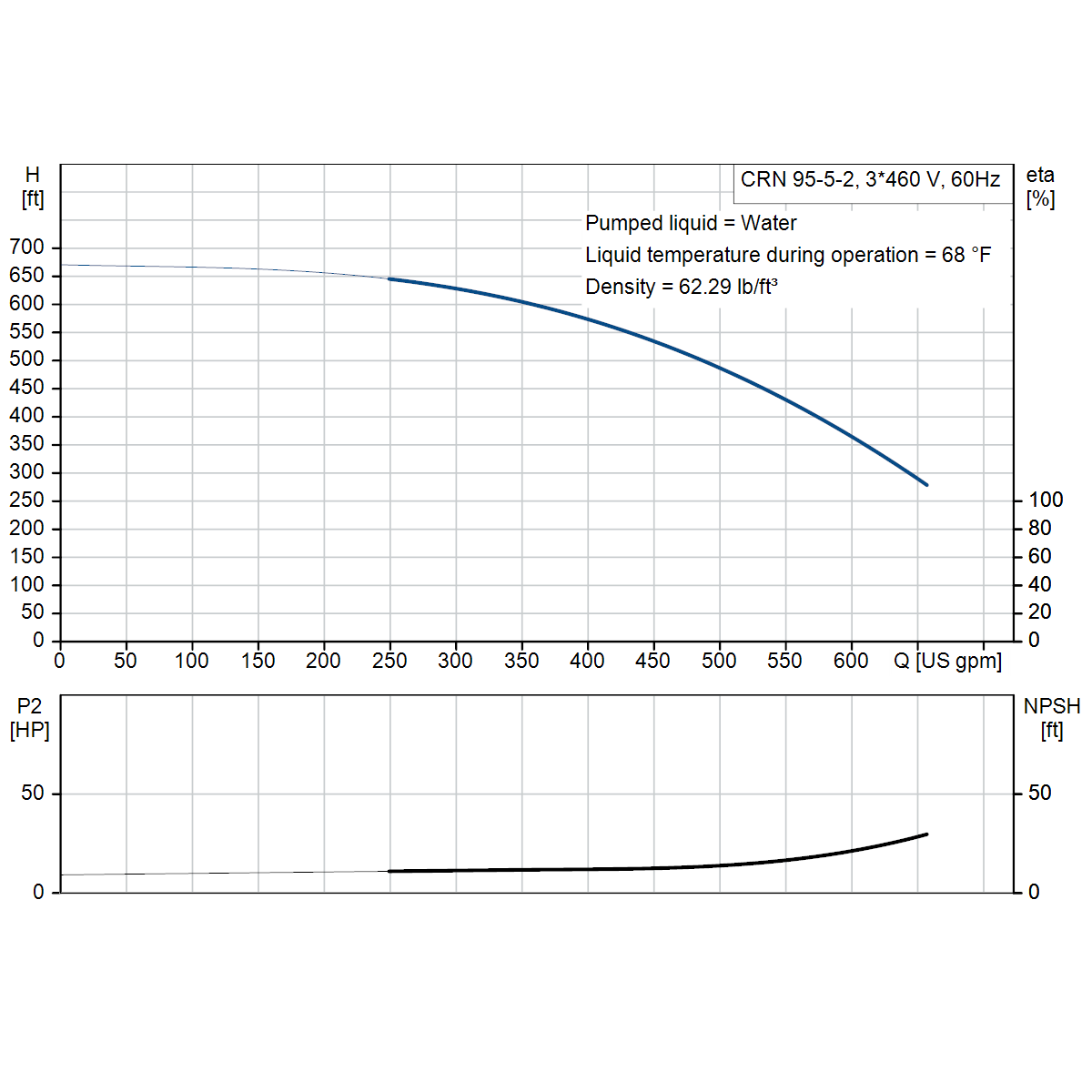

| CRN 95-5-2 |
75 |
132 gpm · 664 ft |
329 gpm · 615 ft |
494 gpm · 493 ft |
670 ft |

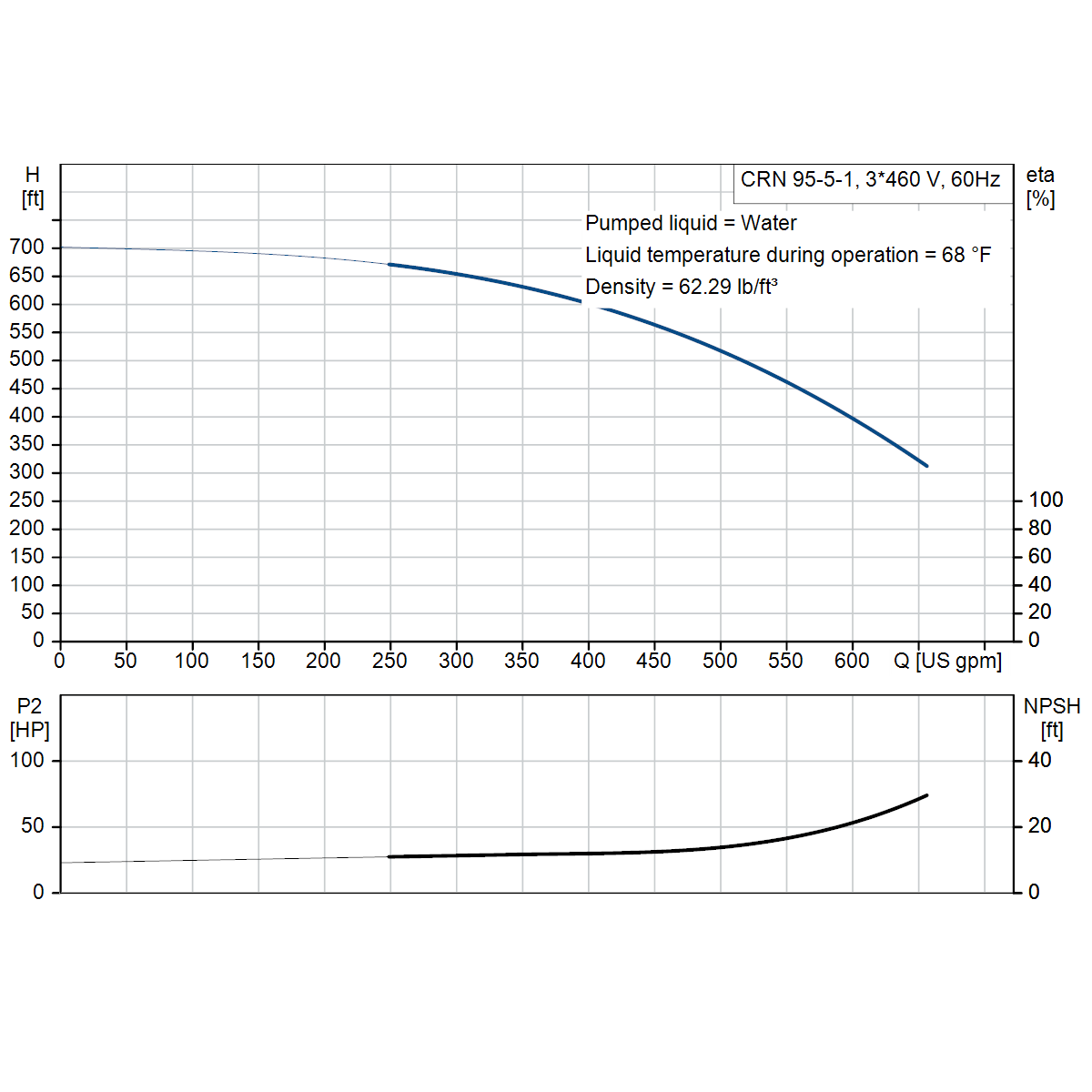

| CRN 95-5-1 |
75 |
131 gpm · 691 ft |
328 gpm · 642 ft |
493 gpm · 524 ft |
701 ft |
| CRN 95-5 |
100 |
Curve on request |
— |
— |
— |
| CRN 95-6-3 |
100 |
132 gpm · 779 ft |
330 gpm · 723 ft |
494 gpm · 573 ft |
784 ft |
| CRN 95-6 |
100 |
131 gpm · 863 ft |
328 gpm · 802 ft |
492 gpm · 666 ft |
877 ft |

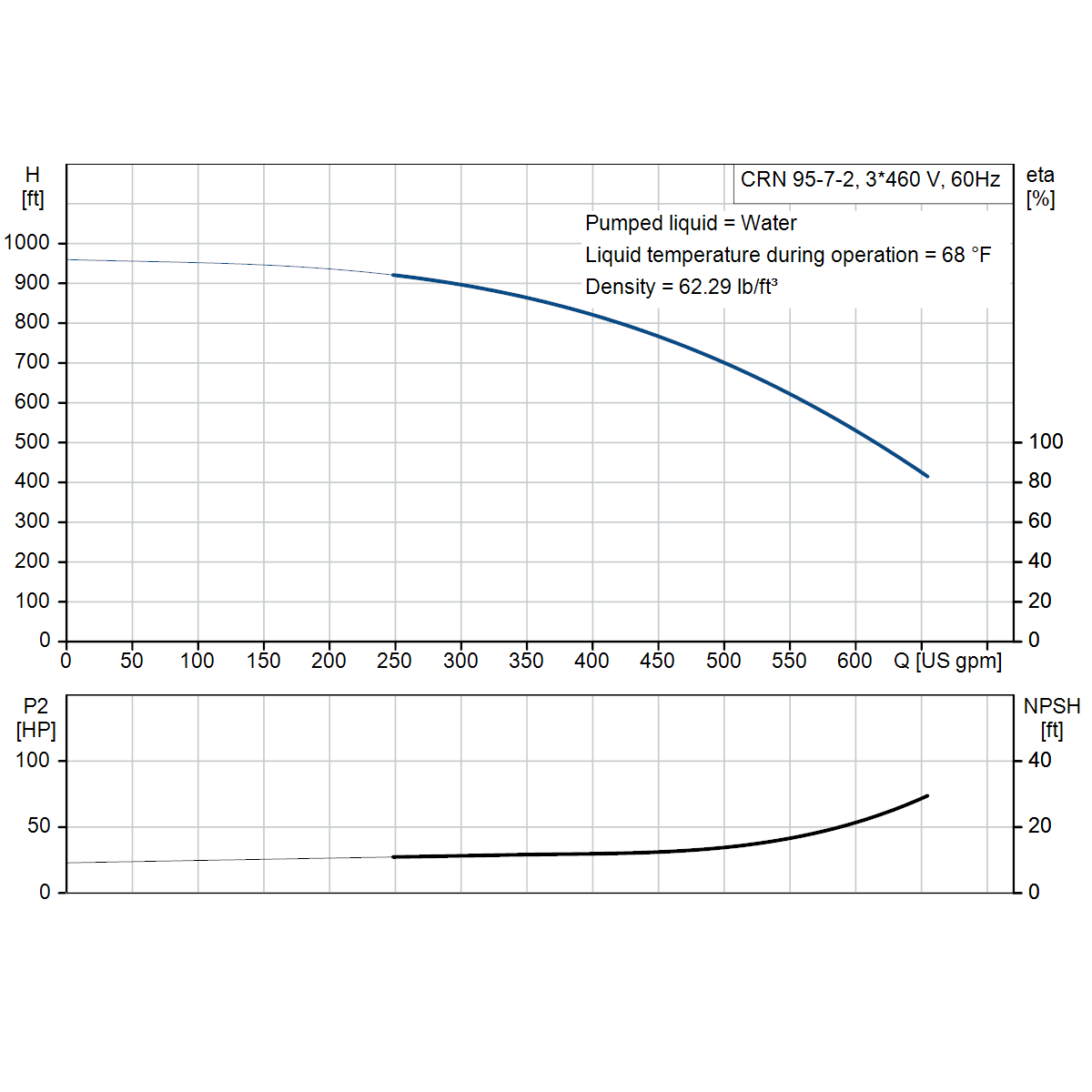

| CRN 95-7-2 |
100 |
131 gpm · 949 ft |
328 gpm · 879 ft |
491 gpm · 713 ft |
960 ft |
| CRN 95-7 |
125 |
132 gpm · 1,016 ft |
330 gpm · 948 ft |
496 gpm · 790 ft |
1,029 ft |
| CRN 95-8-2 |
125 |
132 gpm · 1,101 ft |
330 gpm · 1,028 ft |
495 gpm · 839 ft |
1,113 ft |
| CRN 95-8 |
125 |
132 gpm · 1,160 ft |
330 gpm · 1,083 ft |
495 gpm · 901 ft |
1,177 ft |
Read from Grundfos published 60 Hz curves (water at 68 °F); actual head varies slightly with motor speed. For a duty between two models, email us and we will size it against the full curve.
Materials
| Component |
Material |
| Pump head and base |
Stainless steel AISI 316 (ASTM A351 CF8M); cast iron flange rings and base plate, not wetted |
| Chambers and impellers |
Stainless steel AISI 316 |
| Shaft |
Stainless steel AISI 316 |
| Shaft seal faces |
Silicon carbide / silicon carbide |
| Seal and gasket rubber |
EPDM (HQQE) or FKM (HQQV) |
| Bearing |
Silicon carbide |
-
HQQE — EPDM. Silicon-carbide faces with EPDM rubber, −4 °F to 248 °F. The standard water seal: potable water, hot water and glycol. Not for mineral oils.
-
HQQV — FKM (Viton). Silicon-carbide faces with FKM rubber, −4 °F to 194 °F. For mineral oils, fuels and liquids that attack EPDM.
Before You BuyConfirm the duty point against the performance table, and confirm horsepower, voltage and motor enclosure against your site. Check that liquid temperature and system pressure sit inside the limits for the seal and connection selected, and order 4 in ANSI companion flanges or Victaulic couplings separately. Choose a CRN 90 Drop-in option only when replacing an existing CRN 90.
