Vertical, multistage centrifugal pump with suction and discharge ports on the same level, so it drops into a straight pipe run. The pump head and base are ductile cast iron (ASTM A536 65-45-12); chambers, impellers and shaft are stainless steel AISI 304.
The CR 155 frame is rated at 820 GPM. The family number is Grundfos’s nominal duty in cubic metres per hour, not a GPM figure — size the pump from the performance table below, not from the model number.
6 models are offered, from CR 155-1-1 to CR 155-3-2, covering 25 to 75 HP on NEMA C-face TEFC motors (three-phase). Models with a -1, -2 or -3 suffix use that many reduced-diameter impellers to trim head between full stage counts. Connections are 6 in ANSI flanges (150 lb or 300 lb class, by model).
Each part number is a complete pump: pump end, motor, coupling, coupling guard and cartridge shaft seal, factory assembled.
Not included: ANSI companion flanges (6 in) — order separately. Motor starter or VFD, overload protection, pressure switch or sensor, isolation valves, check valve and foundation bolts are also not included.
To run it needs: a three-phase supply matching the motor voltage shown in the selected option, a correctly sized starter with overload protection, flooded suction or adequate NPSH, and a level, rigid foundation. These are fixed-speed pumps; for integrated variable-speed control see the CRE range.
| Specification | Value |
|---|---|
| Rated flow at 60 Hz | 820 GPM |
| Shut-off head range | 147 to 461 ft |
| Motor power range | 25 to 75 HP |
| Motors | NEMA C-face, TEFC, 2-pole, service factor 1.25 |
| NEMA frames | 284TSC, 324TSC, 326TSC, 364TSC, 365TSC |
| Frequency | 60 Hz, 2-pole (about 3,500 rpm) |
| Suction and discharge port | 6 in, in-line |
| Connection | 6 in ANSI flanges (150 lb or 300 lb class, by model) |
| Maximum operating pressure | 232 psi depending on model and connection |
| Liquid temperature range | −4 °F to 248 °F with HQQE; −4 °F to 194 °F with HQQV |
| Maximum ambient temperature | 104 °F |
| Pump orientation | Vertical |
| Approvals | NSF/ANSI 61 (HQQE seal versions), NSF/ANSI 372 |
| Curve tolerance | ISO 9906:2012 grade 3B |

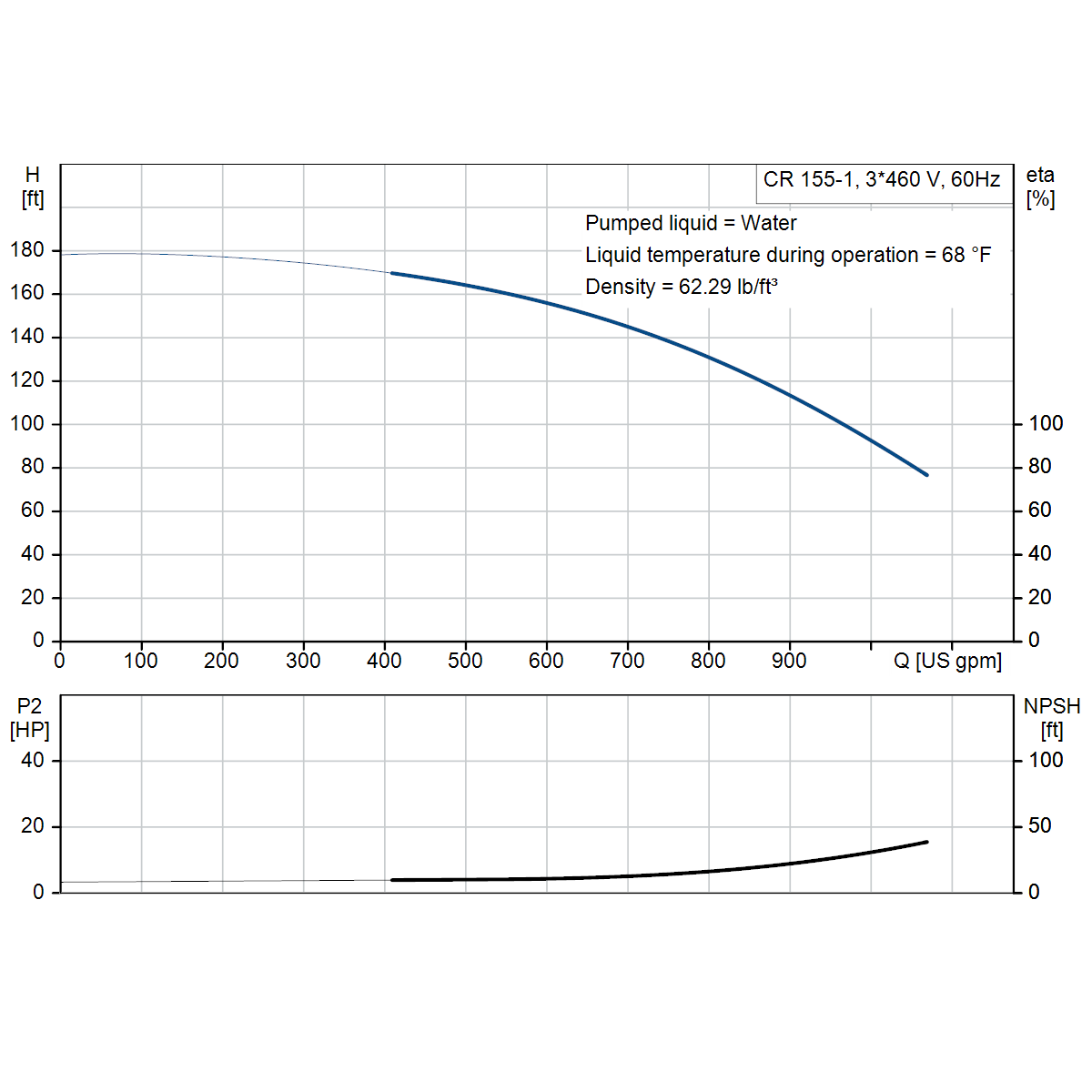

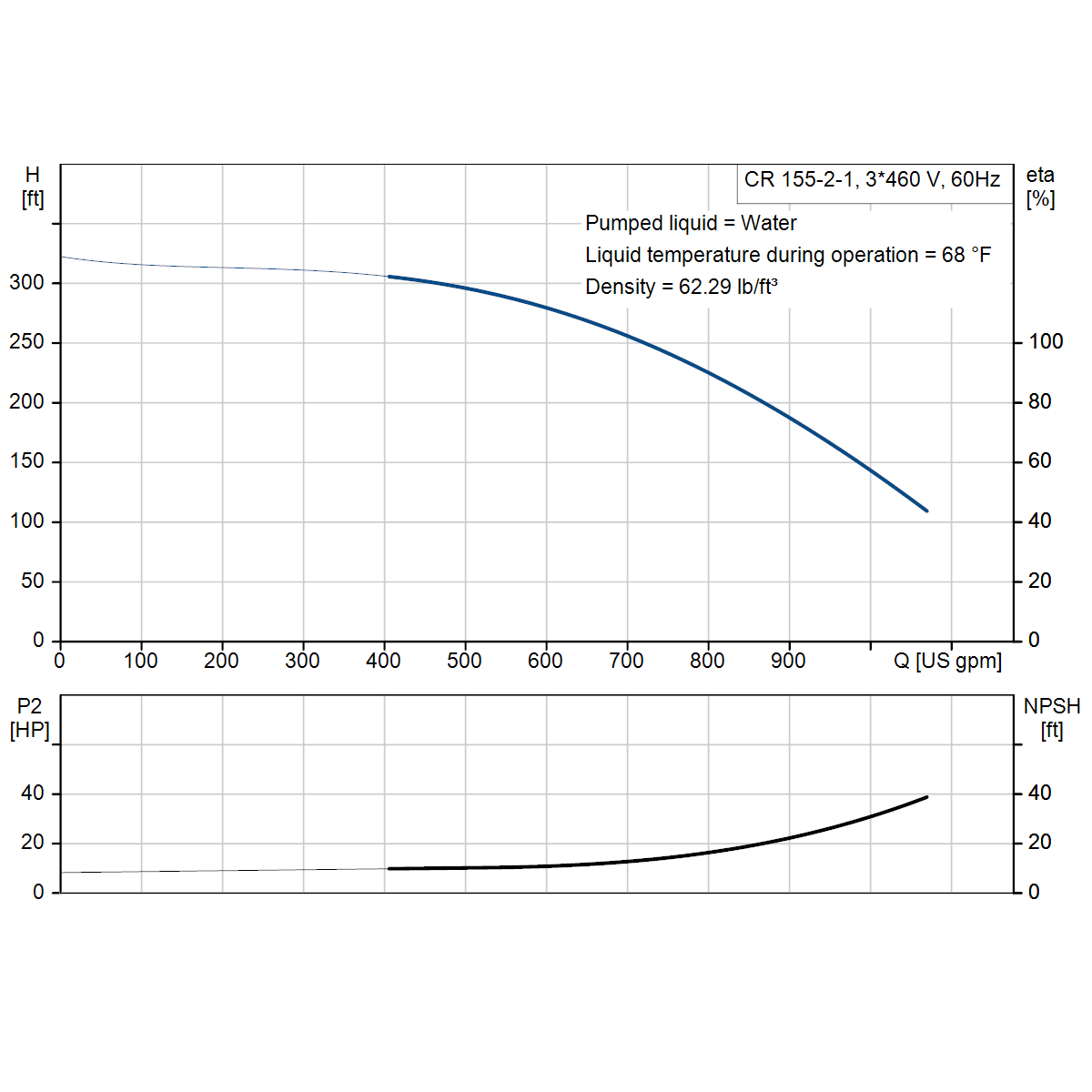

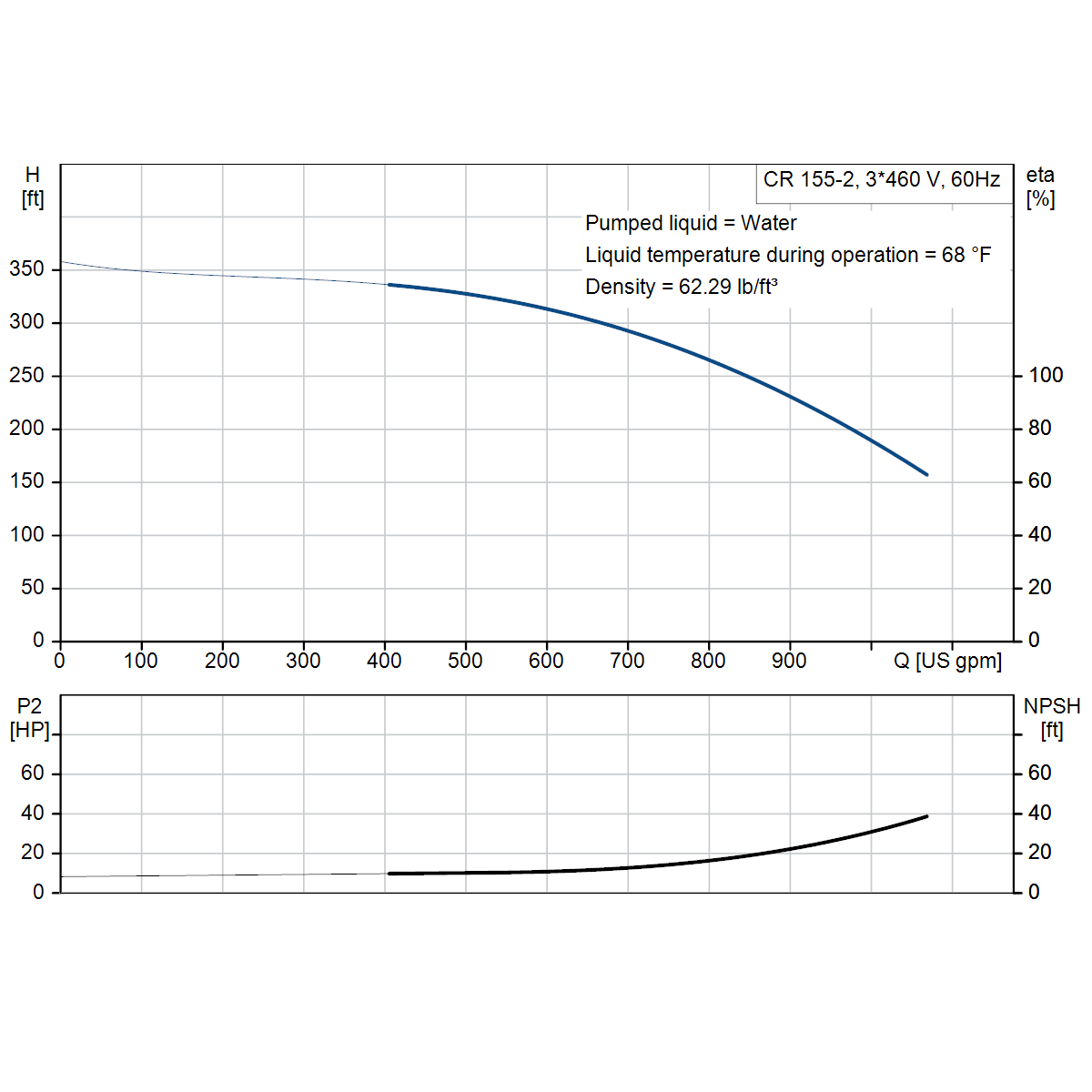

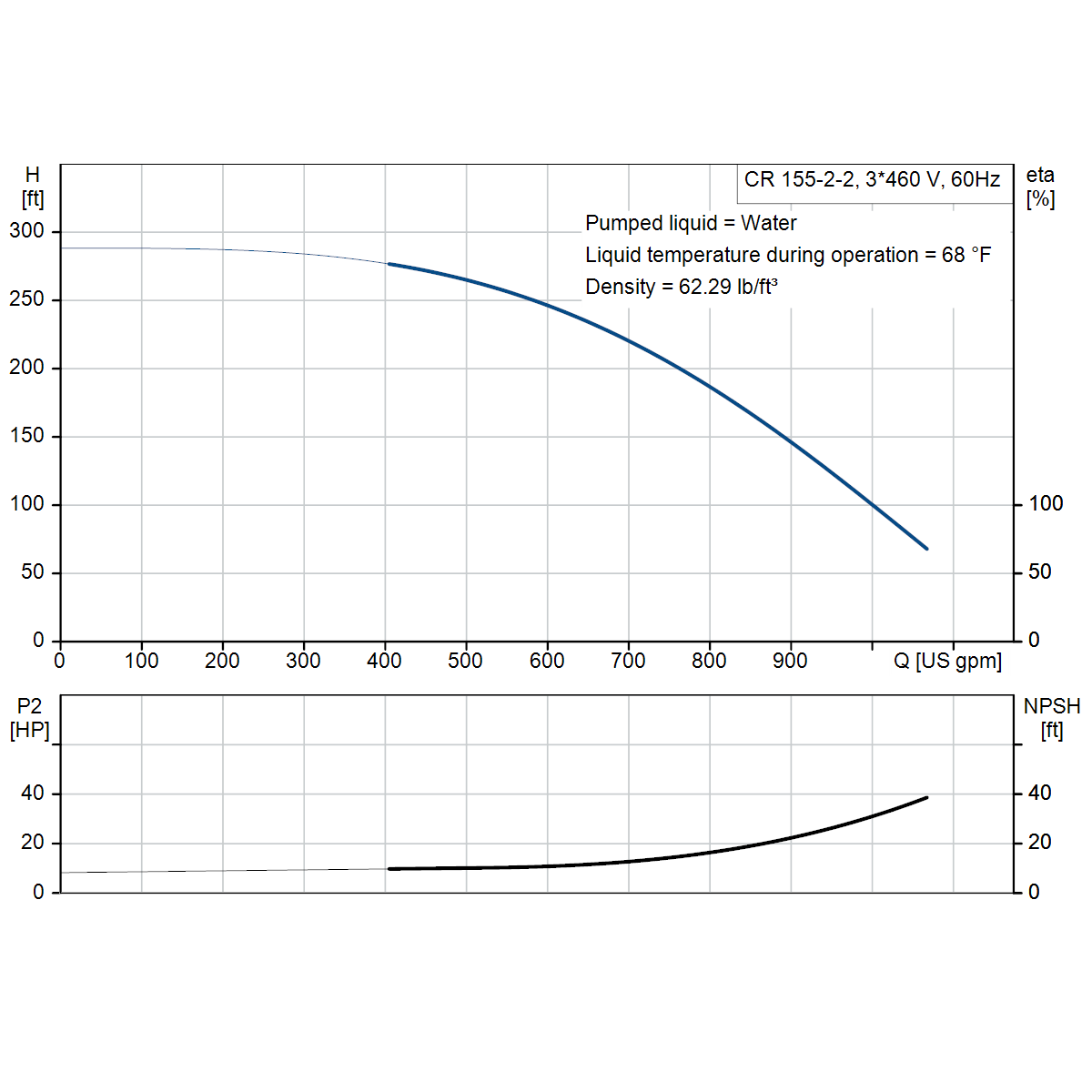

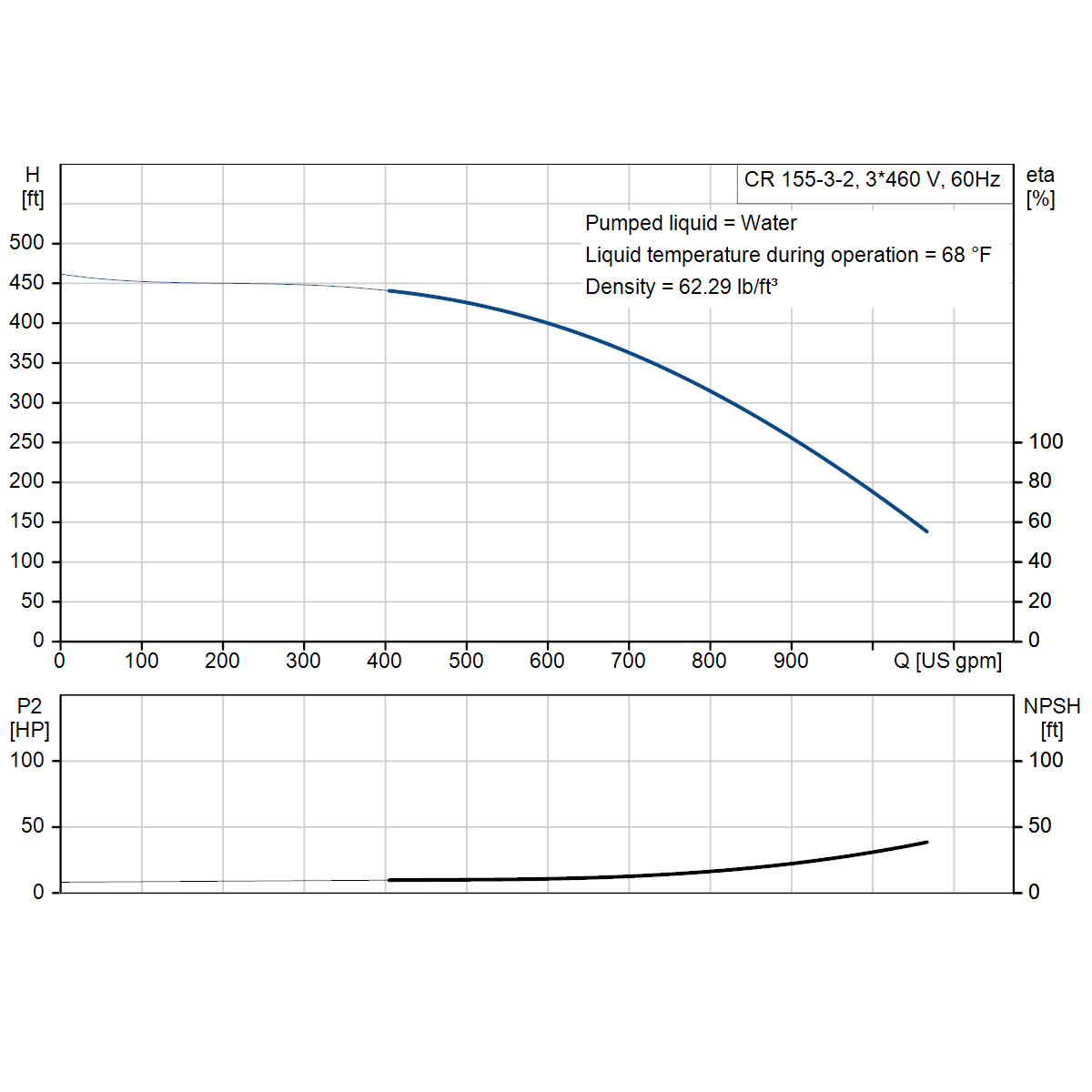

Find the head you need in feet at your flow and pick the first model that meets it. Points are read from the Grundfos 60 Hz curve for each model at 20%, 50% and 75% of its maximum flow; shut-off is the head at zero flow, not a working point.
| Model | HP | 20% flow | 50% flow | 75% flow | Shut-off head |
|---|---|---|---|---|---|
| CR 155-1-1 | 25 | 213 gpm · 148 ft | 532 gpm · 129 ft | 797 gpm · 93 ft | 147 ft |
| CR 155-1 | 40 | 214 gpm · 177 ft | 536 gpm · 162 ft | 803 gpm · 130 ft | 178 ft |
| CR 155-2-2 | 50 | 214 gpm · 287 ft | 534 gpm · 259 ft | 802 gpm · 186 ft | 288 ft |
| CR 155-2-1 | 60 | 214 gpm · 313 ft | 536 gpm · 291 ft | 804 gpm · 224 ft | 322 ft |
| CR 155-2 | 75 | 214 gpm · 344 ft | 536 gpm · 323 ft | 803 gpm · 264 ft | 358 ft |
| CR 155-3-2 | 75 | 214 gpm · 450 ft | 534 gpm · 418 ft | 802 gpm · 314 ft | 461 ft |
Read from Grundfos published 60 Hz curves (water at 68 °F); actual head varies slightly with motor speed. For a duty between two models, email us and we will size it against the full curve.
| Component | Material |
|---|---|
| Pump head and base | Ductile cast iron, ASTM A536 65-45-12 |
| Chambers and impellers | Stainless steel AISI 304 |
| Shaft | Stainless steel AISI 304 |
| Shaft seal faces | Silicon carbide / silicon carbide |
| Seal and gasket rubber | EPDM (HQQE) or FKM (HQQV) |
| Bearing | Silicon carbide |
