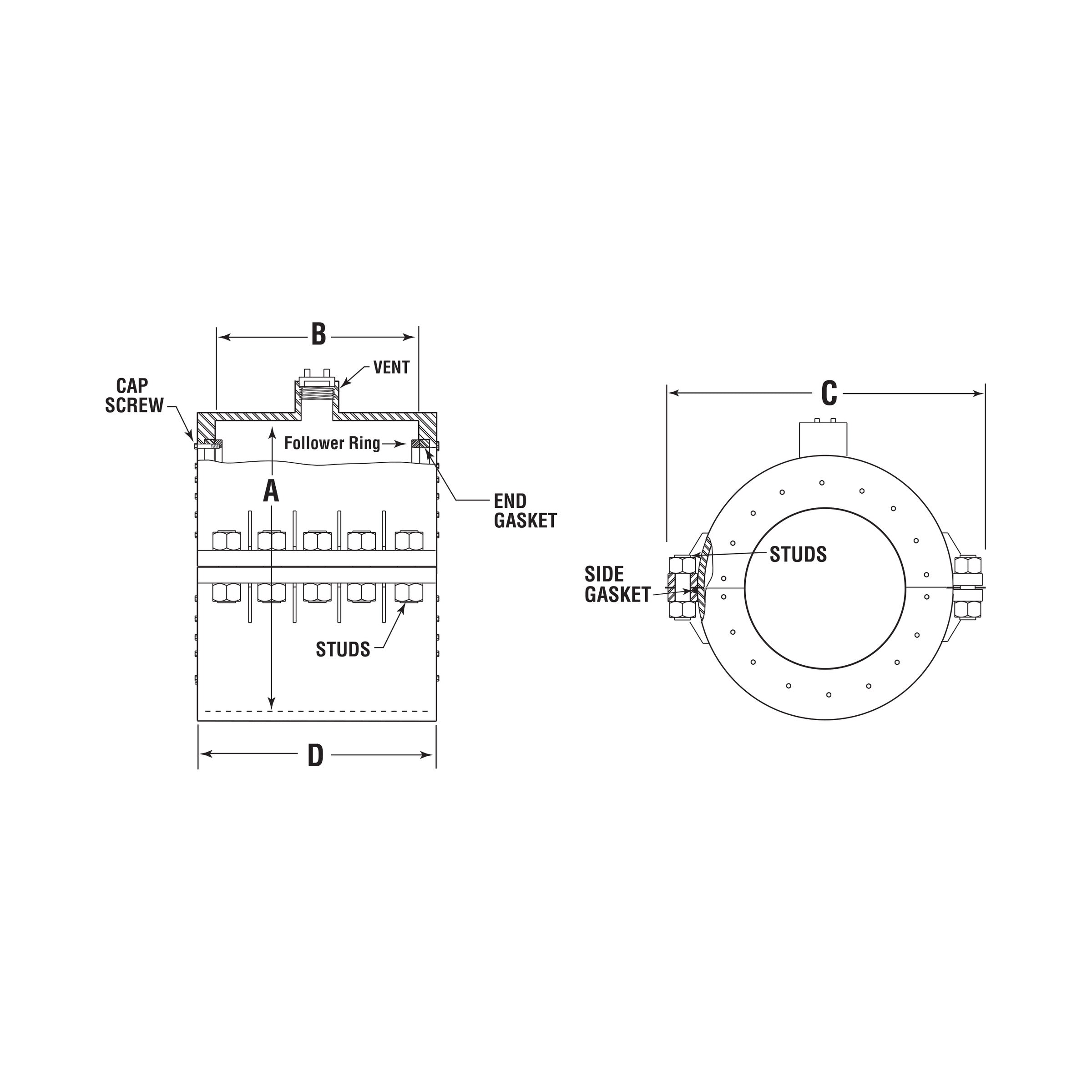

Dresser Style 96 Fabricated Split Sleeve dimension drawing
Dresser Style 96 Fabricated Split Sleeve specification table
Dresser Style 96 Fabricated Split Sleeve specification table
Dresser Style 96 Fabricated Split Sleeve specification table
Dresser Style 96 Fabricated Split Sleeve specification table
Dresser Style 96 Fabricated Steel Split Sleeve - 6 in to 20 in
Dresser Style 96 Fabricated Split Sleeve dimension drawing
Dresser Style 96 Fabricated Split Sleeve specification table
Dresser Style 96 Fabricated Split Sleeve specification table
Dresser Style 96 Fabricated Split Sleeve specification table
Dresser Style 96 Fabricated Split Sleeve specification table

Dresser Style 96 Fabricated Split Sleeve - Steel Gas Pipe, 500 PSI

Nominal Size - OD: 6 in - 6.63 in OD
Vent - Part No.: 2 in IPS Vent - 0096-0001-002

Product variant with selected options does not exist!
$26,809.19
SKU: 0096-0001-002
Weight : 400.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Dresser · Gas Repair Sleeve
Style 96 Fabricated Split Sleeve
Fabricated steel split sleeve for steel gas pipe, 6 in to 20 in, 500 PSI.
500 PSI
Fabricated Steel
Vented
6 in to 20 in
400 lb Weight
Overview

The Dresser Style 96 fabricated steel split sleeve encloses leaks on larger steel gas pipe, with an IPS vent.

Application: Steel gas main repair.

  • IPS vent by size
What Ships and What It Needs to Run

Included: sleeve halves, gaskets, bolts and nuts.

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty

Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

Working Pressure

500 PSI.

Source: Dresser Gas Repair Products Catalog. The rating on the product label is the actual rating of each part.

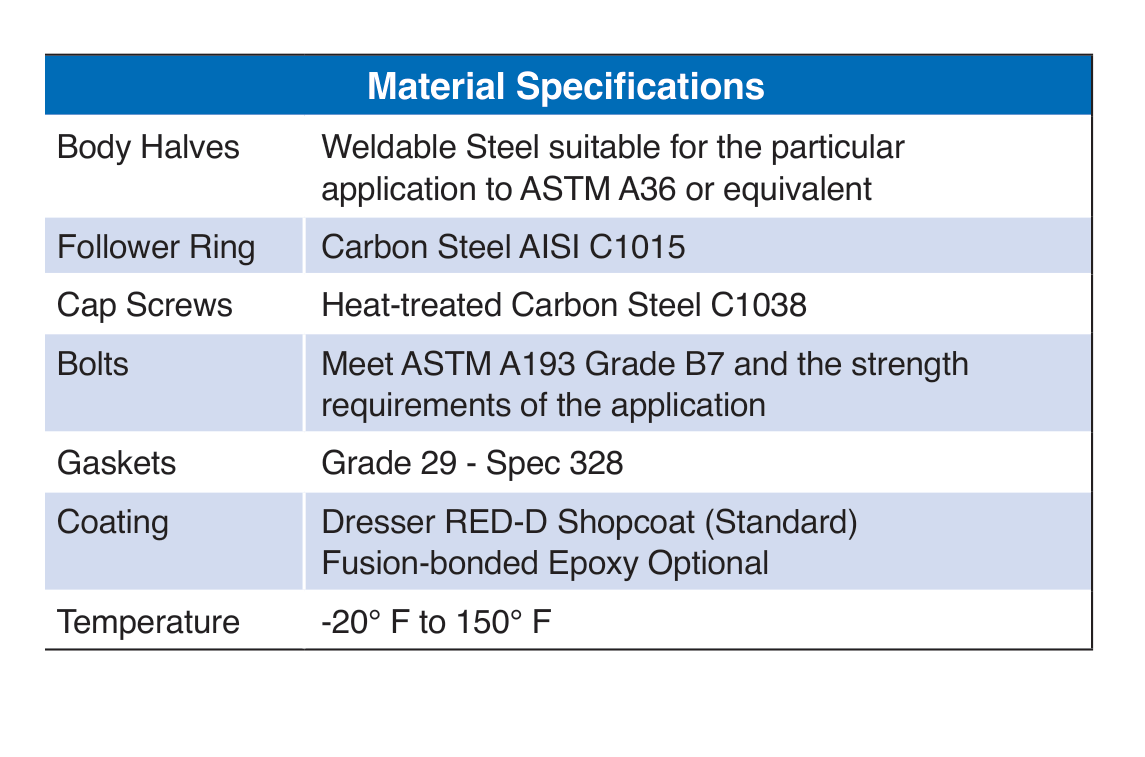

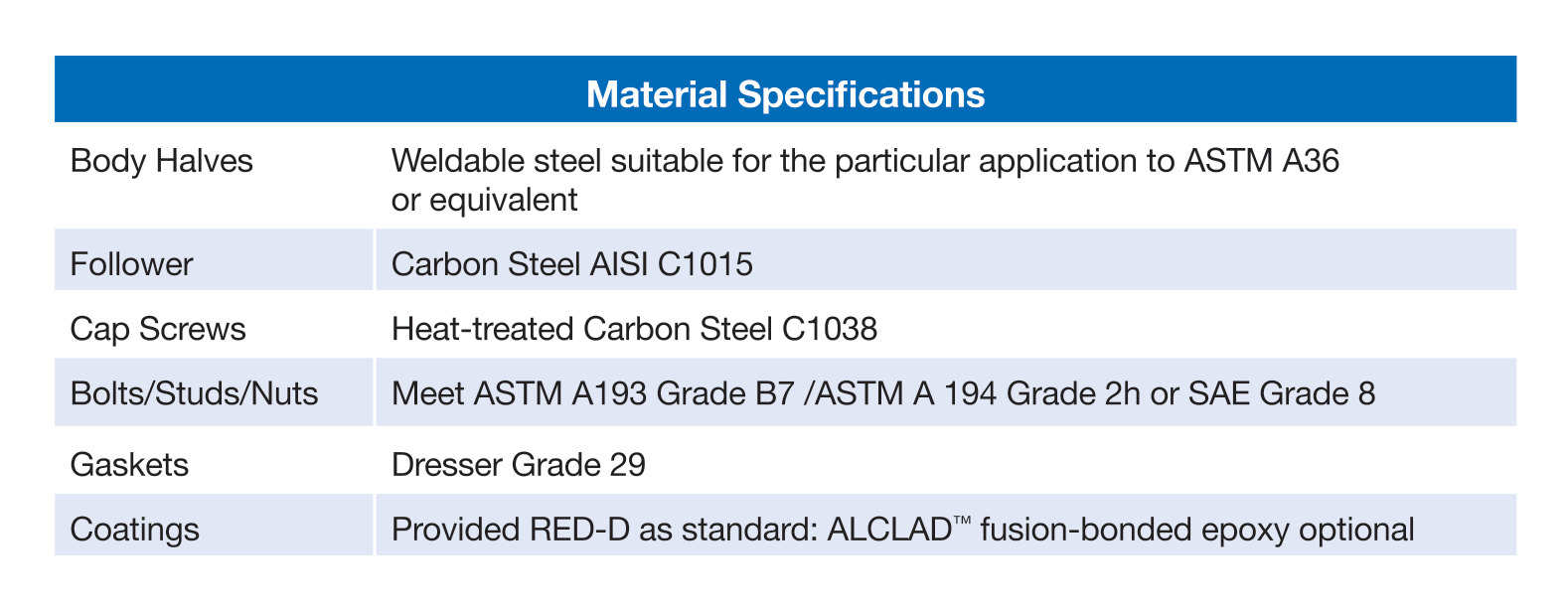

Materials Specifications
Body halves Weldable steel to ASTM A36 or equivalent
Follower Carbon steel, AISI C1015
Cap screws Heat-treated carbon steel C1038
Bolts, studs and nuts ASTM A193 Gr B7 / A194 Gr 2H, or SAE Grade 8
Gaskets Dresser Grade 29
Coating RED-D standard; ALCLAD fusion-bonded epoxy optional

Source: Dresser Gas Repair Products brochure (NGS DPS.003).

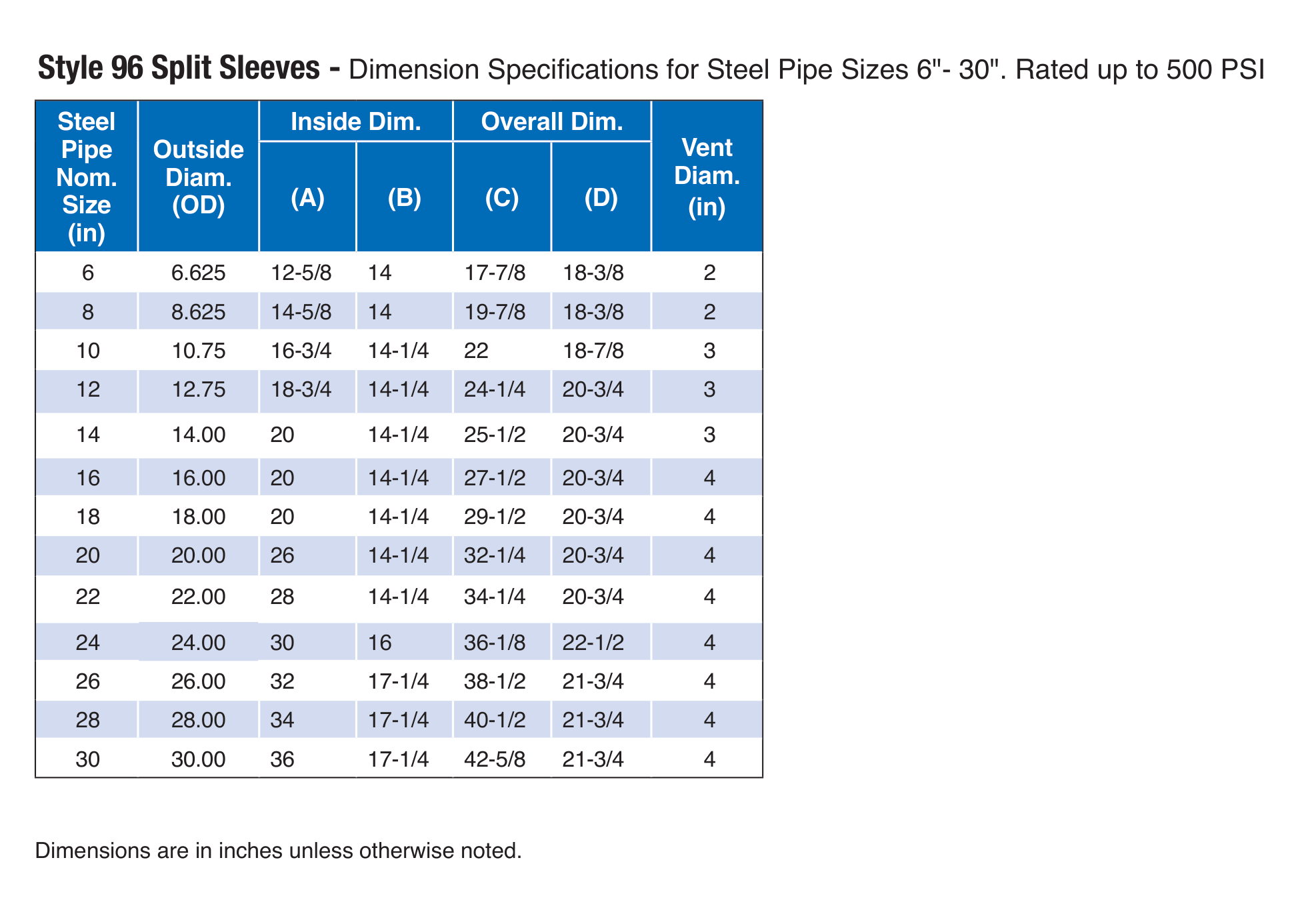

Sizes
Nominal Size - OD Vent
6 in - 6.63 in OD 2 in IPS Vent
8 in - 8.63 in OD 2 in IPS Vent
10 in - 10.75 in OD 3 in IPS Vent
12 in - 12.75 in OD 3 in IPS Vent
14 in - 14.00 in OD 4 in IPS Vent
16 in - 16.00 in OD 4 in IPS Vent
18 in - 18.00 in OD 4 in IPS Vent
20 in - 20.00 in OD 4 in IPS Vent

Sizes as listed in Dresser’s 2026 price lists; the picker shows the part number for each build.

Installation Notes
  • Mark the pipe and stab it into the fitting to the full stab depth.
  • Anchor the pipe joint wherever pull-out can occur.
  • Read the Dresser installation instructions and warnings before installing.

Source: Dresser Gas Product Selection Guide (NGS-DPS-015), product warnings.

Before You Order. Confirm the steel pipe OD. Non-stock Dresser parts are not returnable without Dresser’s authorization, and ship time is confirmed when you order. Custom builds (other sizes, widths, gaskets or materials) are available: email sales@watermainsupply.com with the pipe OD, material and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
