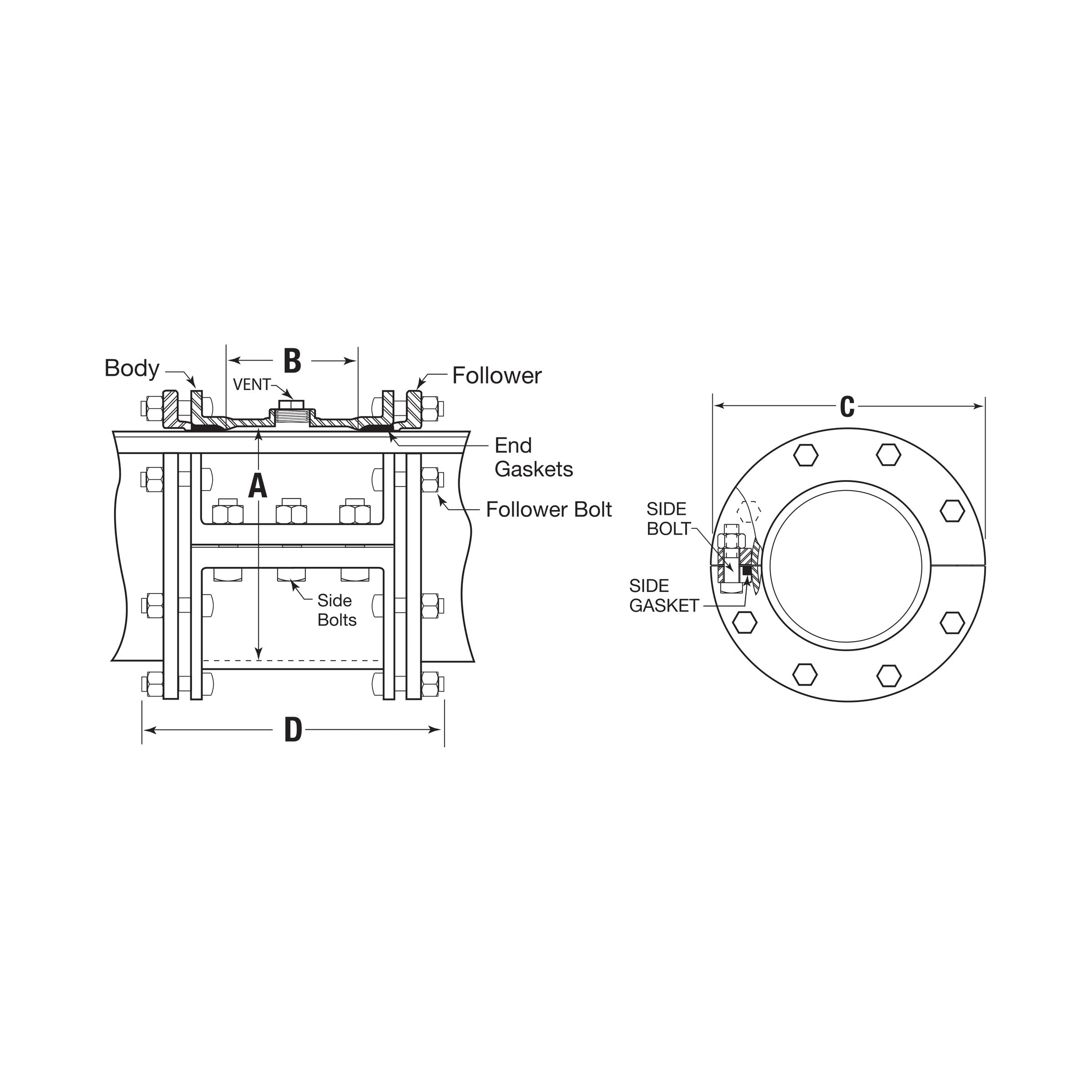

Dresser Style 73 Cast Split Sleeve dimension drawing

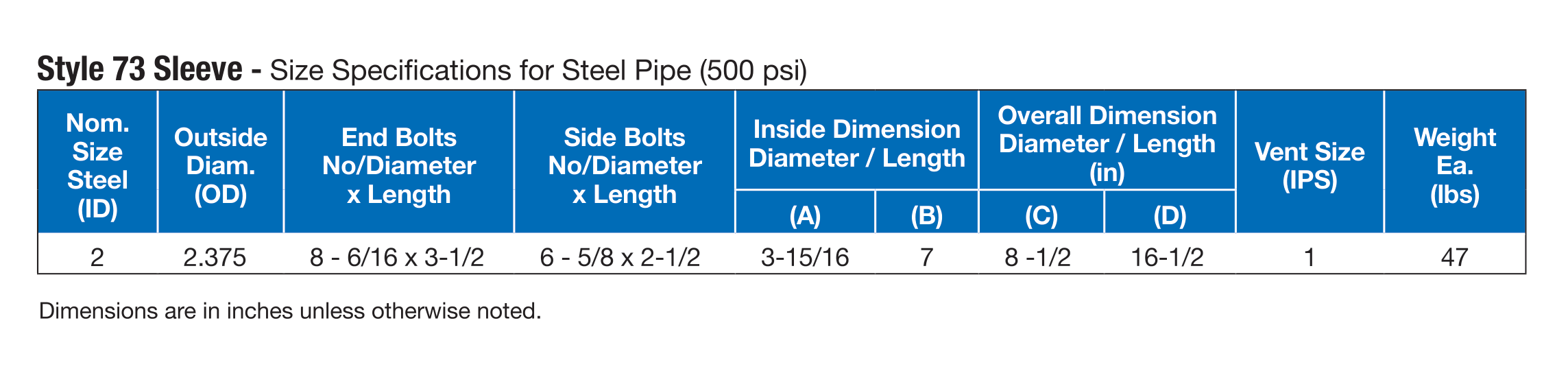

Dresser Style 73 Cast Split Sleeve specification table
Dresser Style 73 Cast Split Sleeve specification table
Dresser Style 73 Cast Split Sleeve - 2 in 2.375 in OD Steel Gas Pipe, 1 in Vent, 500 PSI - 0073-0002-005
Dresser Style 73 Cast Split Sleeve dimension drawing
Dresser Style 73 Cast Split Sleeve specification table
Dresser Style 73 Cast Split Sleeve specification table

Dresser Style 73 Cast Split Sleeve - 2 in 2.375 in OD Steel Gas Pipe, 1 in Vent, 500 PSI - 0073-0002-005

$2,610.98
SKU: 0073-0002-005
Weight : 47.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Dresser · Gas Repair Sleeve
Style 73 Cast Split Sleeve
Cast split sleeve for 2 in steel gas pipe, 500 PSI.
500 PSI
2 in Steel Gas Pipe
1 in IPS Vent
47 lb Weight
Overview

The Dresser Style 73 cast split sleeve encloses leaks on 2 in steel gas pipe, part number 0073-0002-005.

Application: Steel gas pipe repair.

  • 1 in IPS vent
  • Dresser part number 0073-0002-005
What Ships and What It Needs to Run

Included: sleeve halves, gaskets, bolts and nuts.

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty

Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

Working Pressure

500 PSI.

Source: Dresser Gas Repair Products Catalog. The rating on the product label is the actual rating of each part.

Sizes
Nominal (steel) Pipe OD Side bolts Vent Weight
2 in 2.375 in 6 - 5/8 x 2-1/2 in 1 in 47 lb

Source: Dresser Gas Repair Products brochure (NGS DPS.003), 500 PSI table.

Installation Notes
  • Anchor the pipe joint wherever pull-out can occur.
  • Read the Dresser installation instructions and warnings before installing.

Source: Dresser Gas Product Selection Guide (NGS-DPS-015), product warnings.

Before You Order. Confirm the pipe is 2 in steel, 2.375 in OD. Non-stock Dresser parts are not returnable without Dresser’s authorization, and ship time is confirmed when you order. Custom builds (other sizes, widths, gaskets or materials) are available: email sales@watermainsupply.com with the pipe OD, material and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
