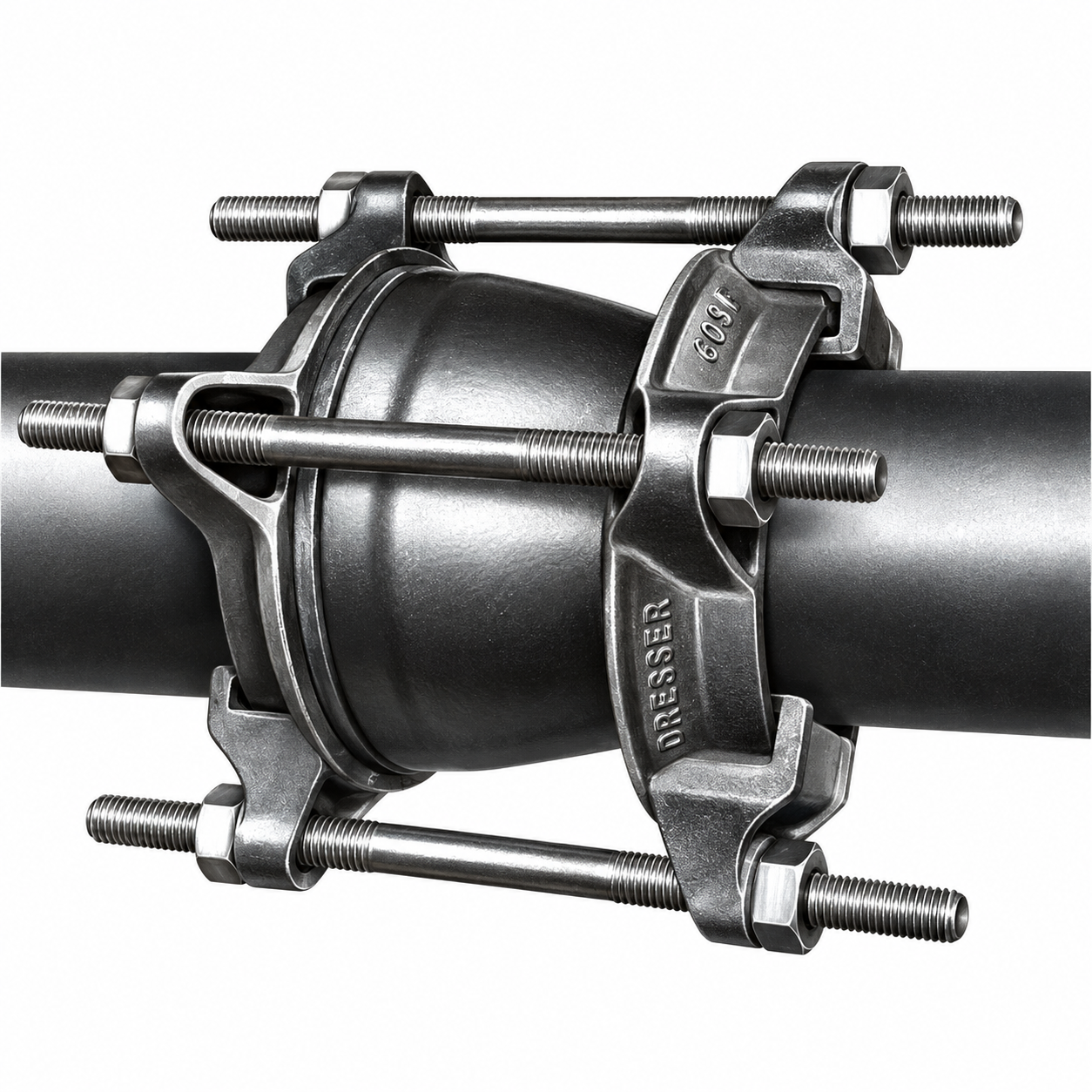

The Dresser Style 60-S works like the standard Style 60 bell joint clamp but uses two spigot rings instead of a spigot ring and a bell ring. Stab-type joints, cast iron included, have a long tapered bell with no shoulder to anchor a bell ring, so the 60-S grips both ends with long studs for adjustment. As the studs are tightened against the bell, the large gasket compresses and shuts off the leak.
Application: Leaking stab-type and caulked bell and spigot joints on cast iron water mains.
Included: two spigot rings, gasket, studs and nuts.
Gasket tongs, optional: Dresser tongs hold the gasket in place while the clamp is bolted up.
Covered for 12 months from the date of purchase under Dresser’s published warranty terms.
Caulked cast iron bell and spigot joints, including stab-type joints with a long tapered bell. Dresser lists the 60-S for C900 pipe Classes A, B, C and D through 24 in, and Classes A, B and C at 30 in and 36 in.
| Spigot rings | Ductile or malleable iron |
| Studs and nuts | AWWA C111/A21.11 |
| Gasket | Grade 27 Buna-S |
| Coating | Fusion-bonded epoxy |
Source: Dresser Style 60, 160 and 60-S bell joint clamp data sheet.
| Nominal (CIP) | Studs | Approx. ship weight |
|---|---|---|
| 4 in | 4 - 5/8 x 13 in | 18 lb |
| 6 in | 6 - 5/8 x 13 in | 27 lb |
| 8 in | 6 - 5/8 x 13 in | 33 lb |
| 12 in | 8 - 5/8 x 13 in | 48 lb |
| 16 in | 9 - 5/8 x 16 in | 74 lb |
| 20 in | 12 - 5/8 x 16 in | 100 lb |
| 24 in | 12 - 5/8 x 16 in | 115 lb |
| 30 in | 16 - 5/8 x 16 in | 171 lb |
| 36 in | 20 - 5/8 x 16 in | 247 lb |
Source: Dresser Style 60, 160 and 60-S bell joint clamp data sheet. Weights are Dresser’s approximate shipping weights.
