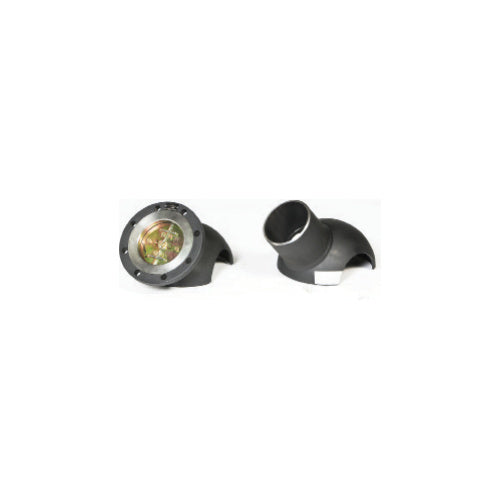

Dresser LS-2 Spherical Hot Tap Fitting product photo
Dresser LS-2 Spherical Hot Tap Fitting product photo

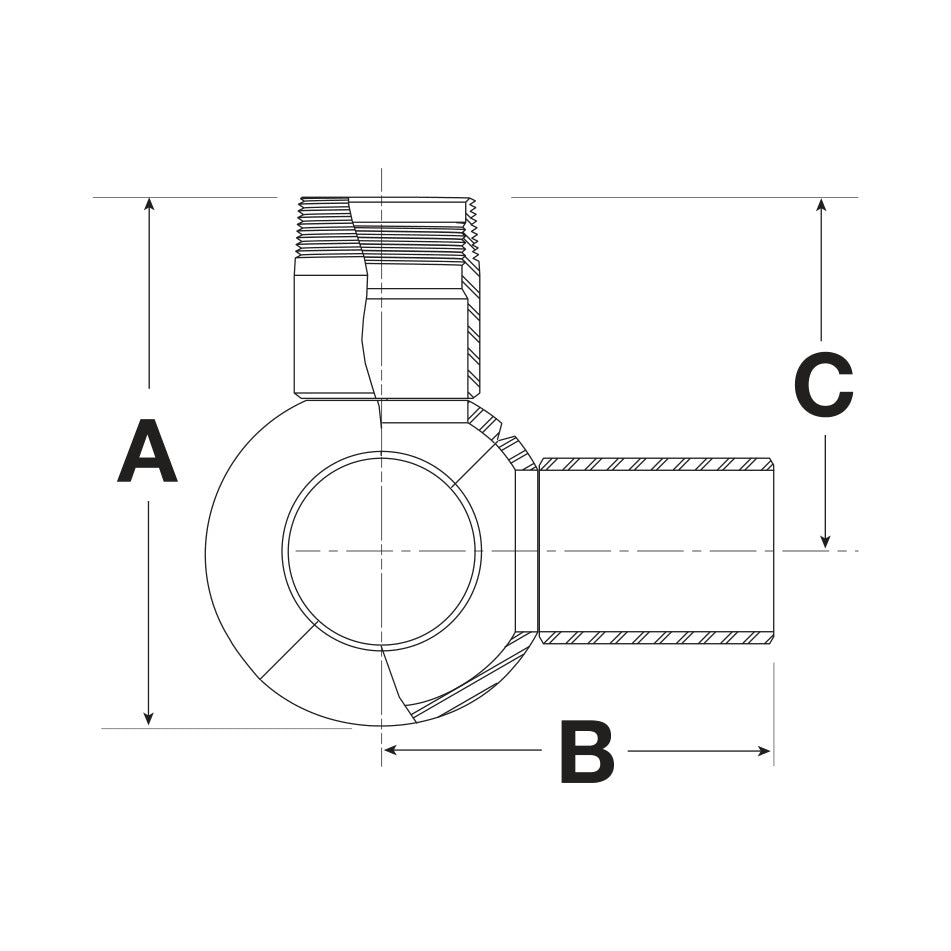

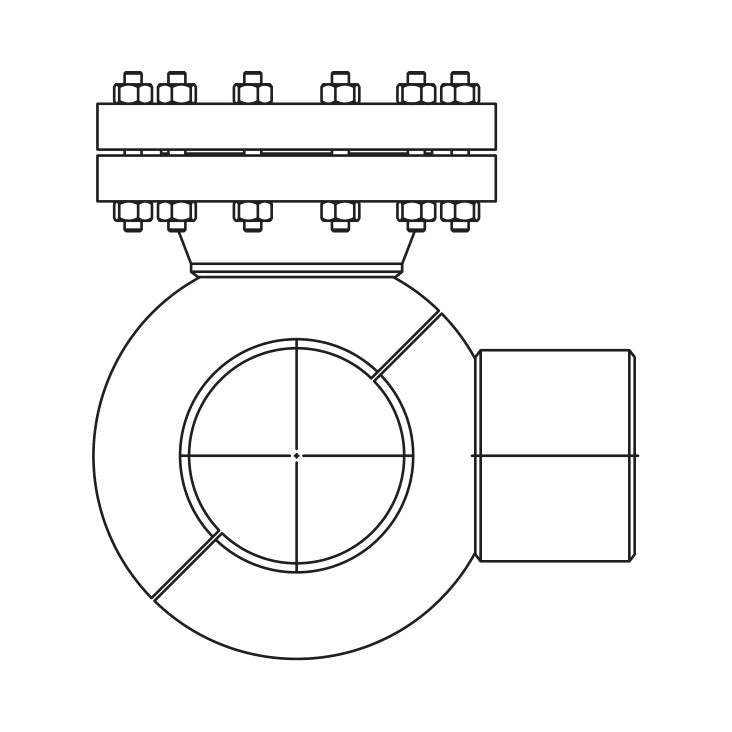

Dresser LS-2 Spherical Hot Tap Fitting dimension drawing
Dresser LS-2 Spherical Hot Tap Fitting dimension drawing

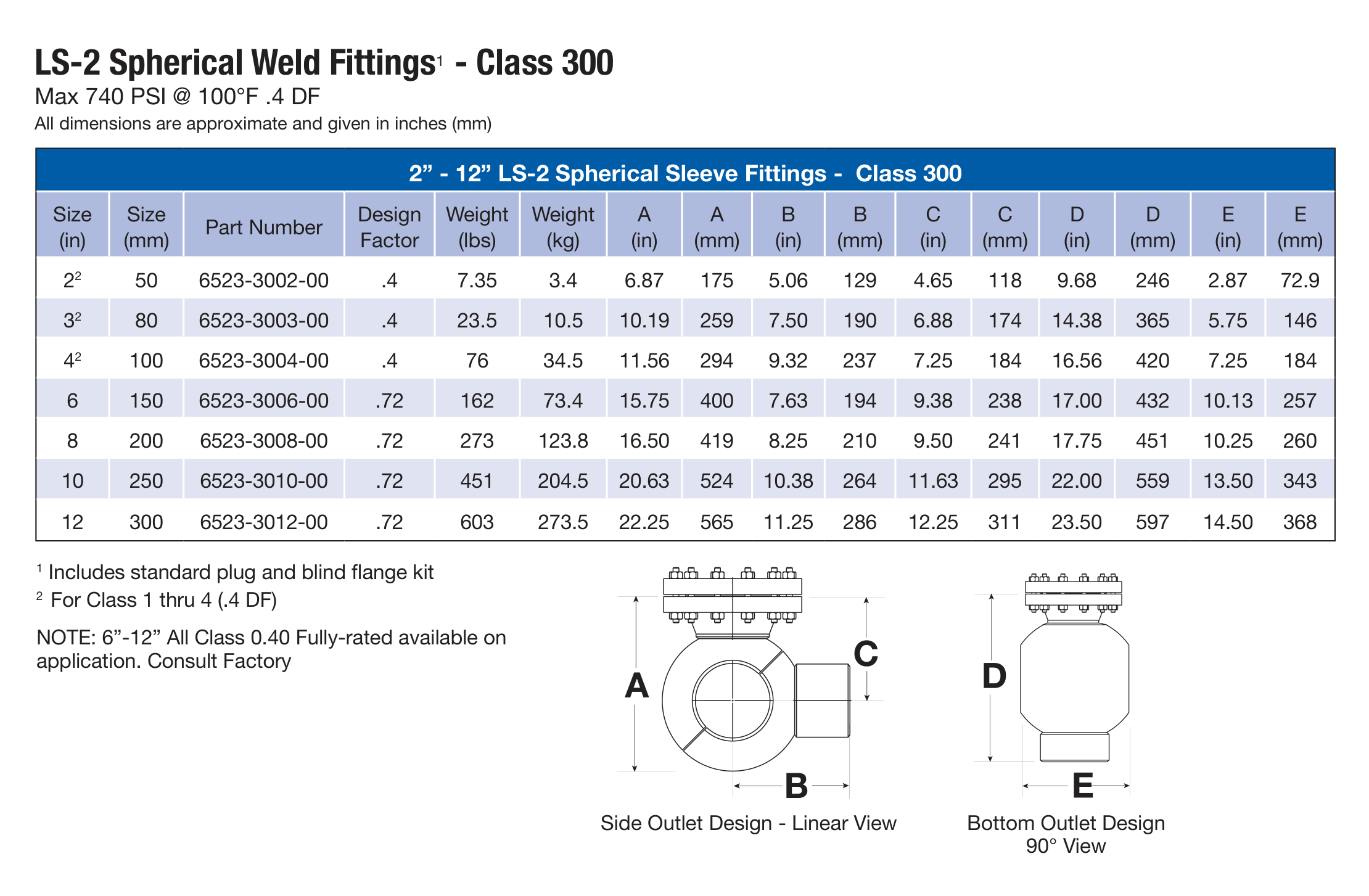

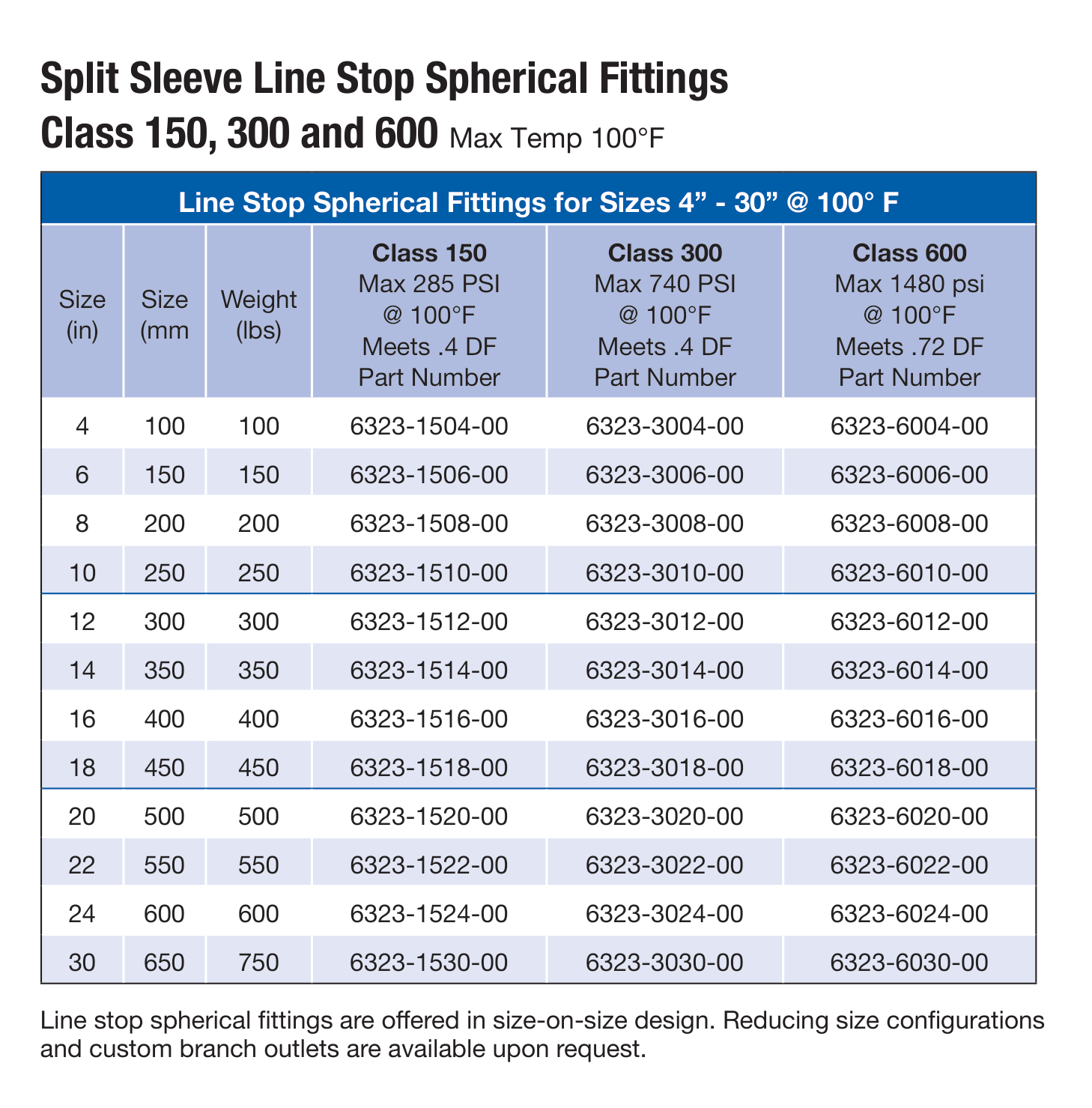

Dresser LS-2 Spherical Hot Tap Fitting specification table
Dresser LS-2 Spherical Hot Tap Fitting specification table
Dresser LS-2 Spherical Hot Tap Fitting specification table
Dresser LS-2 Weld Fitting - Hot Tap & Line Stop
Dresser LS-2 Spherical Hot Tap Fitting product photo
Dresser LS-2 Spherical Hot Tap Fitting product photo
Dresser LS-2 Spherical Hot Tap Fitting dimension drawing
Dresser LS-2 Spherical Hot Tap Fitting dimension drawing
Dresser LS-2 Spherical Hot Tap Fitting specification table
Dresser LS-2 Spherical Hot Tap Fitting specification table
Dresser LS-2 Spherical Hot Tap Fitting specification table

Dresser LS-2 Spherical Hot Tap Fitting - Class 150 and 300, Gas

Class - Rating: Class 150 - 285 PSI
Nominal Size - Part No.: 2 in - 6523-1502-00

Product variant with selected options does not exist!
$4,518.16
SKU: 6523-1502-00
Weight : 7.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Dresser · Gas Hot Tap Fitting
LS-2 Spherical Hot Tap Fitting
LS-2 spherical tee hot tap fitting, Class 150 and Class 300, 2 in to 12 in.
285 to 740 PSI
Class 1, 2, 3 and 4 locations
Natural Gas Service
2 in to 12 in
7-603 lb Weight
Overview

The LS-2 spherical tee distributes stress around the branch for hot taps on steel gas mains, in Class 150, Class 300 and fully rated Class 300 builds.

Application: Hot taps and line stops on steel gas mains.

  • Use with LS-2 completion plugs
What Ships and What It Needs to Run

Included: fitting.

Also needed: LS-2 completion plug and cap or blind flange to complete the installation.

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty

Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

Working Pressure

Class 150: 285 PSI at 100°F. Class 300: 740 PSI at 100°F.

Source: Dresser LS-2 Hot Tap and Line Stop Fittings Catalog (NGS-DPS-008). The rating on the product label is the actual rating of each part.

Before You Order. Confirm class, size and outlet. Welding to be performed by qualified personnel. Non-stock Dresser parts are not returnable without Dresser’s authorization, and ship time is confirmed when you order. Custom builds (other sizes, widths, gaskets or materials) are available: email sales@watermainsupply.com with the pipe OD, material and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
© Watermain Supply — A division of E4 Industrial LLC
Data Sheet
LS-2 Hot Tap and Line Stop Fittings Catalog (NGS-DPS-008)
