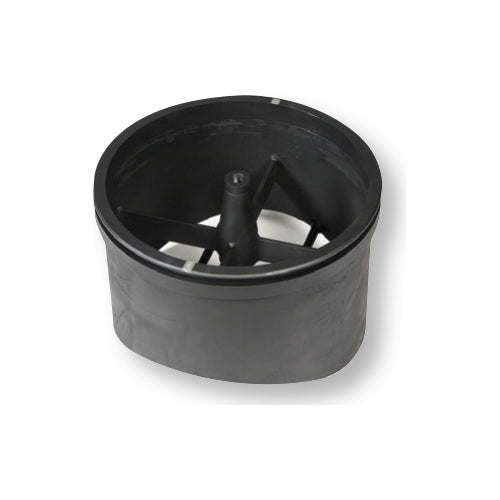

Dresser LS-2 Completion Plug product photo
Dresser LS-2 Completion Plug dimension drawing
Dresser LS-2 Completion Plug dimension drawing

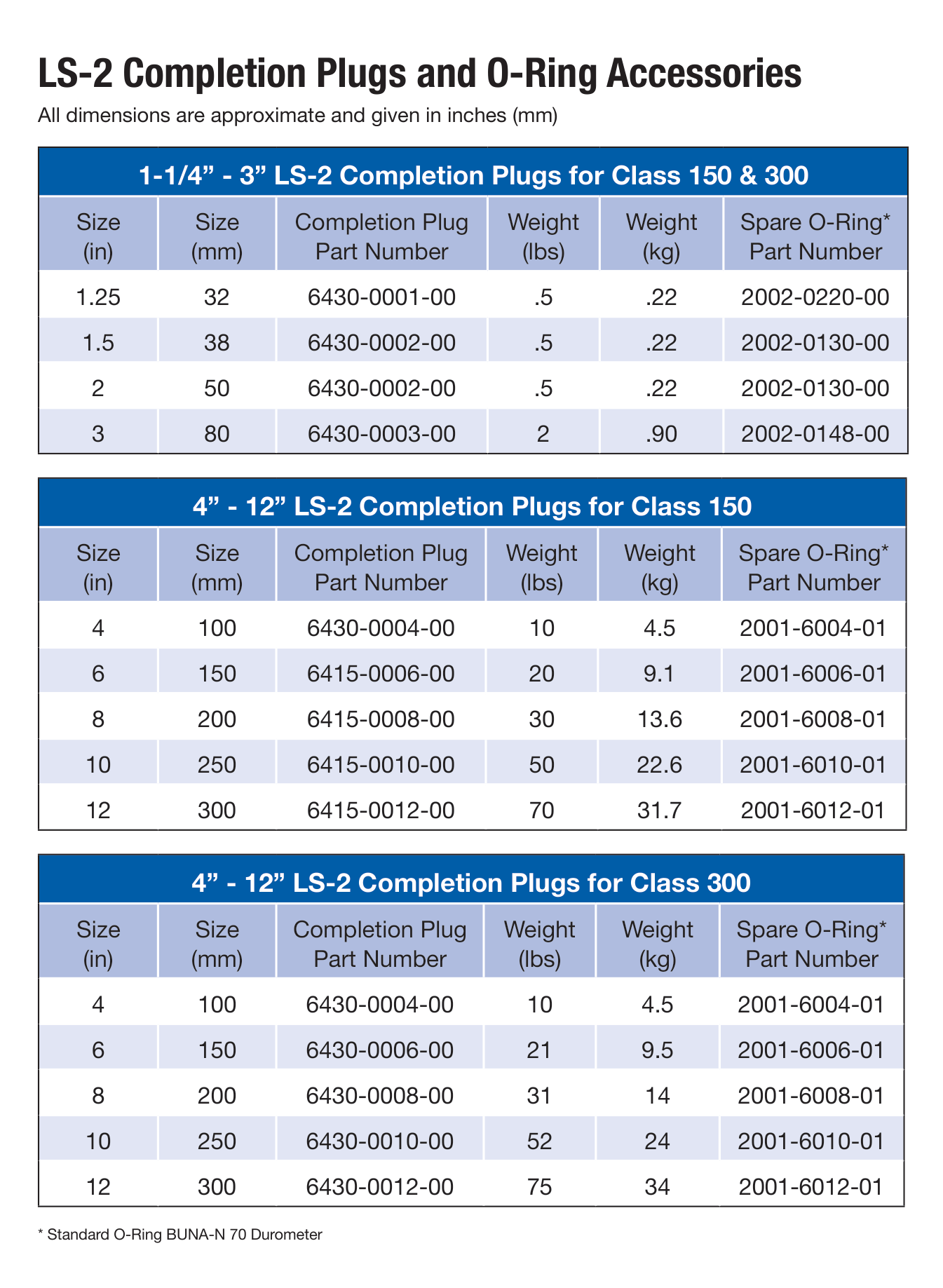

Dresser LS-2 Completion Plug specification table
Dresser LS-2 Completion Plug specification table
Dresser LS-2 Weld Fitting - Hot Tap & Line Stop
Dresser LS-2 Completion Plug product photo
Dresser LS-2 Completion Plug dimension drawing
Dresser LS-2 Completion Plug dimension drawing
Dresser LS-2 Completion Plug specification table
Dresser LS-2 Completion Plug specification table

Dresser LS-2 Completion Plug - Hot Tap Fitting, Gas

Fitting Class: Class 150
Nominal Size - Part No.: 6 in - 6415-0006-00

Product variant with selected options does not exist!
$2,093.54
SKU: 6415-0006-00
Weight : 20.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Dresser · Gas Hot Tap Part
LS-2 Completion Plug
LS-2 completion plugs for Class 150 and Class 300 hot tap fittings.
285 PSI Class 150, 740 PSI Class 300
Natural Gas Service
0.5-75 lb Weight
Overview

The LS-2 completion plug seals the outlet of an LS-2 hot tap fitting after the tap or line stop, so the valve can be removed.

Application: Completing LS-2 hot taps and line stops.

  • Choose by fitting class and nominal size
What Ships and What It Needs to Run

Included: completion plug.

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty

Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

Working Pressure

Class 150: 285 PSI at 100°F. Class 300: 740 PSI at 100°F.

Source: Dresser LS-2 Catalog (NGS-DPS-008). The rating on the product label is the actual rating of each part.

Before You Order. Match the plug to the fitting class and size. Non-stock Dresser parts are not returnable without Dresser’s authorization, and ship time is confirmed when you order. Custom builds (other sizes, widths, gaskets or materials) are available: email sales@watermainsupply.com with the pipe OD, material and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
© Watermain Supply — A division of E4 Industrial LLC
Data Sheet
LS-2 Hot Tap and Line Stop Fittings Catalog (NGS-DPS-008)
