A.Y. McDonald AutoPAC V - 7 GPM - 24000 Series, 1/2-2 HP

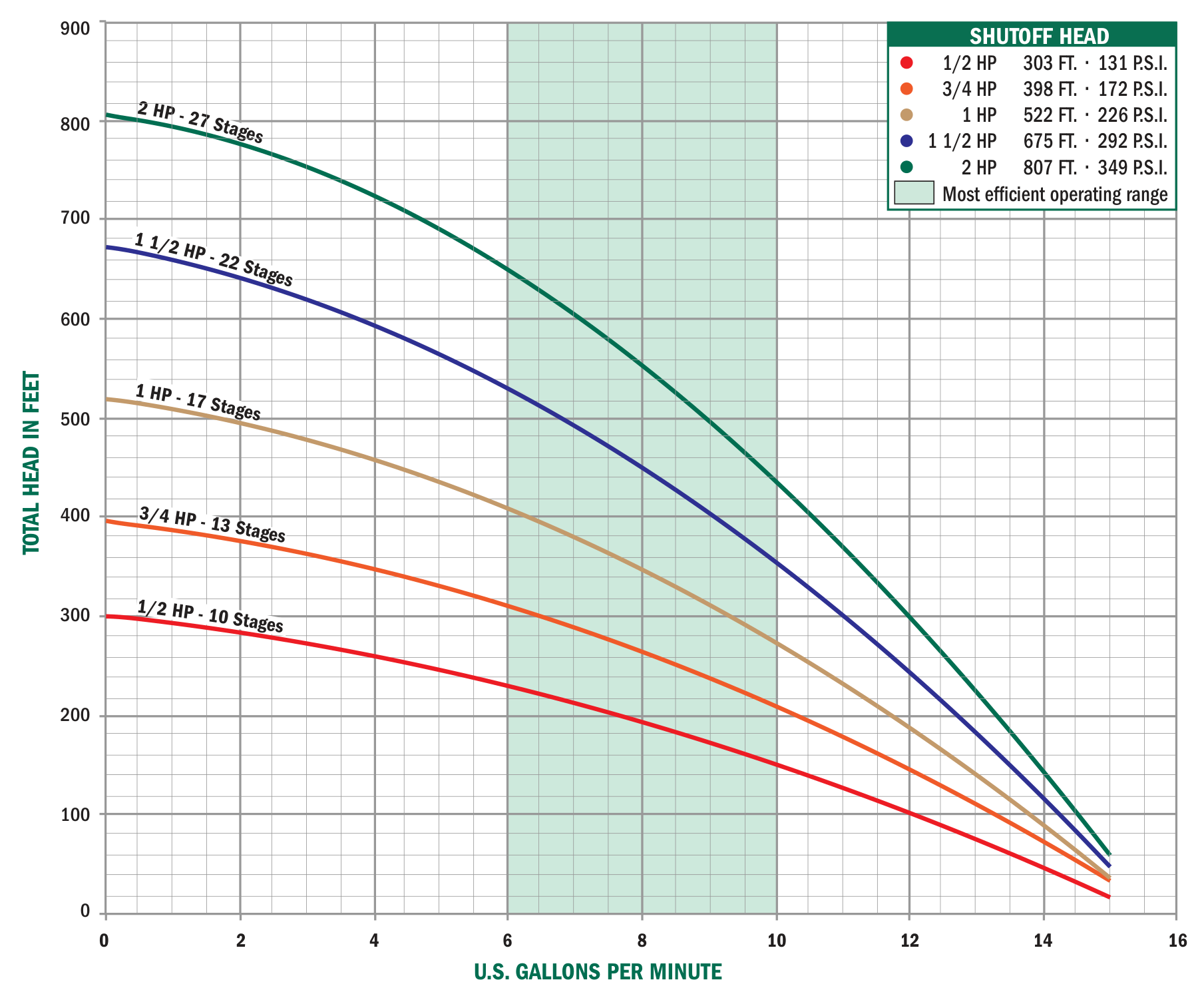

A.Y. McDonald AutoPAC V - 7 GPM 24000 Series performance curve: total head vs flow by horsepower, Pumps by Baker catalog p. 148
A.Y. McDonald AutoPAC V - 7 GPM - 24000 Series, 1/2-2 HP
A.Y. McDonald AutoPAC V - 7 GPM 24000 Series performance curve: total head vs flow by horsepower, Pumps by Baker catalog p. 148

A.Y. McDonald AutoPAC V - 7 GPM 24000 Constant Pressure Pump

HP - Motor Dia: 1/2 HP - 4 in Motor
Voltage - Phase: 230V 1Ph 2-Wire
Control - Model - Head: Switch - 24050V2-APS - 210 ft at 7 GPM

Product variant with selected options does not exist!
MAP
$1,855.94
SKU: 6630-702
Weight : 42.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
A.Y. McDonald · Constant Pressure Pump System
AutoPAC V - 7 GPM, 24000 Series
Baker stainless steel 4 in submersible pump, motor and AutoDRIVE constant pressure drive, 1/2 to 2 HP, 20 builds.
210-605 ft at 7 GPM
1/2-2 HP
230V Single-Phase Supply
AutoDRIVE Constant Pressure VFD
Pressure Switch or Transducer Control
807 ft Max Head (Shut-off)
1 1/4 in NPT Discharge
NEMA 3R Drive Enclosure
Drinking Water ANSI/NSF 61
40-61 lb Weight
What Ships and What It Needs to Run

Included: the pump end and Baker 4 in motor, assembled, with the AutoDRIVE constant pressure drive matched to the motor, and the pressure switch (APS models) or pressure transducer with 10 ft wire (APT models). The drive model for each build is in the Models table.

Power: 230V single-phase supply from a circuit breaker for every build; the three-phase builds take single-phase power and the drive makes three-phase for the motor. Breaker sizes are under Before You Buy.

Sized at install: drop cable, splice kit and the pressure relief valve shown in the manufacturer’s installation diagram.

Overview

The AutoPAC is Baker’s constant pressure well package: a 24000 Series 4 in submersible pump, a Baker motor of the same horsepower, and the AutoDRIVE variable frequency drive. The drive holds a set pressure by changing the pump speed, which allows a smaller pressure tank and a quick, simple installation; setup takes 5 steps or less on the drive’s backlit display.

This listing is the V - 7 GPM class: 1/2 to 2 HP, with pressure switch and transducer control. The AutoDRIVE is American made and housed in a NEMA 3R steel enclosure rated for outdoor use.

Genuine A.Y. McDonald equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier. Watermain Supply is an Authorized Stocking A.Y. McDonald and Baker Water Systems Distributor.
A.Y. McDonald Warranty

Pump and motor: covered for 5 years from the date of manufacture in potable water applications, and 3 years from the date of manufacture in other applications, under A.Y. McDonald’s published terms for Baker submersible motors and assembled submersible pumps. The AutoDRIVE and pressure control fall under A.Y. McDonald’s standard limited warranty: 2 years from the date of manufacture or 1 year from installation, whichever comes first.

Room to Grow

One pump and one drive per well. Need more head later? Step up in horsepower within the V - 7 GPM class; the drive model changes with the motor (see the Models table). Need more flow? Move to a higher flow class of the AutoPAC 24000 Series; every class uses the same 1 1/4 in NPT discharge.

Models & Ratings (60 Hz)
Model Part No. HP Motor Control AutoDRIVE Head at 7 GPM Shut-off Head Weight
24050V2-APS 6630-702 1/2 230V 1Ph 2-Wire Pressure Switch SD1-2HP2PS 210 ft 303 ft 42 lb
24050V2-APT 6630-697 1/2 230V 1Ph 2-Wire Transducer SD1-2HP2 210 ft 303 ft 42 lb
24050V3-APS 6630-746 1/2 230V 1Ph 3-Wire Pressure Switch SD1-2HP2PS 210 ft 303 ft 40 lb
24050V3-APT 6630-741 1/2 230V 1Ph 3-Wire Transducer SD1-2HP2 210 ft 303 ft 40 lb
24075V2-APS 6630-712 3/4 230V 1Ph 2-Wire Pressure Switch SD1-2HP2PS 287 ft 398 ft 45 lb
24075V2-APT 6630-707 3/4 230V 1Ph 2-Wire Transducer SD1-2HP2 287 ft 398 ft 45 lb
24075V3-APS 6630-756 3/4 230V 1Ph 3-Wire Pressure Switch SD1-2HP2PS 287 ft 398 ft 42 lb
24075V3-APT 6630-751 3/4 230V 1Ph 3-Wire Transducer SD1-2HP2 287 ft 398 ft 42 lb
24100V2-APS 6630-723 1 230V 1Ph 2-Wire Pressure Switch SD1-2HP2PS 379 ft 522 ft 53 lb
24100V2-APT 6630-717 1 230V 1Ph 2-Wire Transducer SD1-2HP2 379 ft 522 ft 53 lb
24100V3-APS 6630-767 1 230V 1Ph 3-Wire Pressure Switch SD1-2HP2PS 379 ft 522 ft 52 lb
24100V3-APT 6630-761 1 230V 1Ph 3-Wire Transducer SD1-2HP2 379 ft 522 ft 52 lb
24150V2-APS 6630-735 1 1/2 230V 1Ph 2-Wire Pressure Switch SD1-2HP2PS 492 ft 675 ft 60 lb
24150V2-APT 6630-729 1 1/2 230V 1Ph 2-Wire Transducer SD1-2HP2 492 ft 675 ft 60 lb
24150V3-APS 6630-779 1 1/2 230V 1Ph 3-Wire Pressure Switch SD1-2HP2PS 492 ft 675 ft 59 lb
24150V3-APT 6630-773 1 1/2 230V 1Ph 3-Wire Transducer SD1-2HP2 492 ft 675 ft 59 lb
24150V3Z-APT 6630-856 1 1/2 230V 3Ph Transducer SD3-2HP2 492 ft 675 ft 52 lb
24200V3-APS 6630-789 2 230V 1Ph 3-Wire Pressure Switch SD1-2HP2PS 605 ft 807 ft 61 lb
24200V3-APT 6630-784 2 230V 1Ph 3-Wire Transducer SD1-2HP2 605 ft 807 ft 61 lb
24200V3Z-APT 6630-794 2 230V 3Ph Transducer SD3-2HP2 605 ft 807 ft 59 lb

Head at 7 GPM is read from the published AutoPAC curve (Pumps by Baker catalog (Sept 2025, rev 3/26), p. 148), digitized and rounded down. Shut-off head as printed. Drive per the compatibility table on p. 141 (1 1/2 HP three-phase builds use the SD3-2HP2). Sources: Pumps by Baker catalog (Sept 2025, rev 3/26), pp. 141-143 and 148; Baker Pumps and Accessories price list, effective 7/1/2026.

Shared Specifications
Included Pump end, Baker 4 in motor, AutoDRIVE drive, and pressure switch or transducer
Discharge 1 1/4 in NPT (female)
Check valve Built in
Supply 230V single-phase, 60 Hz
Motor Baker 4 in submersible motor, matched to the pump end horsepower
Pump diameter 3 3/4 in with cable guard
Drive enclosure NEMA Type 3R steel, 12.25 x 9.25 x 4.68 in, 13 lb
Drive operating temperature -4 to 122°F; SD3-5HP2 rated to 104°F
Drive efficiency 95%
Certification (pump) Drinking Water ANSI/NSF 61
App connection None; set up on the drive display

Source: Pumps by Baker catalog (Sept 2025, rev 3/26), pp. 131-133 and 141-143.

Performance — Will It Do What You Need?

Total head is everything the pump lifts against: the vertical lift from the pumping water level to the discharge, the pressure you set on the drive (2.31 ft for every PSI), and friction in the drop pipe. The drive slows the pump when demand falls, so the curve below is the most the pump delivers at full speed.

Total head in feet, by flow in GPM, at full speed

HP (stages) 0 2 4 6 7 8 10 12 14
1/2 HP (10) 299 282 258 228 210 191 148 99 43
3/4 HP (13) 396 376 347 310 287 263 208 143 70
1 HP (17) 520 495 458 409 379 347 272 186 87
1 1/2 HP (22) 674 643 595 530 492 450 354 242 114
2 HP (27) 809 779 727 651 605 554 436 298 141

Digitized from the published AutoPAC curve in the Pumps by Baker catalog (Sept 2025, rev 3/26), p. 148, and rounded down. Rated flow (7 GPM) in bold. Zero flow is the shut-off point, a ceiling rather than a working point; — marks flows past the end of that curve.

Best operating range: the published curve shades the most efficient operating range; the catalog prints no figures for it. The curve is in the image gallery.

Before You Buy — The Limits That Decide the Fit
Supply 230V single-phase for every build, from a circuit breaker sized per the table below
Pressure transducer Must be installed upright and vertical (manufacturer note)
Drive location NEMA 3R enclosure, outdoors or indoors; rated to 122°F (104°F for SD3-5HP2); derate above 5500 ft
Motor cooling 1.0 ft/sec of water flow past the motor at 95°F; motor rated to 95°F water
Well size 4 in casing and larger
Pairing One pump and one drive per well

Breaker sizing by motor HP (manufacturer recommendation)

Supply Motor HP Input Current Fuse / Breaker
230V 1/2 6 A 10 A
230V 3/4 9 A 15 A
230V 1 14 A 20 A
230V 1 1/2 18 A 25 A
230V 2 28 A 35 A
230V 2 20 A 25 A
230V 3 30 A 40 A
230V 5 42 A 55 A

Source: Pumps by Baker catalog (Sept 2025, rev 3/26), p. 131.

Materials of Construction (Pump)
Discharge head Stainless steel 304, 1 1/4 in NPT discharge
Motor adapter Stainless steel 304, NEMA standard
Check valve Stainless steel 304
External shell Stainless steel 304, polished
Impellers Noryl
Diffusers Polycarbonate
Bearing Polyacetal
Shaft coupling Stainless steel 304, NEMA standard
Strainer Thermoplastic
Shaft Stainless steel 304
Cable guard Stainless steel 304

Source: Pumps by Baker catalog (Sept 2025, rev 3/26), pp. 65-66.

Service Parts
Part Part No.
AutoDRIVE pressure transducer with 10 ft wire 6619-028
AutoDRIVE pressure switch with wire 6619-029
AutoDRIVE keypad 6619-030

Source: Pumps by Baker catalog (Sept 2025, rev 3/26), pp. 142-143.
