Baker AutoPAC P - 20 GPM - 24000 Series
Baker AutoPAC P - 20 GPM - 24000 Series

Baker AutoPAC P - 20 GPM - 24000 Series

Horsepower: 1/2
Control: Pressure Switch
Phase: Two Wire Single Phase

Product variant with selected options does not exist!
MAP
$2,309.84
SKU: 6630-705
Weight : 41.0 lb
Free Shipping $499 or more
Need it fast? Call for same-day shipping options: 281.664.8000
Description

Baker AutoPAC Variable Frequency Drive submersible pump assembly. P - 20 GPM (24000 Series Stainless Steel). Complete system includes AutoDRIVE VFD, submersible pump, and motor. All models operate at 230V 60 Hz. Available in Two Wire Single Phase, Three Wire Single Phase, and Three Wire Three Phase configurations with Pressure Switch or Transducer control.

Technical Details
Two Wire Single Phase, w/Pressure Switch
Part No. Model No. HP Volt Wt.
6630-705 24050P2-APS 1/2 230V 41
6630-715 24075P2-APS 3/4 230V 43
6630-726 24100P2-APS 1 230V 49
6630-738 24150P2-APS 1 1/2 230V 56
Two Wire Single Phase, w/Transducer
Part No. Model No. HP Volt Wt.
6630-700 24050P2-APT 1/2 230V 41
6630-710 24075P2-APT 3/4 230V 43
6630-720 24100P2-APT 1 230V 49
6630-732 24150P2-APT 1 1/2 230V 64
Three Wire Single Phase, w/Pressure Switch
Part No. Model No. HP Volt Wt.
6630-749 24050P3-APS 1/2 230V 39
6630-759 24075P3-APS 3/4 230V 40
6630-770 24100P3-APS 1 230V 48
6630-782 24150P3-APS 1 1/2 230V 55
6630-792 24200P3-APS 2 230V 56
Three Wire Single Phase, w/Transducer
Part No. Model No. HP Volt Wt.
6630-744 24050P3-APT 1/2 230V 39
6630-754 24075P3-APT 3/4 230V 40
6630-764 24100P3-APT 1 230V 48
6630-776 24150P3-APT 1 1/2 230V 55
6630-787 24200P3-APT 2 230V 64
Three Wire Three Phase, w/Transducer
Part No. Model No. HP Volt Wt.
6630-859 24150P3Z-APT 1 1/2 230V 48
6630-797 24200P3Z-APT 2 230V 54
6630-801 24300P3Z-APT 3 230V 67
6630-805 24500P3Z-APT 5 230V 86

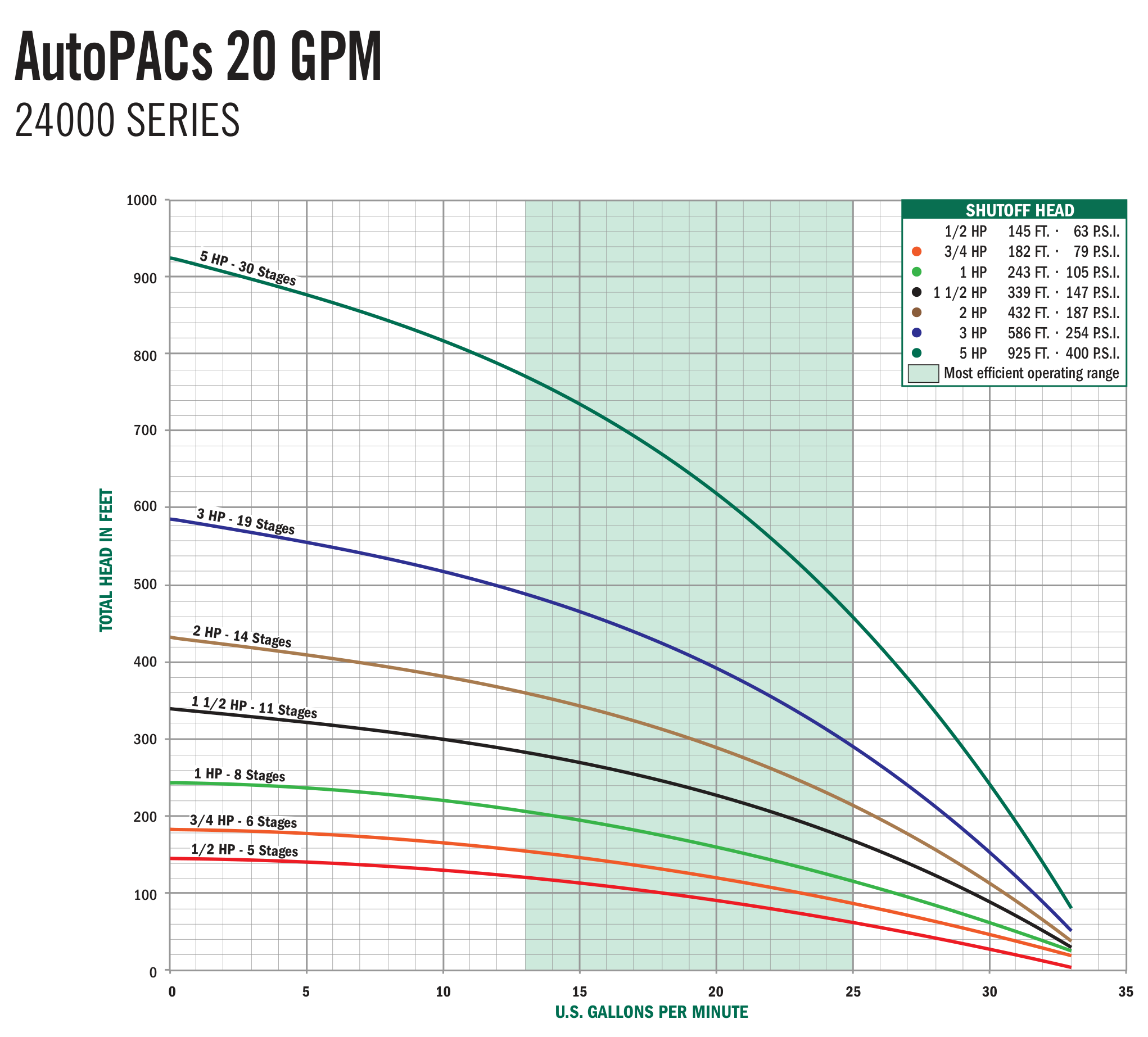

Datasheet

AutoPac Guide
