A.Y. McDonald 72602SPC Pressure Reducing Valve, No-Lead
A.Y. McDonald 72602SPC Pressure Reducing Valve, No-Lead

A.Y. McDonald 72602SPC Pressure Reducing Valve - No-Lead, Sweat Union x Sweat Union, PVC Cap, Brass Plug, 3/4 in / Single - 5427-214

Size: 3/4 in
Pack - Part No.: Single - 5427-214

Product variant with selected options does not exist!
$127.78
SKU: 5427-214
Weight : 1.4 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
A.Y. McDonald Mfg. Co. · Pressure Reducing Valve

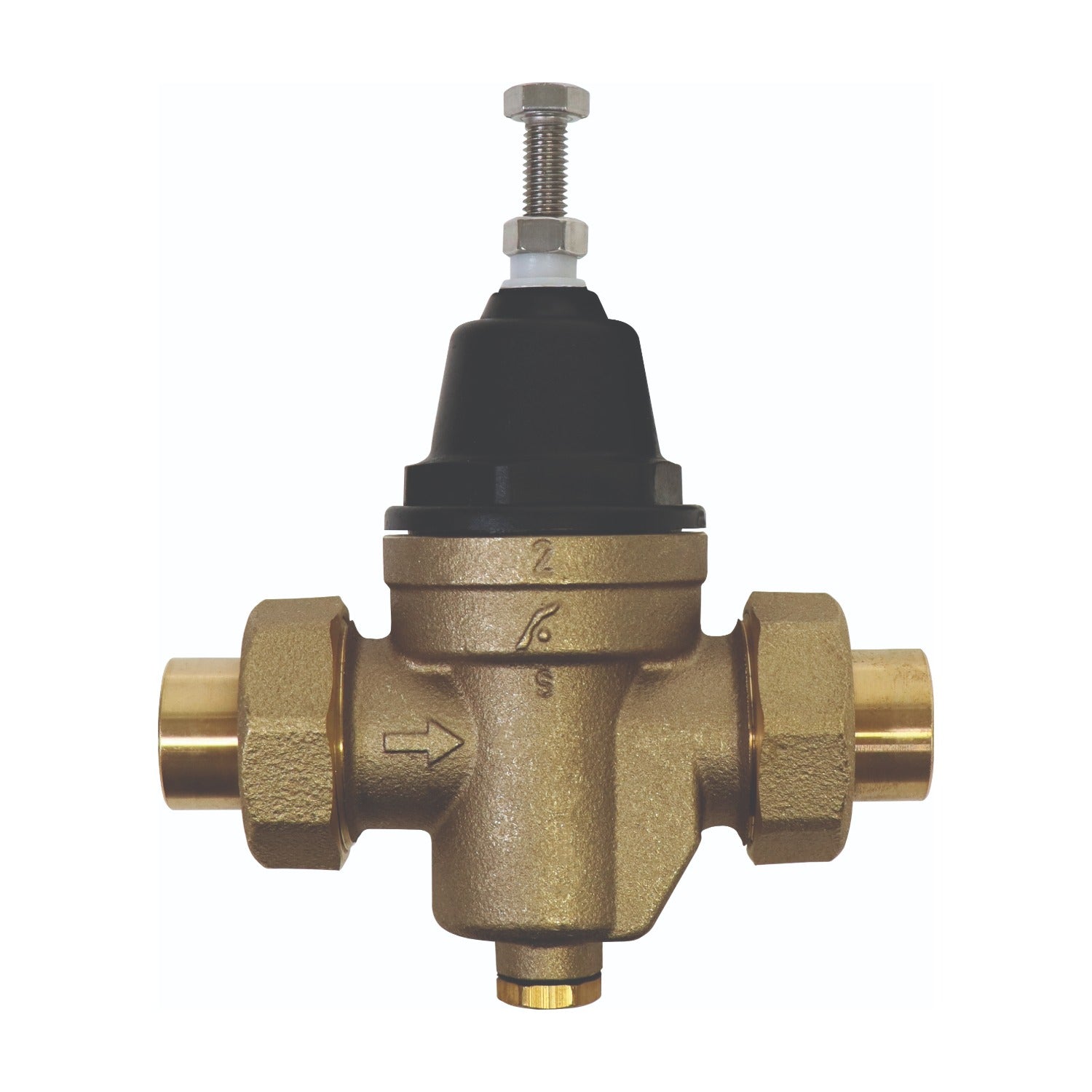

72602SPC Pressure Reducing Valve
Sweat union both ends, PVC cap, brass plug, factory set at 50 PSI
No-Lead
Set at 50 PSI, Adjustable 25-75
300 PSI Max Inlet
ASSE 1003
3/4 in
Overview

The A.Y. McDonald compact 72602SPC pressure reducing valve cuts incoming water pressure to a safe level to protect the plumbing system and its components. It has sweat (SWT) union x sweat union with brass plug connections, a pvc cap and a No-Lead brass body, and ships factory set at 50 PSI outlet pressure, adjustable from 25 to 75 PSI.

  • Factory preset at 50 PSI; adjustable 25 to 75 PSI
  • Inlet pressure up to 300 PSI
  • Built-in thermal expansion bypass
  • Integral stainless-steel strainer
  • Sweat (SWT) union x sweat (SWT) union; brass plug
What Ships and What It Needs to Run

Included: one pressure reducing valve with its union end pieces, factory set at 50 PSI.

Adjusting: turn the stainless-steel adjustment bolt to set outlet pressure between 25 and 75 PSI, then lock it with the lock nut.

Genuine A.Y. McDonald equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
1-Year A.Y. McDonald Warranty

Covered for 1 year from the date of shipment from A.Y. McDonald’s factory under A.Y. McDonald’s published limited warranty, which applies to the products A.Y. McDonald manufactures.

Specifications
Construction No-Lead brass body
Connections Sweat (SWT) union x sweat (SWT) union; brass plug
Cap PVC
Sizes 3/4 in
Outlet pressure Factory preset at 50 PSI; adjustable 25 to 75 PSI
Maximum inlet pressure 300 PSI cold working pressure (CWP)
Thermal expansion Built-in thermal expansion bypass
Strainer Integral stainless-steel strainer
Installation Vertical or horizontal
Maximum service temperature 180°F
Compliance ASSE 1003-2020, ANSI/NSF 372, ANSI/NSF 61-G
Lead content Weighted average of the wetted surface under 0.25% lead (A.Y. McDonald No-Lead definition)

Source: A.Y. McDonald Plumbing Price List, effective 7-07-26, pp. 38-39; A.Y. McDonald Plumbing Catalog (1/25), No-Lead Pressure Reducing Valves, pp. 56-58.

Models
Part No. Size Sold As
5427-214 3/4 in Single
Before You Order. A.Y. McDonald specifies a PRV where the main supply pressure exceeds 80 PSI. Rebuild parts: the 72602PRVS replacement stem fits 72601 and 72602 series valves in 1/2 in, 3/4 in and 1 in; union end pieces are sold separately as 72602 series end pieces.
Materials of Construction
Body No-Lead brass
Union No-Lead brass
Union nut Brass
Stem ASTM C46400
Plunger No-Lead brass
Spring, spring disc, diaphragm nut and disc Stainless steel
Adjustment bolt and lock nut Stainless steel
Strainer Stainless steel
Diaphragm NBR and nylon
O-rings and rubber ball NBR
Name plate Aluminum
Bonnet (cap) PVC
Bonnet ring POM (PVC bonnet only)

From the A.Y. McDonald submittal data sheet.

For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
