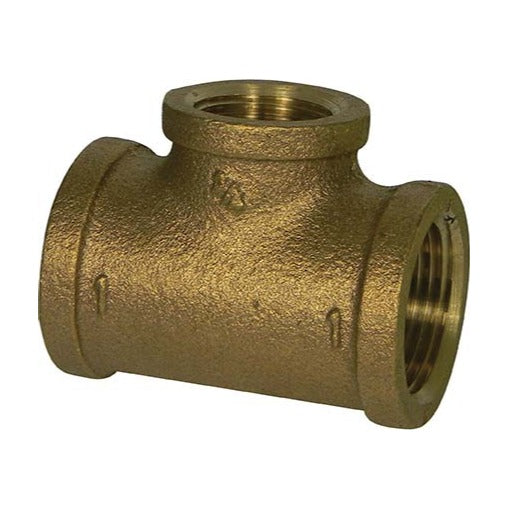

The A.Y. McDonald 72230 is a No-Lead brass reducing tee with FNPT threads, offered in 1/2 in x 1/4 in to 3 in x 2 in (23 sizes). It is certified to NSF/ANSI 61-4 and NSF/ANSI 372.
Included: the fittings in the pack shown in the option (Single = one).
Covered for 1 year from the date of shipment from A.Y. McDonald’s factory under A.Y. McDonald’s published limited warranty, which applies to the products A.Y. McDonald manufactures.
| Material | No-Lead brass |
| Connections | FNPT |
| Certification | NSF/ANSI 61-4 and NSF/ANSI 372 |
| Lead content | Weighted average of the wetted surface under 0.25% lead (A.Y. McDonald No-Lead definition) |
| Sizes | 1/2 in x 1/4 in, 3/4 in x 1/4 in, 3/4 in x 1/2 in, 3/4 in x 1/2 in x 1/2 in, 3/4 in x 1/2 in x 3/4 in, 1 in x 1/4 in, 1 in x 1/2 in, 1 in x 1/2 in x 1 in, 1 in x 3/4 in, 1 in x 3/4 in x 3/4 in, 1 in x 3/4 in x 1 in, 1 1/4 in x 1/2 in, 1 1/4 in x 3/4 in, 1 1/4 in x 1 in, 1 1/2 in x 3/4 in, 1 1/2 in x 1 in, 1 1/2 in x 1 1/4 in, 2 in x 1/2 in, 2 in x 3/4 in, 2 in x 1 in, 2 in x 1 1/4 in, 2 in x 1 1/2 in, 3 in x 2 in |
Source: A.Y. McDonald Plumbing Price List, effective 7-07-26, pp. 61-66; A.Y. McDonald Plumbing Catalog (1/25), No-Lead Brass Pipe Nipples and Threaded Fittings, pp. 100-102; A.Y. McDonald submittal data sheet.
| Part No. | Size | Sold As |
|---|---|---|
| 5422-094 | 1/2 in x 1/4 in | 5-Pack |
| 5422-096 | 3/4 in x 1/4 in | 5-Pack |
| 5422-098 | 3/4 in x 1/2 in | 5-Pack |
| 5422-129 | 3/4 in x 1/2 in x 1/2 in | 5-Pack |
| 5422-130 | 3/4 in x 1/2 in x 3/4 in | 5-Pack |
| 5422-099 | 1 in x 1/4 in | Single |
| 5422-101 | 1 in x 1/2 in | Single |
| 5422-135 | 1 in x 1/2 in x 1 in | Single |
| 5422-102 | 1 in x 3/4 in | Single |
| 5422-134 | 1 in x 3/4 in x 3/4 in | Single |
| 5422-136 | 1 in x 3/4 in x 1 in | Single |
| 5422-103 | 1 1/4 in x 1/2 in | Single |
| 5422-104 | 1 1/4 in x 3/4 in | Single |
| 5422-105 | 1 1/4 in x 1 in | Single |
| 5422-107 | 1 1/2 in x 3/4 in | Single |
| 5422-108 | 1 1/2 in x 1 in | Single |
| 5422-109 | 1 1/2 in x 1 1/4 in | Single |
| 5422-110 | 2 in x 1/2 in | Single |
| 5422-111 | 2 in x 3/4 in | Single |
| 5422-112 | 2 in x 1 in | Single |
| 5422-113 | 2 in x 1 1/4 in | Single |
| 5422-114 | 2 in x 1 1/2 in | Single |
| 5422-121 | 3 in x 2 in | Single |
Product videos are being added to this listing. For a walkthrough in the meantime, email sales@watermainsupply.com.
