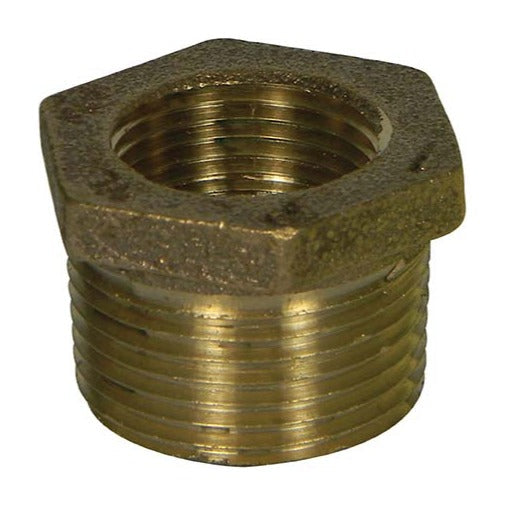

The A.Y. McDonald 72206 is a No-Lead brass hex reducing bushing with MNPT x FNPT threads, offered in 1/4 in x 1/8 in to 4 in x 3 in (34 sizes). It is certified to NSF/ANSI 61-4 and NSF/ANSI 372.
Included: the fittings in the pack shown in the option (Single = one).
Covered for 1 year from the date of shipment from A.Y. McDonald’s factory under A.Y. McDonald’s published limited warranty, which applies to the products A.Y. McDonald manufactures.
| Material | No-Lead brass |
| Connections | MNPT x FNPT |
| Certification | NSF/ANSI 61-4 and NSF/ANSI 372 |
| Lead content | Weighted average of the wetted surface under 0.25% lead (A.Y. McDonald No-Lead definition) |
| Sizes | 1/4 in x 1/8 in, 3/8 in x 1/8 in, 3/8 in x 1/4 in, 1/2 in x 1/8 in, 1/2 in x 1/4 in, 1/2 in x 3/8 in, 3/4 in x 1/8 in, 3/4 in x 1/4 in, 3/4 in x 3/8 in, 3/4 in x 1/2 in, 1 in x 1/4 in, 1 in x 3/8 in, 1 in x 1/2 in, 1 in x 3/4 in, 1 1/4 in x 1/2 in, 1 1/4 in x 3/4 in, 1 1/4 in x 1 in, 1 1/2 in x 1/2 in, 1 1/2 in x 3/4 in, 1 1/2 in x 1 in, 1 1/2 in x 1 1/4 in, 2 in x 1/2 in, 2 in x 3/4 in, 2 in x 1 in, 2 in x 1 1/4 in, 2 in x 1 1/2 in, 2 1/2 in x 1 in, 2 1/2 in x 1 1/2 in, 2 1/2 in x 2 in, 3 in x 1 in, 3 in x 1 1/2 in, 3 in x 2 in, 3 in x 2 1/2 in, 4 in x 3 in |
Source: A.Y. McDonald Plumbing Price List, effective 7-07-26, pp. 61-66; A.Y. McDonald Plumbing Catalog (1/25), No-Lead Brass Pipe Nipples and Threaded Fittings, pp. 100-102; A.Y. McDonald submittal data sheet.
| Part No. | Size | Sold As |
|---|---|---|
| 5422-451 | 1/4 in x 1/8 in | 10-Pack |
| 5424-199 | 3/8 in x 1/8 in | 10-Pack |
| 5422-260 | 3/8 in x 1/4 in | 10-Pack |
| 5424-200 | 1/2 in x 1/8 in | 10-Pack |
| 5422-261 | 1/2 in x 1/4 in | 10-Pack |
| 5422-262 | 1/2 in x 3/8 in | 10-Pack |
| 5424-201 | 3/4 in x 1/8 in | 10-Pack |
| 5422-263 | 3/4 in x 1/4 in | 10-Pack |
| 5422-264 | 3/4 in x 3/8 in | 10-Pack |
| 5422-265 | 3/4 in x 1/2 in | 10-Pack |
| 5422-266 | 1 in x 1/4 in | 5-Pack |
| 5422-267 | 1 in x 3/8 in | 5-Pack |
| 5422-268 | 1 in x 1/2 in | 5-Pack |
| 5422-269 | 1 in x 3/4 in | 5-Pack |
| 5422-270 | 1 1/4 in x 1/2 in | 2-Pack |
| 5422-271 | 1 1/4 in x 3/4 in | 5-Pack |
| 5422-272 | 1 1/4 in x 1 in | 5-Pack |
| 5422-273 | 1 1/2 in x 1/2 in | Single |
| 5422-274 | 1 1/2 in x 3/4 in | Single |
| 5422-275 | 1 1/2 in x 1 in | 2-Pack |
| 5422-276 | 1 1/2 in x 1 1/4 in | 2-Pack |
| 5422-277 | 2 in x 1/2 in | Single |
| 5422-278 | 2 in x 3/4 in | Single |
| 5422-279 | 2 in x 1 in | Single |
| 5422-280 | 2 in x 1 1/4 in | Single |
| 5422-281 | 2 in x 1 1/2 in | Single |
| 5422-282 | 2 1/2 in x 1 in | Single |
| 5422-284 | 2 1/2 in x 1 1/2 in | Single |
| 5422-285 | 2 1/2 in x 2 in | Single |
| 5422-286 | 3 in x 1 in | Single |
| 5422-288 | 3 in x 1 1/2 in | Single |
| 5422-289 | 3 in x 2 in | Single |
| 5422-290 | 3 in x 2 1/2 in | Single |
| 5424-204 | 4 in x 3 in | Single |
