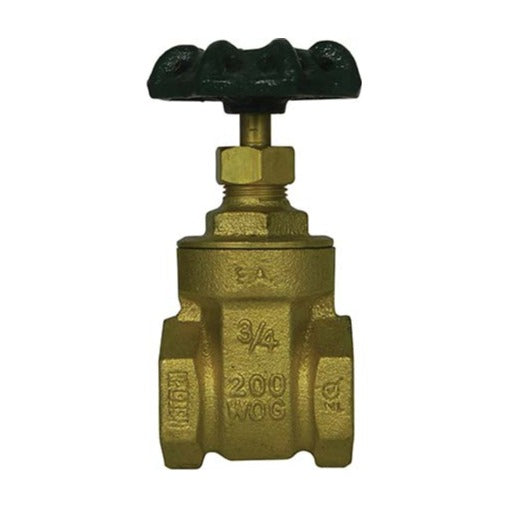

The A.Y. McDonald 72035T is a No-Lead full port gate valve with FNPT x FNPT connections, rated 200 WOG, 125 WSP.
Included: one valve.
Covered for 1 year from the date of shipment from A.Y. McDonald’s factory under A.Y. McDonald’s published limited warranty, which applies to the products A.Y. McDonald manufactures.
| Construction | No-Lead brass |
| Connections | FNPT x FNPT |
| Pressure rating | 200 WOG, 125 WSP |
| Feature | Non-rising stem |
| Threads | Threads conform to ANSI B1.20.1 |
| Certification | NSF/ANSI 372 and NSF/ANSI 61 |
| Lead content | Weighted average of the wetted surface under 0.25% lead (A.Y. McDonald No-Lead definition) |
| Sizes | 1/4 in, 3/8 in, 1/2 in, 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, 2 in, 2 1/2 in, 3 in, 4 in |
Source: A.Y. McDonald Plumbing Price List, effective 7-07-26, pp. 18-19; A.Y. McDonald Plumbing Catalog (1/25), No-Lead Gate, Stop and Angle Stop Valves, pp. 26-27; A.Y. McDonald submittal data sheet.
| Part No. | Size | Sold As |
|---|---|---|
| 5420-000 | 1/4 in | Single |
| 5420-001 | 3/8 in | Single |
| 5420-126 | 1/2 in | Single |
| 5420-127 | 3/4 in | Single |
| 5420-128 | 1 in | Single |
| 5420-129 | 1 1/4 in | Single |
| 5420-130 | 1 1/2 in | Single |
| 5420-131 | 2 in | Single |
| 5421-112 | 2 1/2 in | Single |
| 5421-113 | 3 in | Single |
| 5421-114 | 4 in | Single |
Product videos are being added to this listing. For a walkthrough in the meantime, email sales@watermainsupply.com.
