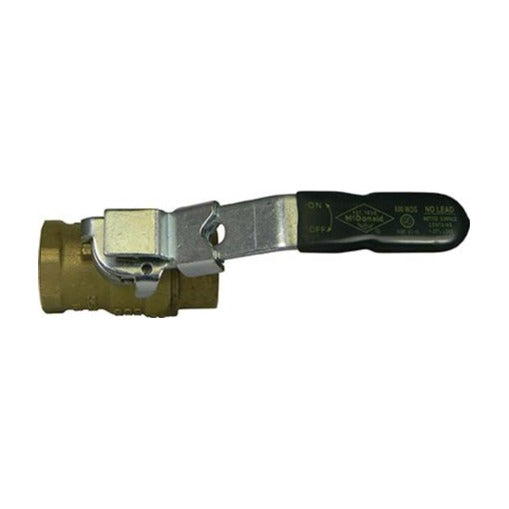

The A.Y. McDonald 72032TL is a No-Lead full port ball valve with locking handle with FNPT x FNPT connections, rated 600 WOG.
Included: one valve.
Covered for 1 year from the date of shipment from A.Y. McDonald’s factory under A.Y. McDonald’s published limited warranty, which applies to the products A.Y. McDonald manufactures.
| Construction | No-Lead brass |
| Connections | FNPT x FNPT |
| Pressure rating | 600 WOG |
| Feature | Manufactured to MSS-SP-110 |
| Threads | Threads conform to ANSI B1.20.1 |
| Feature | Blow-out-proof stem |
| Lead content | Weighted average of the wetted surface under 0.25% lead (A.Y. McDonald No-Lead definition) |
| Sizes | 1/4 in, 3/8 in, 1/2 in, 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, 2 in |
Source: A.Y. McDonald Plumbing Price List, effective 7-07-26, pp. 10-13; A.Y. McDonald Plumbing Catalog (1/25), No-Lead Full Port and Specialty Ball Valves, pp. 14-18; A.Y. McDonald submittal data sheet.
| Part No. | Size | Sold As |
|---|---|---|
| 5419-003 | 1/4 in | Single |
| 5419-004 | 3/8 in | Single |
| 5421-242 | 1/2 in | Single |
| 5421-243 | 3/4 in | Single |
| 5421-244 | 1 in | Single |
| 5421-245 | 1 1/4 in | Single |
| 5421-246 | 1 1/2 in | Single |
| 5421-247 | 2 in | Single |
Product videos are being added to this listing. For a walkthrough in the meantime, email sales@watermainsupply.com.
