Product variant with selected options does not exist!
files/ay-mcdonald-72032s-full-port-ball-valve_ef111ac0-c3c3-4624-af22-4cbab323e844.jpg
02:02 PM

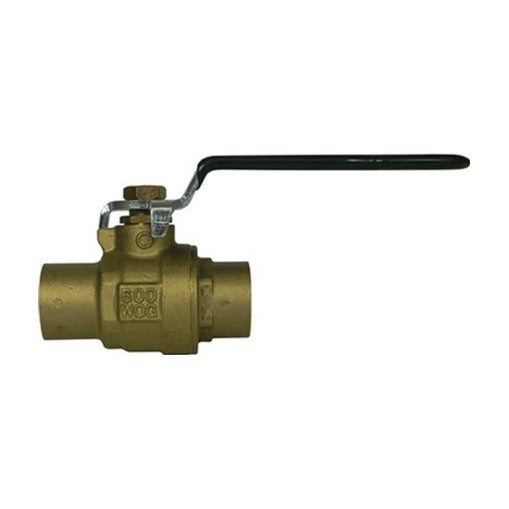

The A.Y. McDonald 72032S is a No-Lead full port ball valve with Sweat x Sweat connections, rated 600 WOG (3/8 in to 2 in); 400 WOG (2 1/2 in and 3 in).
Included: one valve.
Covered for 1 year from the date of shipment from A.Y. McDonald’s factory under A.Y. McDonald’s published limited warranty, which applies to the products A.Y. McDonald manufactures.
| Construction | No-Lead brass |
| Connections | Sweat x Sweat |
| Pressure rating | 600 WOG (3/8 in to 2 in); 400 WOG (2 1/2 in and 3 in) |
| Feature | Manufactured to MSS-SP-110 |
| Solder ends | Solder ends conform to ANSI B16.18 |
| Certification | NSF/ANSI 61-8 and NSF/ANSI 372 |
| Lead content | Weighted average of the wetted surface under 0.25% lead (A.Y. McDonald No-Lead definition) |
| Sizes | 3/8 in, 1/2 in, 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, 2 in, 2 1/2 in, 3 in |
Source: A.Y. McDonald Plumbing Price List, effective 7-07-26, pp. 10-13; A.Y. McDonald Plumbing Catalog (1/25), No-Lead Full Port and Specialty Ball Valves, pp. 14-18; A.Y. McDonald submittal data sheet.
| Part No. | Size | Sold As |
|---|---|---|
| 5420-008 | 3/8 in | Single |
| 5420-153 | 1/2 in | Single |
| 5420-154 | 3/4 in | Single |
| 5420-155 | 1 in | Single |
| 5421-118 | 1 1/4 in | Single |
| 5421-119 | 1 1/2 in | Single |
| 5421-120 | 2 in | Single |
| 5420-016 | 2 1/2 in | Single |
| 5420-017 | 3 in | Single |
Product videos are being added to this listing. For a walkthrough in the meantime, email sales@watermainsupply.com.
