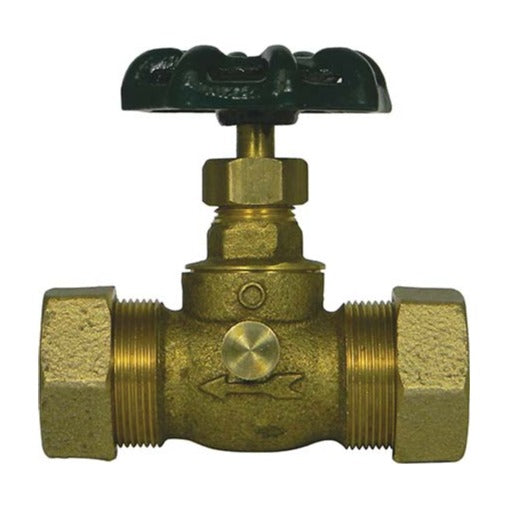

The A.Y. McDonald 72019 is a No-Lead stop valve with drain with Compression x Compression connections, rated 125 WOG.
Included: one stop valve.
Covered for 1 year from the date of shipment from A.Y. McDonald’s factory under A.Y. McDonald’s published limited warranty, which applies to the products A.Y. McDonald manufactures.
| Construction | No-Lead brass |
| Connections | Compression x Compression |
| Pressure rating | 125 WOG |
| Feature | Non-rising stem |
| Feature | Soft seat design |
| Feature | Directional |
| Feature | Drain |
| Certification | NSF/ANSI 372 and NSF/ANSI 61 |
| Lead content | Weighted average of the wetted surface under 0.25% lead (A.Y. McDonald No-Lead definition) |
| Sizes | 3/4 in |
Source: A.Y. McDonald Plumbing Price List, effective 7-07-26, pp. 18-19; A.Y. McDonald Plumbing Catalog (1/25), No-Lead Gate, Stop and Angle Stop Valves, pp. 26-27.
| Part No. | Size | Sold As |
|---|---|---|
| 5420-052 | 3/4 in | Single |
