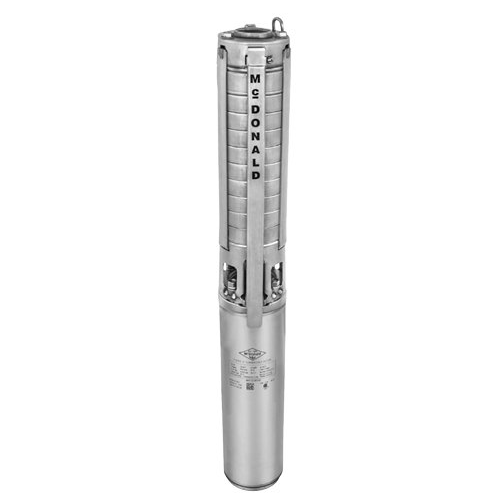

26000 Series P - 18 GPM 4" All Stainless Steel Submersible Pump

Horsepower: 1/2
Voltage: Two Wire Single Phase 115V
Stages: 5
MAP
Price
$945.10
SKU: 6636-076
Weight: 26.48 lb
Free Shipping $499 or more
Available For Order! Call Sales Counter for accurate lead-time!
Description

Baker offers a full line of all stainless steel submersible pumps built for years of trouble free operation, with high-efficiency impellers and diffusers. These submersibles offer peak capacity performance in 5, 10, 18, 25, 40, and 70 gallons per minute (GPM). Other features include discharge head with a built-in check valve, and stainless steel shaft and coupling.

All Stainless Steel Pumps come with a 1 1/4" discharge and sizes range from 1/2 to 5 horsepower (HP). Two or three wire models up to 5 horsepower (HP).

Technical Details
Two Wire Single Phase
Part No. Model No. HP Stages Volt Wt.
6636-076 26050P2A 1/2 5 115 26.5
6636-075 26050P2 1/2 5 230 23.8
6636-077 26075P2 3/4 7 230 27.0
6636-078 26100P2 1 9 230 36.7
6636-079 26150P2 1 1/2 13 230 43.1
Three Wire Single Phase
Part No. Model No. HP Stages Volt Wt.
6636-082 26050P3A 1/2 5 115 25.1
6636-080 26050P3 1/2 5 230 25.1
6636-084 26075P3 3/4 7 230 29.0
6636-086 26100P3 1 9 230 31.9
6636-088 26150P3 1 1/2 13 230 37.6
6636-090 26200P3 2 17 230 42.4
6636-092 26300P3 3 27 230 69.0
6636-094 26500P3 5 36 230 85.7
Datasheet
