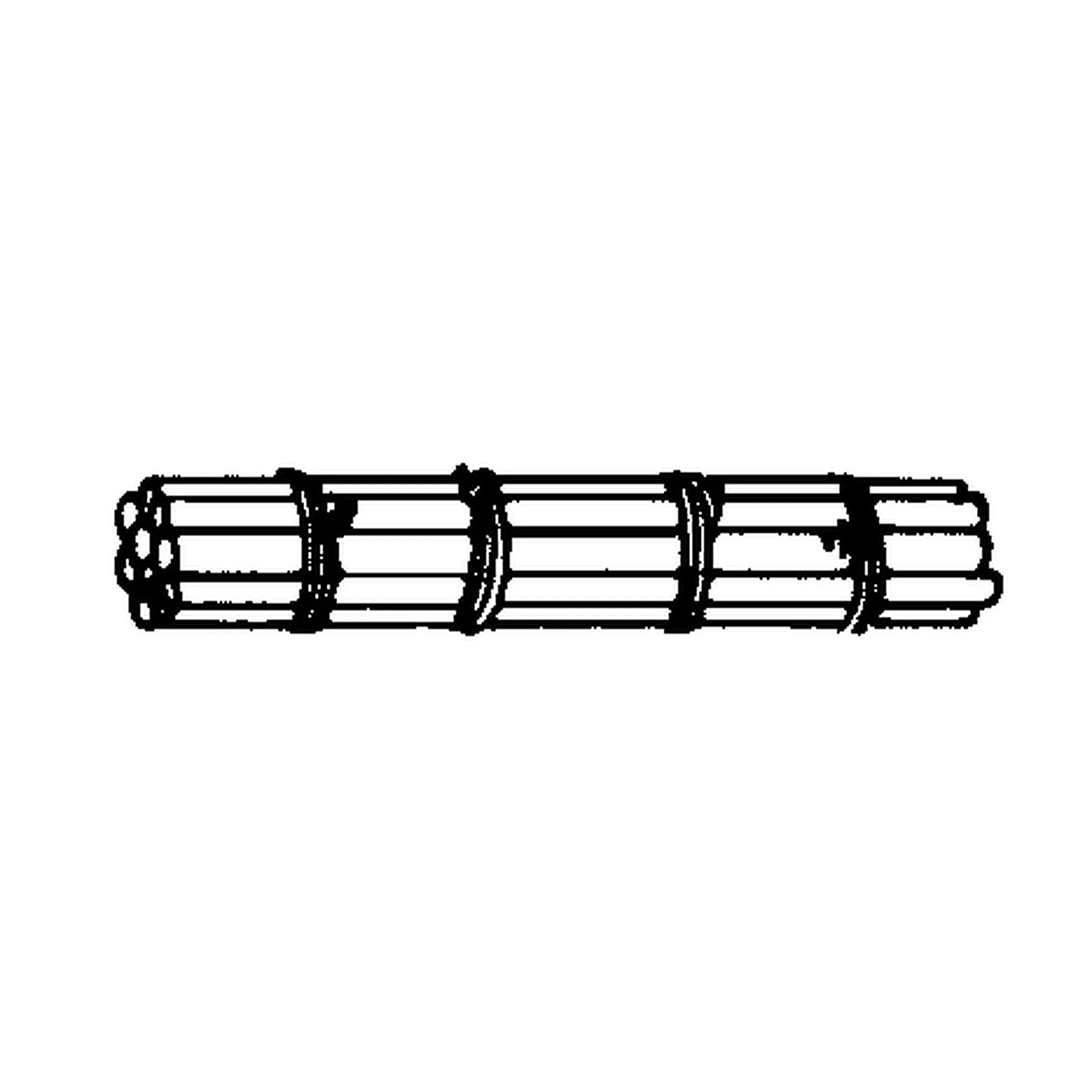

The Monitor Pump Rod (sucker rod) provides the mechanical connection between the hand pump and the plunger in the cylinder. The HA20 is a 7/16 in plated rod, 7 ft long, threaded at both ends.
Order enough rod so the cylinder sits about 15 ft to 20 ft below water for deep-well applications, plus one additional rod coupling to make the final connection. The rod installs inside 1-1/4 in supply pipe.
| Order number | HA20 |
| Material | Zinc-plated steel |
| Size | 7/16 in diameter |
| Length | 7 ft (84 in) |
| Ends | Threaded both ends |
Downloads: Monitor Domestic Products Catalog | Monitor Repair Parts & Installation Catalog
For engineering-led selection support or a factory submittal, email sales@watermainsupply.com or call 281.664.8000.
