The Monitor Drinking Fountain Pump is used on golf courses, campgrounds, roadside parks, and picnic areas. A few strokes fill a reservoir that becomes a noiseless flowing fountain, and a spring-loaded hand-lift valve fills a jug or bucket. All access holes are screened for vermin resistance.
The 1DFHCS mounts to a flange on the casing; the 1DFHFS mounts directly to a 4 in, 5 in, or 6 in casing (Ohio pattern base). Rugged cast iron construction. Select base type and drop pipe size.
| Construction | Cast iron, screened for vermin resistance |
| Base | Flange-mount (1DFHCS) or direct-mount (1DFHFS) |
| Drop pipe | 1-1/4 in or 2 in |
| Stroke | 5 in, 7-1/2 in, 10 in |
| Spout | Fountain |
| Rod thread | 7/16-14NC |

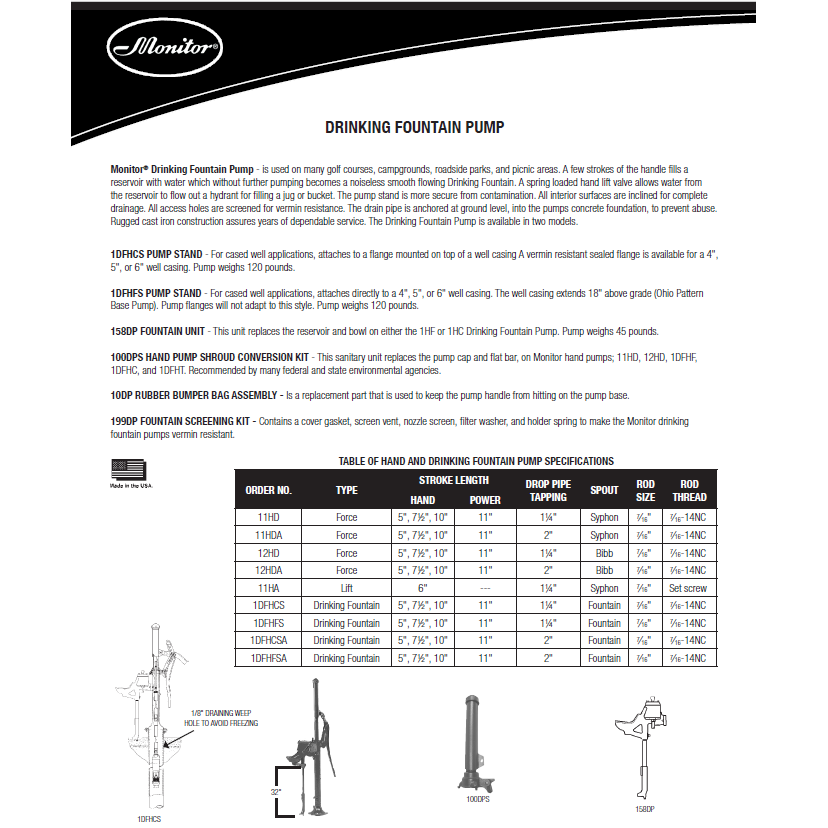

Downloads: Monitor Domestic Products Catalog | Monitor Repair Parts & Installation Catalog
For engineering-led selection support or a factory submittal, email sales@watermainsupply.com or call 281.664.8000.
