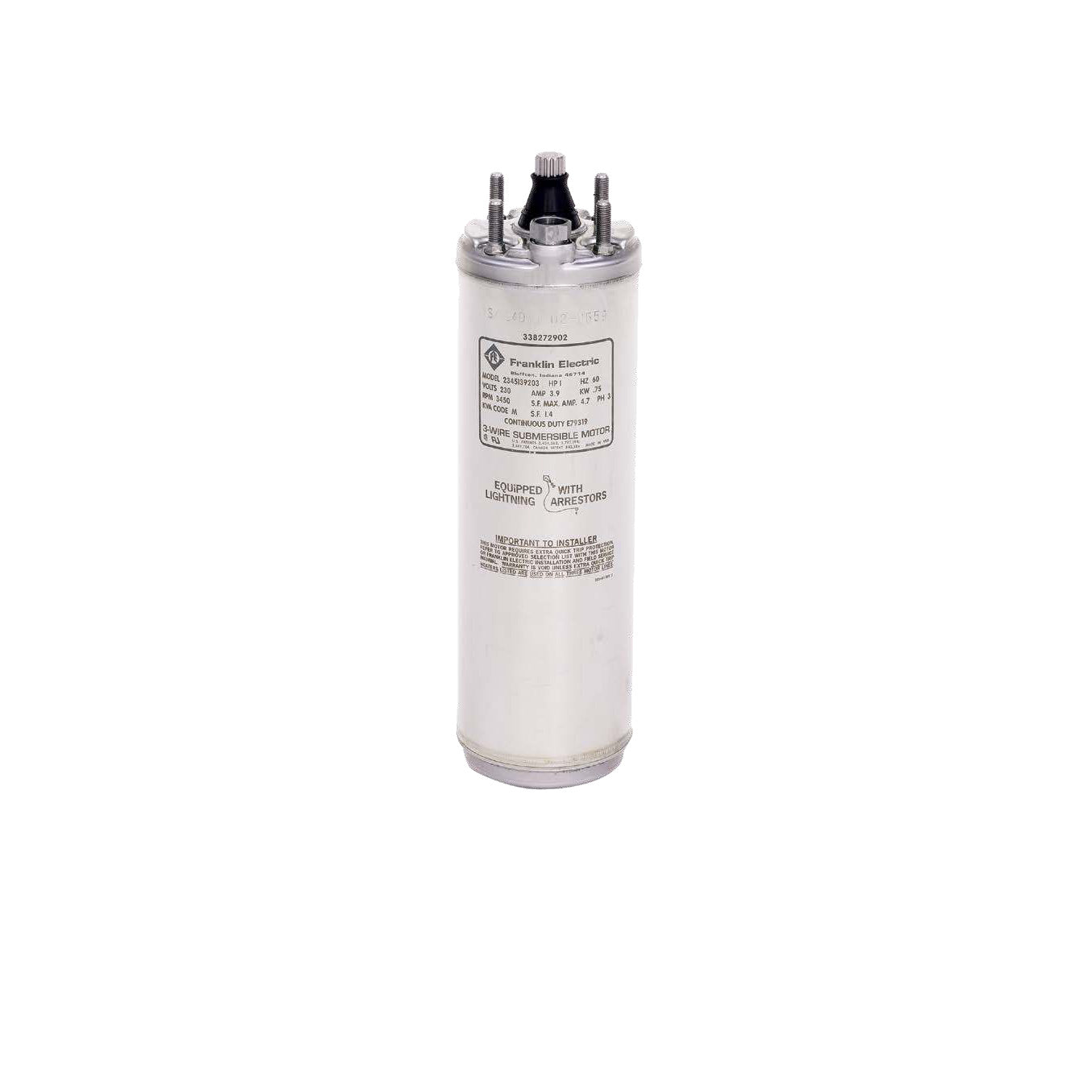

Franklin Electric 4 in Super Stainless Motor

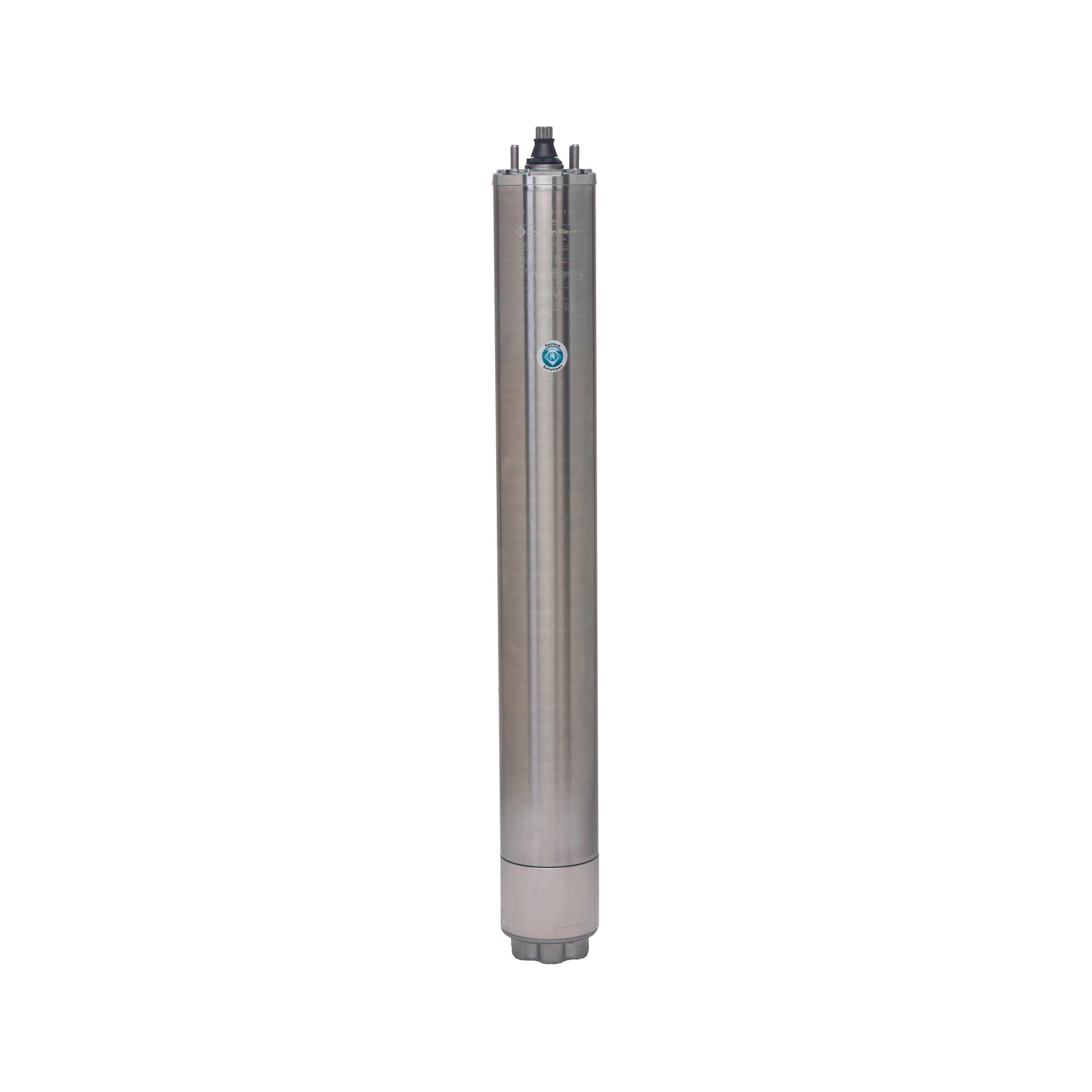

Franklin Electric 4 in High Thrust Motor

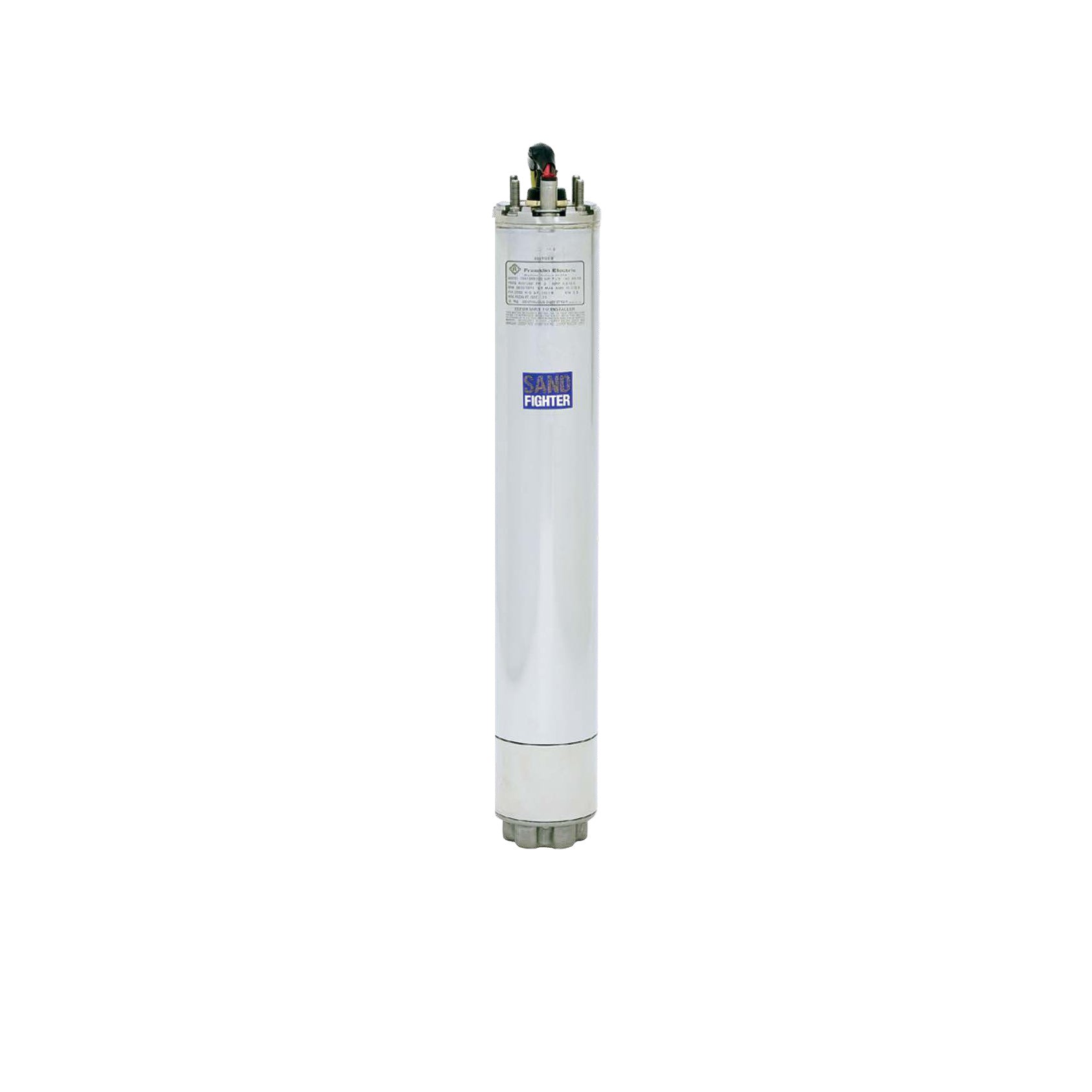

Franklin Electric 4 in Sand Fighter Motor
Franklin Electric 4 in Series 600M Motor
Franklin Electric 4in-Series-600M-Motor Cutaway Diagram

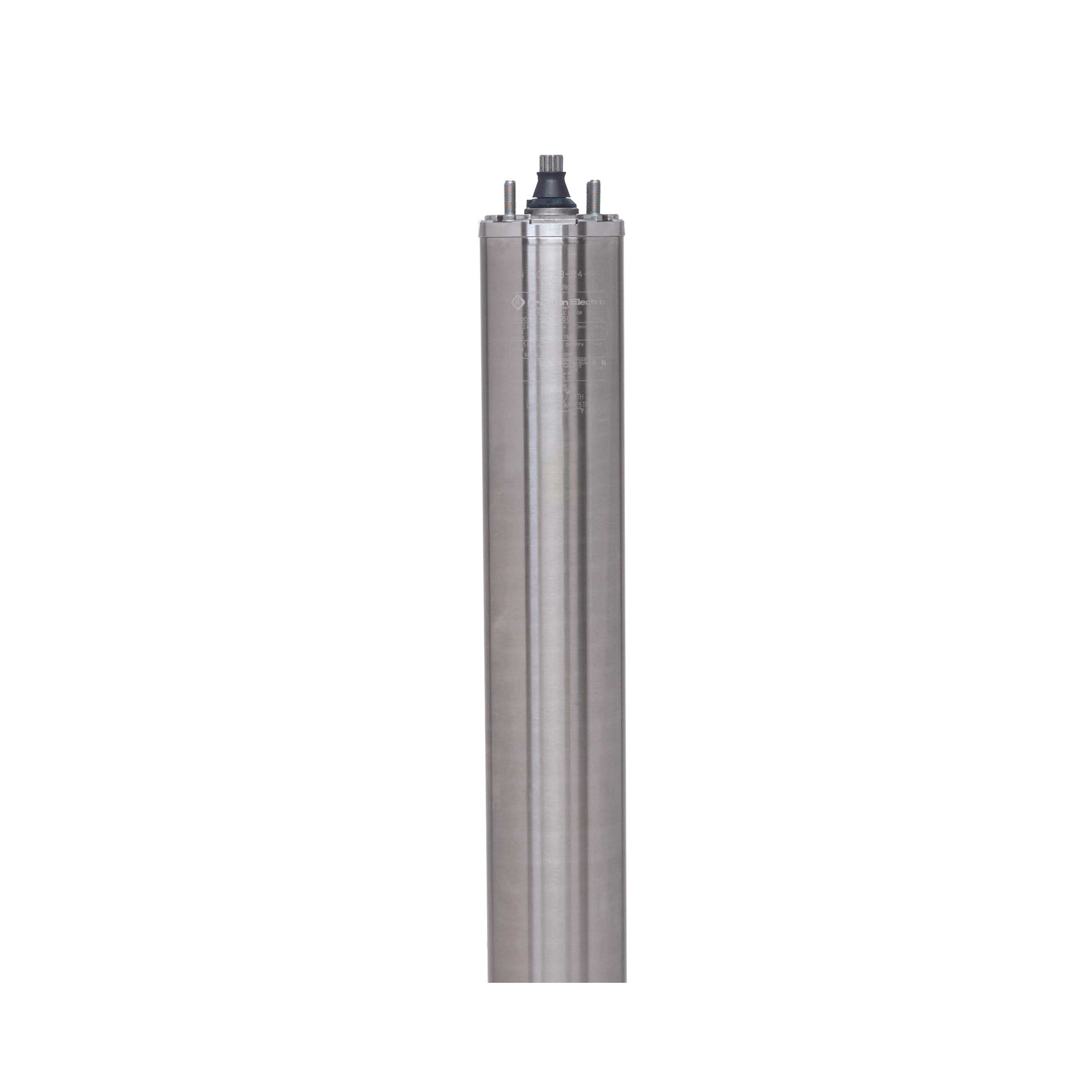

Franklin Electric 4 in Energy Service ES Motor

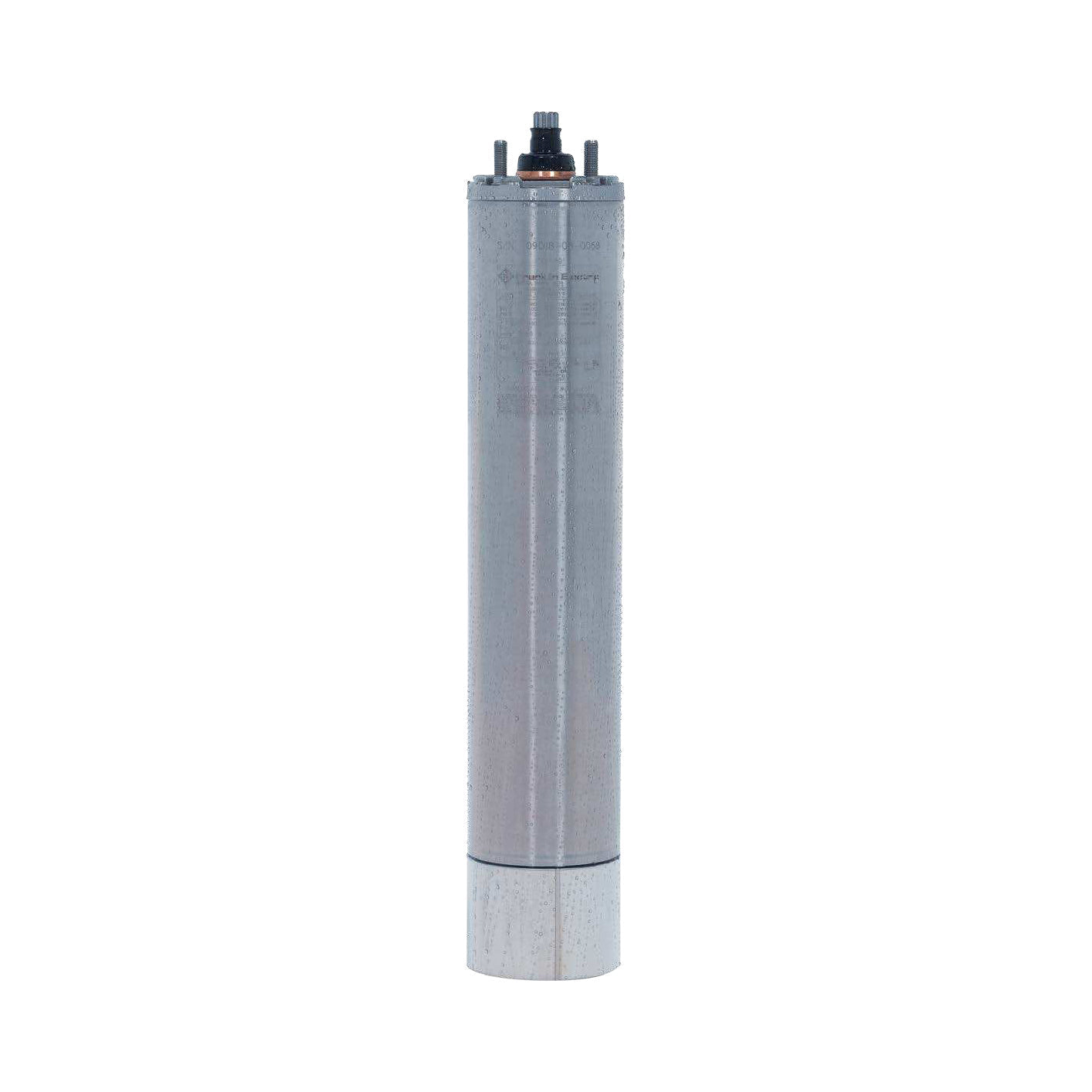

Franklin Electric 4in-CBM-Plus-Motor 7.5-15 HP
Franklin Electric 4 in Super Stainless Motor
Franklin Electric 4 in High Thrust Motor
Franklin Electric 4 in Sand Fighter Motor
Franklin Electric 4 in Series 600M Motor
Franklin Electric 4in-Series-600M-Motor Cutaway Diagram
Franklin Electric 4 in Energy Service ES Motor
Franklin Electric 4in-CBM-Plus-Motor 7.5-15 HP

Franklin Electric 4 in Three-Phase Submersible Motor - 1/2-10 HP, 200-575V

HP: 1/2 HP
Voltage - Phase: 200V 3Ph
Type - Model: Water Well - 2345014116GS

Product variant with selected options does not exist!
$668.72
SKU: 2345014116GS
Weight : 18.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Franklin Electric · Submersible Motor
4 in Three-Phase Submersible Motor
125 Franklin builds, 1/2 to 10 HP.
1/2 to 10 HP
Three-Phase
200-575V
UL 778 Recognized
CSA Certified
ANSI/NSF 61
4 in Motor, 9.51-30.97 in L
What Ships and What It Needs to Run

Included: the submersible motor, with a Franklin lead on builds marked Lead: Yes in the Models & Performance table.

Lead for builds without one: order a Franklin motor lead from our motor leads listing. Franklin voids the motor warranty if Franklin-supplied leads are not used.

Pump end required, ordered separately. A pump end of the same horsepower that fits this motor diameter. Couplings are on our couplings and accessories listing.

Starter or drive required, ordered separately. A magnetic starter with quick-trip overloads, or a drive such as the Franklin X-Drive SUB panel.

Drop cable and splice kit: sized to your setting depth and ordered separately.

Overview

These motors are built for dependable operation in 4 in diameter or larger water wells.

  • Corrosion-resistant stainless steel exterior
  • Stainless steel splined shaft
  • Hermetically-sealed windings
  • StatorShield resin system
  • Filter check valve
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Franklin Electric Warranty

Franklin warrants its products for 12 months from the date of installation, but no more than 24 months from the date of manufacture. Franklin states the motor warranty can be extended to 3 years with Franklin overload-protection controls, and is void if Franklin-supplied leads are not used.

Source: Franklin Electric limited warranty, Submersible Pumps AG/Industrial/Municipal Product Catalog.

Specifications
Model Phase HP Range kW Range Poles RPM Max Ambient Duty
Super Stainless 3 0.5 - 3 0.37 - 2.2 2 3450 86 °F / 30 °C Continuous*
Pollution Recovery 3 0.5 - 2 0.37 - 1.5 2 3450 86 °F / 30 °C Continuous*
High Thrust 3 1.5 - 10 1.1 - 7.5 2 3450 86 °F / 30 °C Continuous*

**Source:** `Combo Binder.pdf`, PDF page 133 of 205. * 3 hp motors require 0.25 ft/sec flow past motor

60 Hz ratings. Source: Franklin Electric Submersible Motors and Control Boxes product catalog.

Models & Ratings

125 builds, grouped by HP. Open a group to see its rows.

1/2 HP · 9 builds
Order No. Type Volts Lead Thrust lb
2345014116GS Water Well 200 No 300
2345019204GS Water Well 200 Yes 300
2345014916GS Pollution Recovery 200 No 300
2345114116GS Water Well 230 No 300
2345119204GS Water Well 230 Yes 300
2345114916GS Pollution Recovery 230 No 300
2345213116GS Water Well 460 No 300
2345219404GS Water Well 460 Yes 300
2345214916GS Pollution Recovery 460 No 300
3/4 HP · 9 builds
Order No. Type Volts Lead Thrust lb
2345024116GS Water Well 200 No 300
2345029204GS Water Well 200 Yes 300
2345024916GS Pollution Recovery 200 No 300
2345124116GS Water Well 230 No 300
2345129204GS Water Well 230 Yes 300
2345124916GS Pollution Recovery 230 No 300
2345223116GS Water Well 460 No 300
2345229404GS Water Well 460 Yes 300
2345224916GS Pollution Recovery 460 No 300
1 HP · 11 builds
Order No. Type Volts Lead Thrust lb
2345031903GS Water Well 200 No 650
2345039203GS Water Well 200 Yes 650
2345032303GS Pollution Recovery 200 No 650
2345131903GS Water Well 230 No 650
2345139203GS Water Well 230 Yes 650
2345130610GS Series 600M 230 Yes 650
2345132303GS Pollution Recovery 230 No 650
2345231603GS Water Well 460 No 650
2345239403GS Water Well 460 Yes 650
2345230610GS Series 600M 460 Yes 650
2345232303GS Pollution Recovery 460 No 650
1-1/2 HP · 15 builds
Order No. Type Volts Lead Thrust lb
2345041903GS Water Well 200 No 650
2345049203GS Water Well 200 Yes 650
2345042303GS Pollution Recovery 200 No 650
2345242303GS Pollution Recovery 460/380 No 650
2345141903GS Water Well 230 No 650
2345149203GS Water Well 230 Yes 650
2345140610GS Series 600M 230 Yes 650
2345142303GS Pollution Recovery 230 No 650
2345248502G 316 SS 460/380 Yes 1500
2345241603GS Water Well 460/380 No 650
2345249403GS Water Well 460/380 Yes 650
2345240610GS Series 600M 460/380 Yes 650
2345348502G 316 SS 575 Yes 1500
2345341603GS Water Well 575 No 650
2345349403GS Water Well 575 Yes 650
2 HP · 18 builds
Order No. Type Volts Lead Thrust lb
2343058600G Water Well 200 No 1500
2343051618GS Water Well 200 No 650
2343059204GS Water Well 200 Yes 650
2343158502G 316 SS 230 Yes 1500
2343158600G Water Well 230 No 1500
2343151618GS Water Well 230 No 650
2343159204GS Water Well 230 Yes 650
2343150610GS Series 600M 230 Yes 650
2343158702G Oil Stripper 230 Yes 1500
2343152318GS Pollution Recovery 230 No 650
2343258502G 316 SS 460/380 Yes 1500
2343258602G Water Well 460/380 Yes 1500
2343251618GS Water Well 460/380 No 650
2343259404GS Water Well 460/380 Yes 650
2343250610GS Series 600M 460/380 Yes 650
2343258702G Oil Stripper 460/380 Yes 1500
2343252318GS Pollution Recovery 460/380 No 650
2343359404GS Water Well 575 Yes 650
3 HP · 26 builds
Order No. Type Volts Lead Thrust lb
2343062504G Water Well 200 No 900
2343068602G Water Well 200 Yes 1500
2343068802G Sand Fighter 200 Yes 1500
2343168502G 316 SS 230 Yes 1500
2343162504G Water Well 230 No 900
2343162604G Water Well 230 Yes 900
2343168600G Water Well 230 No 1500
2343168602G Water Well 230 Yes 1500
2343160620G Series 600M 230 Yes 900
2343160630G Series 600M 230 Yes 1500
2343168702G Oil Stripper 230 Yes 1500
2343168802G Sand Fighter 230 Yes 1500
2343462604G Water Well 380 Yes 900
2343468602G Water Well 380 Yes 1500
2343268502G 316 SS 460/380 Yes 1500
2343262504G Water Well 460/380 No 900
2343262604G Water Well 460/380 Yes 900
2343268600G Water Well 460/380 No 1500
2343268602G Water Well 460/380 Yes 1500
2343260620G Series 600M 460/380 Yes 900
2343260630G Series 600M 460/380 Yes 1500
2343268702G Oil Stripper 460/380 Yes 1500
2343268802G Sand Fighter 460/380 Yes 1500
2343362604G Water Well 575 Yes 900
2343368602G Water Well 575 Yes 1500
2343368802G Sand Fighter 575 Yes 1500
5 HP · 15 builds
Order No. Type Volts Lead Thrust lb
2347078502G 316 SS 200 Yes 1500
2347078602G Water Well 200 Yes 1500
2347078802G Sand Fighter 200 Yes 1500
2347178602G Water Well 230 Yes 1500
2347170630G Series 600M 230 Yes 1500
2347178702G Oil Stripper 230 Yes 1500
2347178802G Sand Fighter 230 Yes 1500
2347478602G Water Well 380 Yes 1500
2347278502G 316 SS 460/380 Yes 1500
2347278602G Water Well 460/380 Yes 1500
2347270630G Series 600M 460/380 Yes 1500
2347278702G Oil Stripper 460/380 Yes 1500
2347278802G Sand Fighter 460/380 Yes 1500
2347378602G Water Well 575 Yes 1500
2347378802G Sand Fighter 575 Yes 1500
7-1/2 HP · 14 builds
Order No. Type Volts Lead Thrust lb
2347088502G 316 SS 200 Yes 1500
2347088602G Water Well 200 Yes 1500
2347088802G Sand Fighter 200 Yes 1500
2347188502G 316 SS 230 Yes 1500
2347188602G Water Well 230 Yes 1500
2347188702G Oil Stripper 230 Yes 1500
2347188802G Sand Fighter 230 Yes 1500
2347488602G Water Well 380 Yes 1500
2347488802G Sand Fighter 380 Yes 1500
2347288600G Water Well 460/380 1500
2347288602G Water Well 460/380 Yes 1500
2347288802G Sand Fighter 460/380 Yes 1500
2347388602G Water Well 575 Yes 1500
2347388802G Sand Fighter 575 Yes 1500
10 HP · 8 builds
Order No. Type Volts Lead Thrust lb
2347498602G Water Well 380 Yes 1500
2347498802G Sand Fighter 380 Yes 1500
2347298502G 316 SS 460/380 Yes 1500
2347298602G Water Well 460/380 Yes 1500
2347298702G Oil Stripper 460/380 Yes 1500
2347298802G Sand Fighter 460/380 Yes 1500
2347398602G Water Well 575 Yes 1500
2347398802G Sand Fighter 575 Yes 1500

Source: Franklin Electric Submersible Motors and Control Boxes product catalog and Franklin price list effective 15 Jun 2026. Length is Franklin's motor “L” dimension; Franklin publishes motor weights as shipping weights, so they are not shown. A blank means Franklin publishes no figure for that build.

Before You Buy — The Limits That Decide the Fit
  • Maximum water temperature 86 °F (30 °C).
  • Flow inducer sleeve not required in water up to 86 °F (30 °C) for motors through 2 HP; 3 HP motors require 0.25 ft/sec flow past the motor.
  • Install in a 4 in diameter or larger well.
  • Use Franklin-supplied leads: Franklin voids the motor warranty otherwise. Nitrile leads are not for potable water.
  • Size the drop cable from Franklin's AIM (Application, Installation, Maintenance) manual.
  • Three-phase motors need a magnetic starter with three-leg, quick-trip ambient-compensated overload protection.
Materials of Construction
Part Material 304 build
Shaft Extension Shaft Extension 17-4 SS
Stator Shell Stator Shell 316 SS
Seal Cover Seal Cover 316 SS
Seal Seal Mech-Nitrile, SiC face
Top Castings Top Castings 316 SS
Bottom Castings Bottom Castings 316 SS
Stator Ends Stator Ends 316 SS
Diaphragm Diaphragm Nitrile
Diaphragm Cup Diaphragm Cup 316 SS
Diaphragm Cover Diaphragm Cover 316 SS
Accessories
Part No. Description
152552905 Lead, Individual XLPE, 303 SS, 48 in, Ground
152552906 Lead, Individual XLPE, 303 SS, 100 in, Ground
152328905 Lead, Individual Nitrile, 316 SS, 48 in, No Ground
152553905 Lead, Individual XLPE, 303 SS, 48 in, Ground
152553906 Lead, Individual XLPE, 303 SS, 100 in, Ground
152255901 Lead, Individual Nitrile, 316 SS, 48 in, No Ground *
152255902 Lead, Individual Nitrile, 316 SS, 100 in, No Ground *
152255906 Lead, Individual Nitrile, 316 SS, 30 ft, No Ground *
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
