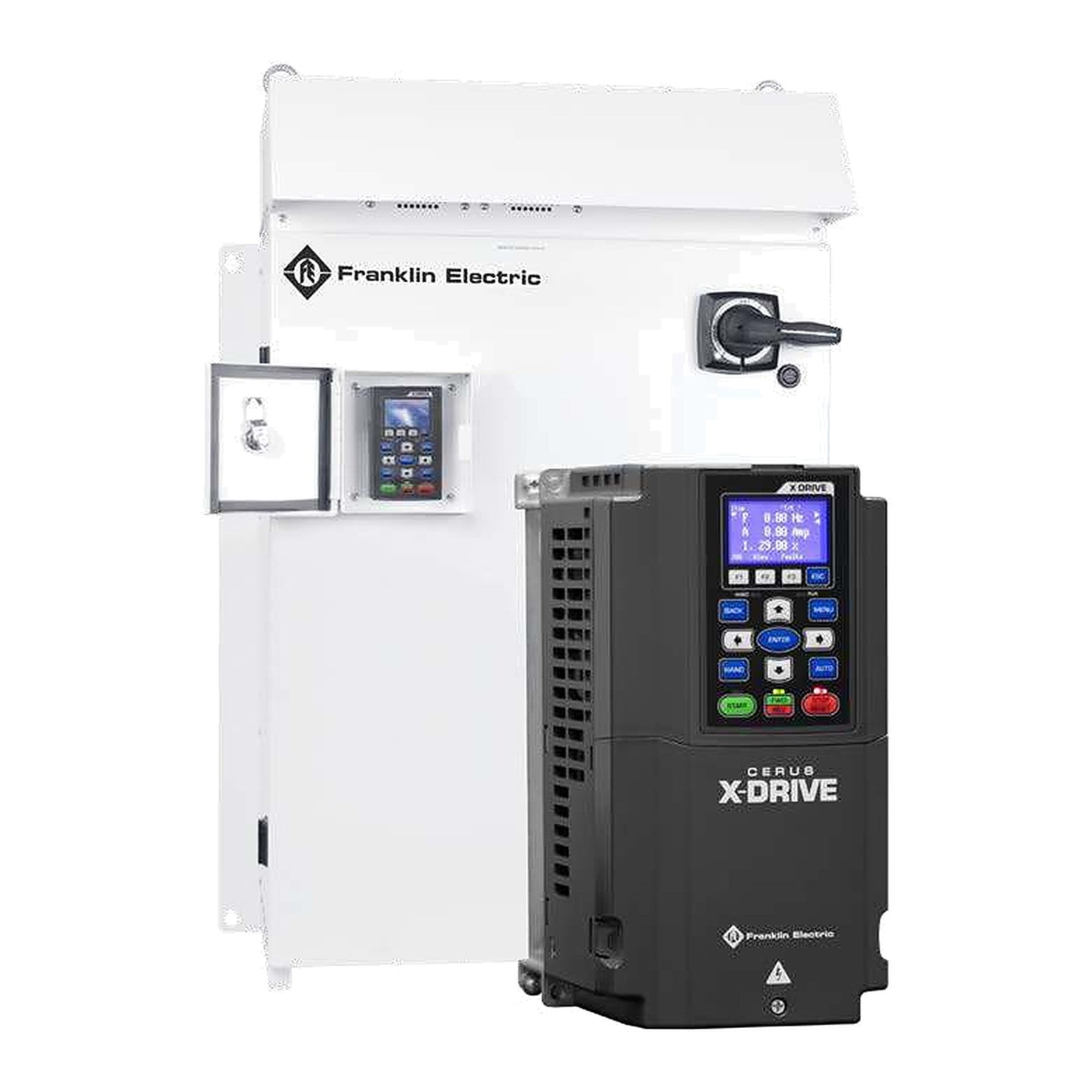

Franklin Electric Cerus X-Drive SUB VFD pump panel, NEMA 3R with disconnect

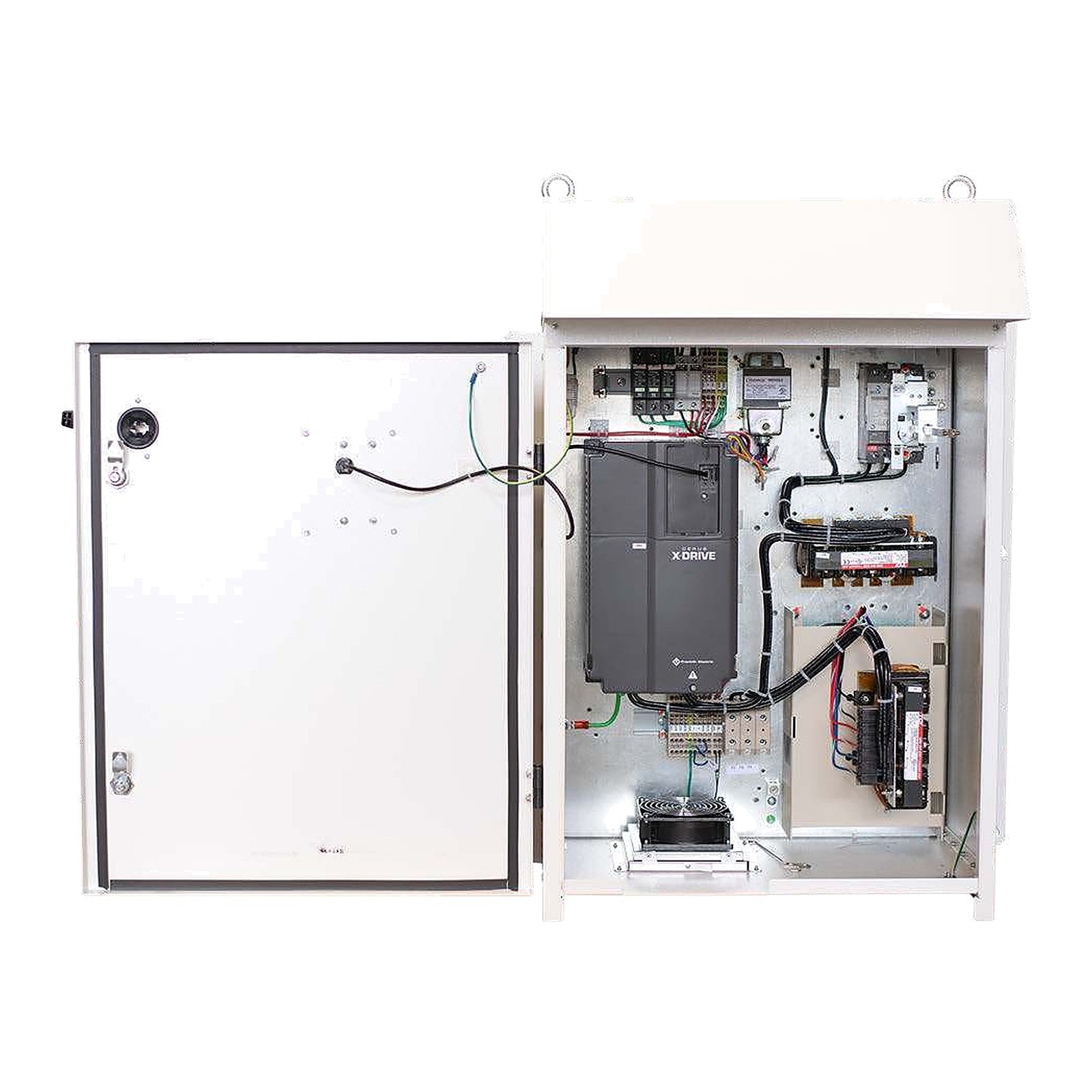

Franklin Electric Cerus X-Drive SUB panel interior with drive, reactor and disconnect

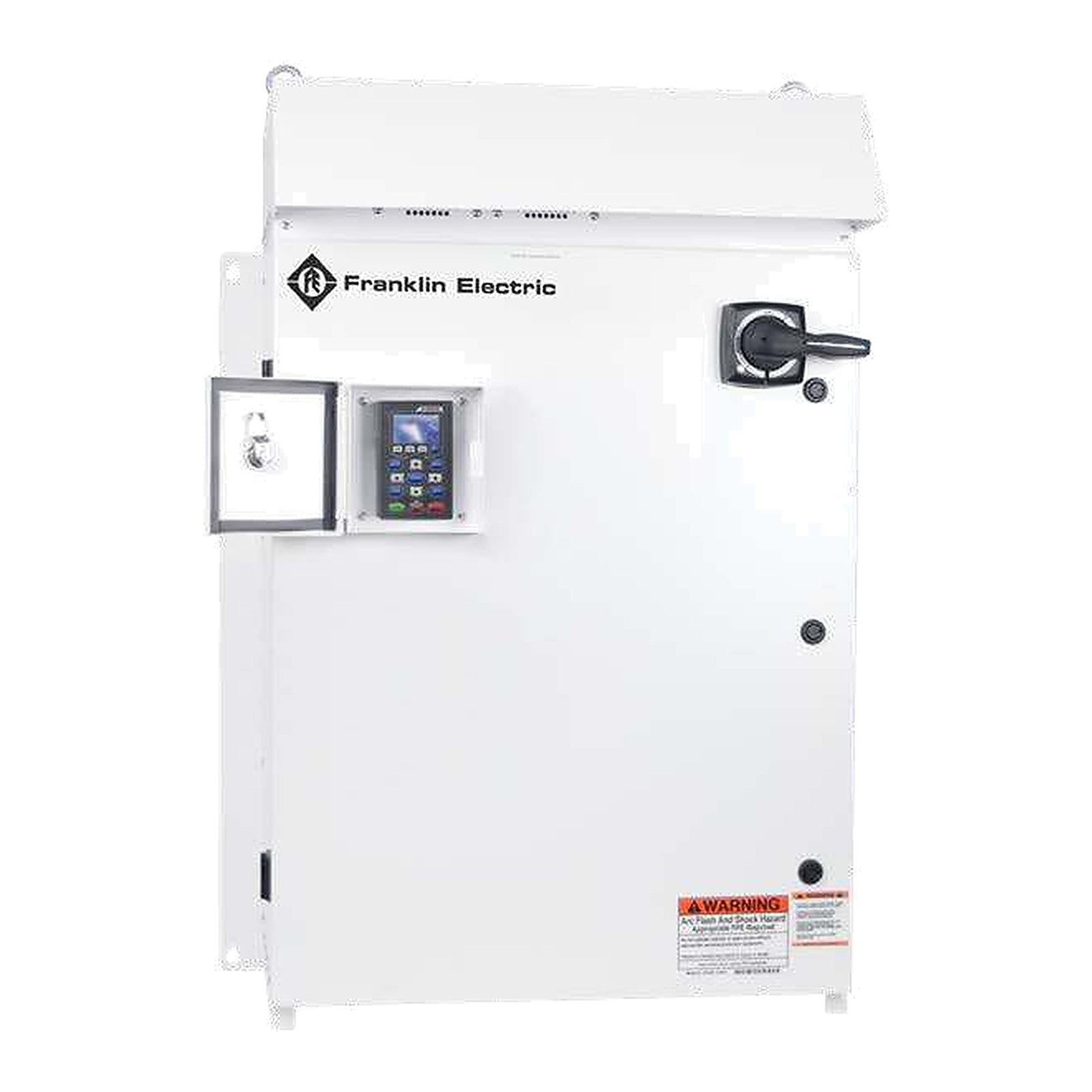

Franklin Electric Cerus X-Drive SUB pump panel front view with keypad and disconnect
Franklin Electric Cerus X-Drive SUB VFD pump panel, NEMA 3R with disconnect
Franklin Electric Cerus X-Drive SUB panel interior with drive, reactor and disconnect
Franklin Electric Cerus X-Drive SUB pump panel front view with keypad and disconnect

Franklin Electric X-Drive SUB VFD Panel for Submersible Pumps

HP - Voltage: 3 HP - 200-230V 3Ph Input
Panel: Standard
Options: Standard panel

Product variant with selected options does not exist!
$6,157.19
SKU: XS2BH003-3A
Weight : 90.0 lb
Free Shipping $499 or more
Need it fast? Call for same-day shipping options: 281.664.8000
Description
Franklin Electric · Variable Frequency Drive Panel
Cerus X-Drive SUB VFD Panel
X-Drive variable frequency drive in an outdoor NEMA 3R pump panel with disconnect, set up for submersible motors. Standard, low-harmonic and factory-configured panels.
NEMA 3R Outdoor
Disconnect Included
1Ph or 3Ph Input
200-230V, 460V, 575V
Line Reactor or DC Choke
dV/dt Filter 460/575V
Modbus and BACnet
MagForce Ready
Overview

The Cerus X-Drive is Franklin Electric’s drive for variable-torque pumping, available as a stand-alone drive and in enclosed pump panels. This listing is the SUB panel for submersible motors, rated for indoor or outdoor mounting (NEMA 3R).

Every panel includes a line reactor or DC choke; 460V and 575V panels also include a dV/dt output filter, recommended for motor lead lengths up to about 1,000 ft. Standard panels with a disconnect include service-entrance provisions. The horsepower-rated part numbers pair directly with Franklin induction motors and MagForce high-efficiency motors.

Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Key Features
  • Application firmware — presets for submersible pumps, centrifugal pumps, cooling tower and circulating pumps for quick startups and protection.
  • Advanced pump control — multi-VFD control of up to 8 drives, pre-PID pipe fill, a second PID loop, dual demand and pipe leak protection.
  • Phase conversion — UL-listed single-phase or three-phase input.
  • Harmonics — built-in DC choke from 50 HP at 230V and 60 HP at 460V and 575V.
  • Automation — built-in PLC; Modbus RTU or ASCII and BACnet MS/TP; optional Ethernet IP and Modbus TCP/IP or FE Connect Bluetooth cards.
  • Display — UL Type 4X removable display, remote mountable on a standard CAT-5 cable.
  • FE Connect app — with the optional Bluetooth card and firmware 1.2 or later: phone-based setup, monitoring and troubleshooting.
  • MagForce ready — quick startups and protection with Franklin MagForce permanent-magnet motors.
Check the Part Number

Part numbers read as X + application (C = centrifugal, S = submersible, LH = low harmonic) + voltage code (2 = 200-230V, 4 = 460V, 6 = 575V) + BH + horsepower (three digits) + input phase (1A = single-phase, 3A = three-phase). A five-character suffix adds factory-installed options: hand-off-auto switch (H, or R to replace the keypad), speed potentiometer (S), pilot lights (R run, F fault, P both) and foot kit (K).

Models & Ratings — Base Panels
Part No. HP Input Voltage & Phase Panel Motor Size
XS2BH003-3A 3 200-230V 3Ph Standard 4 in
XS2BH005-3A 5 200-230V 3Ph Standard 4 in and 6 in
XS2BH007-3A 7-1/2 200-230V 3Ph Standard 4 in and 6 in
XS2BH010-3A 10 200-230V 3Ph Standard 6 in
XS2BH015-3A 15 200-230V 3Ph Standard 6 in
XS2BH020-3A 20 200-230V 3Ph Standard 6 in
XS2BH025-3A 25 200-230V 3Ph Standard 6 in
XS2BH030-3A 30 200-230V 3Ph Standard 6 in
XS4BH003-3A 3 460V 3Ph Standard 4 in
XS4BH005-3A 5 460V 3Ph Standard 4 in and 6 in
XS4BH007-3A 7-1/2 460V 3Ph Standard 4 in and 6 in
XS4BH010-3A 10 460V 3Ph Standard 4 in and 6 in
XS4BH015-3A 15 460V 3Ph Standard 4 in and 6 in
XS4BH025-3A 25 460V 3Ph Standard 6 in
XS4BH030-3A 30 460V 3Ph Standard 6 in
XS4BH040-3A 40 460V 3Ph Standard 6 in and 8 in
XS4BH050-3A 50 460V 3Ph Standard 6 in and 8 in
XS4BH060-3A 60 460V 3Ph Standard 6 in and 8 in
XS4BH100-3A 100 460V 3Ph Standard 8 in
XS4BH125-3A 125 460V 3Ph Standard 8 in
XS4BH150-3A 150 460V 3Ph Standard 8 in
XS4BH175-3A 175 460V 3Ph Standard 8 in
XS4BH200-3A 200 460V 3Ph Standard 8 in
XS6BH003-3A 3 575V 3Ph Standard 4 in
XS6BH005-3A 5 575V 3Ph Standard 4 in and 6 in
XS6BH007-3A 7-1/2 575V 3Ph Standard 4 in and 6 in
XS6BH010-3A 10 575V 3Ph Standard 4 in and 6 in
XS6BH015-3A 15 575V 3Ph Standard 4 in and 6 in
XS6BH020-3A 20 575V 3Ph Standard 6 in
XS6BH025-3A 25 575V 3Ph Standard 6 in
XS6BH030-3A 30 575V 3Ph Standard 6 in
XS6BH040-3A 40 575V 3Ph Standard 6 in and 8 in
XS6BH050-3A 50 575V 3Ph Standard 6 in and 8 in
XS6BH060-3A 60 575V 3Ph Standard 6 in and 8 in
XS6BH075-3A 75 575V 3Ph Standard 8 in
XS6BH100-3A 100 575V 3Ph Standard 8 in
XS6BH125-3A 125 575V 3Ph Standard 8 in
XS6BH150-3A 150 575V 3Ph Standard 8 in
XS6BH200-3A 200 575V 3Ph Standard 8 in
XS2BH003-1A 3 200-230V 1Ph Standard 4 in
XS2BH005-1A 5 200-230V 1Ph Standard 4 in and 6 in
XS2BH007-1A 7-1/2 200-230V 1Ph Standard 4 in and 6 in
XS2BH010-1A 10 200-230V 1Ph Standard 6 in
XS2BH015-1A 15 200-230V 1Ph Standard 6 in
XS2BH020-1A 20 200-230V 1Ph Standard 6 in
XS2BH025-1A 25 200-230V 1Ph Standard 6 in
XS2BH030-1A 30 200-230V 1Ph Standard 6 in
XS4BH003-1A 3 460V 1Ph Standard 4 in
XS4BH005-1A 5 460V 1Ph Standard 4 in and 6 in
XS4BH007-1A 7-1/2 460V 1Ph Standard 4 in and 6 in
XS4BH010-1A 10 460V 1Ph Standard 4 in and 6 in
XS4BH015-1A 15 460V 1Ph Standard 4 in and 6 in
XS4BH020-1A 20 460V 1Ph Standard 6 in
XS4BH025-1A 25 460V 1Ph Standard 6 in
XS4BH030-1A 30 460V 1Ph Standard 6 in
XS4BH040-1A 40 460V 1Ph Standard 6 in and 8 in
XS4BH050-1A 50 460V 1Ph Standard 6 in and 8 in
XS4BH060-1A 60 460V 1Ph Standard 6 in and 8 in
XS4BH075-1A 75 460V 1Ph Standard 8 in
XSLH4BH010-3A 10 460V 3Ph Low Harmonic
XSLH4BH015-3A 15 460V 3Ph Low Harmonic
XSLH4BH020-3A 20 460V 3Ph Low Harmonic
XSLH4BH025-3A 25 460V 3Ph Low Harmonic
XSLH4BH030-3A 30 460V 3Ph Low Harmonic
XSLH4BH040-3A 40 460V 3Ph Low Harmonic
XSLH4BH050-3A 50 460V 3Ph Low Harmonic
XSLH4BH060-3A 60 460V 3Ph Low Harmonic
XSLH4BH075-3A 75 460V 3Ph Low Harmonic
XSLH4BH100-3A 100 460V 3Ph Low Harmonic
XSLH4BH125-3A 125 460V 3Ph Low Harmonic
XSLH4BH150-3A 150 460V 3Ph Low Harmonic
XSLH4BH200-3A 200 460V 3Ph Low Harmonic
XSLH4BH250-3A 250 460V 3Ph Low Harmonic
XSLH4BH300-3A 300 460V 3Ph Low Harmonic
XSLH4BH350-3A 350 460V 3Ph Low Harmonic
XSLH4BH400-3A 400 460V 3Ph Low Harmonic
XSLH4BH500-3A 500 460V 3Ph Low Harmonic
XS4BH020-3A 20 460V 3Ph Standard
XS4BH075-3A 75 460V 3Ph Standard
XS4BH250-3A 250 460V 3Ph Standard
XS4BH300-3A 300 460V 3Ph Standard
XS6BH175-3A 175 575V 3Ph Standard
XS6BH250-3A 250 575V 3Ph Standard
XS6BH300-3A 300 575V 3Ph Standard
XS6BH350-3A 350 575V 3Ph Standard
XS6BH400-3A 400 575V 3Ph Standard
XS6BH500-3A 500 575V 3Ph Standard
XS6BH550-3A 550 575V 3Ph Standard

Source: Franklin Electric Large Drives and Controls price list effective 15 Jun 2026.

Factory-Installed Options
Suffix Adds Variants on this listing
-00P00 Run and fault lights 70
-H0000 HOA switch 70
-H0P00 HOA switch, run and fault lights 70
-HS000 HOA switch, speed pot 34
-0S000 Speed pot 3
-HSP00 HOA switch, speed pot, run and fault lights 1
-000K0 Foot kit 1

Each configured panel is its own part number: base part number plus the suffix. Pick it under Options. Source: Franklin Electric Cerus X-Drive brochure, model nomenclature.

X-Drive Range
HP Voltage Max Amps
1 to 100 200-208V 322 A
1 to 125 230V 322 A
1 to 600 480V 770 A
1 to 700 575V 675 A

Series range for the whole X-Drive family. Source: Franklin Electric Cerus X-Drive brochure.

Before You OrderMatch the panel horsepower and output to the motor nameplate, and the input voltage and phase to the supply. Single-phase-input panels are listed separately from three-phase-input panels. For long motor leads, confirm the output filtering with us before ordering.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
