Franklin Electric 4 in High Capacity Submersible Pump End - Stainless Steel, 35-90 GPM

HP: 1 HP
Check Valve: None
Model - Head: 35FH1S4-PE at 35 GPM

Product variant with selected options does not exist!
$1,193.72
SKU: 93653505
Weight : 9.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Franklin Electric · Submersible Pump End

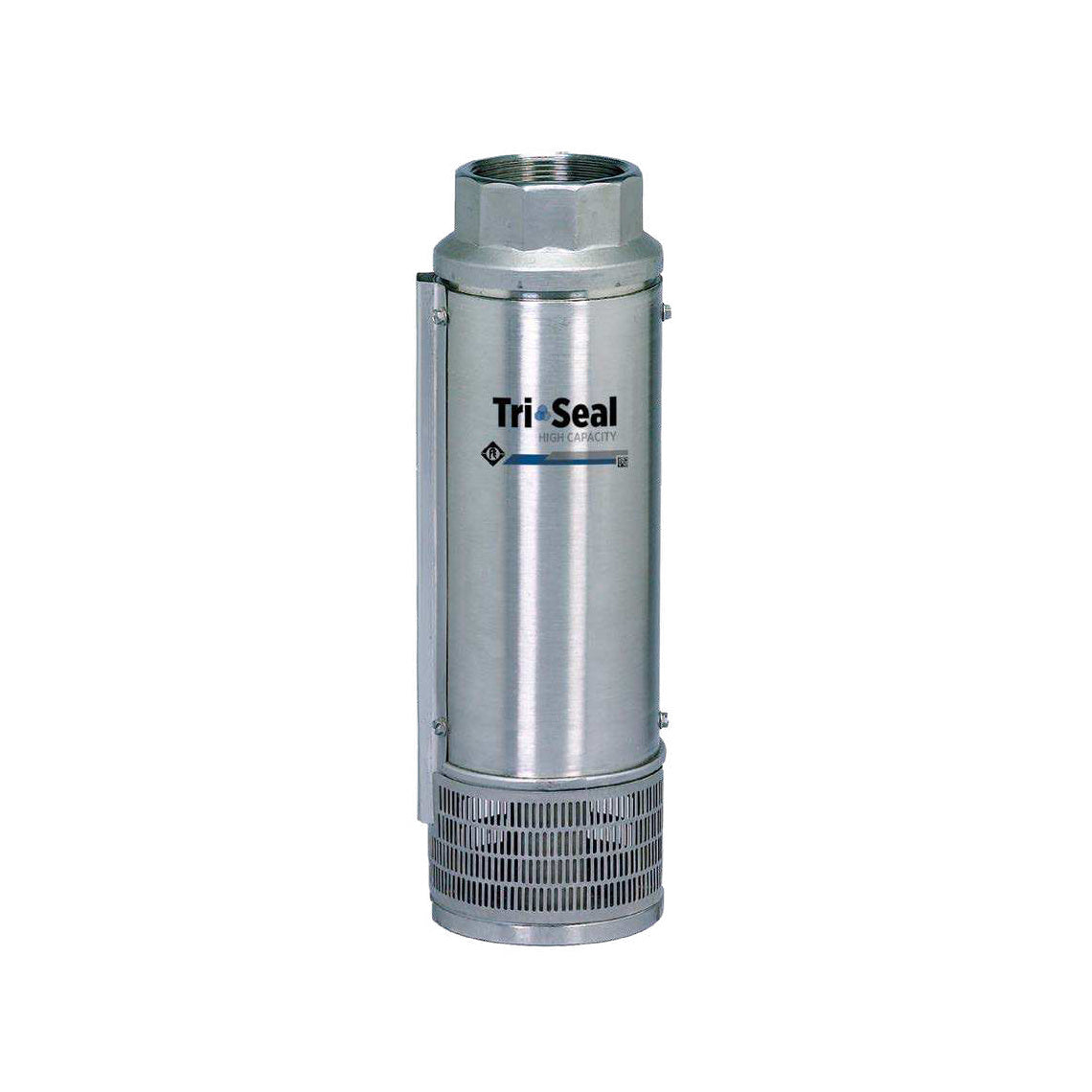

4 in High Capacity Submersible Pump End
46 Franklin builds, 35-90 GPM, 1 to 10 HP.
35-90 GPM Rated Flow · 1,250 ft Max Head
1 to 10 HP
4 in Motor Fit
Stainless Steel
ANSI/NSF-61
3.90 in Dia x 11.9-89 in L
8-32 lb Weight
What Ships and What It Needs to Run

Included: the pump end only (with the internal stainless steel wafer-style check valve on Check Valve: Built-In builds); no motor.

Motor required, ordered separately. A Franklin 4 in motor of the same horsepower: 2-wire, 3-wire single-phase or three-phase, plus the motor control it needs (control box, starter or drive).

Drop cable and splice kit: sized to your setting depth and ordered separately.

Overview

The Tri-Seal High Capacity 4 in pump comes in four performance ranges: 35, 45, 60 and 90 GPM, with a 2 in NPT discharge, with and without an internal stainless steel wafer-style check valve. Franklin designs it for optimal performance on its corrosion-resistant 4 in submersible motors. It replaces Franklin’s discontinued original FPS high-capacity models.

  • Four performance ranges: 35, 45, 60, and 90 gpm
  • 2 in NPT discharge, with and without an internal stainless steel wafer-style check valve
  • Stainless steel discharge head and motor bracket
  • High flow hydraulic staging allows for maximum pump output, exceeds all energy efficiency standards, and provides increased product longevity
  • Ceramic shaft sleeve and rubber discharge bearing eliminates sand wear
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Franklin Electric Warranty

Covered by Franklin Electric’s Limited Warranty for 1 year from the date of original purchase.

Source: Franklin Electric 4 in and 6 in Submersible Pump Owner’s Manual (106467101).

Specifications
Nominal flow 35-90 GPM
Horsepower 1 to 10 HP
Frequency 60 Hz
Construction Stainless Steel
Approvals ANSI/NSF-61
Models & Performance — Will It Do What You Need?

Find your horsepower in the row, then read across. Total head is the lift from the pumping water level, plus the pressure you want at the tank (2.31 ft for every PSI), plus friction in the drop pipe. The output tables give the flow you get at a 30/50 PSI pressure switch for your depth to water.

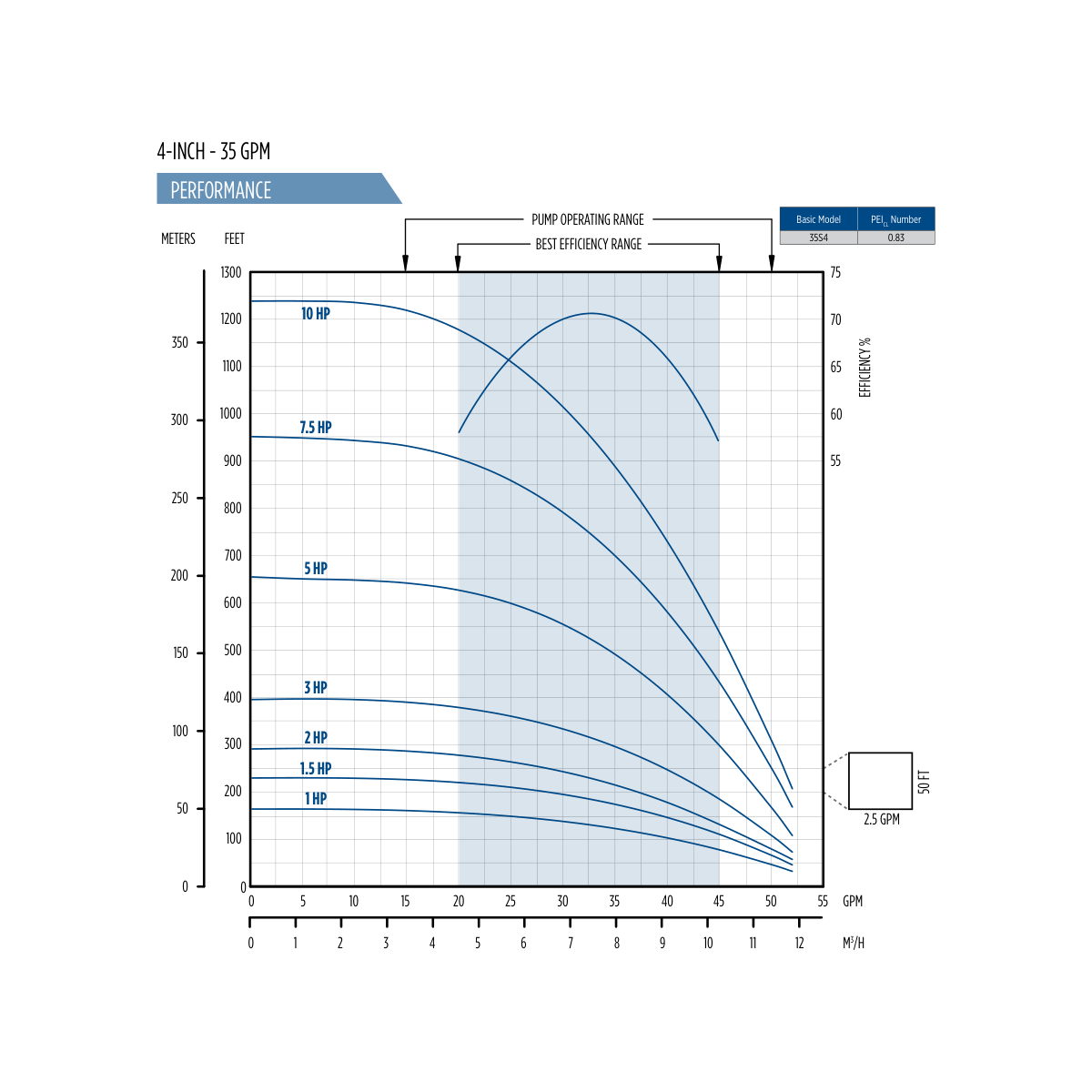

35 GPM class · 7 builds, 1 to 10 HP

35 GPM class — total head in feet at three flows

HP 0 GPM (Shut-off) 10 GPM 26 GPM 39 GPM 52 GPM (Max)
1 HP 161 ft 163 ft 147 ft 107 ft 32 ft
1-1/2 HP 230 ft 229 ft 207 ft 152 ft 46 ft
2 HP 300 ft 291 ft 260 ft 186 ft 57 ft
3 HP 400 ft 395 ft 356 ft 258 ft 73 ft
5 HP 650 ft 648 ft 592 ft 425 ft 108 ft
7-1/2 HP 950 ft 944 ft 847 ft 607 ft 169 ft
10 HP 1250 ft 1236 ft 1094 ft 765 ft 208 ft

Output in GPM at 30 PSI (switch cut-in), by depth to water, 1 HP to 3 HP

HP 20 ft 40 ft 60 ft 80 ft 100 ft 120 ft 140 ft
1 HP 42 38 32 23 — — —
1-1/2 HP — 45 42 39 35 31 24
2 HP — — 45 43 41 38 35
3 HP — — — — — 44 43

Output in GPM at 50 PSI (switch cut-out), by depth to water, 1 HP to 3 HP

HP 20 ft 40 ft 60 ft 80 ft 100 ft 120 ft 140 ft
1 HP 30 — — — — — —
1-1/2 HP 41 38 34 29 21 — —
2 HP 45 42 40 37 34 31 27
3 HP — — 45 44 42 41 39

Output in GPM at 30 PSI (switch cut-in), by depth to water, 5 HP to 10 HP

HP 400 ft 440 ft 480 ft 500 ft 550 ft 600 ft 650 ft
5 HP 36 33 30 28 21 — —
7-1/2 HP 44 43 41 40 38 36 34
10 HP — — 45 44 43 42 40

Output in GPM at 50 PSI (switch cut-out), by depth to water, 5 HP to 10 HP

HP 400 ft 440 ft 480 ft 500 ft 550 ft 600 ft 650 ft
5 HP 33 29 25 22 — — —
7-1/2 HP 42 41 39 39 37 34 31
10 HP 46 45 44 43 42 40 39

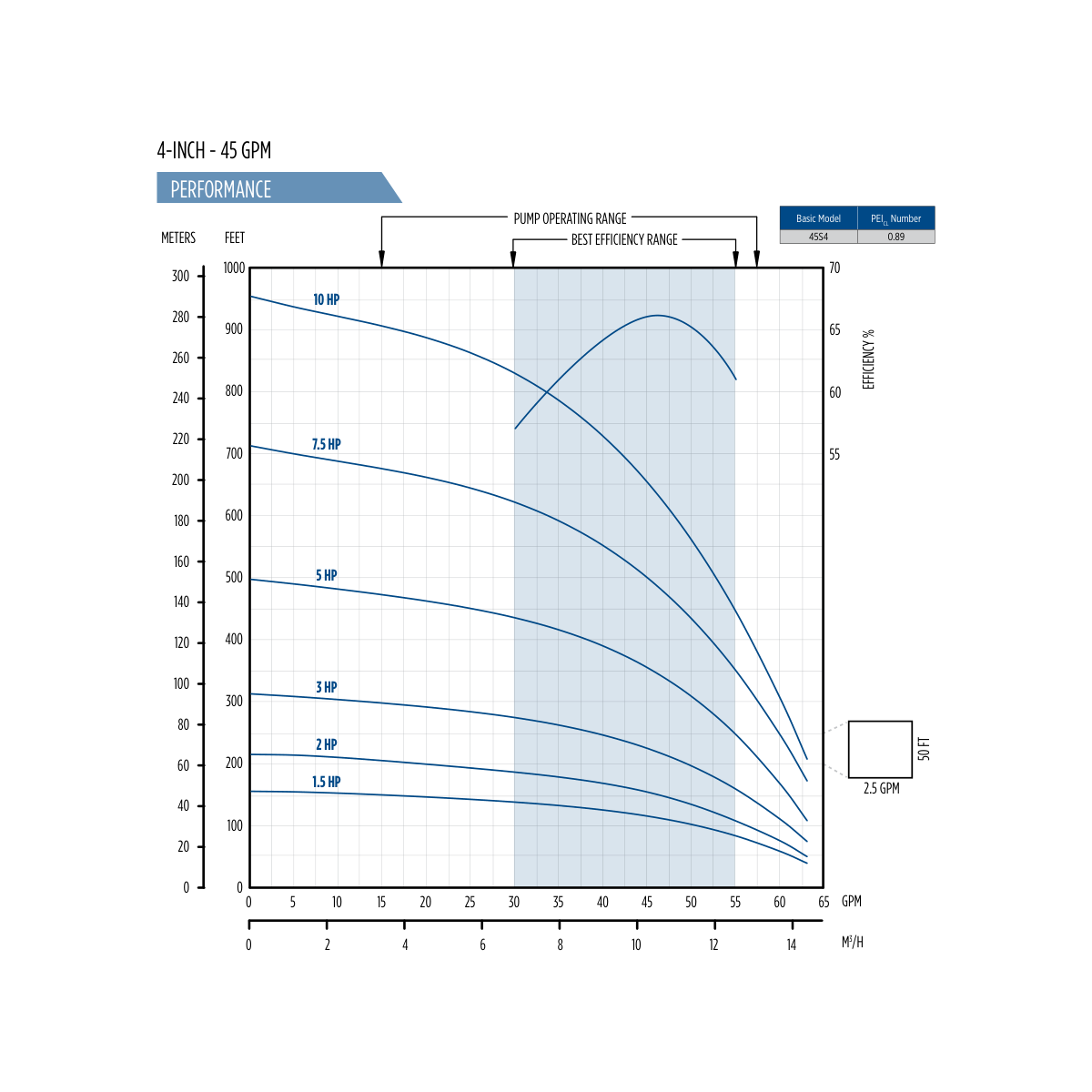

45 GPM class · 6 builds, 1-1/2 to 10 HP

45 GPM class — total head in feet at three flows

HP 0 GPM (Shut-off) 13 GPM 32 GPM 47 GPM 63 GPM (Max)
1-1/2 HP 156 ft 151 ft 137 ft 111 ft 41 ft
2 HP 216 ft 208 ft 184 ft 148 ft 51 ft
3 HP 312 ft 301 ft 270 ft 215 ft 76 ft
5 HP 500 ft 477 ft 429 ft 338 ft 111 ft
7-1/2 HP 707 ft 681 ft 611 ft 476 ft 175 ft
10 HP 950 ft 912 ft 814 ft 620 ft 211 ft

Output in GPM at 30 PSI (switch cut-in), by depth to water, 1-1/2 HP to 3 HP

HP 0 ft 20 ft 40 ft 60 ft 80 ft 100 ft 120 ft
1-1/2 HP — 53 47 38 — — —
2 HP — — 54 51 46 39 29
3 HP — — — — — 53 50

Output in GPM at 50 PSI (switch cut-out), by depth to water, 1-1/2 HP to 3 HP

HP 0 ft 20 ft 40 ft 60 ft 80 ft 100 ft 120 ft
1-1/2 HP 44 33 — — — — —
2 HP 53 49 44 37 — — —
3 HP — — 55 52 50 46 42

Output in GPM at 30 PSI (switch cut-in), by depth to water, 5 HP to 10 HP

HP 280 ft 320 ft 360 ft 400 ft 440 ft 480 ft 500 ft
5 HP 45 40 32 — — — —
7-1/2 HP 55 53 50 47 44 40 38
10 HP — — 56 54 52 50 49

Output in GPM at 50 PSI (switch cut-out), by depth to water, 5 HP to 10 HP

HP 280 ft 320 ft 360 ft 400 ft 440 ft 480 ft 500 ft
5 HP 39 30 — — — — —
7-1/2 HP 52 50 47 43 39 34 31
10 HP — 55 54 52 50 48 47

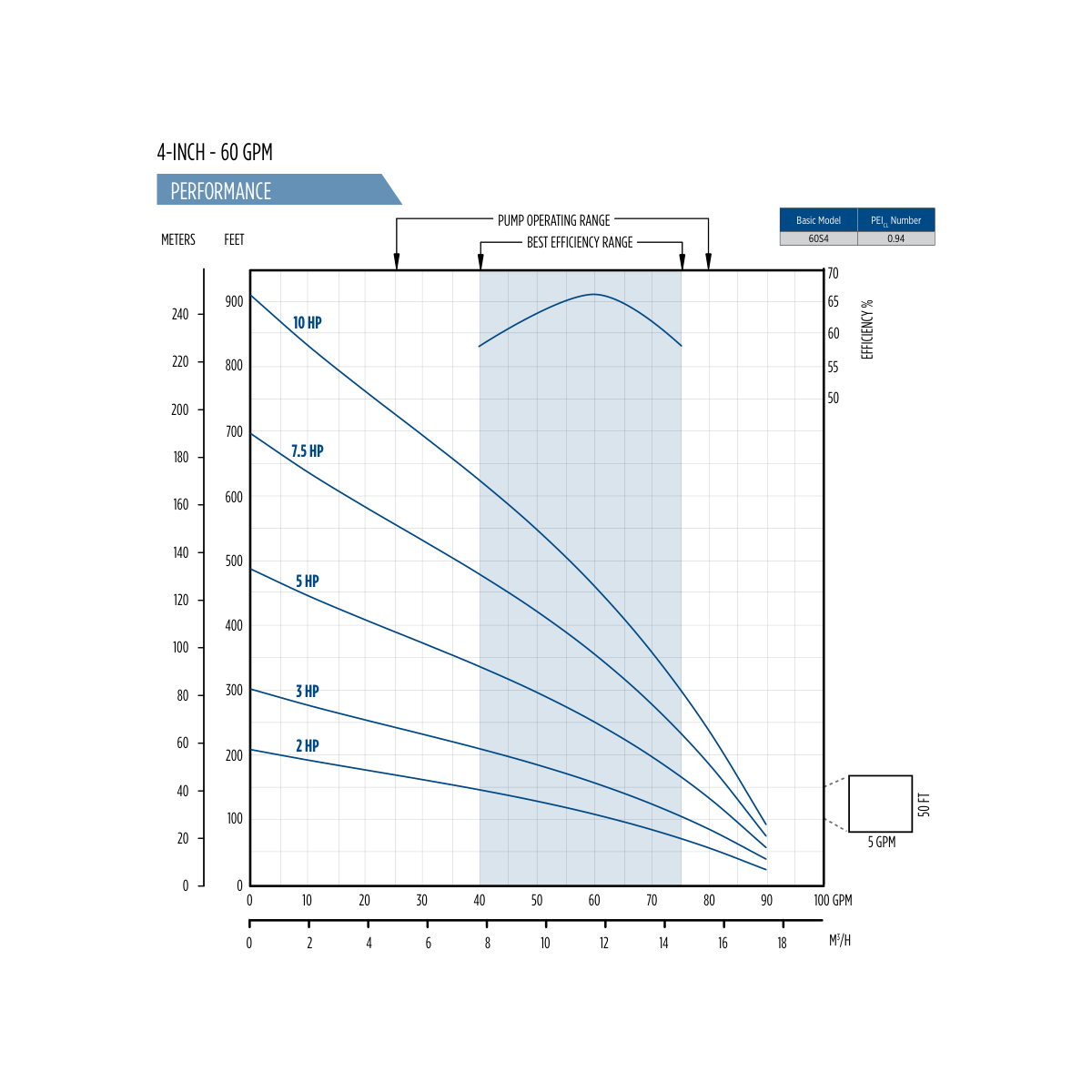

60 GPM class · 5 builds, 2 to 10 HP

60 GPM class — total head in feet at three flows

HP 0 GPM (Shut-off) 18 GPM 45 GPM 68 GPM 90 GPM (Max)
2 HP 206 ft 180 ft 138 ft 90 ft 23 ft
3 HP 300 ft 259 ft 198 ft 131 ft 40 ft
5 HP 485 ft 416 ft 317 ft 209 ft 57 ft
7-1/2 HP 700 ft 593 ft 451 ft 295 ft 75 ft
10 HP 905 ft 775 ft 586 ft 381 ft 93 ft

Output in GPM at 30 PSI (switch cut-in), by depth to water

HP 20 ft 60 ft 100 ft 140 ft 180 ft 240 ft 320 ft
2 HP 69 51 — — — — —
3 HP 79 69 56 40 — — —
5 HP — 81 75 68 60 47 —
7-1/2 HP — — — 78 74 66 55
10 HP — — — — 79 74 67

Output in GPM at 50 PSI (switch cut-out), by depth to water

HP 20 ft 60 ft 100 ft 140 ft 180 ft 240 ft 320 ft
2 HP 47 — — — — — —
3 HP 67 54 38 — — — —
5 HP 80 74 67 59 50 — —
7-1/2 HP — 81 77 73 68 60 48
10 HP — — — 79 76 70 63

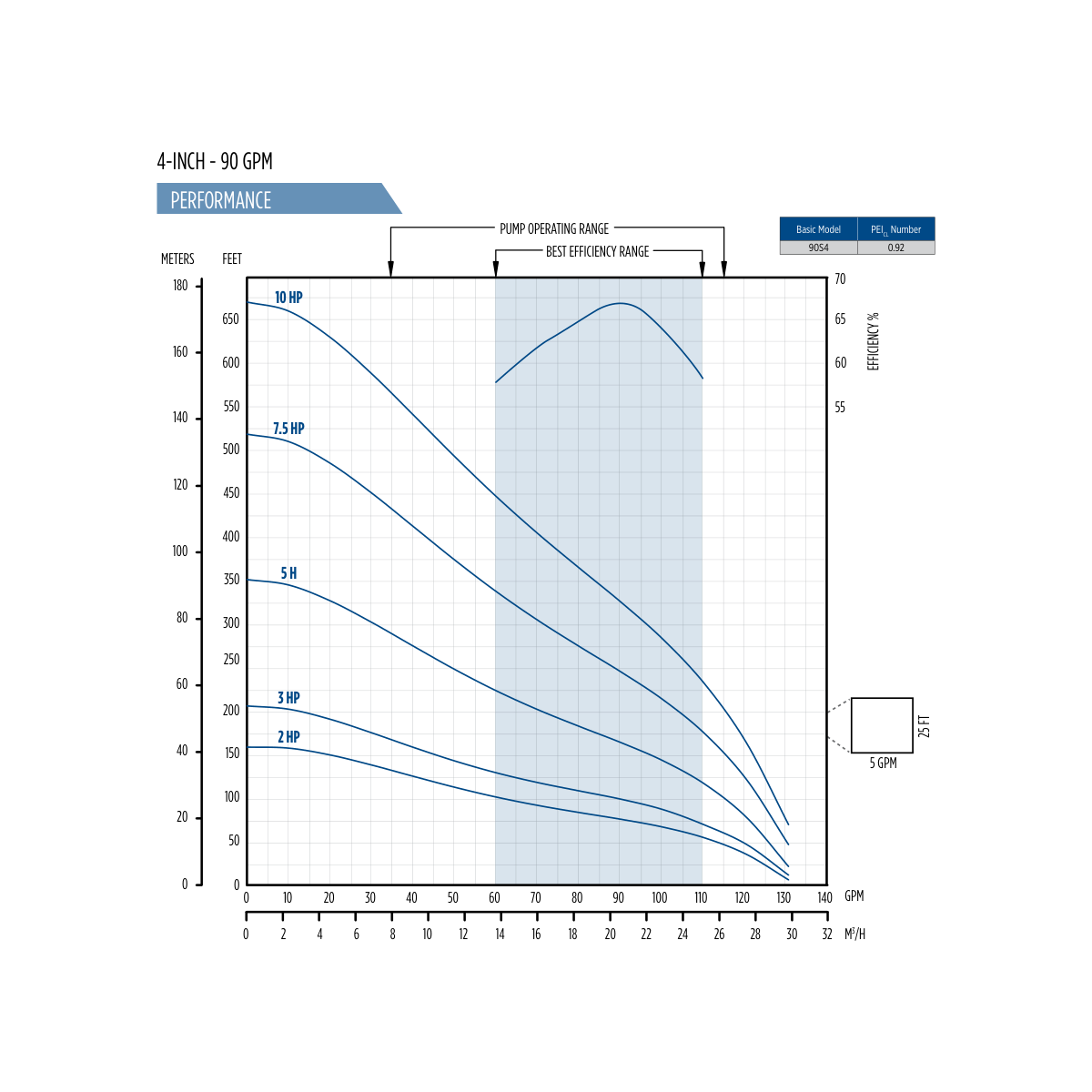

90 GPM class · 5 builds, 2 to 10 HP

90 GPM class — total head in feet at three flows (curves end at 131 GPM)

HP 0 GPM (Shut-off) 25 GPM 63 GPM 95 GPM 126 GPM
2 HP 170 ft 142 ft 96 ft 70 ft 19 ft
3 HP 220 ft 182 ft 124 ft 92 ft 28 ft
5 HP 365 ft 314 ft 216 ft 153 ft 48 ft
7-1/2 HP 535 ft 468 ft 327 ft 230 ft 83 ft
10 HP 690 ft 610 ft 434 ft 306 ft 116 ft

Output in GPM at 30 PSI (switch cut-in), by depth to water

HP 20 ft 40 ft 60 ft 80 ft 100 ft 120 ft 140 ft
2 HP 80 60 — — — — —
3 HP 97 84 68 — — — —
5 HP — 109 103 96 88 80 72
7-1/2 HP — — — — 108 104 99
10 HP — — — — 108 104 99

Output in GPM at 50 PSI (switch cut-out), by depth to water

HP 20 ft 40 ft 60 ft 80 ft 100 ft 120 ft 140 ft
2 HP — — — — — — —
3 HP 63 — — — — — —
5 HP 101 94 86 78 69 60 —
7-1/2 HP — — 107 102 98 93 87
10 HP — — 107 102 98 93 87

Total head read from the published curves in Franklin’s FPS Submersible Catalog (Mi1007), pp. 3, 6, 9 and 12, digitized and rounded down to whole feet, at the plotted flows nearest 20%, 50% and 75% of where the curves end. 0 GPM is Franklin’s printed shut-off. Feet of head = PSI × 2.31. Franklin’s published curves and printed tables differ by more than 3% on the 90 GPM 2 HP, 90 GPM 3 HP and 90 GPM 10 HP builds. The head table follows the published curve, re-checked against Franklin’s chart; the 0 GPM column and the output tables follow the printed figures. Output tables as printed in Mi1007, pp. 4, 7, 10 and 13, at the 30 and 50 PSI rows; Franklin rounds them to whole GPM. Drop-pipe friction is not included (manufacturer note). — marks a point Franklin does not print.

The 35 GPM curves rise a few feet above the printed shut-off at low flow before they fall, so a low-flow column can read slightly above the shut-off.

Best operating range: Franklin shades the best-efficiency range on each published curve and prints no figures for it. The curves are in the image gallery.

Before You Buy — The Limits That Decide the Fit
  • Maximum diameter across cable guard is 3.90 in on all models
  • 2 in NPT discharge
Installation Notes
  • Install in a developed well; undeveloped water carries abrasives that wear the pump.
  • Set the pump at least 5 ft off the bottom of the well and above the well screen or casing perforations, unless cooling flow past the motor is assured.
  • Use positive-sealing check valves only, never swing type: one in-line within 25 ft of the pump below drawdown, and one every 200 ft of setting beyond 200 ft.

From the Franklin 4 in and 6 in submersible pump owner’s manual (106467101).

For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
