Included: the SubMonitor Connect relay with its detachable NEMA 4X display, or the part listed under the order number shown.

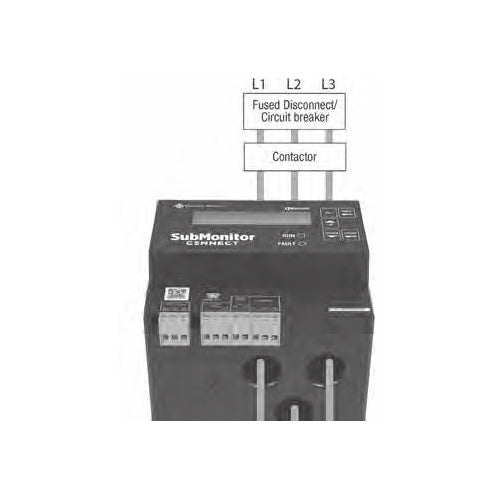

Control panel and contactor required, ordered separately. SubMonitor Connect is a component relay installed inside a complete control panel enclosure (Franklin: a customer-provided NEMA 3R panel); its Triac output closes the motor contactor.
External current transformers: required above 135 A; choose the CT kit for your motor current from the table below.

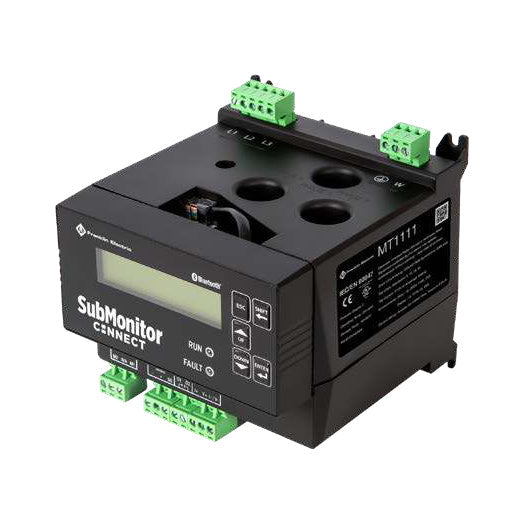

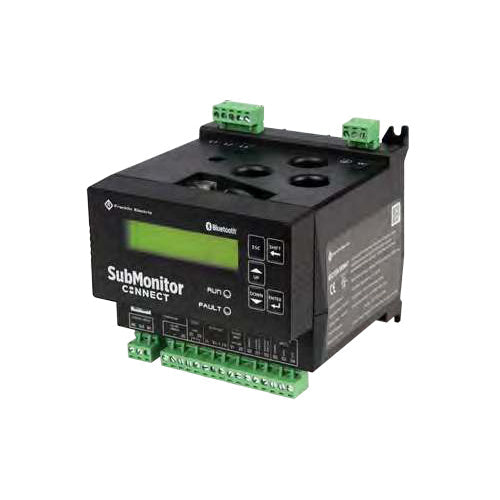

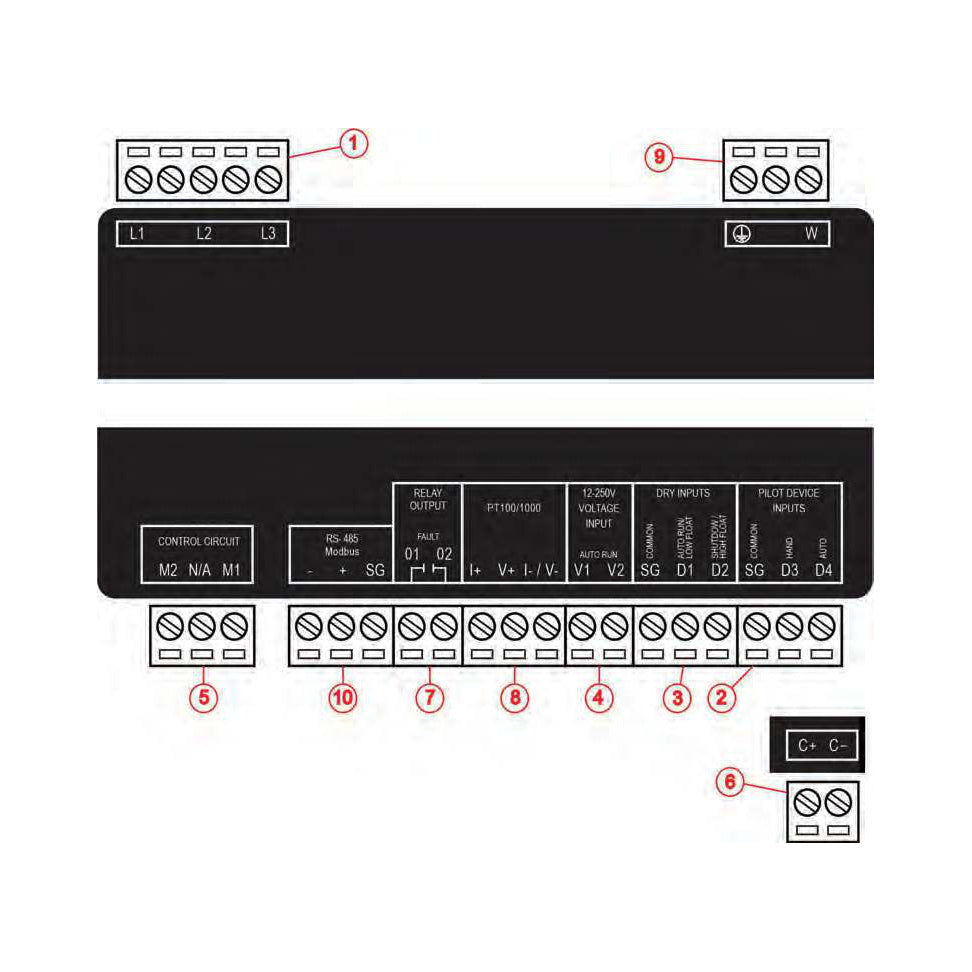

SubMonitor Connect is Franklin’s motor and pump protection relay for three-phase motors and pumps, 200 to 600 VAC, 1 to 700 HP. It monitors performance in real time and protects against dry well conditions, clogging, bound pumps and electrical power problems.
Setup takes nine steps: choose Submersible, Surface or Custom and the relay prepopulates its protection parameters. A detachable 32-character, backlit NEMA 4X display can be mounted on the panel front so conditions can be read safely while the motor runs, and the FE Connect app connects over Bluetooth for setup, monitoring and troubleshooting.
Franklin warrants these products for 1 year from the date of installation, but in no event more than 2 years from the date of manufacture. Franklin’s limited warranty does not cover performance affected by abrasive materials, corrosion due to aggressive conditions or improper voltage supply.
Source: Franklin Electric SubMonitor Connect Owner’s Manual.
| Product type | Pump and motor protection relay; NEMA open type with NEMA 4X remote-mountable display |
| Supply | 200-600 VAC, 50/60 Hz, three-phase motors 1-700 HP |
| Current range | 0.1-135 A base unit; 1-1000 A with external CTs (required above 135 A) |

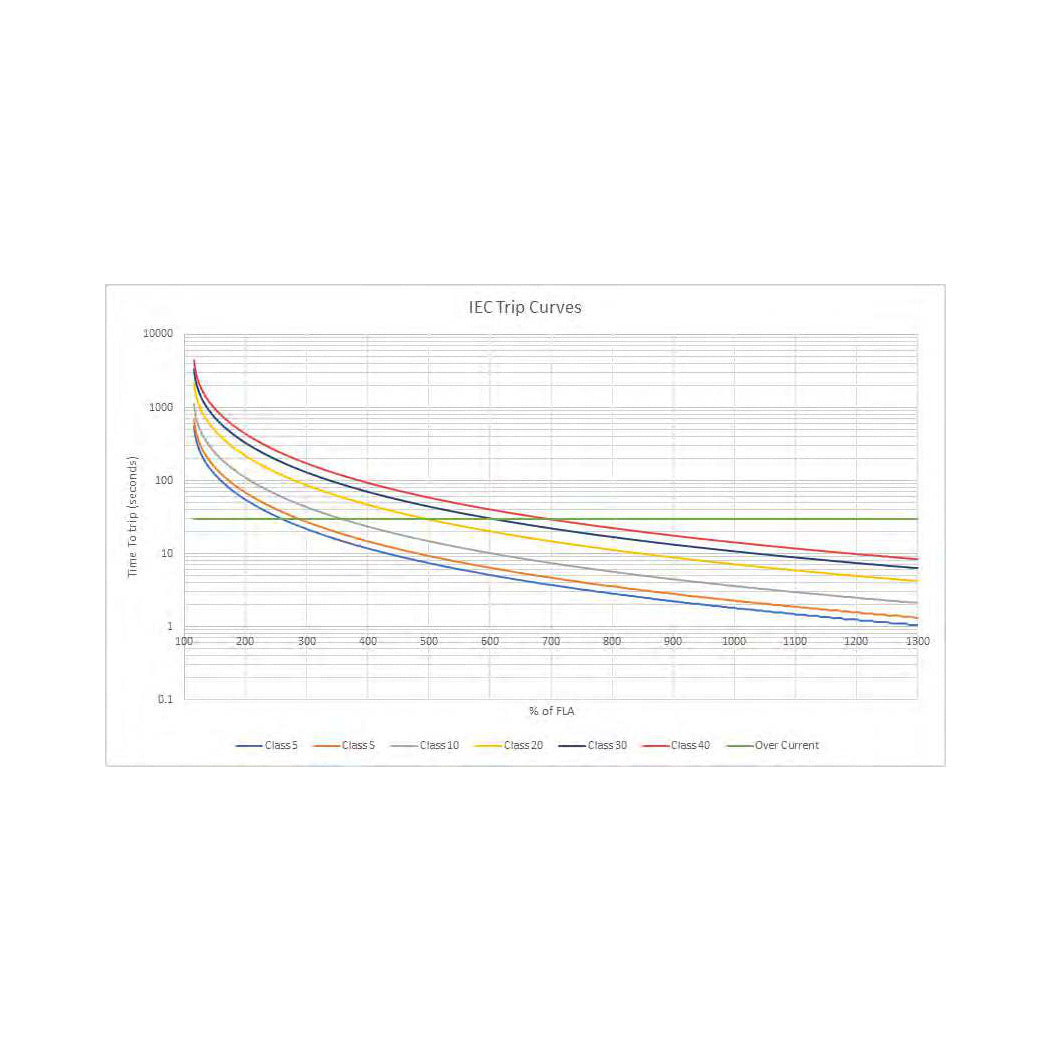

| Overload | Electronic I2T trip curve, adjustable class 5-30 (default 10), service factor 1.00-2.00 (default 1.15) |
| Under power (dry run) | On/Off/Alarm, 1-99% of kW setting (default On, 65%) |
| Over power | On/Off/Alarm, 101-200% of kW setting (default On, 125%) |
| Under / over voltage | 80-99% / 101-125% of voltage setting (defaults 90% / 110%) |
| Ground fault | UL 1053 certified, adjustable 1-10 A (default 1 A) |
| Other protection | Voltage phase loss, current phase unbalance, locked rotor, cycle fault, warm start, backspin delay, motor over-temperature (PT100/PT1000), motor insulation check |
| Control output | Triac closing 24-600 VAC Cerus and LS Electric contactors rated to 800 A; other contactors with coil current to 2 A |
| Fault relay | Normally open, rated 1 A at 240 V, closes on fault |
| Communication | RS-485 Modbus RTU and BACnet MSTP; Bluetooth to the FE Connect app |
| Fault log | 150 faults with date and time stamp, plus configuration change and start logs; real time clock with 10-year battery backup |
| Ambient | Operating -5 to 140 °F (-20 to 60 °C); storage -5 to 185 °F; 5-95% RH non-condensing |
| Approvals | UL/cUL, CSA |
Source: Franklin Electric SubMonitor Connect spec sheet (M1772 03-23) and catalog M1688, pp. 17-18.
| Order No. | Item | Use | Source |
|---|---|---|---|
| 5860015010 | SubMonitor Connect — Standard, 1-135 A | Pump and motor protection relay with NEMA 4X remote-mountable display | M1688 p. 18 |
| 5860005000 | SubMonitor — Standard, 5-350 A | Earlier SubMonitor three-phase protection unit | price list |
| 5860005110 | SubMonitor Connect — Premium, 1-135 A | Pump and motor protection relay with NEMA 4X remote-mountable display | M1688 p. 18 |
| 5860005100 | SubMonitor — Premium, 5-350 A | Earlier SubMonitor three-phase protection unit | price list |
| 5860015160 | Door Mounting Kit | SubMonitor Connect option | M1688 p. 18 |
| 225225901 | SubMonitor Panel Door Mounting Kit | Replacement part for the earlier SubMonitor | price list |
| 5860015150 | SubMonitor Connect Remote Display Assembly | Replacement remote display for SubMonitor Connect | price list |
| 225190902 | SubMonitor Remote Display Assembly | Replacement part for the earlier SubMonitor | price list |
| 5860015170 | External CTs, 120-270 A | SubMonitor Connect option; external CTs are required above 135 A | M1688 p. 18 |
| 5860015180 | External CTs, 200-400 A | SubMonitor Connect option; external CTs are required above 135 A | M1688 p. 18 |
| 225210902 | SubMonitor Case Assembly | Replacement part for the earlier SubMonitor | price list |
| 5860015190 | External CTs, 400-1000 A | SubMonitor Connect option; external CTs are required above 135 A | M1688 p. 18 |
Source: Franklin Electric Submersible Motors, Drives, Controls, Accessories and Parts Price List (M1480), effective 15 Jun 2026 and Franklin Electric Irrigation and Industrial Submersible Pumps Price List (Mi1000), effective 15 Jun 2026. Order numbers are Franklin's; the model or order number ends every option on this page. Descriptions from Franklin Electric Drives, Controls and Protection Pumping Applications Product Catalog (M1688 11-25), p. 18, where shown.
