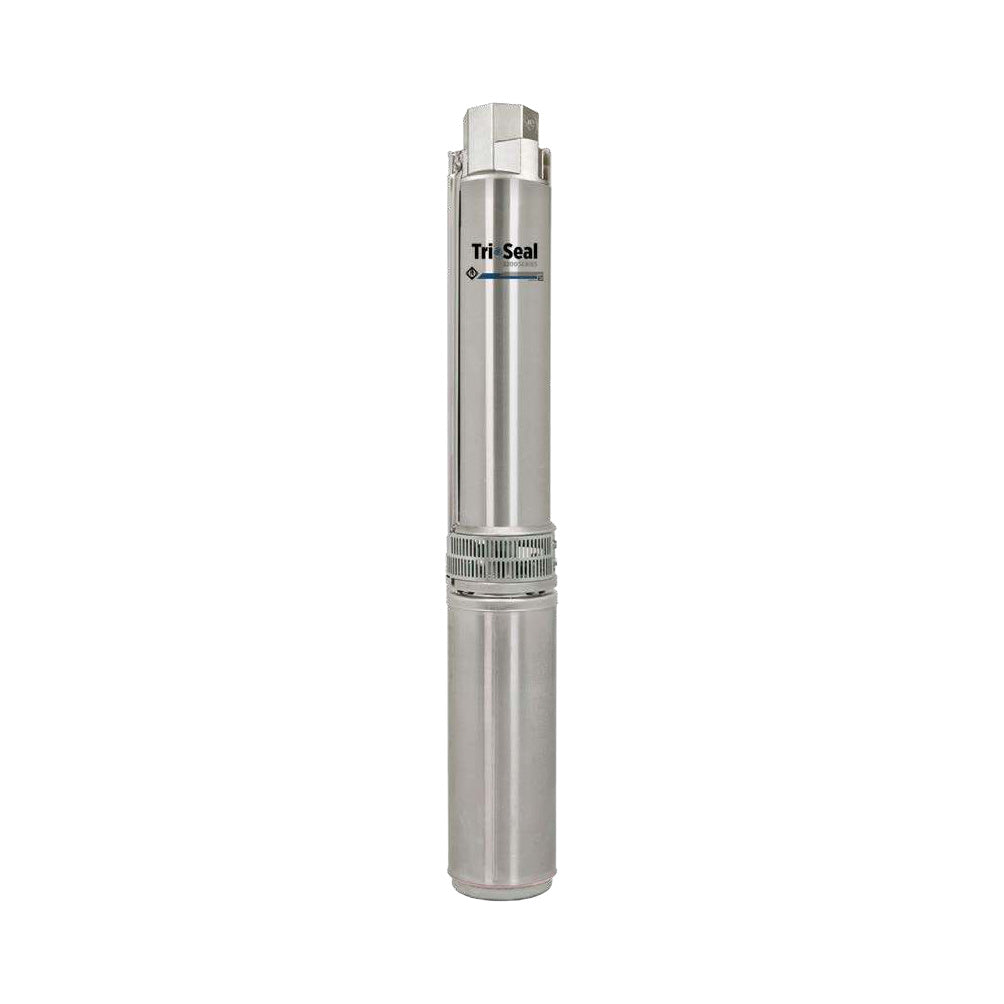

Franklin Electric 4 in residential submersible pump, the pump family these parts fit

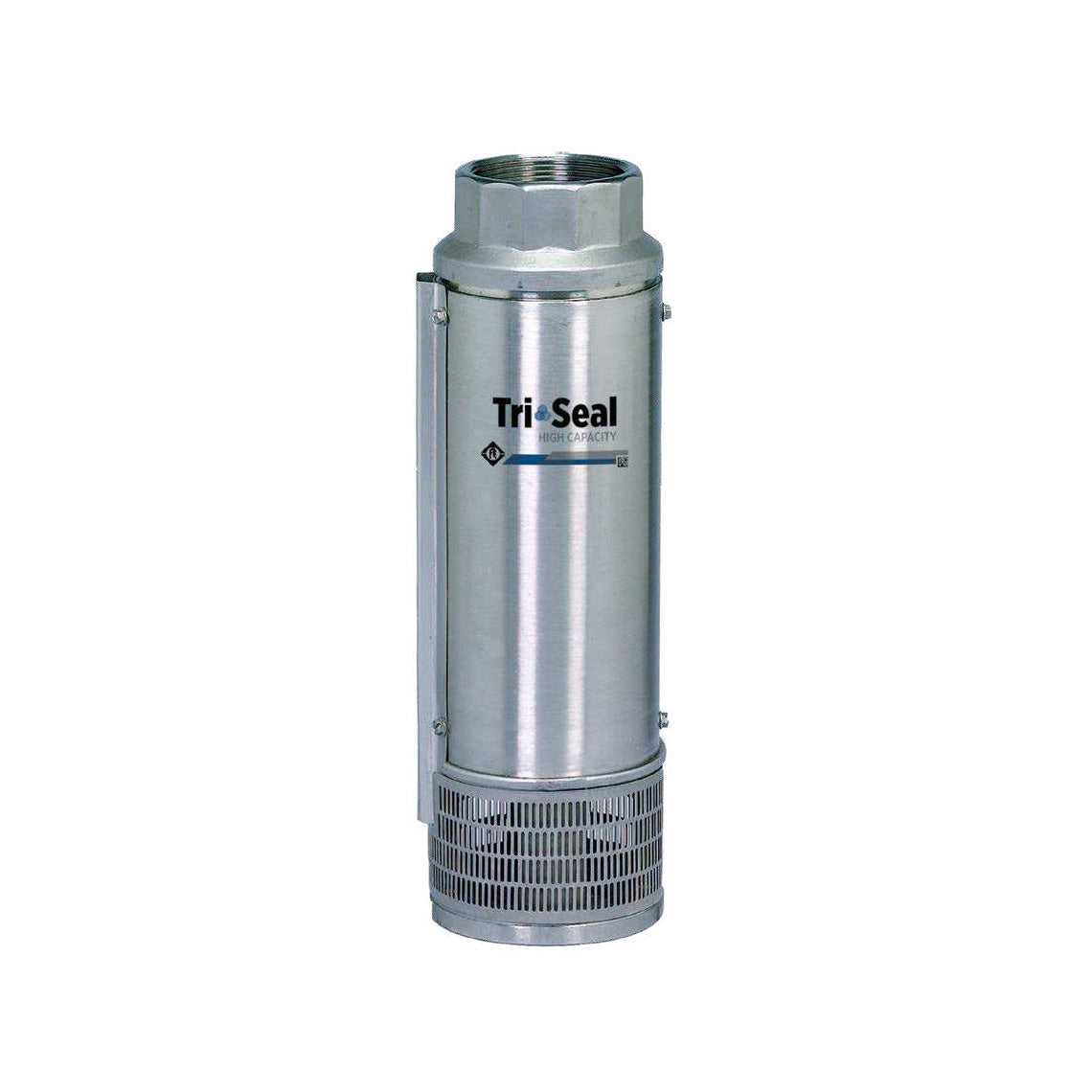

Franklin Electric 6 in high capacity submersible pump end, the pump family these parts fit
Franklin Electric 4 in residential submersible pump, the pump family these parts fit
Franklin Electric 6 in high capacity submersible pump end, the pump family these parts fit

Franklin Electric Submersible Pump Repair Parts

Pump Series: High Capacity 6 in
Part - Part No.: 2 in SS Discharge and Rubber Bearing Assembly - 305711002

Product variant with selected options does not exist!
$252
SKU: 305711002
Weight : 2.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Franklin Electric · Spare Parts
Submersible Pump Repair Parts
27 Franklin part numbers.
What Ships and What It Needs to Run

Included: the part listed under the order number shown.

Overview

Fastener, check valve, screen, bracket and bearing kits.

Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Warranty: 12 months from the date of purchase.
Specifications
Price-list source Franklin Electric Irrigation and Industrial Submersible Pumps Price List (Mi1000), effective 15 Jun 2026
Models & Ratings

27 part numbers, grouped by Group. Open a group to see its rows.

High Capacity 6 in · 13 part numbers
Item Part No.
2 in SS Discharge and Rubber Bearing Assembly 305711002
4 in Motor Bolt Kit for 1.5 - 3 HP 305354903
4 in and 6 in Motor Bolt Kit for 5 - 10 HP 305354901
6 in Motor Bolt Kit for 15 - 40 HP 305354902
Bearing and Spacers Repair Kit 305354011
Fastener Kit 305711001
Screen Kit 305711004
Intermediate Bearing Support Kit 305711005
S445 SH Stage and Impeller Assembly 305404918
S460 SH Stage and Impeller Assembly 305404919
S490 Stage and Impeller Assembly 305404920
S6 Bracket SS 305354002
SS Screen with Machine Screws 305354001
Residential 4 in · 14 part numbers
Item Part No.
Bracket Kit Plastic 305472002
Bracket Kit SS 305710003
Flomatic Check Valve Assembly 91985259
Fastener Kit 4 in Plastic 305710001
Fastener Kit 4 in SS 305472001
Hex Sleeve 0.571 in 101043102
Plastic Screen Kit 305710005
S4 Fastener Kit 305360901
S4 SS Discharge Bearing Assembly Kit 305472004
SS Screen Kit 305710004
SK4 5 GPM Stage Assembly Kit 305404924
SK4 7 Stage Assembly Kit 305404925
Spring Check Valve Kit 305710002
VS Discharge Bearing Assembly Kit 305710006
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
