Included: the check valve or tool listed under the order number shown.
Fits: the Flomatic 4221 and 4242 valves thread onto a 1-1/4 in pump discharge; the internal VFD check valve (305614000) fits 4 in submersible pumps with a 1-1/4 in or 2 in discharge and is removed with the T-handle wrench (101218901).
In-line check valves for the drop pipe and the internal check valve and wrench for Franklin 4 in submersible pumps. The owner’s manual calls for positive-sealing check valves only, never swing type: one within 25 ft of the pump and below the drawdown level, and one every 200 ft of setting on deep installations.

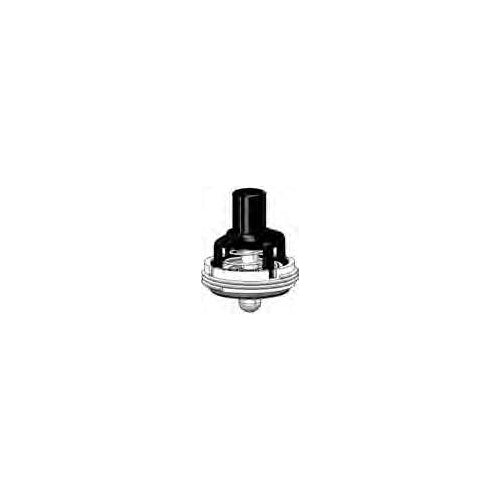

Most Franklin 4 in submersible pumps ship with the internal poppet check valve, order no. 305614000; it is reverse (left-hand) threaded and tightened to 15 inch-pounds on reassembly.
Covered for 12 months from the date of purchase.
Parts sold on the Franklin Electric price list.
| Item | Part No. |
|---|---|
| Check Valve Installation Tool | 101218901 |
| Flomatic VFD Check Valve Repair | 305614000 |
| Flomatic 4221LEB | 91980631 |
| Flomatic 4221LSS2 | 91985317 |
| Flomatic 4242LEB | 91980649 |
| Flomatic 4242SS2 | 91985309 |
| Simmons 658SB | 91982157 |
| Simmons 661SB | 91980334 |
