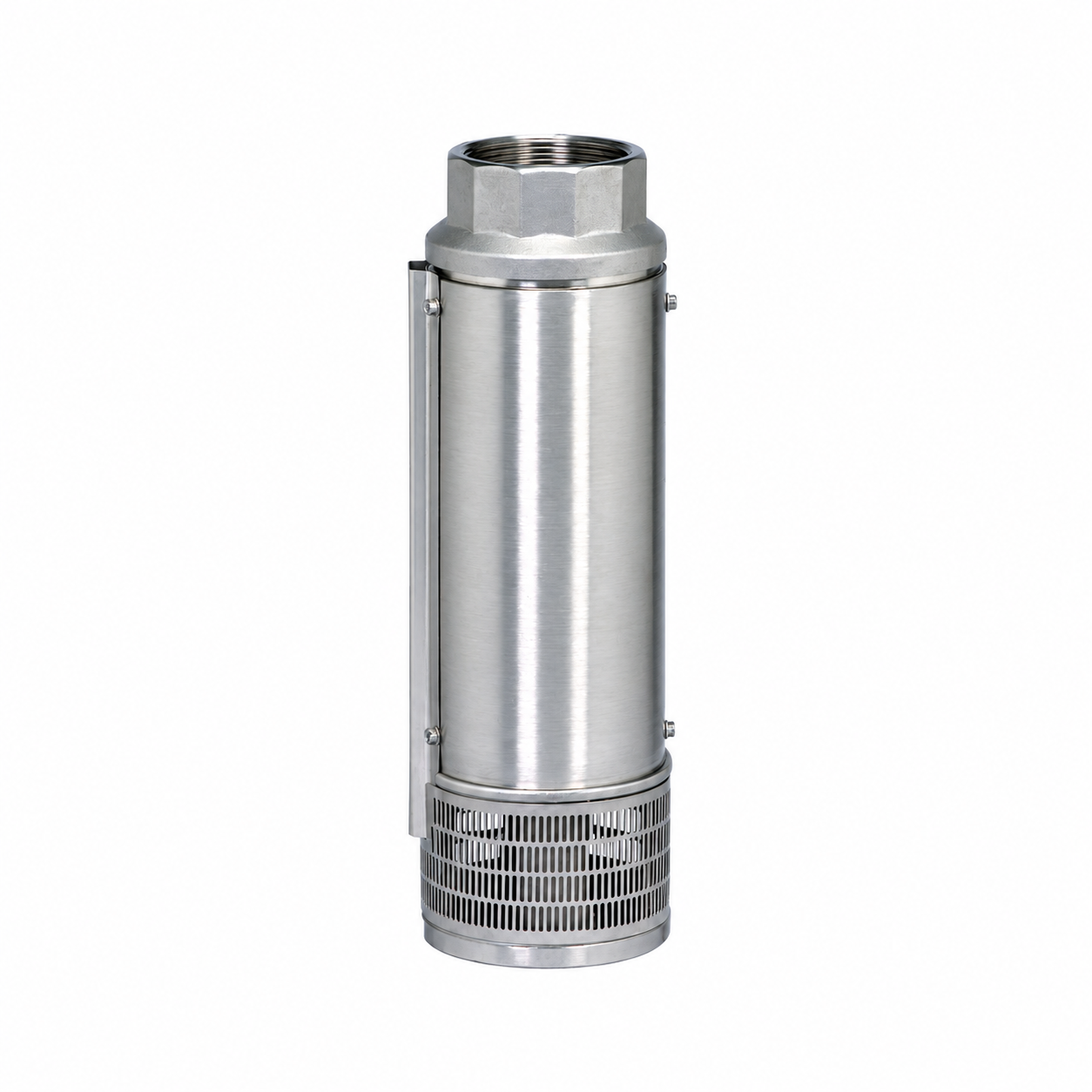

Franklin Electric 4 in submersible pump end for SubDrive QuickPAK

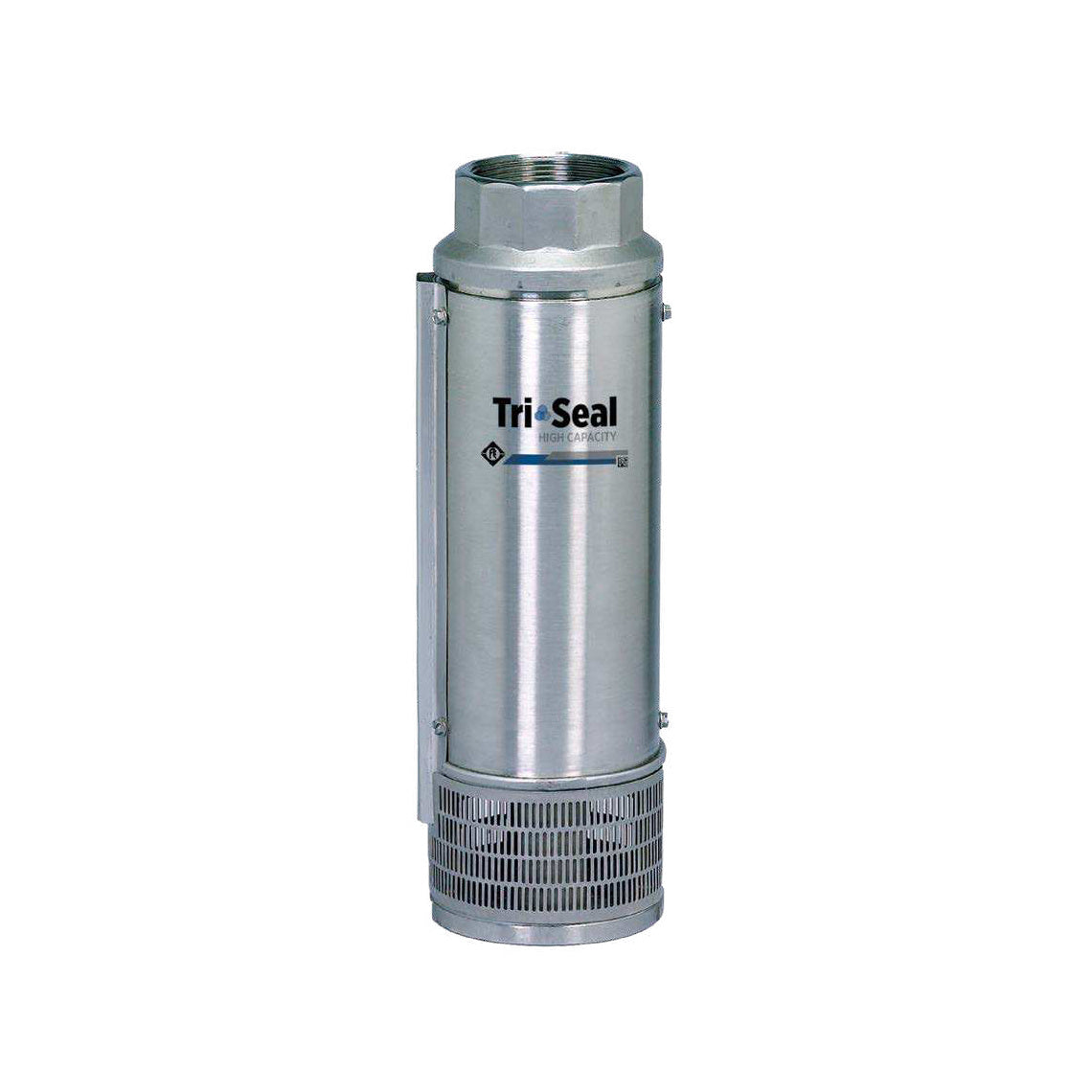

Franklin Electric submersible pump end, stainless steel (6 in High Capacity shown); QuickPAK replacement pump end
Franklin Electric 4 in submersible pump end for SubDrive QuickPAK
Franklin Electric submersible pump end, stainless steel (6 in High Capacity shown); QuickPAK replacement pump end

Franklin Electric SubDrive QuickPAK Replacement Pump End

Nominal Flow: 7 GPM
HP - Model: 1-1/2 HP - 7SD15S4-PE

Product variant with selected options does not exist!
$1,951.63
SKU: 93870715
Weight : 13.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Franklin Electric · Submersible Pump End
SubDrive QuickPAK Replacement Pump End
13 Franklin pump ends, 7-25 GPM, 1/2 to 2 HP.
7-25 GPM · For SubDrive QuickPAK Packages
1/2 to 2 HP
4 in Pump End
3200 Series and Tri-Seal Hydraulics
What Ships and What It Needs to Run

Included: the pump end only, as Franklin ships it under the order number shown.

Motor and drive: reuse the motor and SubDrive from the QuickPAK it came out of; the pump end is matched to that package.

Splice kit and pipe fittings: as needed for the rebuild, ordered separately.

Overview

These are the pump ends Franklin builds into SubDrive QuickPAK constant pressure packages, sold on their own to rebuild an existing QuickPAK. In a QuickPAK the SubDrive runs the pump end above 60 Hz, so each package pairs a smaller pump end with a larger motor — a 7 GPM, 3/4 HP pump end in a 1-1/2 HP package, for example. Order the pump end that matches the package model on your drive or carton.

Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Warranty

Covered for 12 months from the date of purchase. Franklin’s 4 in submersible pump owner’s manual gives 1 year from the date of original purchase.

Source: Franklin Electric 4 in and 6 in Submersible Pump Owner’s Manual (106467101).

Models & Performance — Will It Do What You Need?
Model Order No. GPM HP Hydraulics Used in (M5008)
7SD15S4-PE 93870715 7 1-1/2 HP 3200 7PMQP-3.0HP-3RC, 7SDQP-3.0HP-N4
10SD05S4-PE 93871004 10 1/2 HP Not listed Not in M5008 ordering tables
10SD07S4-PE 93871006 10 3/4 HP 3200 10PMQP-1.5HP-3RC, 10SDQP-1.5HP-N4
10SD1S4-PE 93871009 10 1 HP 3200 10PMQP-2.0HP-3RC, 10SDQP-2.0HP-N4
15SD07S4-PE 93871507 15 3/4 HP Tri-Seal 15PMQP-1.5HP-3RC, 15SDQP-1.5HP-N4
15SD1S4-PE 93871510 15 1 HP Tri-Seal 15PMQP-2.0HP-3RC, 15SDQP-2.0HP-N4
15SD15S4-PE 93871515 15 1-1/2 HP Tri-Seal 15PMQP-3.0HP-3RC, 15SDQP-3.0HP-N4
20SD07S4-PE 93872007 20 3/4 HP Not listed Not in M5008 ordering tables
20SD1S4-PE 93872010 20 1 HP Tri-Seal 20PMQP-1.5HP-3RC, 20PMQP-2.0HP-3RC, 20SDQP-1.5HP-N4, 20SDQP-2.0HP-N4
20SD15S4-PE 93872015 20 1-1/2 HP Not listed Not in M5008 ordering tables
20SD2S4-PE 93872020 20 2 HP Tri-Seal 20PMQP-3.0HP-3RC, 20SDQP-3.0HP-N4
25SD1S4-PE 93872510 25 1 HP Tri-Seal 25PMQP-1.5HP-3RC, 25PMQP-2.0HP-3RC, 25SDQP-1.5HP-N4, 25SDQP-2.0HP-N4
25SD15S4-PE 93872515 25 1-1/2 HP Tri-Seal 25PMQP-3.0HP-3RC, 25SDQP-3.0HP-N4

Source: Franklin Electric SubDrive QuickPAK Constant Pressure Systems Product Catalog (M5008 04-26), pp. 6-7 (ordering information); order numbers from the Franklin price list. The model ends every option on this page.

Performance

Each row is one build at Franklin’s factory setting of 50 PSI, read at 20%, 50% and 75% of the deepest pumping level Franklin lists for it: the flow in GPM it delivers from that depth.

Pump end, in package Shut-off PSI At 20% of max depth At 50% At 75%
7SD15S4-PE in 7SDQP-3.0HP-N4 558 11 GPM at 600 ft 10 GPM at 650 ft 8 GPM at 850 ft
10SD07S4-PE in 10SDQP-1.5HP-N4 323 at 20 ft 15 GPM at 100 ft 12 GPM at 250 ft 9 GPM at 400 ft
10SD1S4-PE in 10SDQP-2.0HP-N4 445 at 20 ft 15 GPM at 160 ft 13 GPM at 400 ft 9 GPM at 600 ft
15SD07S4-PE in 15SDQP-1.5HP-N4 180 at 20 ft 24 GPM at 40 ft 20 GPM at 120 ft 16 GPM at 180 ft
15SD1S4-PE in 15SDQP-2.0HP-N4 248 at 20 ft 24 GPM at 100 ft 21 GPM at 200 ft 16 GPM at 300 ft
15SD15S4-PE in 15SDQP-3.0HP-N4 344 at 20 ft 24 GPM at 160 ft 20 GPM at 300 ft 15 GPM at 450 ft
20SD1S4-PE in 20SDQP-1.5HP-N4 159 at 20 ft 29 GPM at 40 ft 22 GPM at 120 ft 17 GPM at 180 ft
20SD2S4-PE in 20SDQP-3.0HP-N4 278 at 20 ft 32 GPM at 100 ft 26 GPM at 250 ft 21 GPM at 350 ft
25SD1S4-PE in 25SDQP-1.5HP-N4 135 at 20 ft 33 GPM at 40 ft 29 GPM at 80 ft 20 GPM at 140 ft
25SD15S4-PE in 25SDQP-3.0HP-N4 210 at 20 ft 39 GPM at 100 ft 34 GPM at 180 ft 27 GPM at 250 ft

Source: Franklin Electric SubDrive QuickPAK Constant Pressure Systems Product Catalog (M5008 04-26), pp. 13-37, printed lift-and-pressure grids, 50 PSI row. Where a pump end is used in more than one package, the NEMA 4 package with the smallest motor is shown. Depths not shown are outside Franklin’s recommended operating range. 10SD05S4-PE, 20SD07S4-PE, 20SD15S4-PE are not in M5008; we confirm the package match before it ships.

For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
