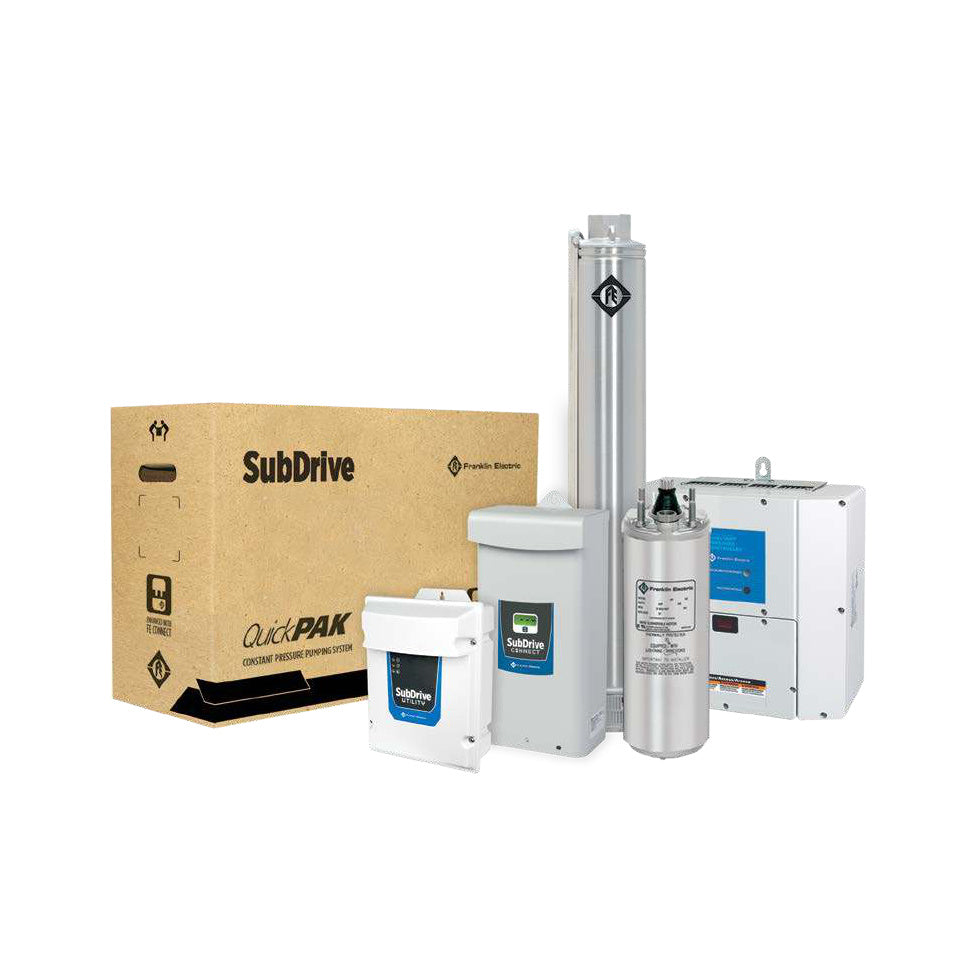

Franklin Electric SubDrive QuickPAK Packaged System with Carton

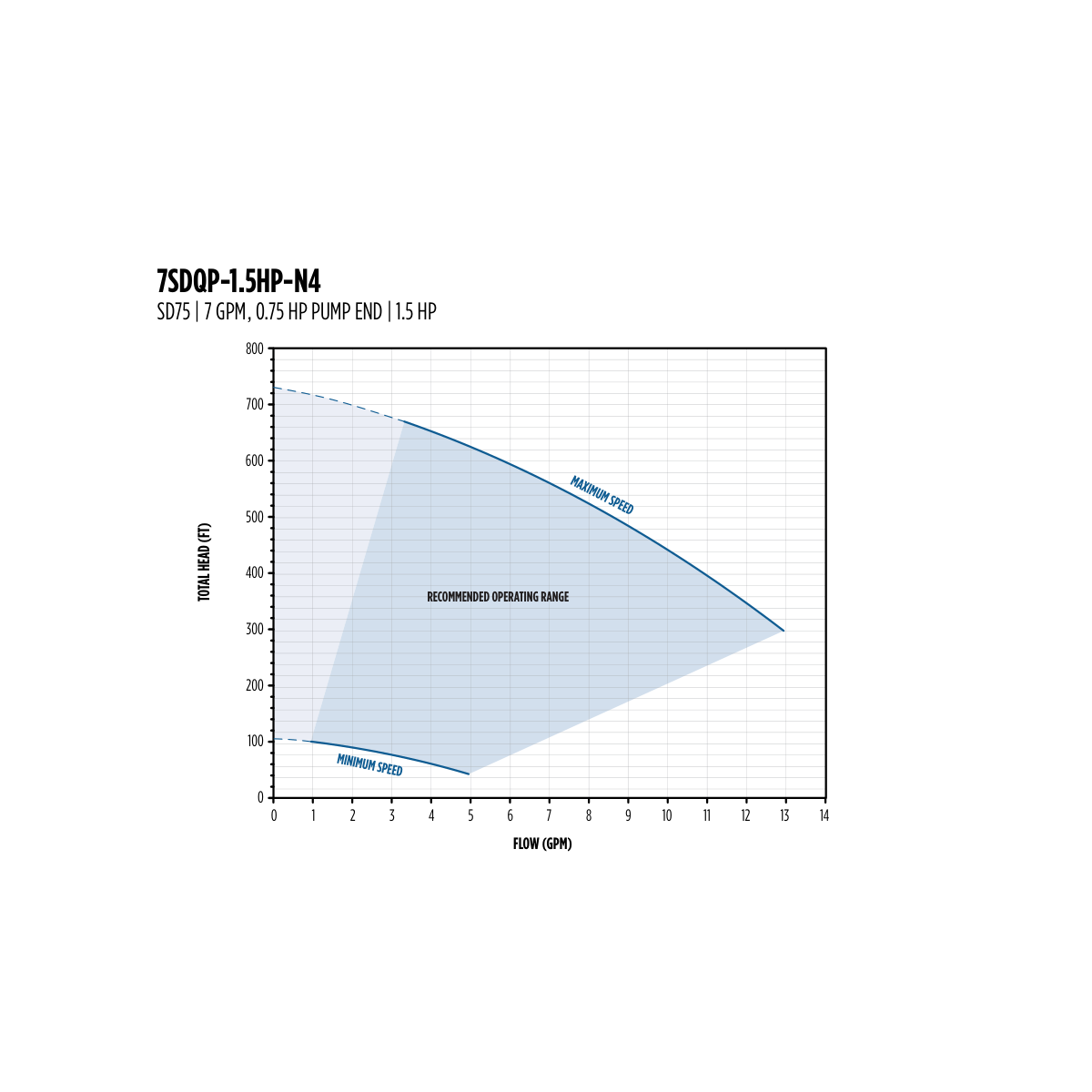

Franklin Electric 7SDQP-1.5HP-N4 SubDrive QuickPAK performance curve

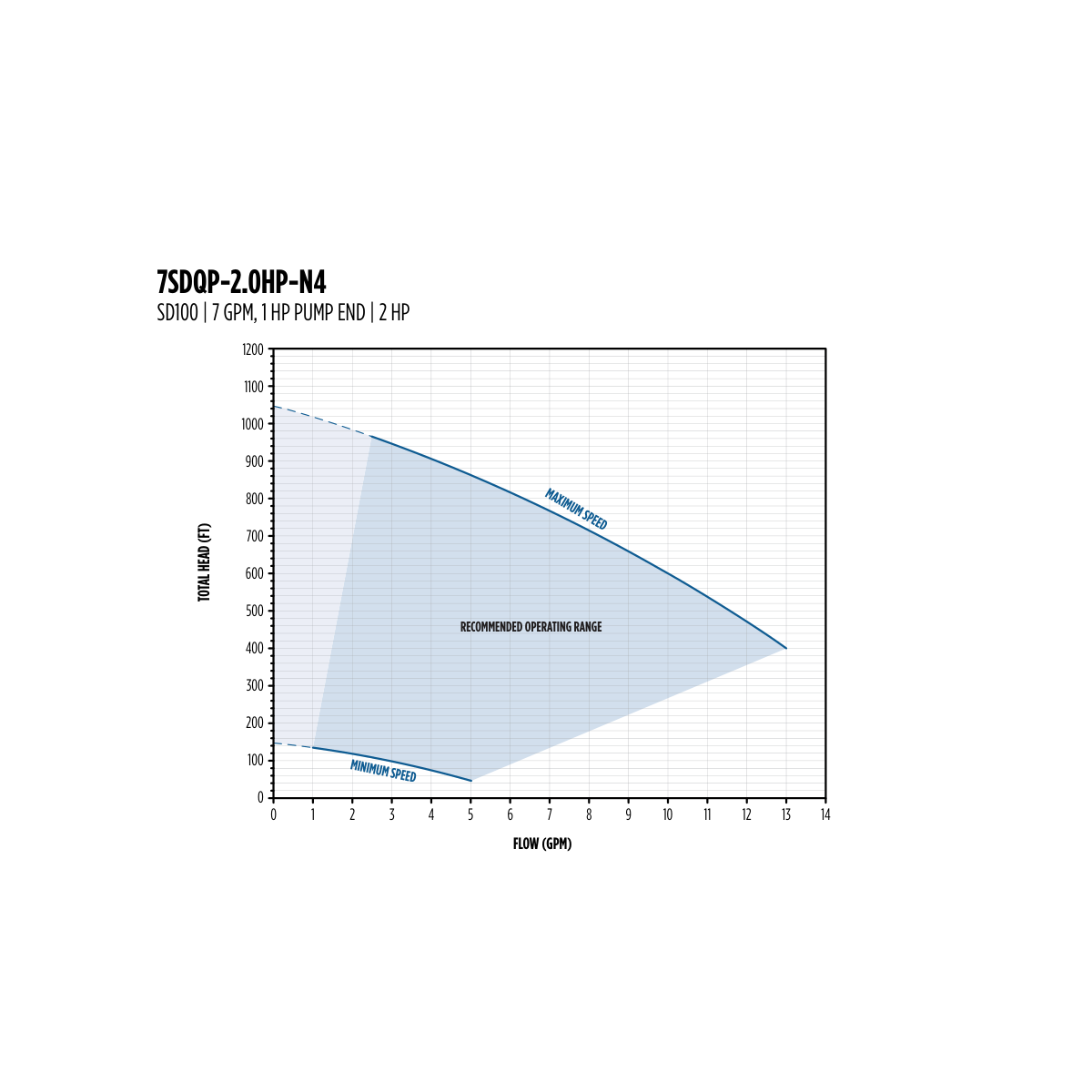

Franklin Electric 7SDQP-2.0HP-N4 SubDrive QuickPAK performance curve

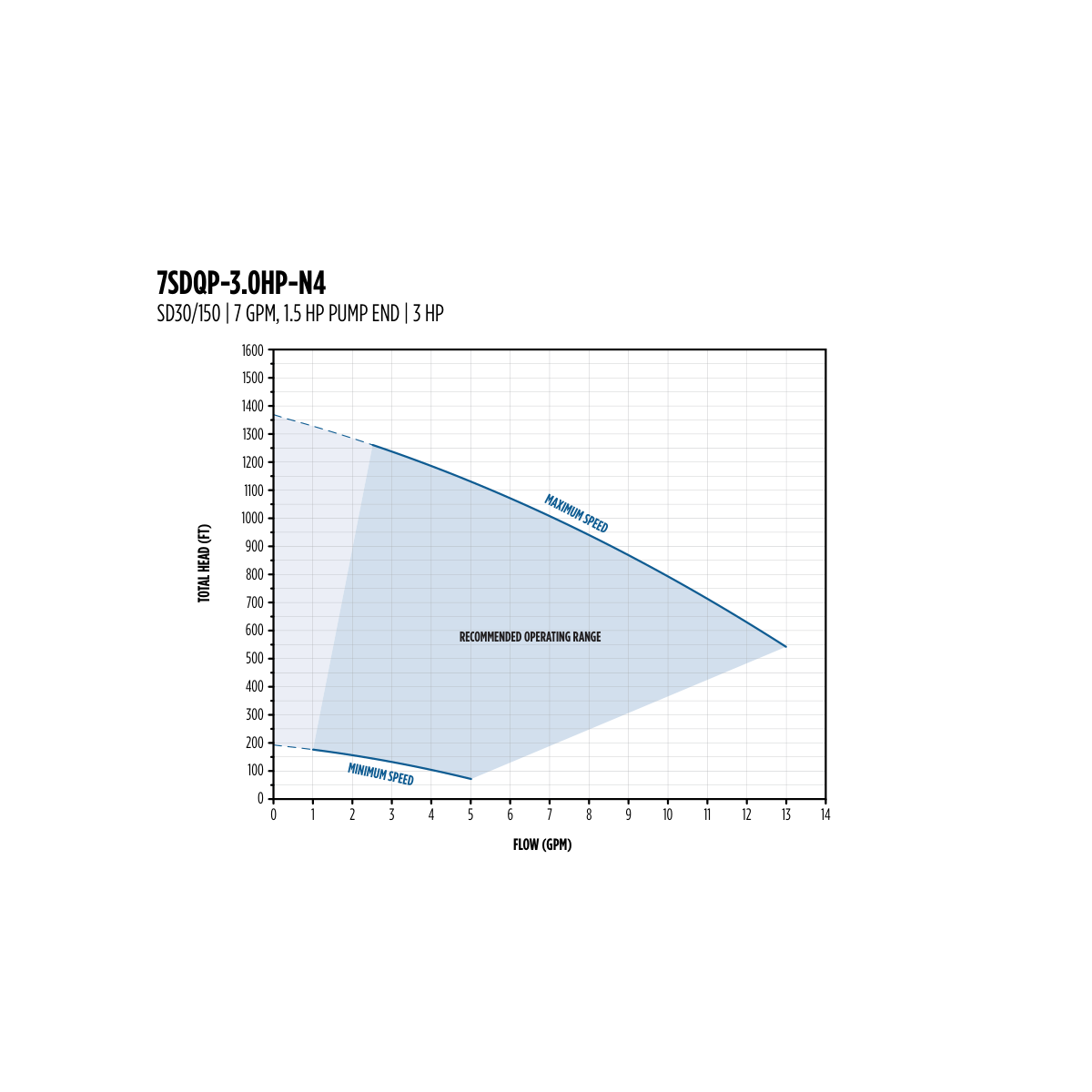

Franklin Electric 7SDQP-3.0HP-N4 SubDrive QuickPAK performance curve

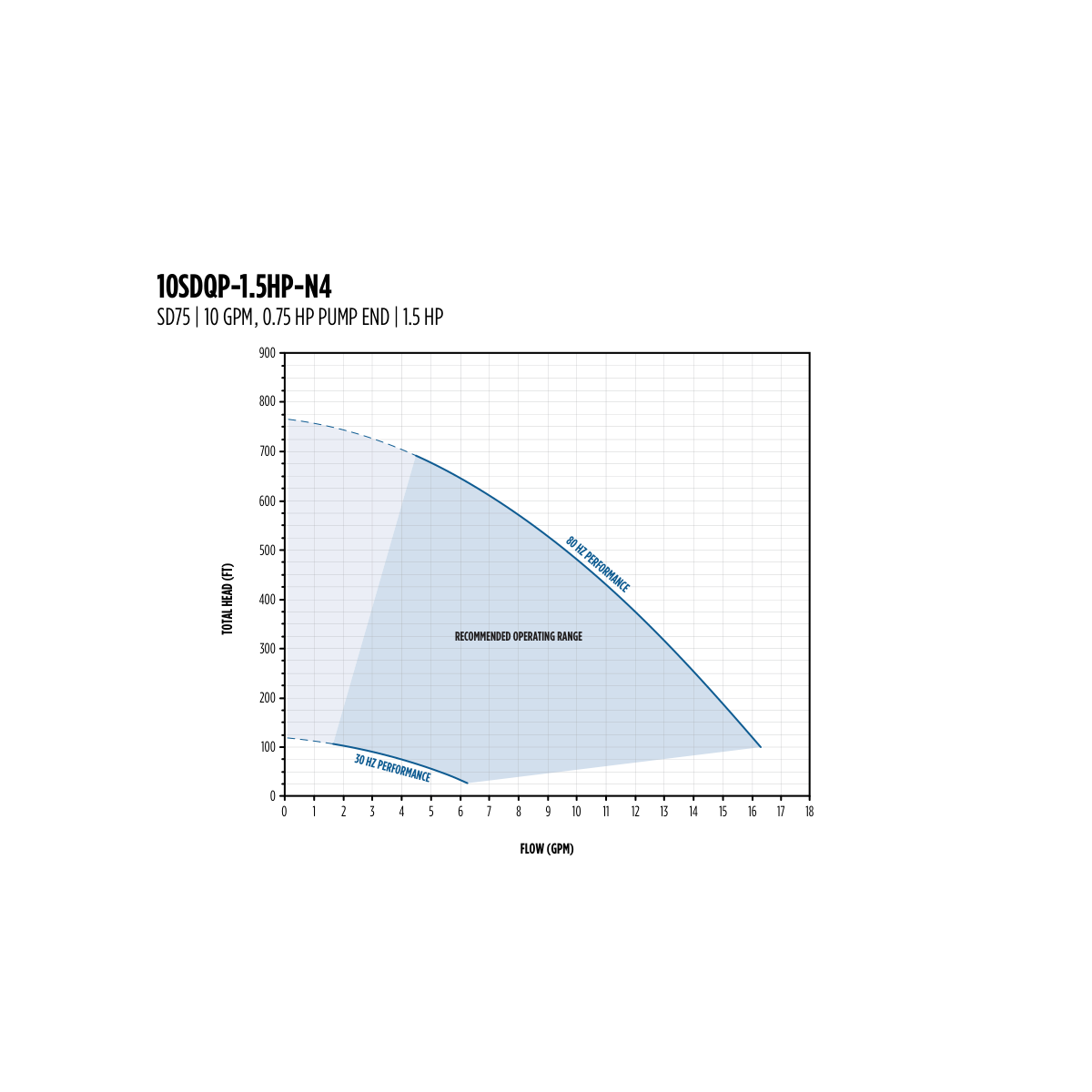

Franklin Electric 10SDQP-1.5HP-N4 SubDrive QuickPAK performance curve

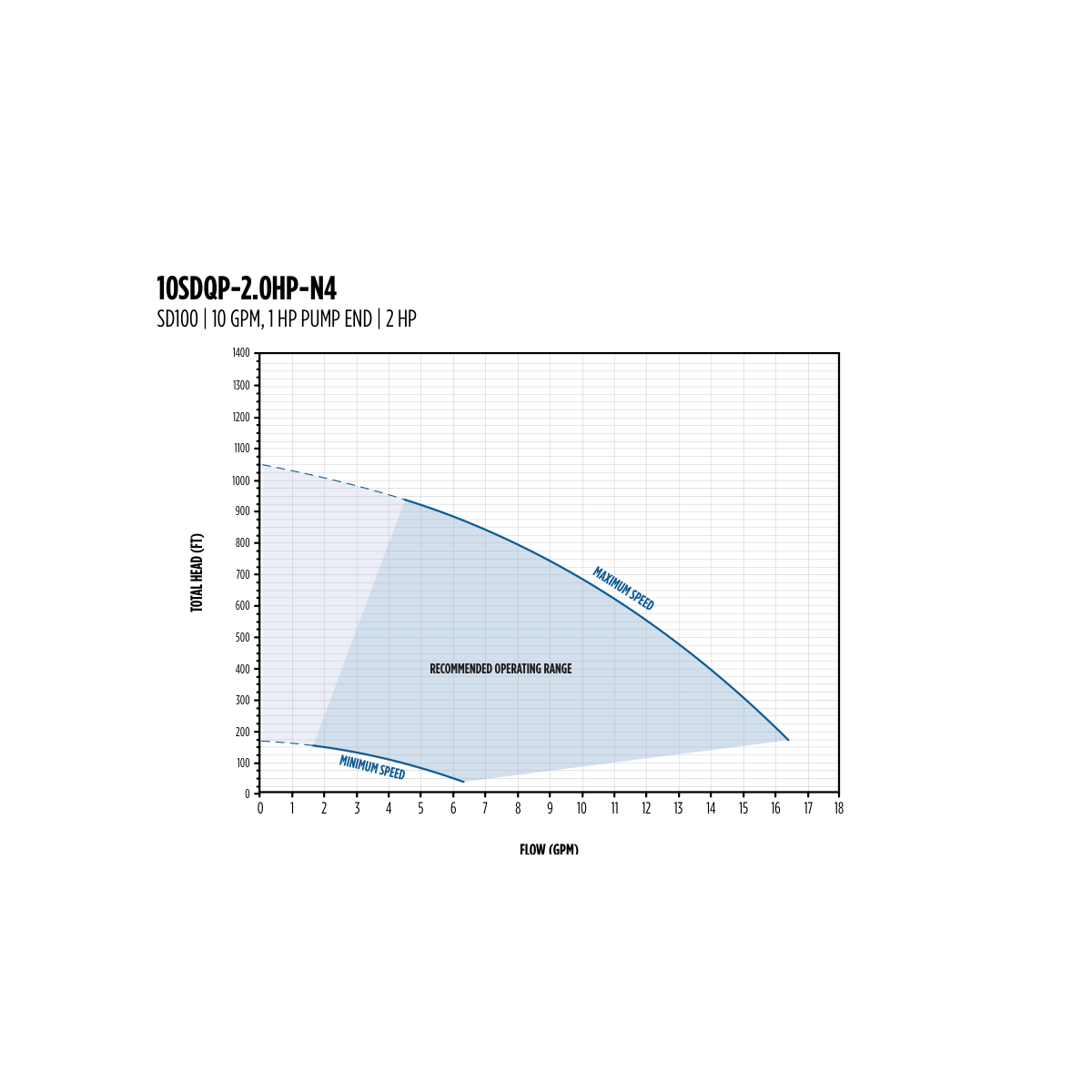

Franklin Electric 10SDQP-2.0HP-N4 SubDrive QuickPAK performance curve

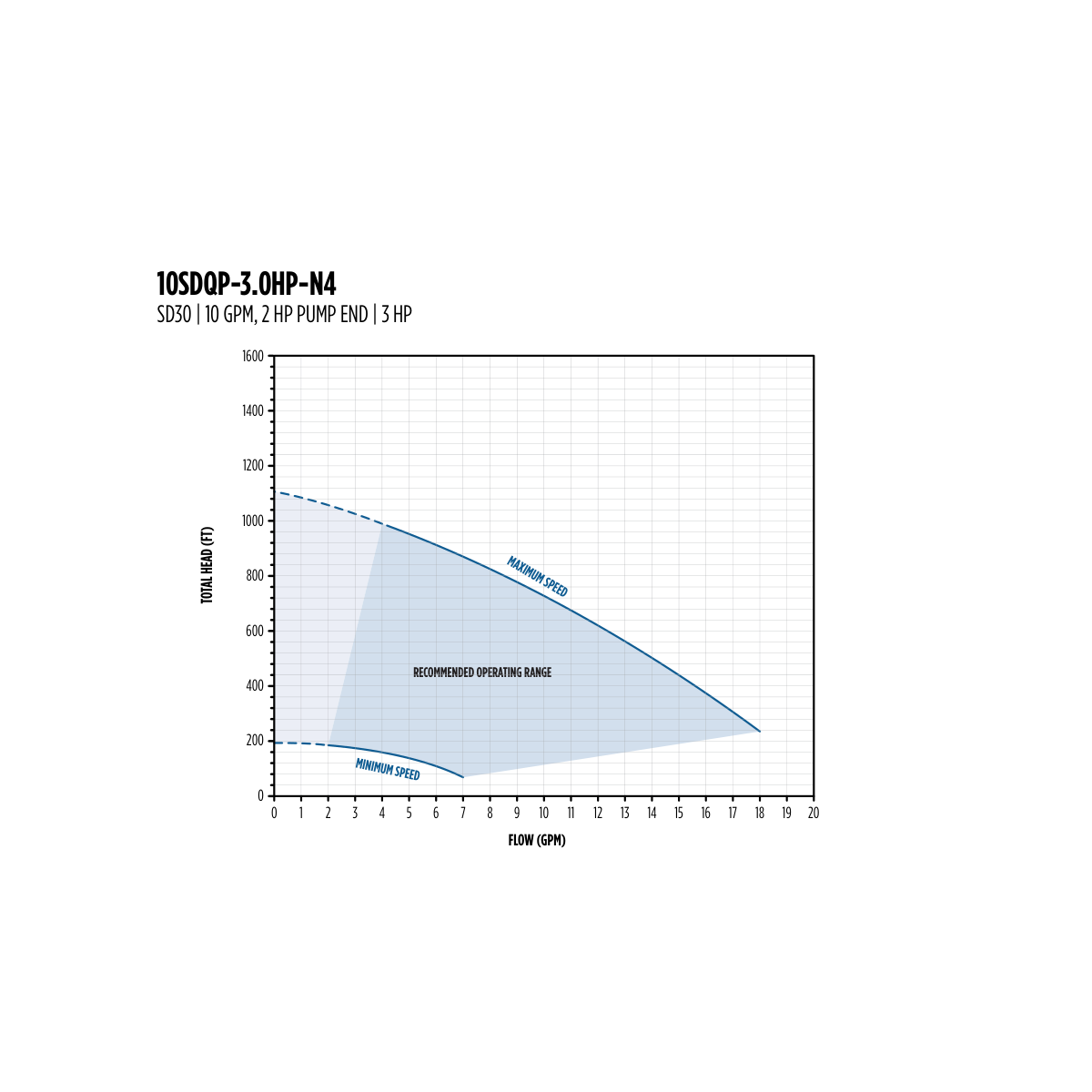

Franklin Electric 10SDQP-3.0HP-N4 SubDrive QuickPAK performance curve

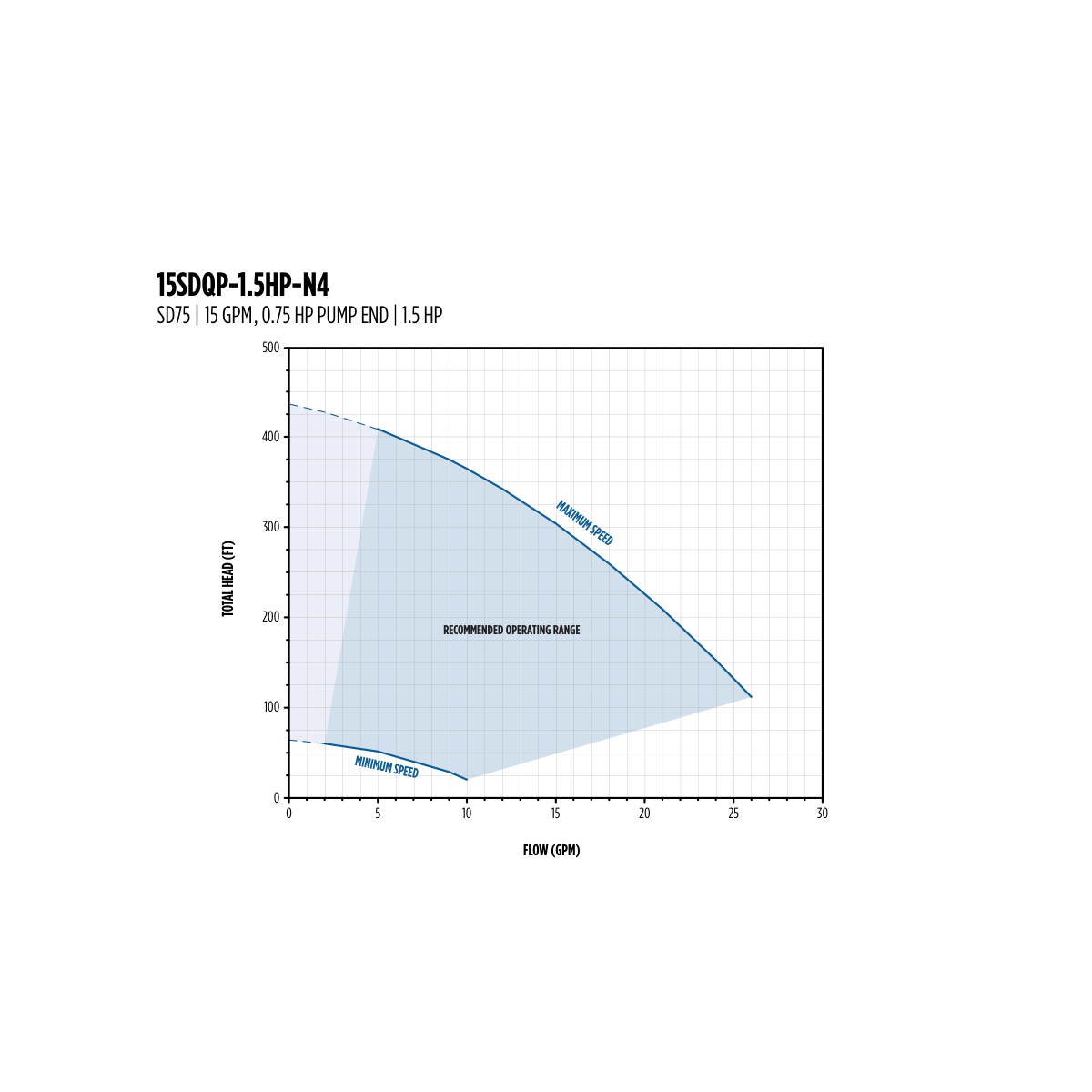

Franklin Electric 15SDQP-1.5HP-N4 SubDrive QuickPAK performance curve

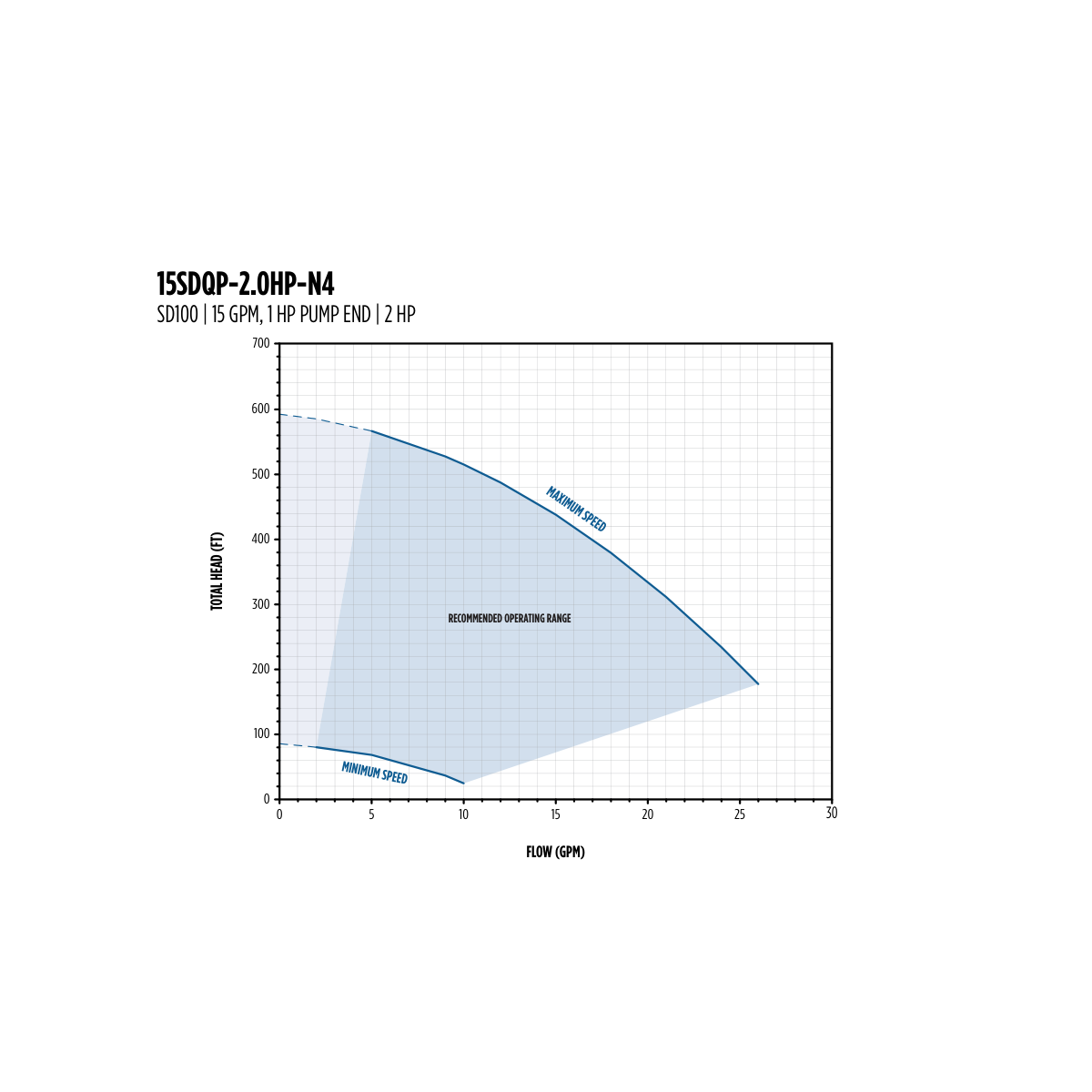

Franklin Electric 15SDQP-2.0HP-N4 SubDrive QuickPAK performance curve

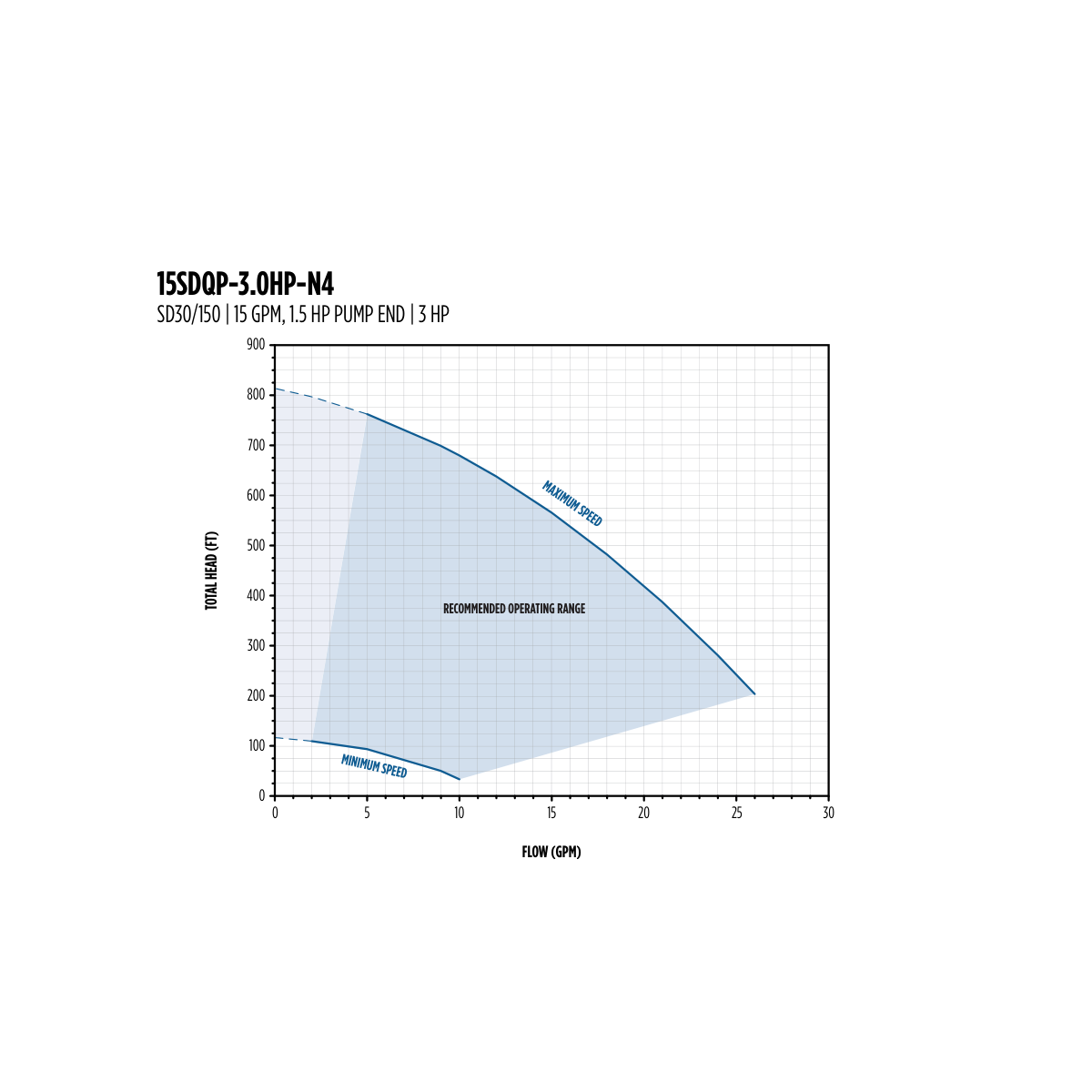

Franklin Electric 15SDQP-3.0HP-N4 SubDrive QuickPAK performance curve

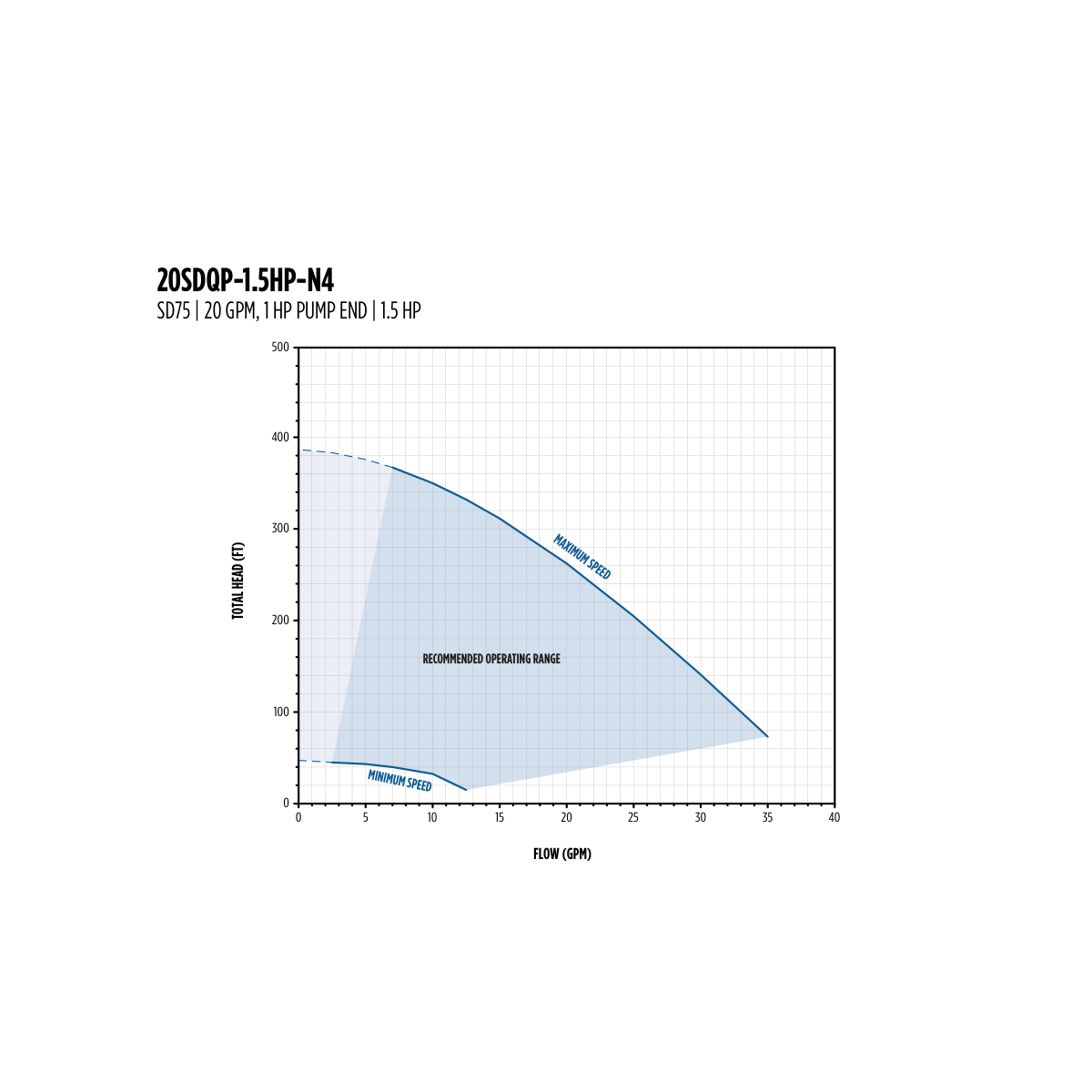

Franklin Electric 20SDQP-1.5HP-N4 SubDrive QuickPAK performance curve

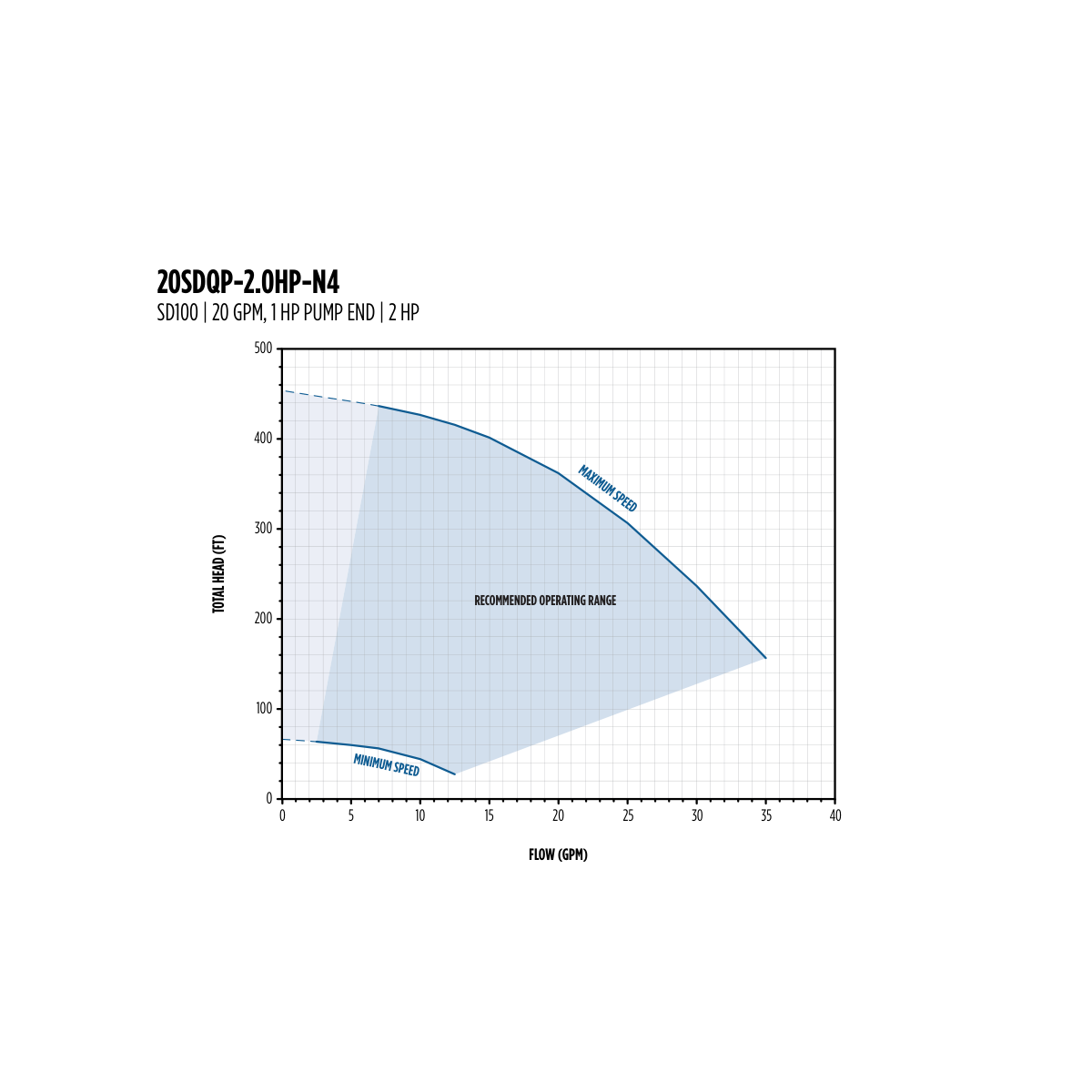

Franklin Electric 20SDQP-2.0HP-N4 SubDrive QuickPAK performance curve

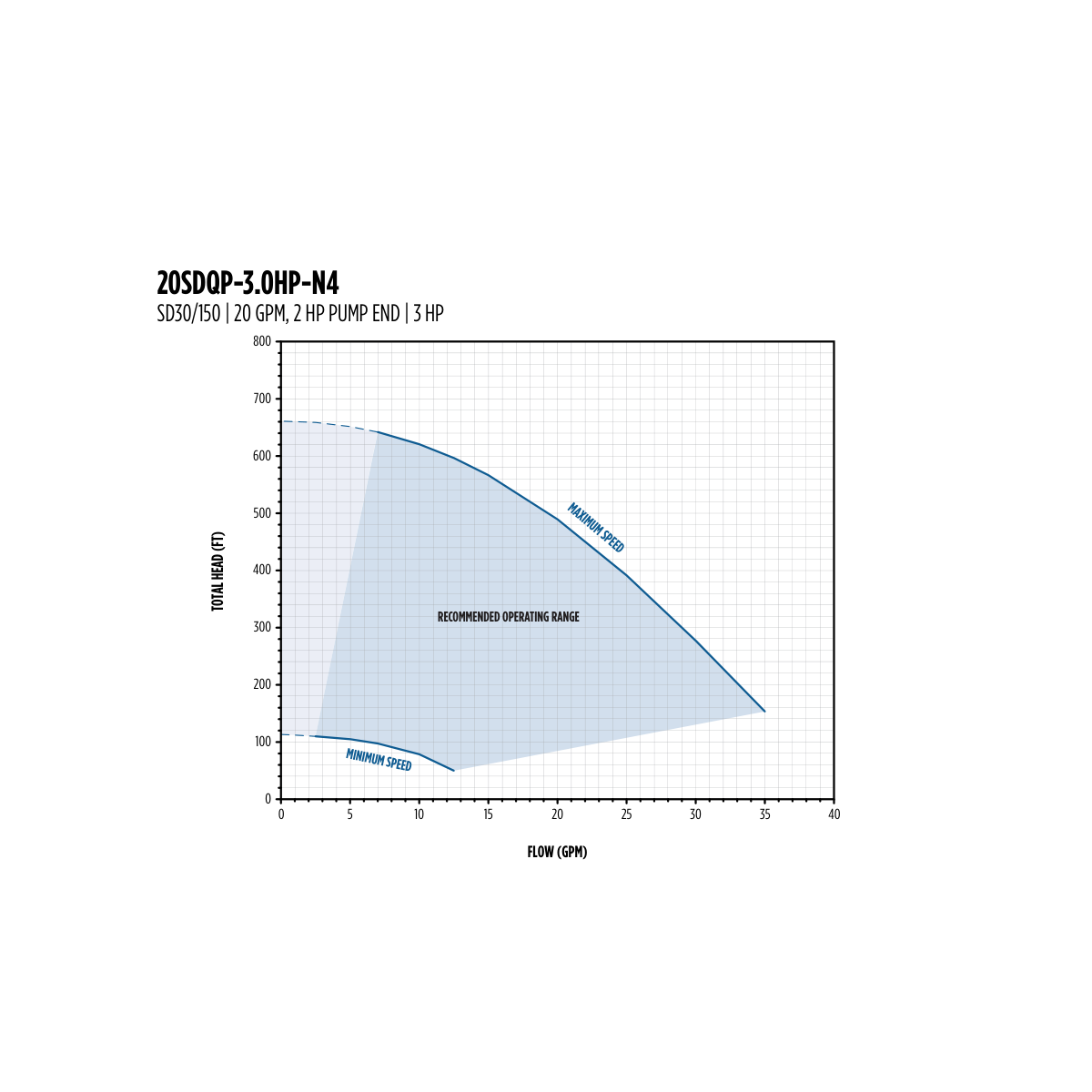

Franklin Electric 20SDQP-3.0HP-N4 SubDrive QuickPAK performance curve

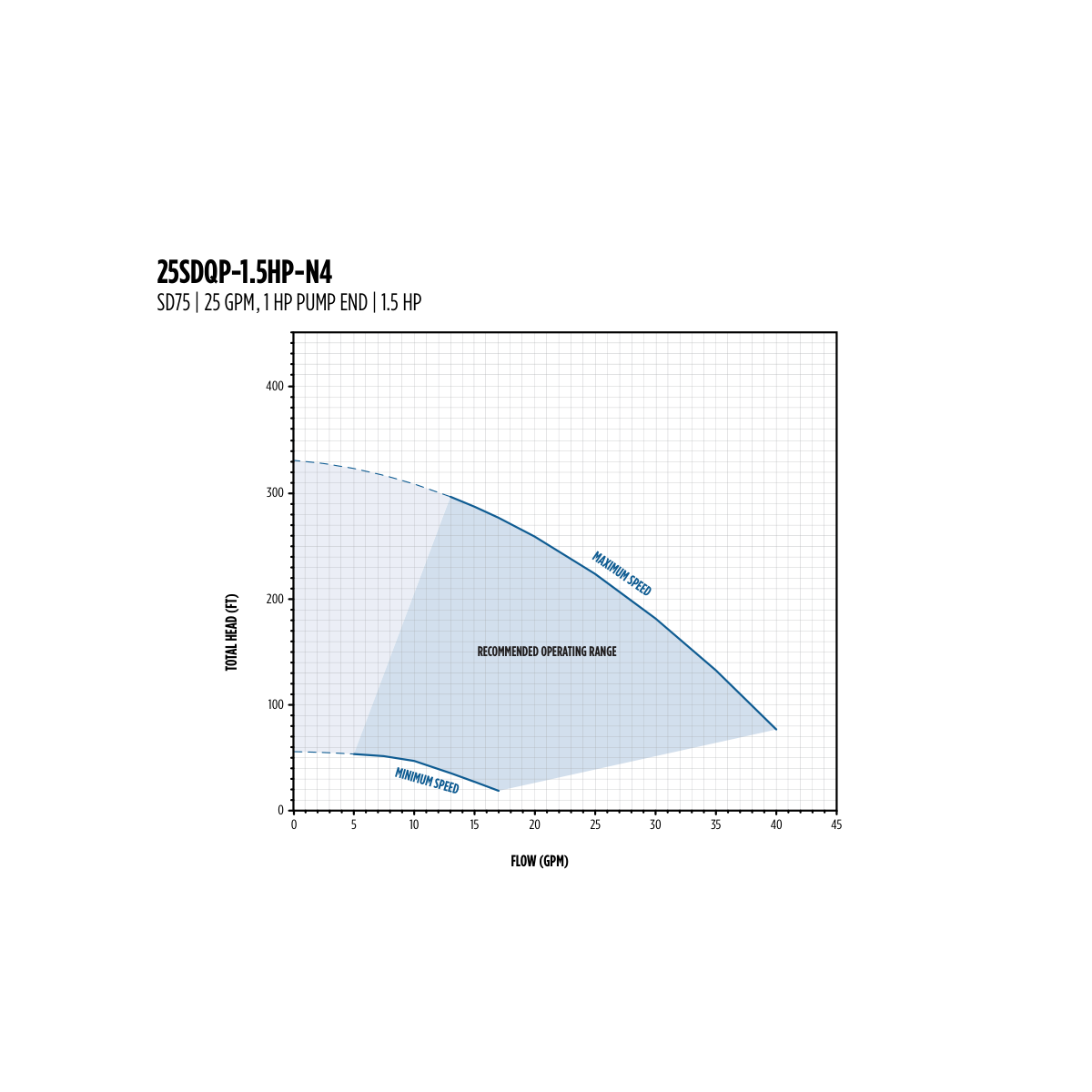

Franklin Electric 25SDQP-1.5HP-N4 SubDrive QuickPAK performance curve

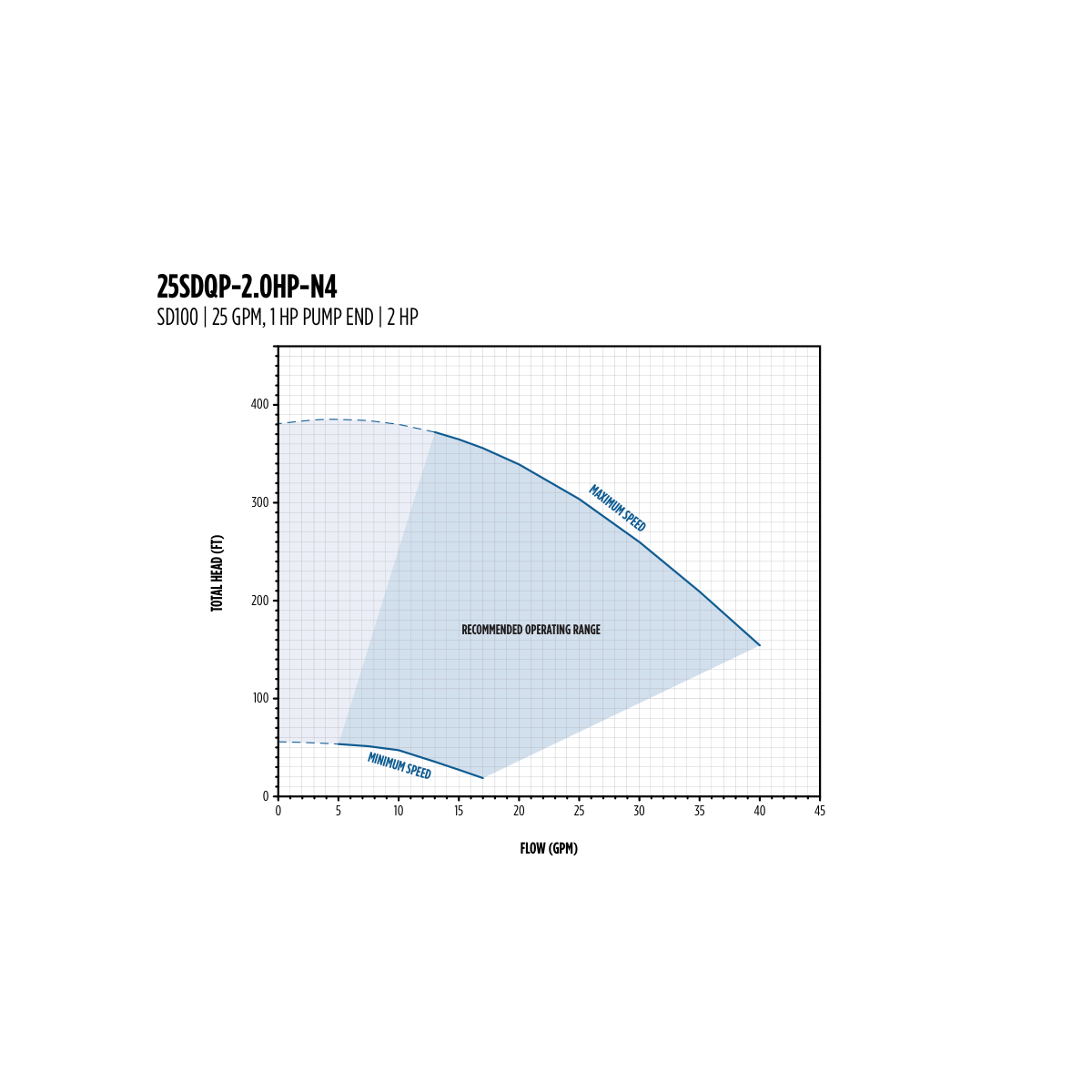

Franklin Electric 25SDQP-2.0HP-N4 SubDrive QuickPAK performance curve

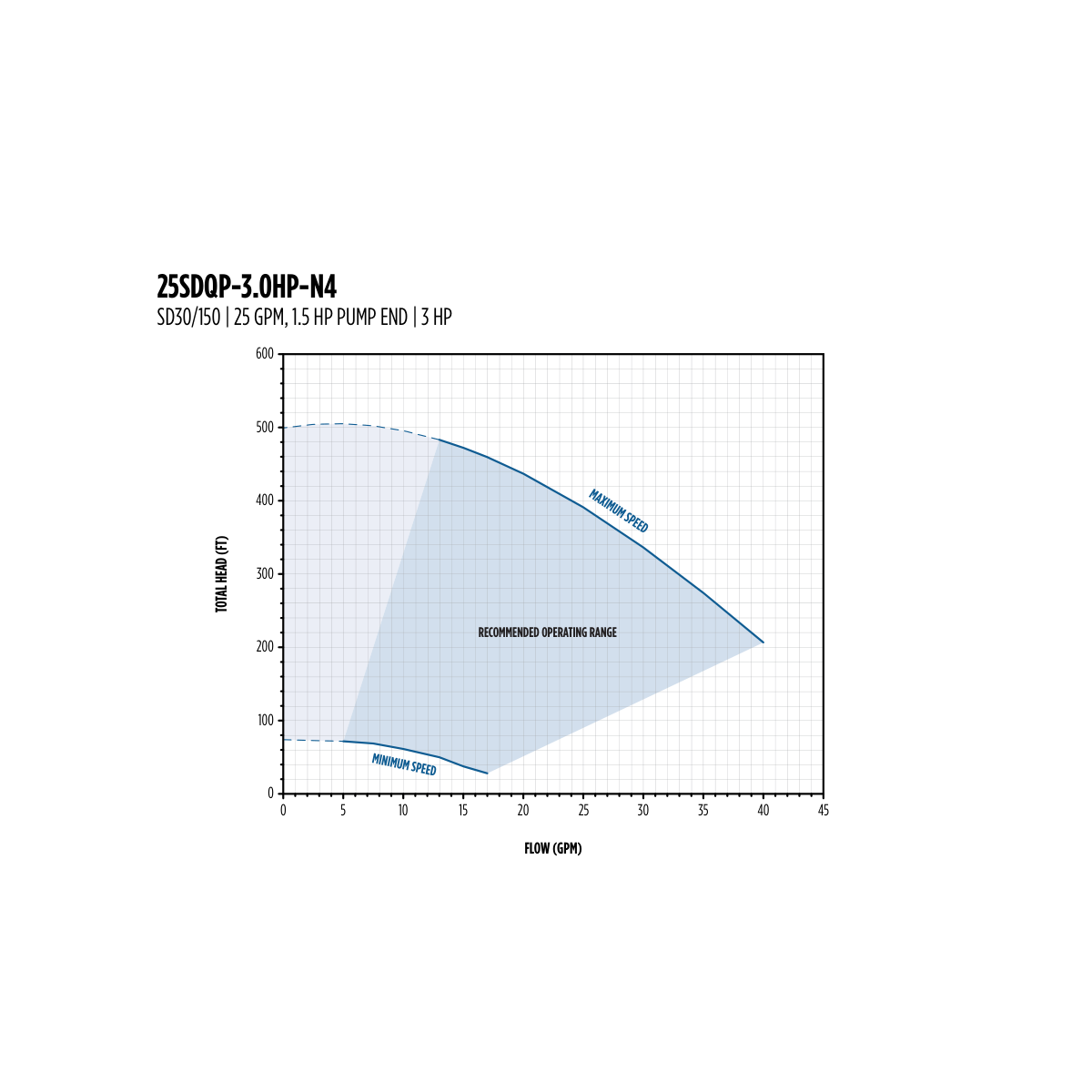

Franklin Electric 25SDQP-3.0HP-N4 SubDrive QuickPAK performance curve

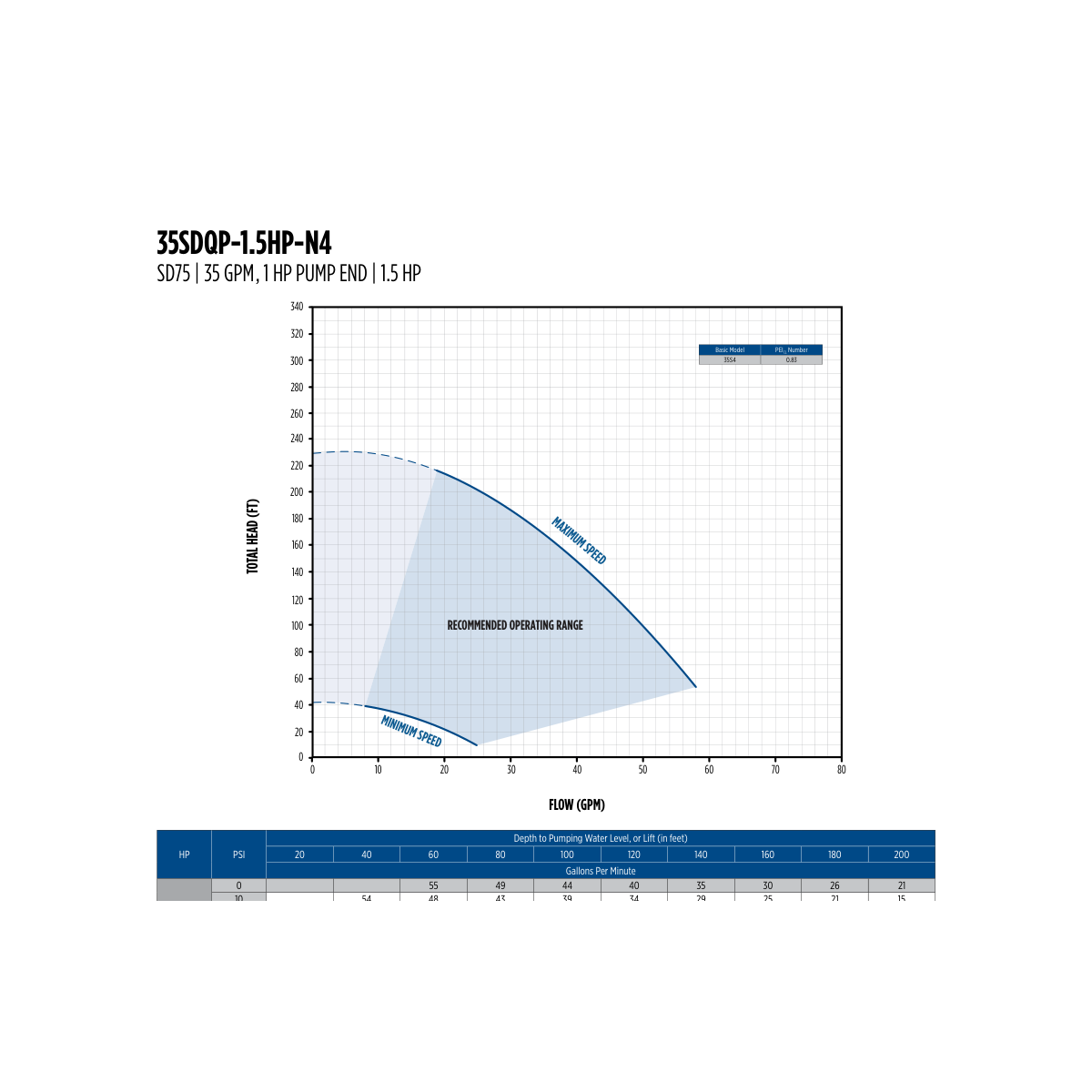

Franklin Electric 35SDQP-1.5HP-N4 SubDrive QuickPAK performance curve

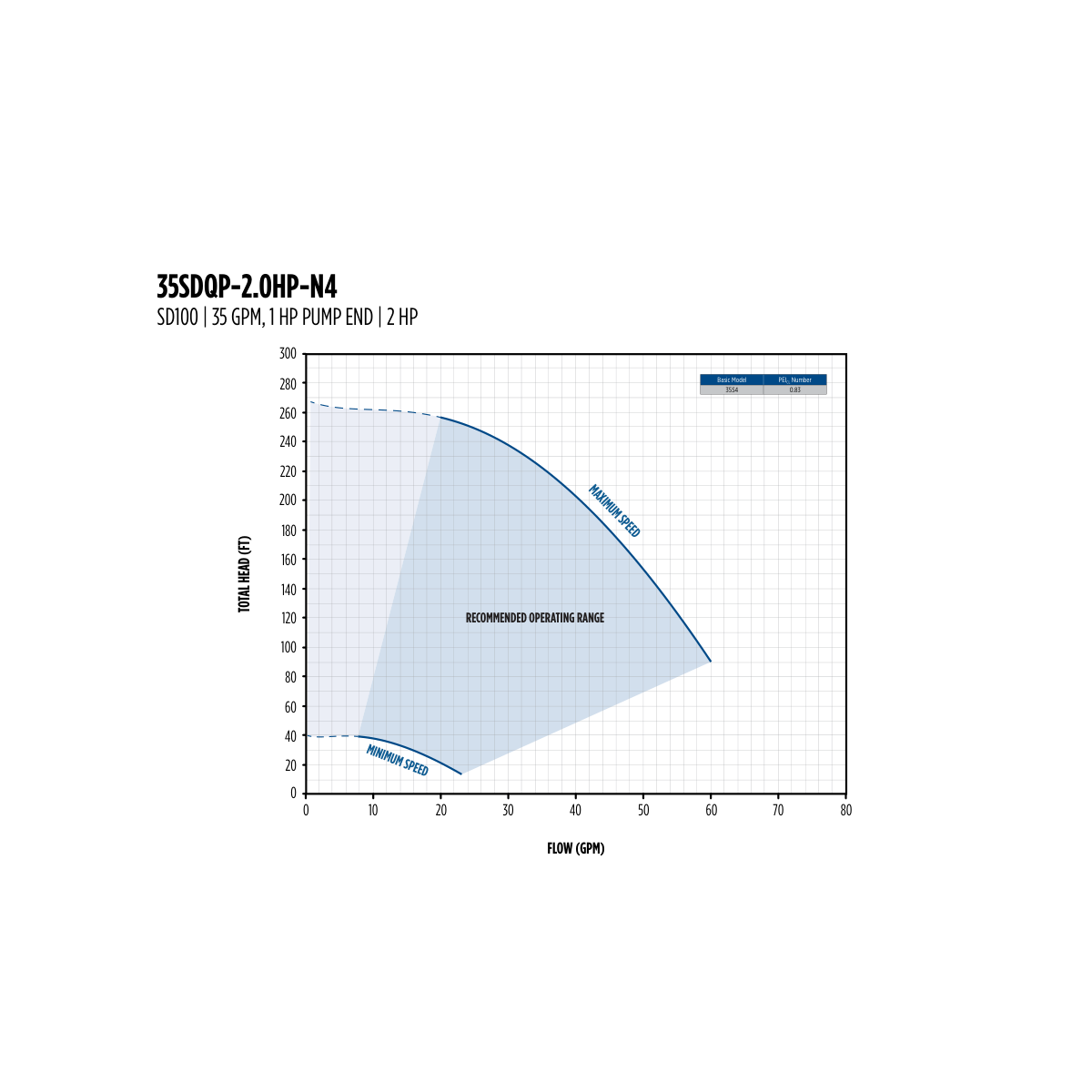

Franklin Electric 35SDQP-2.0HP-N4 SubDrive QuickPAK performance curve

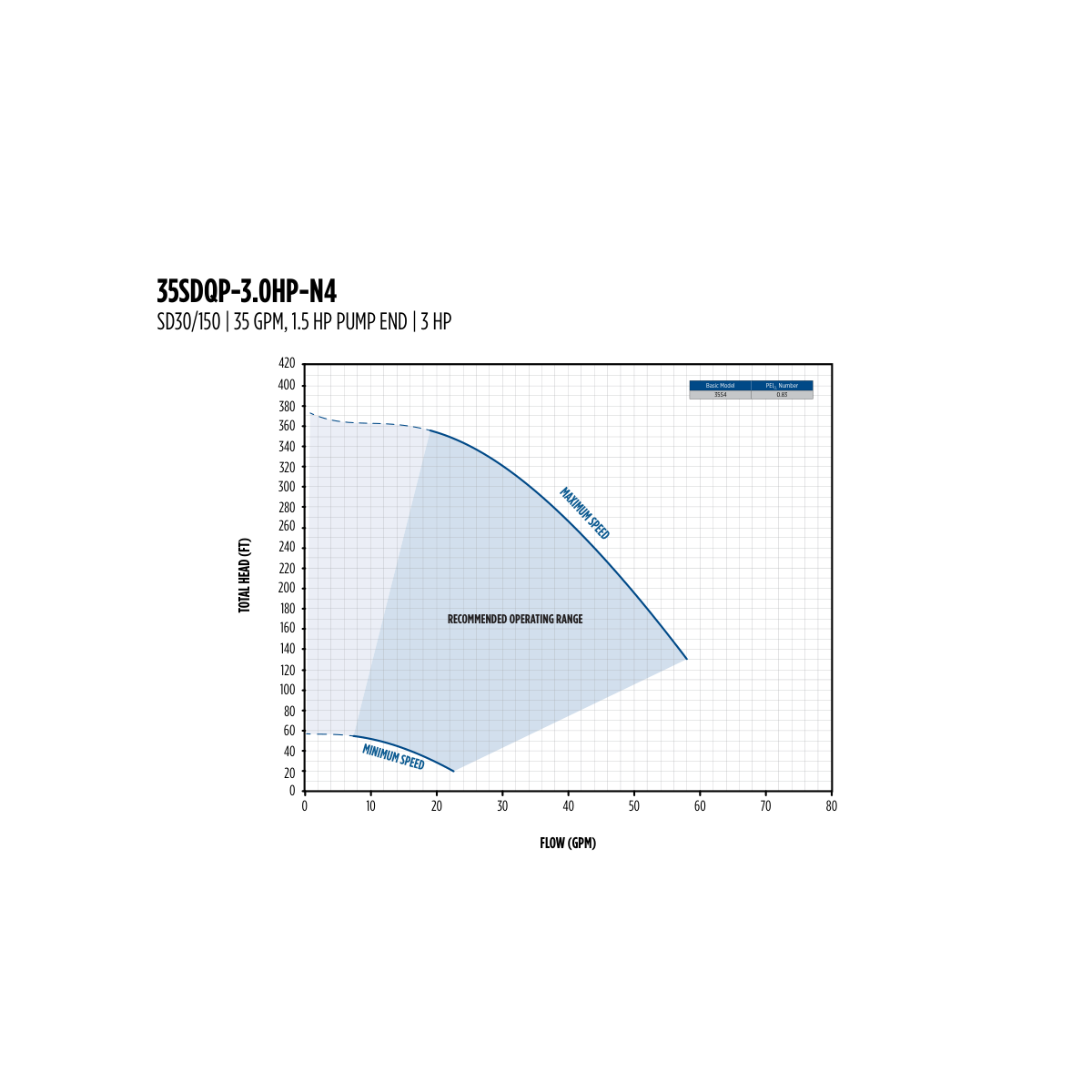

Franklin Electric 35SDQP-3.0HP-N4 SubDrive QuickPAK performance curve

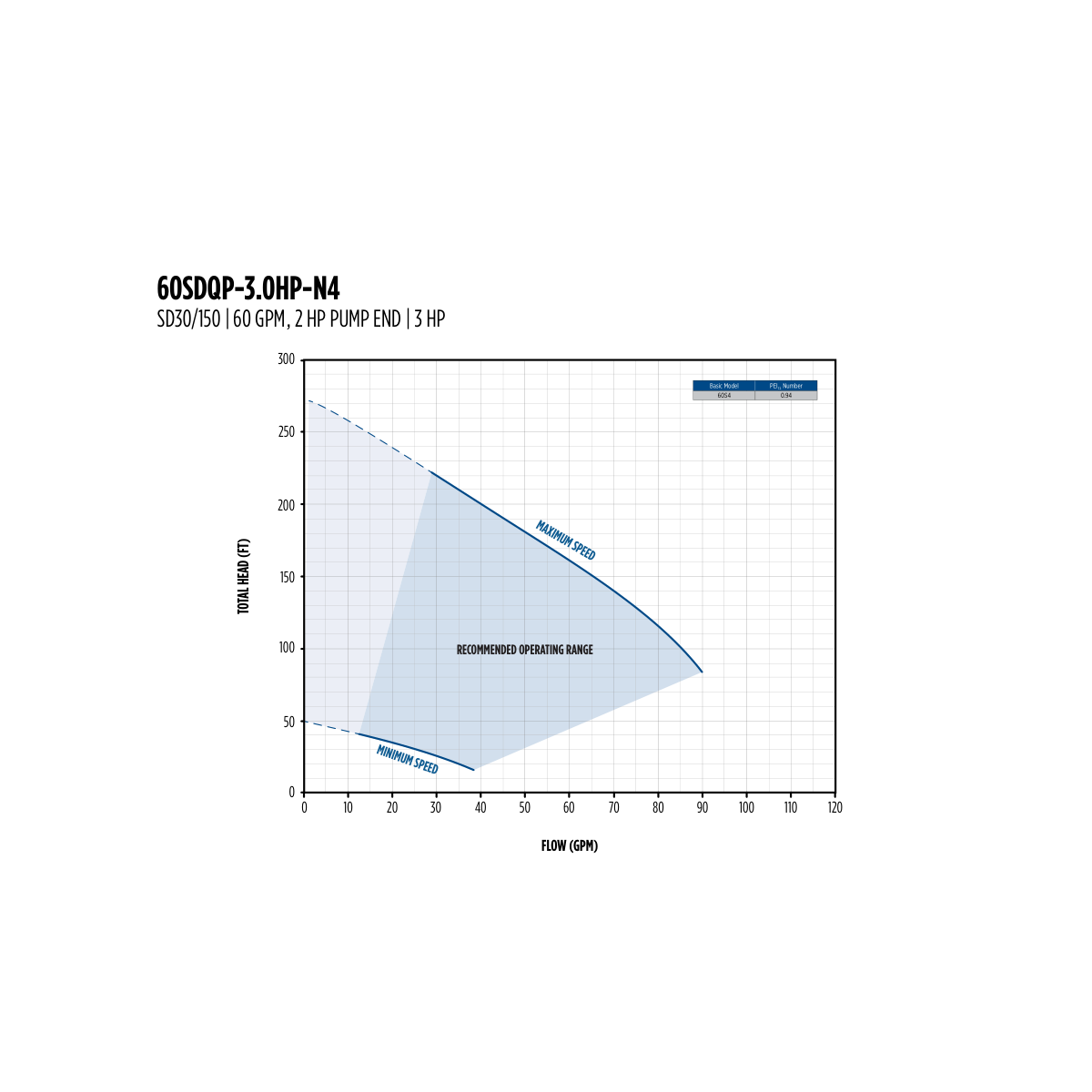

Franklin Electric 60SDQP-3.0HP-N4 SubDrive QuickPAK performance curve

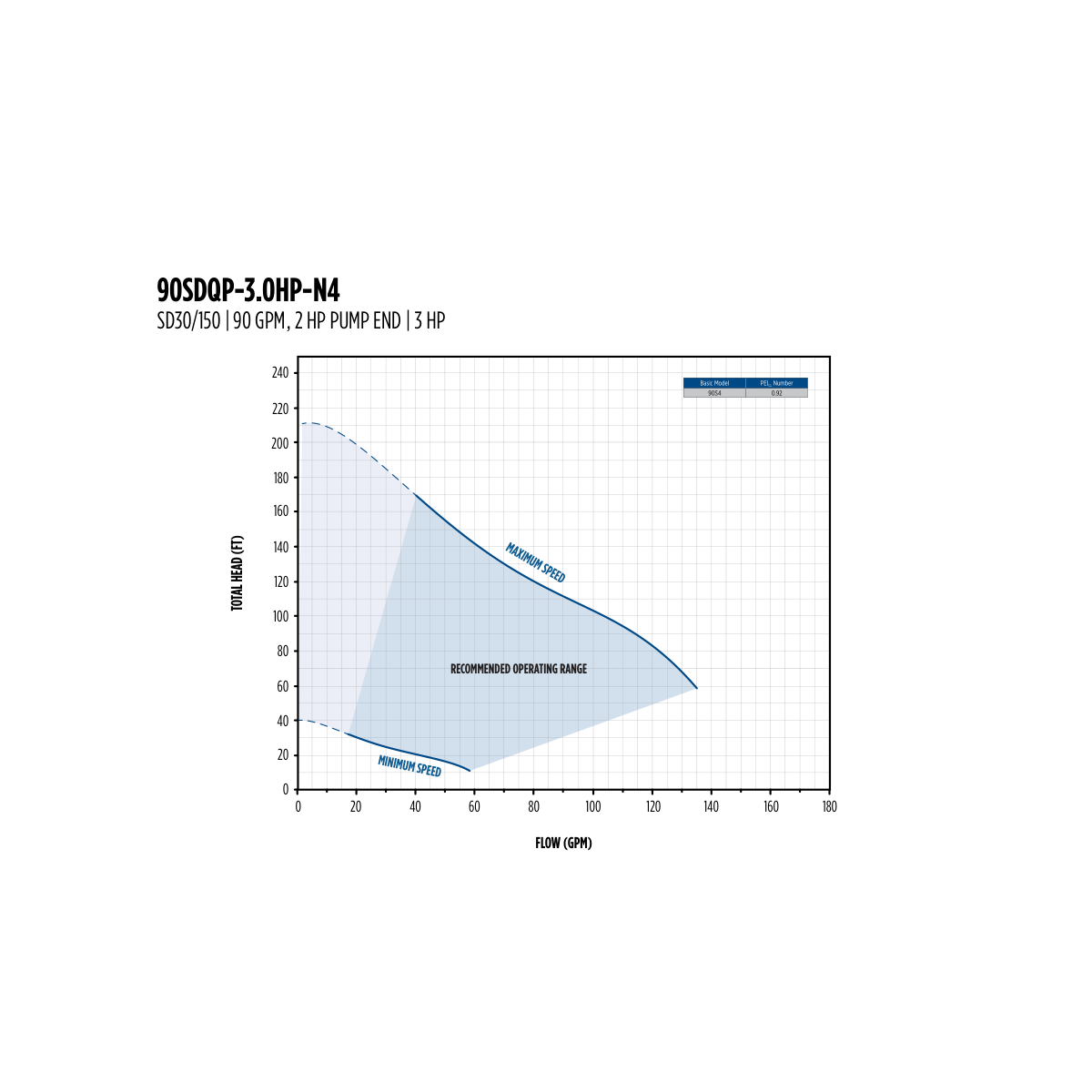

Franklin Electric 90SDQP-3.0HP-N4 SubDrive QuickPAK performance curve

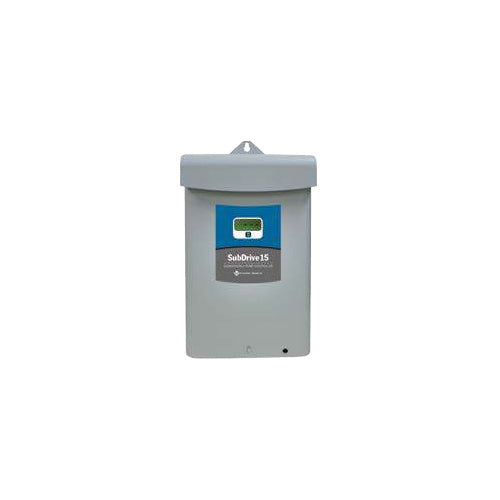

Franklin Electric SubDrive15 Constant Pressure Controller

Franklin Electric SubDrive QuickPAK Constant Pressure Well Pump Package

Quantity

Price: $4,560.99

SKU: 93800760

Weight : 72.0 lb

Vendor : Franklin Electric

Loading locations...

Free Shipping $499 or more

Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available

Description

Franklin Electric · Constant Pressure System

SubDrive QuickPAK Constant Pressure Well Pump Package

37 Franklin builds, 7-90 GPM, 1/2 to 3 HP.

7-90 GPM · Lifts to 1150 ft at 50 PSI

1-1/2 to 3 HP Three-Phase Motor

208/230 V 1Ph Supply

NEMA 4 or NEMA 3R Drive

Factory Set 50 PSI

Soft Start and Dry-Run Protection

What Ships and What It Needs to Run

Included (NEMA 4 builds, -N4): the Franklin 4 in three-phase submersible motor, the matched pump end and the SubDrive75, 100 or 150 NEMA 4 drive with its pressure sensor, as one package.

Included (NEMA 3R builds, -3RC): the pump, motor and SubDrive Connect NEMA 3R drive Franklin ships under the order number shown; the SubDrive Connect package includes a pressure transducer.

Power supply: the drive runs on 208/230 V single-phase service.

Pressure tank, drop cable, splice kit and pipe: sized to your installation and ordered separately.

Check valve on 35 GPM and larger builds: Franklin supplies high capacity pumps in QuickPAKs without an internal check valve; plan one in the drop pipe.

Overview

SubDrive QuickPAK is Franklin’s all-in-one constant pressure package: a Franklin submersible pump, motor and SubDrive variable frequency drive selected to work together, so the system is chosen by flow and total dynamic head and installed as one unit. The drive holds the pressure you set as demand changes, with soft start, power factor correction and built-in protection.

The NEMA 4 builds pair a 230 V three-phase induction motor with a SubDrive NEMA 4 drive in a self-contained, watertight enclosure for harsh conditions. The SubDrive runs the pump end above 60 Hz — up to 80 Hz on 1-1/2 HP and 70 Hz on 2 HP settings — which is why each build pairs a smaller pump end with a larger motor. The NEMA 3R builds use the SubDrive Connect drive with FE Connect app connectivity.

Constant pressure across the system, with no fluctuation as faucets and appliances open and close
Motor, pump and drive selected as one package by flow and total dynamic head
NEMA 4 self-contained enclosure on -N4 builds for harsh environments
SubDrive Connect with FE Connect app on -3RC builds
Soft start maximizes system life

Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.

12-Month Franklin Electric Warranty

Franklin warrants its products for 12 months from the date of installation, but no more than 24 months from the date of manufacture.

Source: Franklin Electric limited warranty, Submersible Pumps AG/Industrial/Municipal Product Catalog.

Specifications

Flow builds	7, 10, 15, 20, 25, 35, 60 and 90 GPM
Motor (NEMA 4 builds)	Franklin 4 in three-phase submersible motor, 230 V, 1-1/2, 2 or 3 HP
Drive (NEMA 4 builds)	SubDrive75, SubDrive100 or SubDrive150, NEMA 4 self-contained enclosure, pressure sensor included
Drive (NEMA 3R builds)	SubDrive Connect, NEMA 3R enclosure, pressure transducer included, FE Connect app
Power supply	190-260 VAC single-phase (SubDrive NEMA 4); 208/230 VAC single-phase (SubDrive Connect)
Pressure	Factory preset 50 psi; adjustable 25-80 psi with the pressure sensor
Output frequency (SubDrive150)	30-80 Hz on a 1-1/2 HP pump, 30-70 Hz on 2 HP, 30-60 Hz on 3 HP
Built-in protection	Underload (dry-run) with adjustable sensitivity, overload and locked pump, undervoltage, electrical surge, broken pipe detection, output short and open circuit, overheated controller

Source: Franklin Electric SubDrive QuickPAK Constant Pressure Systems Product Catalog (M5008 04-26), pp. 3-7, and Franklin Electric Drives, Controls and Protection Residential and Light Commercial Product Catalog (M5136 04-25), SubDrive specifications.

Models & Performance — Will It Do What You Need?

Find your horsepower in the row, then read across. Total head is the lift from the pumping water level, plus the system pressure the drive holds (2.31 ft for every PSI), plus friction in the drop pipe. The output tables give the flow at a 30 or 50 PSI pressure setting for your depth to water.

7 GPM class · 3 builds, 1-1/2 to 3 HP

7 GPM class — total head in feet (curves end at 12.9-13 GPM)

HP	0 GPM (Shut-off)	2 GPM	6 GPM	9 GPM	12 GPM
1-1/2 HP	739	698	593	483	346
2 HP	1005	983	816	658	471
3 HP	1289	1284	1071	868	629

Output in GPM at 30 PSI, by depth to water

HP	500 ft	550 ft	600 ft	650 ft	700 ft	750 ft	800 ft
1-1/2 HP	6	5	3	1	—	—	—
2 HP	11	10	9	8	7	6	5
3 HP	—	—	—	11	10	10	9

Output in GPM at 50 PSI, by depth to water

HP	500 ft	550 ft	600 ft	650 ft	700 ft	750 ft	800 ft
1-1/2 HP	5	3	1	—	—	—	—
2 HP	10	9	8	7	6	5	4
3 HP	—	—	11	10	10	9	8

10 GPM class · 3 builds, 1-1/2 to 3 HP

10 GPM class — total head in feet (curves end at 16.3-18 GPM)

HP	0 GPM (Shut-off)	3 GPM	8 GPM	12 GPM	16 GPM
1-1/2 HP	766	726	571	374	120
2 HP	1048	981	795	553	213
3 HP	1152	1025	825	619	373

Output in GPM at 30 PSI, by depth to water

HP	200 ft	250 ft	300 ft	350 ft	400 ft	450 ft	500 ft
1-1/2 HP	14	13	12	11	10	9	8
2 HP	15	15	14	14	13	12	12
3 HP	17	17	16	15	15	14	13

Output in GPM at 50 PSI, by depth to water

HP	200 ft	250 ft	300 ft	350 ft	400 ft	450 ft	500 ft
1-1/2 HP	13	12	11	10	9	8	7
2 HP	15	14	14	13	13	12	11
3 HP	17	16	15	15	14	13	12

15 GPM class · 3 builds, 1-1/2 to 3 HP

15 GPM class — total head in feet

HP	0 GPM (Shut-off)	5 GPM	13 GPM	19 GPM	25 GPM (Max)
1-1/2 HP	436	409	330	242	132
2 HP	593	566	470	356	205
3 HP	815	762	613	450	242

Output in GPM at 30 PSI, by depth to water

HP	160 ft	180 ft	200 ft	250 ft	300 ft	350 ft	400 ft
1-1/2 HP	20	19	17	14	10	—	—
2 HP	24	23	23	21	18	16	13
3 HP	—	—	24	23	22	20	18

Output in GPM at 50 PSI, by depth to water

HP	160 ft	180 ft	200 ft	250 ft	300 ft	350 ft	400 ft
1-1/2 HP	17	16	14	10	—	—	—
2 HP	23	22	21	19	16	13	10
3 HP	24	24	23	22	20	19	17

20 GPM class · 3 builds, 1-1/2 to 3 HP

20 GPM class — total head in feet (curves end at 34.9-35 GPM)

HP	0 GPM (Shut-off)	7 GPM	17 GPM	26 GPM	34 GPM
1-1/2 HP	387	367	292	192	86
2 HP	454	436	385	292	172
3 HP	662	641	535	368	178

Output in GPM at 30 PSI, by depth to water

HP	100 ft	120 ft	140 ft	160 ft	180 ft	200 ft	250 ft
1-1/2 HP	28	27	25	23	21	19	14
2 HP	34	32	31	30	29	28	24
3 HP	34	33	32	32	31	31	29

Output in GPM at 50 PSI, by depth to water

HP	100 ft	120 ft	140 ft	160 ft	180 ft	200 ft	250 ft
1-1/2 HP	24	22	20	18	17	15	7
2 HP	31	30	29	28	26	24	20
3 HP	32	32	31	30	30	29	26

25 GPM class · 3 builds, 1-1/2 to 3 HP

25 GPM class — total head in feet

HP	0 GPM (Shut-off)	8 GPM	20 GPM	30 GPM	40 GPM (Max)
1-1/2 HP	332	315	258	181	76
2 HP	385	383	339	259	154
3 HP	505	500	436	336	206

Output in GPM at 30 PSI, by depth to water

HP	100 ft	120 ft	140 ft	160 ft	180 ft	200 ft	250 ft
1-1/2 HP	32	29	27	24	21	18	—
2 HP	37	36	35	34	31	29	23
3 HP	—	—	40	37	36	35	32

Output in GPM at 50 PSI, by depth to water

HP	100 ft	120 ft	140 ft	160 ft	180 ft	200 ft	250 ft
1-1/2 HP	26	23	20	17	14	—	—
2 HP	35	33	31	28	26	23	14
3 HP	39	37	36	35	34	32	27

35 GPM class · 3 builds, 1-1/2 to 3 HP

35 GPM class — total head in feet (curves end at 57.9-60 GPM)

HP	0 GPM (Shut-off)	11 GPM	29 GPM	43 GPM	57 GPM
1-1/2 HP	253	228	190	134	59
2 HP	297	261	240	189	110
3 HP	392	362	325	246	138

Output in GPM at 30 PSI, by depth to water

HP	20 ft	40 ft	60 ft	80 ft	100 ft	120 ft	140 ft
1-1/2 HP	47	42	37	33	28	24	19
2 HP	—	—	51	47	44	39	34
3 HP	58	56	54	52	49	46	43

Output in GPM at 50 PSI, by depth to water

HP	20 ft	40 ft	60 ft	80 ft	100 ft	120 ft	140 ft
1-1/2 HP	36	31	27	22	18	—	—
2 HP	50	46	42	38	33	28	24
3 HP	54	51	48	45	42	38	35

60 GPM class · 1 build, 3 HP

60 GPM class — total head in feet

HP	0 GPM (Shut-off)	18 GPM	45 GPM	67 GPM	89 GPM (Max)
3 HP	286	243	190	146	87

Output in GPM at 30 PSI, by depth to water

HP	20 ft	40 ft	60 ft	80 ft	100 ft	120 ft	140 ft
3 HP	87	76	68	60	53	45	38

Output in GPM at 50 PSI, by depth to water

HP	20 ft	40 ft	60 ft	80 ft	100 ft	120 ft	140 ft
3 HP	65	58	50	43	35	28	—

90 GPM class · 1 build, 3 HP

90 GPM class — total head in feet

HP	0 GPM (Shut-off)	27 GPM	68 GPM	101 GPM	135 GPM (Max)
3 HP	175	189	132	102	58

Output in GPM at 30 PSI, by depth to water

HP	20 ft	40 ft	60 ft
3 HP	95	77	58

Output in GPM at 50 PSI, by depth to water

HP	20 ft	40 ft	60 ft
3 HP	52	—	—

Total head at maximum drive speed, read from the published curves in Franklin’s SubDrive QuickPAK catalog (M5008), pp. 9-47, digitized and rounded down to whole feet, at the plotted flows nearest 20%, 50% and 75% of where the curves end. 0 GPM is Franklin’s printed shut-off pressure at zero lift, in feet (PSI × 2.31). Franklin’s published curves and printed tables differ by more than 3% on the 7 GPM 3 HP, 35 GPM 1-1/2 HP, 35 GPM 2 HP, 35 GPM 3 HP and 90 GPM 3 HP builds. The head table follows the published curve, re-checked against Franklin’s chart; the 0 GPM column and the output tables follow the printed figures. Output tables as printed in M5008, pp. 9-47, at the 30 and 50 PSI rows; Franklin rounds them to whole GPM. Drop-pipe friction is not included. — marks a point Franklin does not print.

The 90 GPM curves rise a few feet above the printed shut-off at low flow before they fall, so a low-flow column can read slightly above the shut-off.

Franklin’s QuickPAK catalog (M5008) prints performance for the NEMA 4 builds; the NEMA 3R builds (-3RC) and 10-3WQP-0.5HP-3RC are confirmed on request.

Best operating range: Franklin marks the recommended operating range on each published curve and prints no figures for it. The curves are in the image gallery.

Submersible Calculator

Before You Buy — The Limits That Decide the Fit

Supply: 208/230 V single-phase to the drive; the three-phase motor runs only from its SubDrive
Match the build to your pumping water level and pressure using the table above
Motor cable: maximum lengths in feet for 600 V copper, 75 °C insulation are in the table below (NEMA 4 builds)

Data Sheet

SubDrive QuickPAK Constant Pressure Systems Catalog (M5008)SubDrive and MonoDrive NEMA 1 and NEMA 4 Installation Manual SubDrive Connect Owner’s Manual
