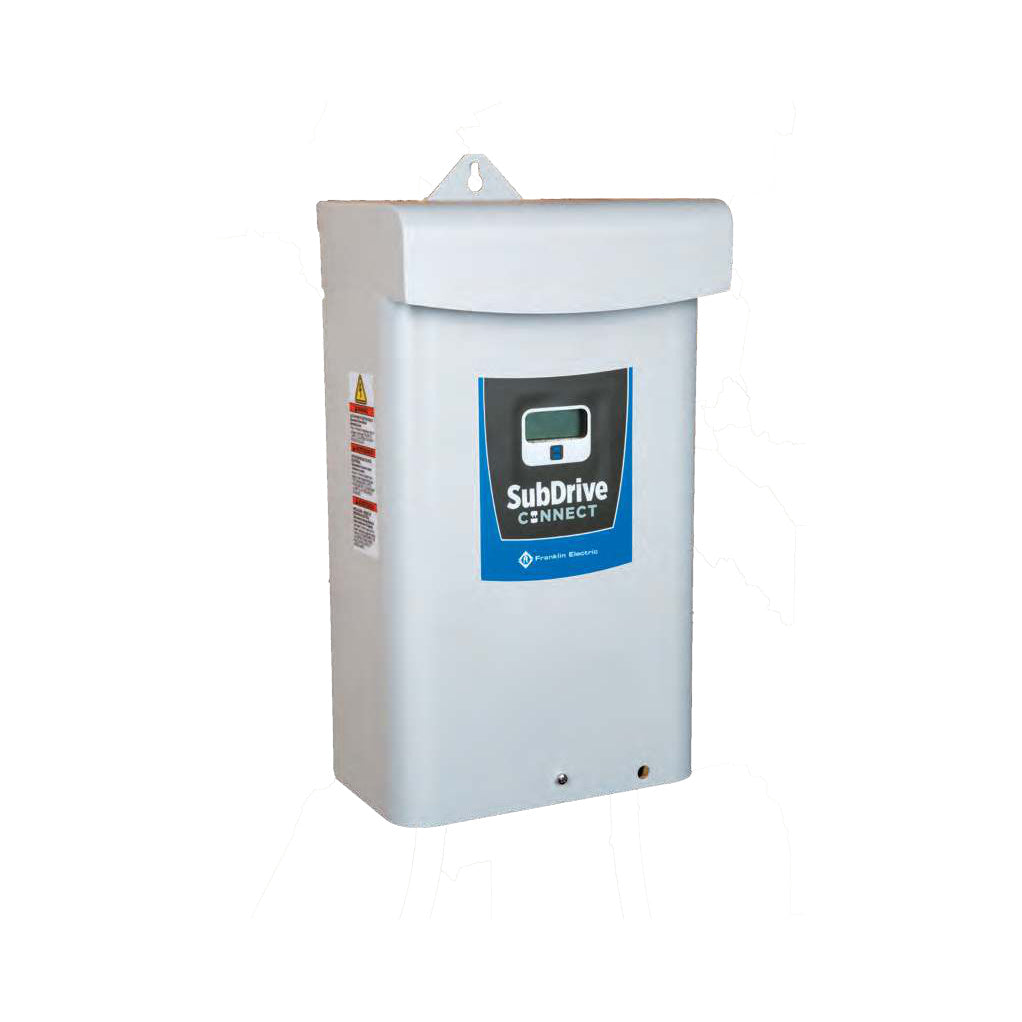

Franklin Electric SubDrive Connect NEMA 3R constant pressure drive

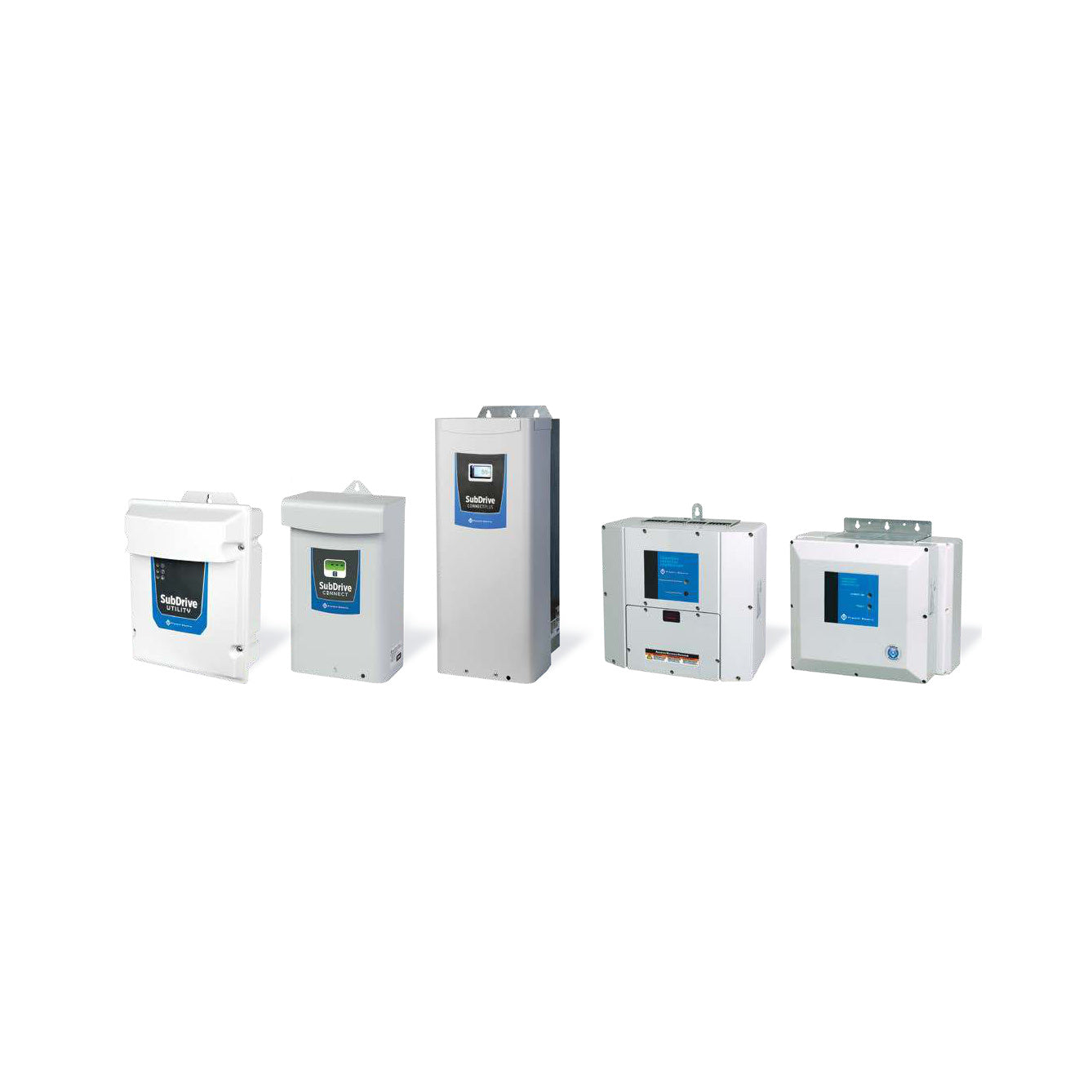

Franklin Electric SubDrive Utility, SubDrive Connect and NEMA 4 drive lineup

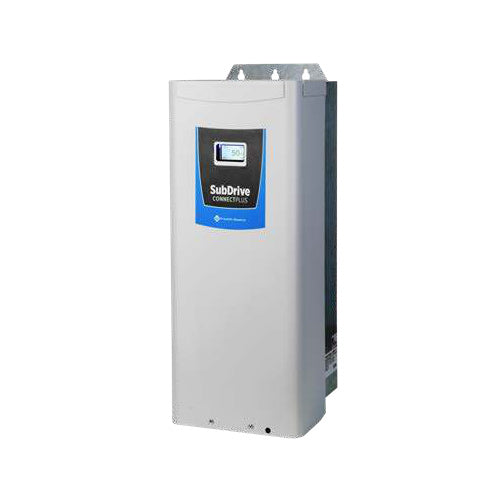

Franklin Electric SubDrive Connect Plus drive

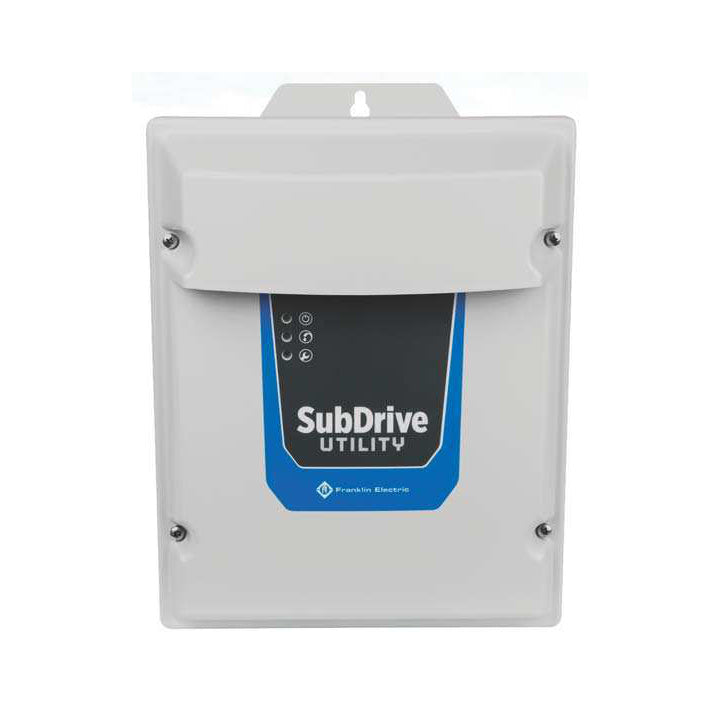

Franklin Electric SubDrive Utility constant pressure drive

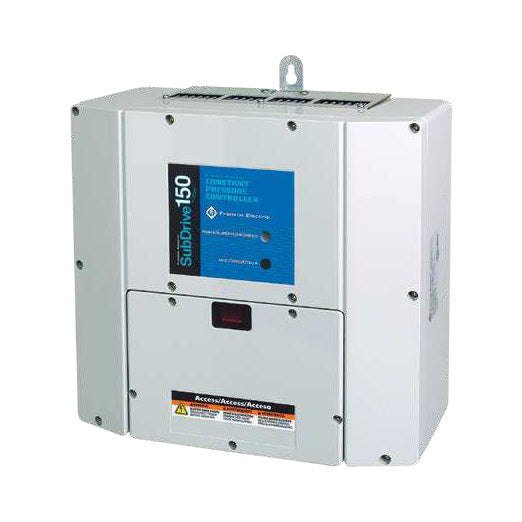

Franklin Electric SubDrive150 NEMA 4 drive

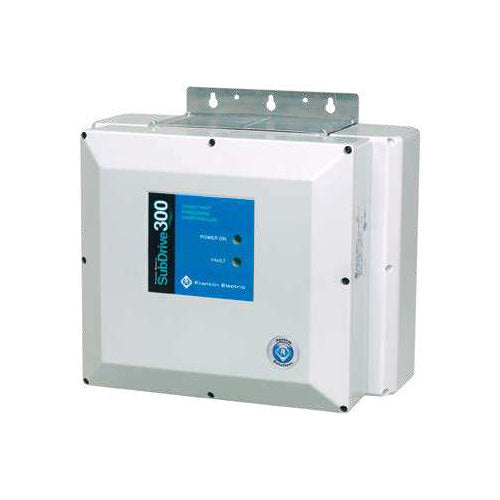

Franklin Electric SubDrive300 NEMA 4 drive

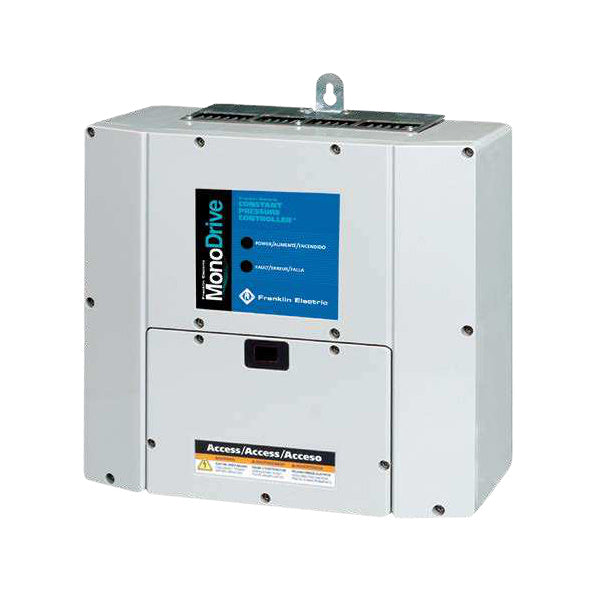

Franklin Electric MonoDrive NEMA 4 drive

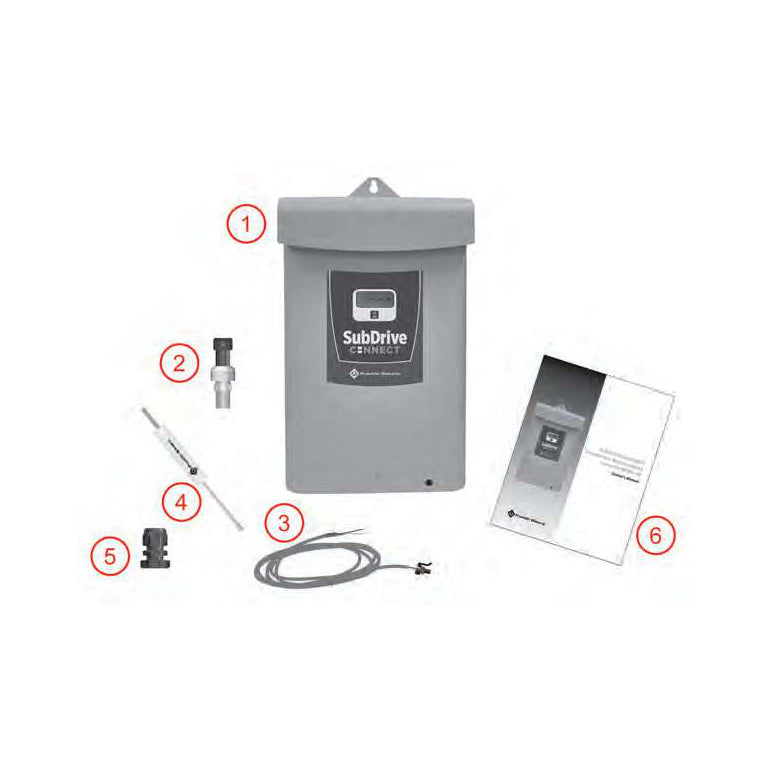

Franklin Electric SubDrive Connect, what is in the box

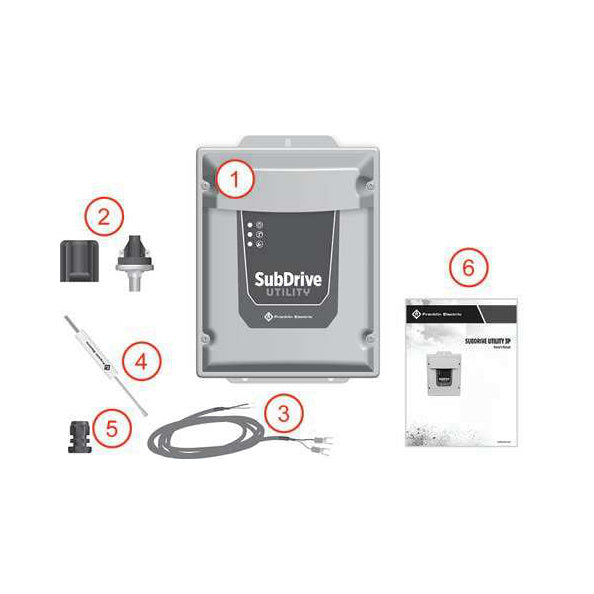

Franklin Electric SubDrive Utility, what is in the box
Franklin Electric SubDrive Connect typical well installation diagram

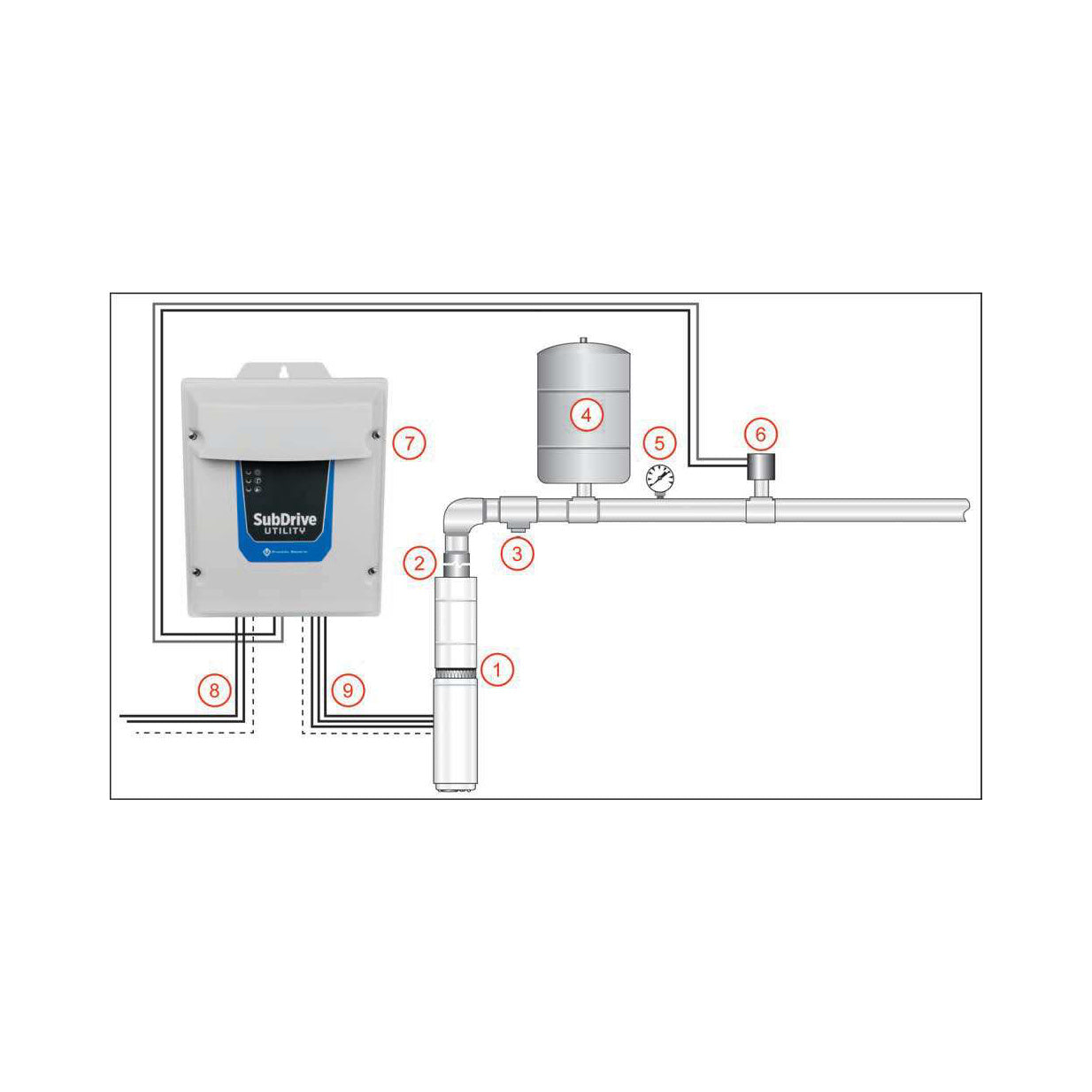

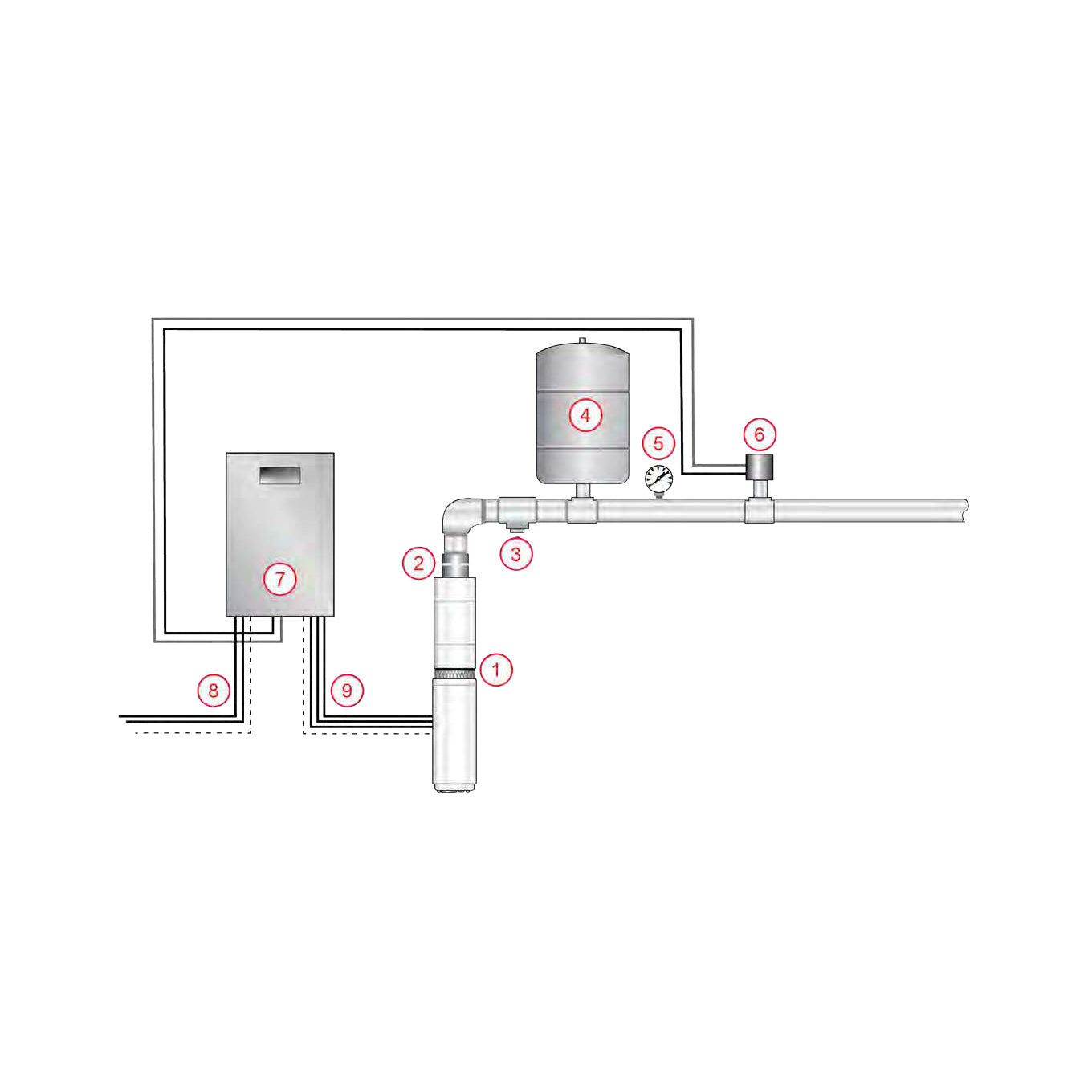

Franklin Electric SubDrive Utility typical well installation diagram
Franklin Electric SubDrive Connect dimension drawing

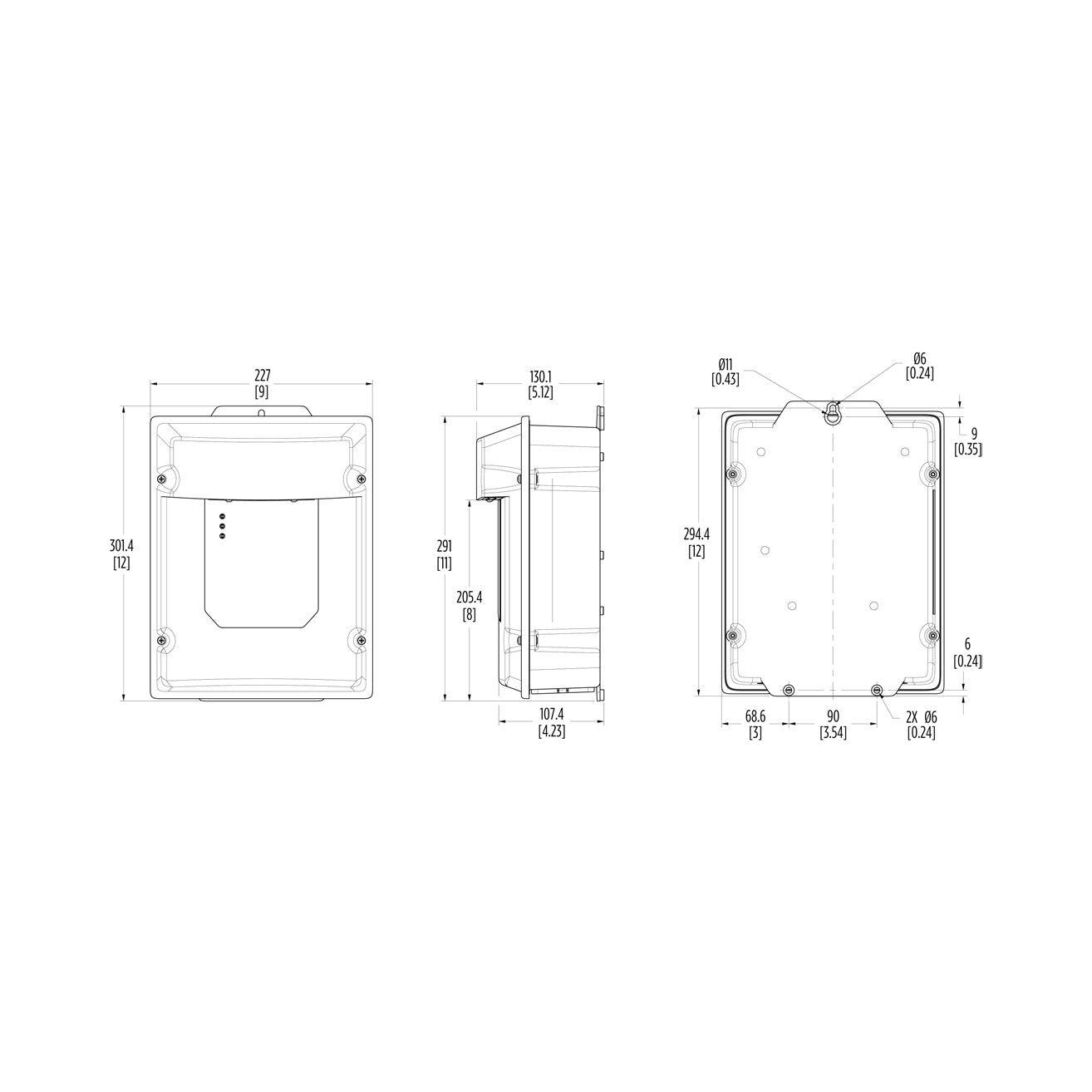

Franklin Electric SubDrive Utility dimension drawing

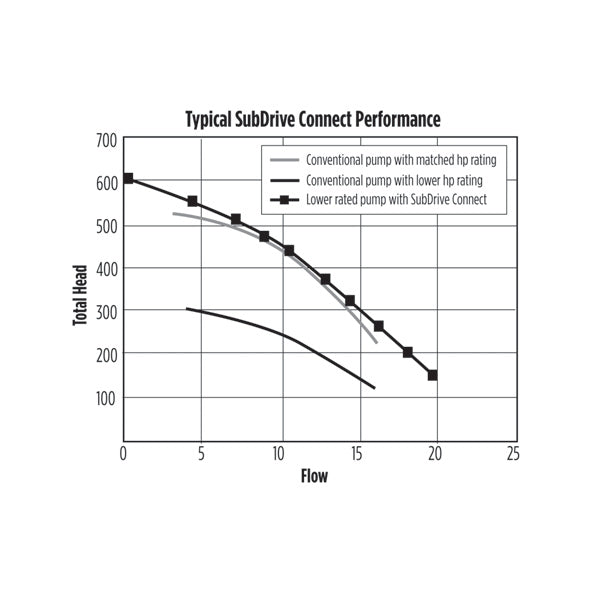

Franklin Electric SubDrive Connect typical performance chart

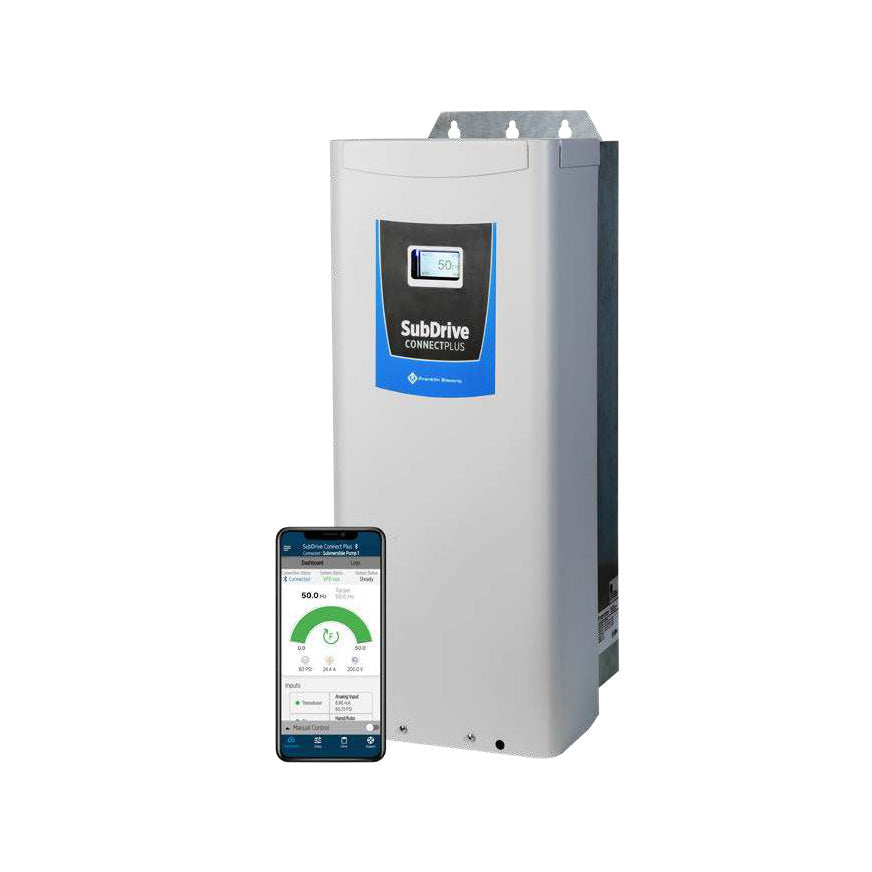

Franklin Electric SubDrive Connect Plus with the FE Connect app

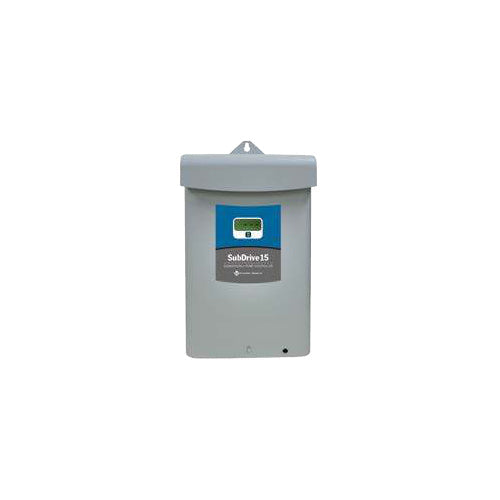

Franklin Electric SubDrive15 Constant Pressure Controller
Franklin Electric SubDrive Connect NEMA 3R constant pressure drive
Franklin Electric SubDrive Utility, SubDrive Connect and NEMA 4 drive lineup
Franklin Electric SubDrive Connect Plus drive
Franklin Electric SubDrive Utility constant pressure drive
Franklin Electric SubDrive150 NEMA 4 drive
Franklin Electric SubDrive300 NEMA 4 drive
Franklin Electric MonoDrive NEMA 4 drive
Franklin Electric SubDrive Connect, what is in the box
Franklin Electric SubDrive Utility, what is in the box
Franklin Electric SubDrive Connect typical well installation diagram
Franklin Electric SubDrive Utility typical well installation diagram
Franklin Electric SubDrive Connect dimension drawing
Franklin Electric SubDrive Utility dimension drawing
Franklin Electric SubDrive Connect typical performance chart
Franklin Electric SubDrive Connect Plus with the FE Connect app
Franklin Electric SubDrive15 Constant Pressure Controller

Franklin Electric SubDrive and MonoDrive Constant Pressure Controller

Controller: SubDrive
Model - Part No.: SubDrive 20 Connect N3R - 5870205313C

Product variant with selected options does not exist!
$2,667.61
SKU: 5870205313C
Weight : 26.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Franklin Electric · Constant Pressure Drive
SubDrive and MonoDrive Constant Pressure Controller
21 Franklin drives: SubDrive Utility, SubDrive Connect, Connect Plus and NEMA 4 models.
Constant Pressure, 25-80 PSI Typical
1/3 to 30 HP Motors
115-230 V 1Ph or 460 V 3Ph Input
NEMA 3R or NEMA 4
Soft Start and Dry-Run Protection
FE Connect App (Connect Models)
7.7-35.15 lb Weight
What Ships and What It Needs to Run

Included (SubDrive Connect): the drive, pressure transducer, transducer cable, screwdriver adjustment tool, strain relief fitting and owner’s manual.

Included (SubDrive Utility): the drive, pressure sensor (transducer on XD models) and boot, sensor cable, adjustment tool, strain relief fitting and owner’s manual.

Matching pump and motor required. Each drive runs the Franklin motor series and horsepower listed for it in the Models & Performance table; the drive replaces the control box and pressure switch.

Pressure tank: required and sized at install; most installations need only a small tank (minimum sizes in each owner’s manual).

Overview

SubDrive and MonoDrive variable frequency drives turn a submersible well pump into a constant pressure system: the drive varies motor speed to hold the pressure you set, with soft start and built-in motor protection, and a small pressure tank in most installations.

SubDrive Utility is the economical choice for 115 V and 230 V single-phase 2-wire systems and 230 V 3-wire and three-phase systems up to 2 HP. SubDrive Connect (SubDrive20, 30 and 50) covers 1/2 to 5 HP single-phase 2-wire, 3-wire and three-phase systems, with FE Connect app connectivity for monitoring, setup and troubleshooting. SubDrive Connect Plus runs three-phase motors up to 30 HP. SubDrive and MonoDrive NEMA 4 drives are the rugged, watertight choice for 1/2 to 2 HP single-phase 3-wire and 1-1/2 to 5 HP three-phase systems.

Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Franklin Electric Warranty

Franklin warrants these products for 1 year from the date of installation, but in no event more than 2 years from the date of manufacture. Franklin’s limited warranty does not cover performance affected by abrasive materials, corrosion due to aggressive conditions or improper voltage supply.

Source: Franklin Electric SubDrive Connect and SubDrive Utility Owner’s Manuals.

Specifications
Pressure setting Factory preset 50 psi (3.4 bar); adjustable 25-80 psi with the pressure sensor (SubDrive Utility, SubDrive20/30, NEMA 4); 5-95 psi with the analog transducer (SubDrive50)
Enclosure NEMA 3R (Utility, Connect, Connect Plus): indoor and outdoor, protection against falling rain and sleet. NEMA 4 (SubDrive75/100/150/300, MonoDrive, MonoDriveXT): watertight, indoor and outdoor
Operating temperature -13 to 122 °F (-25 to 50 °C) Utility and Connect; -13 to 125 °F NEMA 4; -13 to 104 °F (-25 to 40 °C) Connect Plus
Protection Underload (dry-run), overload/locked pump, under/over voltage, open and short circuit, rapid cycle, soft start; phase loss and imbalance on three-phase models
Connectivity FE Connect mobile app on SubDrive Connect and Connect Plus; SubDrive Utility is not equipped with the app
Multiple drives Lead/lag/alternate: accessory for 2 drives on Utility and NEMA 4 models; built-in for 2 drives on SubDrive Connect, up to 8 on Connect Plus
MagForce SubDrive Connect and Connect Plus run Franklin MagForce high efficiency permanent magnet motors

Source: Franklin Electric Drives, Controls and Protection Residential and Light Commercial Product Catalog (M5136 04-25), pp. 3-13.

Models & Ratings
Full table · 21 builds
Order No. Drive Enclosure Input Output to motor Pump it runs (60 Hz) Pressure control Size (approx.)
5870202003 SubDrive Utility UT2W NEMA 3R 115/208/230 +/- 10% VAC, single-phase Single-phase (2-wire) 1/3 hp, 0.25 kW with 244502-Series motor; 1/2 hp, 0.37 kW with 244504- or 244505-Series motor; 3/4 hp, 0.55 kW with 244507-Series motor; 1.0 hp, 0.75 kW with 244508-Series motor; 1.5 hp, 1.1 kW with 244309-Series motor Pressure sensor 9-3/4 in x 16-3/4 in x 5-1/4 in
5870202003XD SubDrive Utility UT2W NEMA 3R 115/208/230 +/- 10% VAC, single-phase Single-phase (2-wire) 1/3 hp, 0.25 kW with 244502-Series motor; 1/2 hp, 0.37 kW with 244504- or 244505-Series motor; 3/4 hp, 0.55 kW with 244507-Series motor; 1.0 hp, 0.75 kW with 244508-Series motor; 1.5 hp, 1.1 kW with 244309-Series motor Analog pressure transducer 9-3/4 in x 16-3/4 in x 5-1/4 in
5870202303 SubDrive Utility UT3P NEMA 3R 230 +/- 10% VAC, single-phase Single-phase (3-wire) or three-phase 1/2 hp (0.37 kW) pump with 214505-series motor; 3/4 hp (0.55 kW) pump with 214507-series motor; 1.0 hp (0.75 kW) pump with 214508-series motor; 1.5 hp (1.1 kW) pump with 224300-series motor; 2.0 hp (1.5 kW) pump with 224301-series motor; 1/2 hp (0.37 kW) pump with 234511-series motor; 3/4 hp (0.55 kW) pump with 234512-series motor; 1.0 hp (0.75 kW) pump with 234513-series motor; 1.5 hp (1.1 kW) pump with 234514-series motor; 2.0 hp (1.5 kW) pump with 234315-series motor Pressure sensor 9-3/4 in x 16-3/4 in x 5-1/4 in
5870202303XD SubDrive Utility UT3P NEMA 3R 230 +/- 10% VAC, single-phase Single-phase (3-wire) or three-phase 1/2 hp (0.37 kW) pump with 214505-series motor; 3/4 hp (0.55 kW) pump with 214507-series motor; 1.0 hp (0.75 kW) pump with 214508-series motor; 1.5 hp (1.1 kW) pump with 224300-series motor; 2.0 hp (1.5 kW) pump with 224301-series motor; 1/2 hp (0.37 kW) pump with 234511-series motor; 3/4 hp (0.55 kW) pump with 234512-series motor; 1.0 hp (0.75 kW) pump with 234513-series motor; 1.5 hp (1.1 kW) pump with 234514-series motor; 2.0 hp (1.5 kW) pump with 234315-series motor Analog pressure transducer 9-3/4 in x 16-3/4 in x 5-1/4 in
5870205313C SubDrive20 Connect NEMA 3R 208/230 VAC +/- 10%, single-phase Single-phase (2-wire or 3-wire) OR Three-phase 230 V single-phase 2-wire motors 1/2-1-1/2 hp (244505, 244507, 244508, 244309 series); single-phase 3-wire motors 1/2-2 hp (214505 to 224301 series); three-phase and MagForce motors per M5136 p. 8 Pressure sensor 9-3/4 in x 19-3/4 in x 5-1/4 in
5870205403C SubDrive30 Connect NEMA 3R 208/230 VAC +/- 10%, single-phase Single-phase (2-wire or 3-wire) OR Three-phase 230 V single-phase 2-wire motors 1/2-1-1/2 hp (244505, 244507, 244508, 244309 series); single-phase 3-wire motors 1/2-2 hp (214505 to 224301 series); three-phase and MagForce motors per M5136 p. 8 Pressure sensor 9-3/4 in x 19-3/4 in x 5-1/4 in
5870205503C SubDrive50 Connect NEMA 3R 208/230 +/- 10% VAC, single-phase Single-phase (3-wire) OR three-phase Single-phase 3-wire motors 1/2-3 hp (214505 to 224302 series); three-phase and MagForce motors per M5136 p. 8 Analog transducer 26 1/8 in x 15 3/8 in x 11 1/2 in
5870203114 MonoDrive NEMA 4 190-260 VAC, single-phase Single-phase (3-wire) 0.5 hp (0.37 kW) pump with 214505-Series motor; 0.75 hp (0.55 kW) pump with 214507-Series motor; 1.0 hp (0.75 kW) pump with 214508-Series motor Pressure sensor 17-1/2 in x 16-3/8 in x 11-3/8 in
5870204114 MonoDriveXT NEMA 4 190-260 VAC, single-phase Single-phase (3-wire) 1.5 hp (1.1 kW) pump with 224300-Series motor; 2.0 hp (1.5 kW) pump with 224301-Series motor Pressure sensor 17-1/2 in x 16-3/8 in x 11-3/8 in
5870203384 SubDrive75 NEMA 4 190-260 VAC, single-phase Three-phase (3-wire) 3/4 hp (0.55 kW) [default]; 1.0 hp (0.75 kw); 1.5 hp (1.1 kW) Pressure sensor 17-1/2 in x 16-3/8 in x 11-3/8 in
5870204104 SubDrive100 NEMA 4 190-260 VAC, single-phase Three-phase (3-wire) 1 hp (0.75 kW) [default]; 1.5 hp (1.1 kW); 2 hp (1.5 kW) Pressure sensor 17-1/2 in x 16-3/8 in x 11-3/8 in
5870204154 SubDrive150 NEMA 4 190-260 VAC, single-phase Three-phase (3-wire) 1.5 hp (1.1 kW) [default]; 2 hp (1.5 kW); 3 hp (2.2 kW) Pressure sensor 17-1/2 in x 16-3/8 in x 11-3/8 in
5870206300 SubDrive300 NEMA 4 220-260 VAC, single-phase Three-phase (3-wire) 3 hp (2.2 kW) [default]; 5 hp (3.7 kW) Pressure sensor 19-7/8 in x 17-1/2 in x 14-1/4 in
SDCP-SUB0723 SubDrive Connect Plus NEMA 3R 230 V, single- or three-phase Three-phase 1-phase input: 3 HP / 11 A; 3-phase input: 7.5 HP / 28 A rated output Analog transducer Frame 2: 10.7 x 9.4 x 27.2 in
SDCP-SUB1043 SubDrive Connect Plus NEMA 3R 460 V, three-phase Three-phase 3-phase input: 10 HP / 18 A rated output Analog transducer Frame 2: 10.7 x 9.4 x 27.2 in
SDCP-SUB1023 SubDrive Connect Plus NEMA 3R 230 V, single- or three-phase Three-phase 1-phase input: 5 HP / 18 A; 3-phase input: 10 HP / 37 A rated output Analog transducer Frame 2: 10.7 x 9.4 x 27.2 in
SDCP-SUB1543 SubDrive Connect Plus NEMA 3R 460 V, three-phase Three-phase 3-phase input: 15 HP / 26 A rated output Analog transducer Frame 2: 10.7 x 9.4 x 27.2 in
SDCP-SUB1523 SubDrive Connect Plus NEMA 3R 230 V, single- or three-phase Three-phase 1-phase input: 7.5 HP / 27 A; 3-phase input: 15 HP / 48 A rated output Analog transducer Frame 3: 13.8 x 9.9 x 34.3 in
SDCP-SUB2043 SubDrive Connect Plus NEMA 3R 460 V, three-phase Three-phase 3-phase input: 20 HP / 31 A rated output Analog transducer Frame 2: 10.7 x 9.4 x 27.2 in
SDCP-SUB2543 SubDrive Connect Plus NEMA 3R 460 V, three-phase Three-phase 3-phase input: 25 HP / 39 A rated output Analog transducer Frame 3: 13.8 x 9.9 x 34.3 in
SDCP-SUB3043 SubDrive Connect Plus NEMA 3R 460 V, three-phase Three-phase 3-phase input: 30 HP / 46 A rated output Analog transducer Frame 3: 13.8 x 9.9 x 34.3 in

Source: Franklin Electric Drives, Controls and Protection Residential and Light Commercial Product Catalog (M5136 04-25), pp. 5-13 (specifications and ordering information); order numbers from the Franklin price list. Size is outer dimensions as Franklin prints them.

For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
© Watermain Supply — A division of E4 Industrial LLC
Data Sheet
Drives, Controls and Protection Residential and Light Commercial Catalog (M5136)SubDrive Connect Owner’s ManualSubDrive Utility UT3P Owner’s ManualSubDrive and MonoDrive NEMA 1 and NEMA 4 Installation ManualSubDrive and MonoDrive NEMA 4 Brochure (M5243)SubDrive QuickPAK Constant Pressure Systems Catalog (M5008)
Videos

Product videos are being added to this listing. For a walkthrough in the meantime, email sales@watermainsupply.com.

Share E-mail

You May Also Like
