Included: the Pumptec unit listed under the order number shown.
QD Pumptec needs a Franklin 3-wire QD relay control box. It plugs into the box in minutes, without additional wiring or tools; Pumptec and Pumptec-Plus mount indoors or outdoors beside the controls.

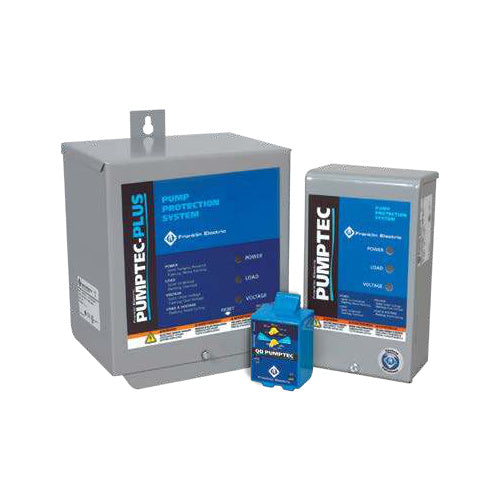

Franklin’s Pumptec family monitors motor load and supply voltage and shuts the pump down before a fault damages it. QD Pumptec, Pumptec and Pumptec-Plus are single-phase load monitoring devices designed specifically for Franklin single-phase motors.

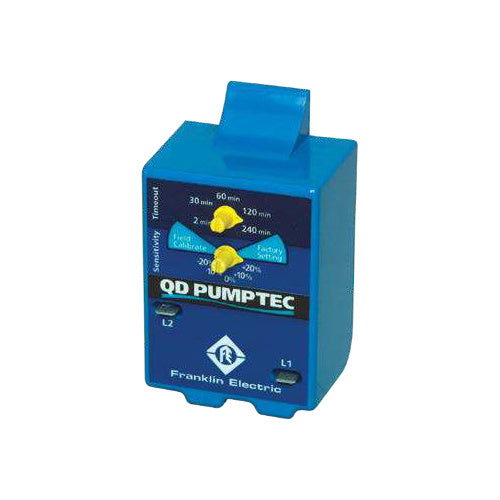

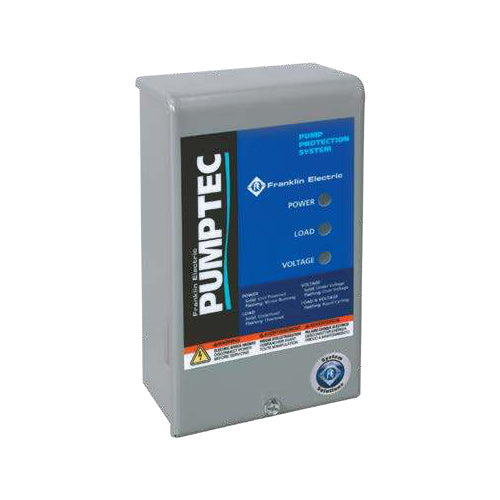

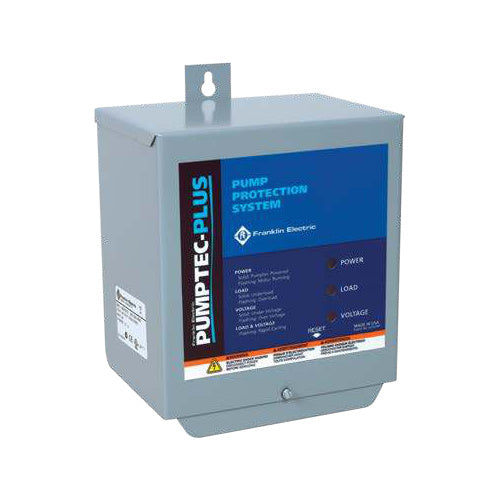

QD Pumptec is a solid state device built for Franklin QD relay control boxes: it shuts off a Franklin single-phase 3-wire motor on a fault, with knobs for sensitivity and time-out, or a field calibration to your system. Pumptec is a microcomputer-based device for 2-wire and 3-wire single-phase motors of 1/3 to 1-1/2 HP: it guards against dry well conditions, waterlogged tanks and abnormal line voltage, and its cover lights show system status. Pumptec-Plus extends the protection to 1/2 to 5 HP.
Franklin warrants these products for 1 year from the date of installation, but in no event more than 2 years from the date of manufacture. Franklin’s limited warranty does not cover performance affected by abrasive materials, corrosion due to aggressive conditions or improper voltage supply.
Source: Franklin Electric Pumptec and Pumptec-Plus Owner’s Manuals.
| Specification | QD Pumptec | Pumptec | Pumptec-Plus |
|---|---|---|---|
| Model number | 5800070600 | 5800020610 | 5800060100 (60 Hz) |
| HP rating | 1/3 to 1 | 1/3 to 1.5 | 1/2 to 5 |
| Voltage rating | 230 V | 115 V / 230 V | 230 V (60 Hz) |
| Frequency | 60 Hz | 50/60 Hz | 50 or 60 Hz |
| Mounting | Inside Franklin QD control box | Indoor/outdoor | Indoor/outdoor |
| Indicator lights | No | Yes — load/voltage/status | Yes — load/voltage/status |
| Remote (IR) accessible | No | Yes | No |
| Response time | 3 seconds | 3 seconds | 3 seconds |
| Reset time | Adjustable 2-240 min | Adjustable 2-120 min | Adjustable 1-256 min |
| Alarm contact rating | 1 A, 115 V / 230 V | ||
| Under/overvoltage time-out | 2 minutes | 2 minutes | 2 minutes |
| Operating temperature | -15 to 130 °F | -15 to 130 °F | -15 to 140 °F |
| Sensitivity adjustment | ±20% | 40 to 90% SFL | |
| Overvoltage / undervoltage trip | +10% / -10% | +10% / -10% | +10% / -10% |
Source: Franklin Electric Drives, Controls and Protection Residential and Light Commercial Product Catalog (M5136 04-25), p. 18. Pumptec-Plus is also built for 50 Hz (5800060502, not on this listing).
| Condition | QD Pumptec | Pumptec | Pumptec-Plus |
|---|---|---|---|
| Air or gas locked pump (cavitation) | • | • | • |
| Broken shaft or coupling | • | • | • |
| Clogged well screen | • | • | • |
| Drop in water level | • | • | • |
| Faulty check valve | • | • | |
| High voltage | • | • | • |
| Low voltage | • | • | • |
| Low yield wells | • | • | • |
| Rapid cycling | • | • | |
| Water logged tank | • | • | |
| Worn pump parts | • | • | • |
Source: Franklin Electric Drives, Controls and Protection Residential and Light Commercial Product Catalog (M5136 04-25), p. 17.
