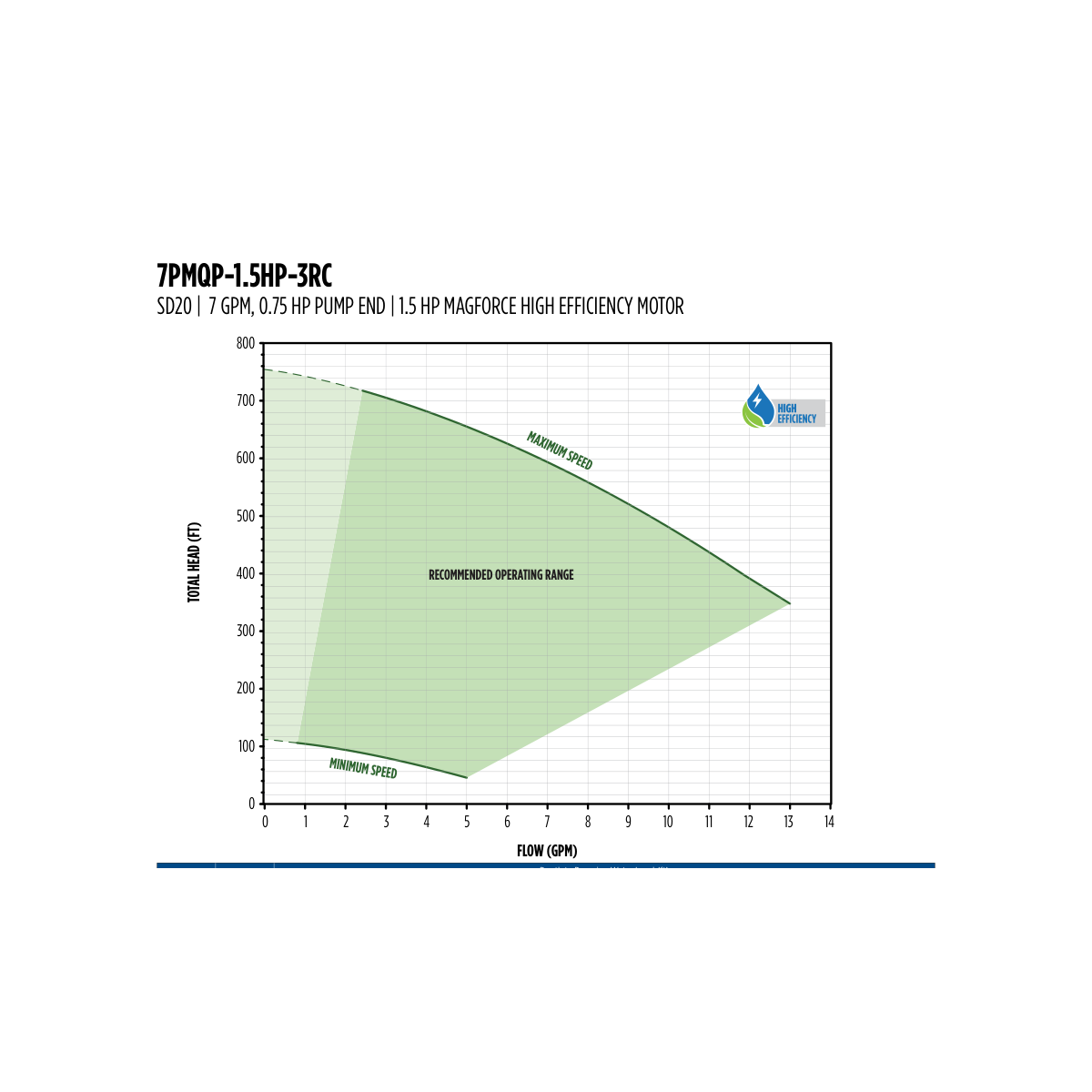

Franklin Electric 7PMQP-1.5HP-3RC SubDrive QuickPAK performance curve

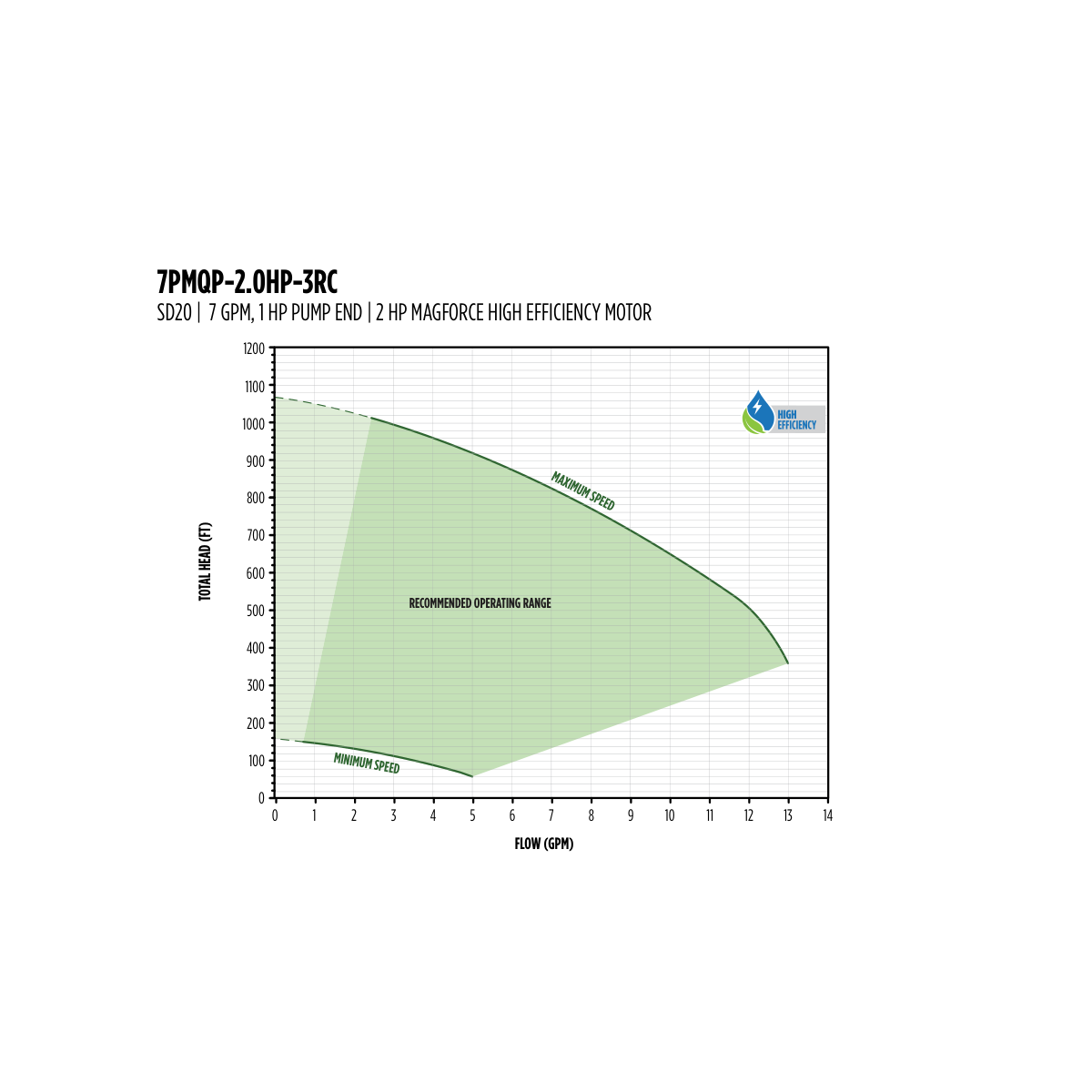

Franklin Electric 7PMQP-2.0HP-3RC SubDrive QuickPAK performance curve

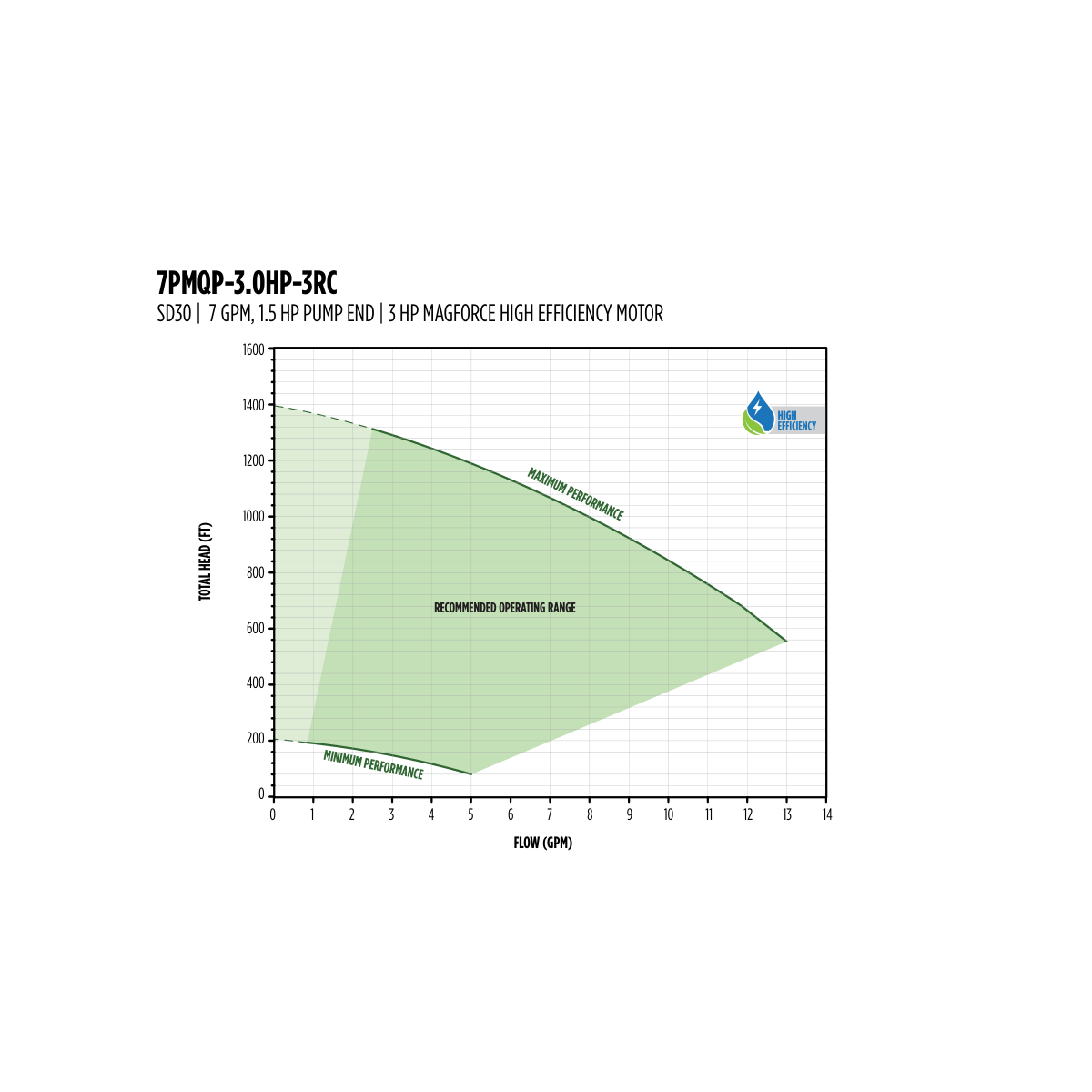

Franklin Electric 7PMQP-3.0HP-3RC SubDrive QuickPAK performance curve

Franklin Electric 10PMQP-1.5HP-3RC SubDrive QuickPAK performance curve

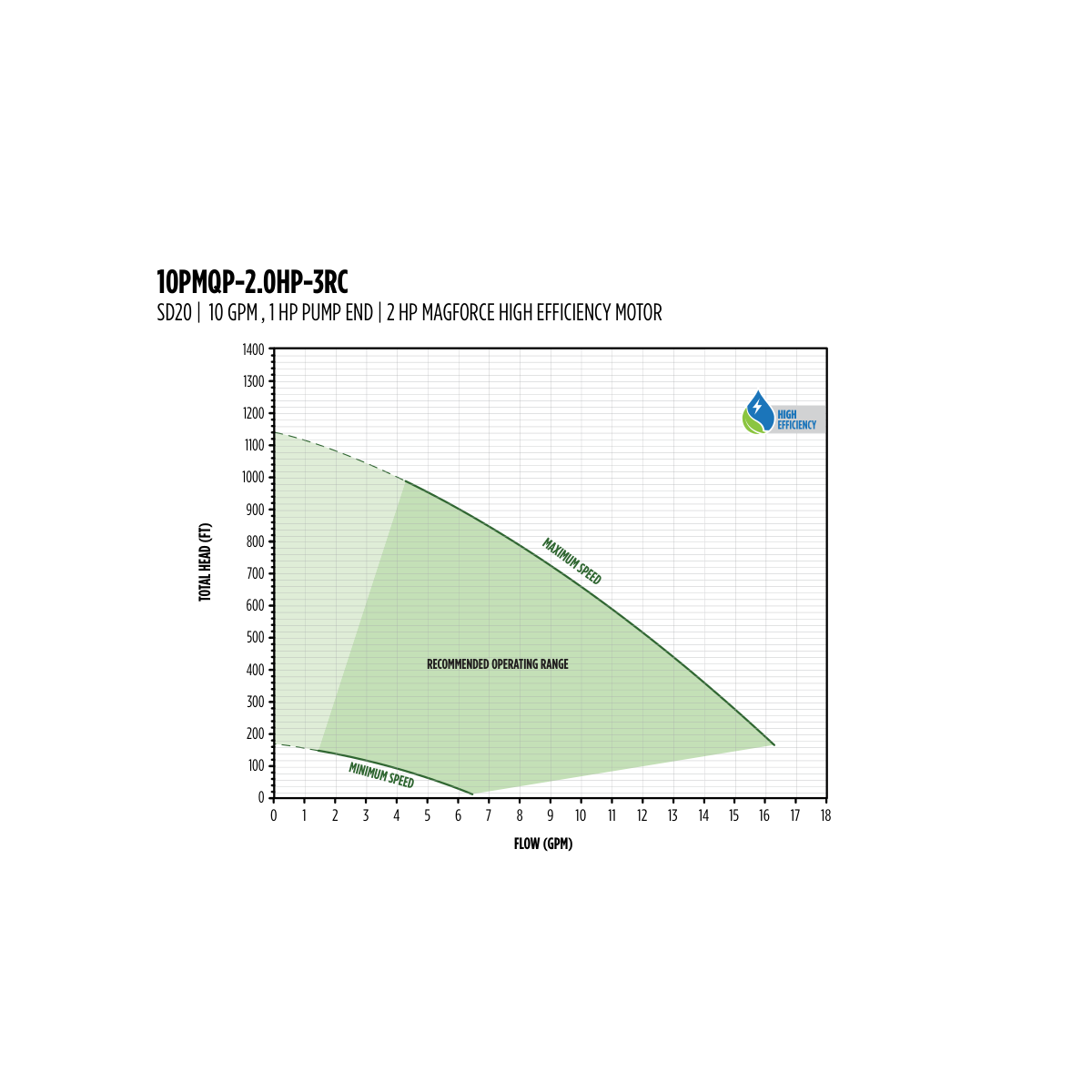

Franklin Electric 10PMQP-2.0HP-3RC SubDrive QuickPAK performance curve

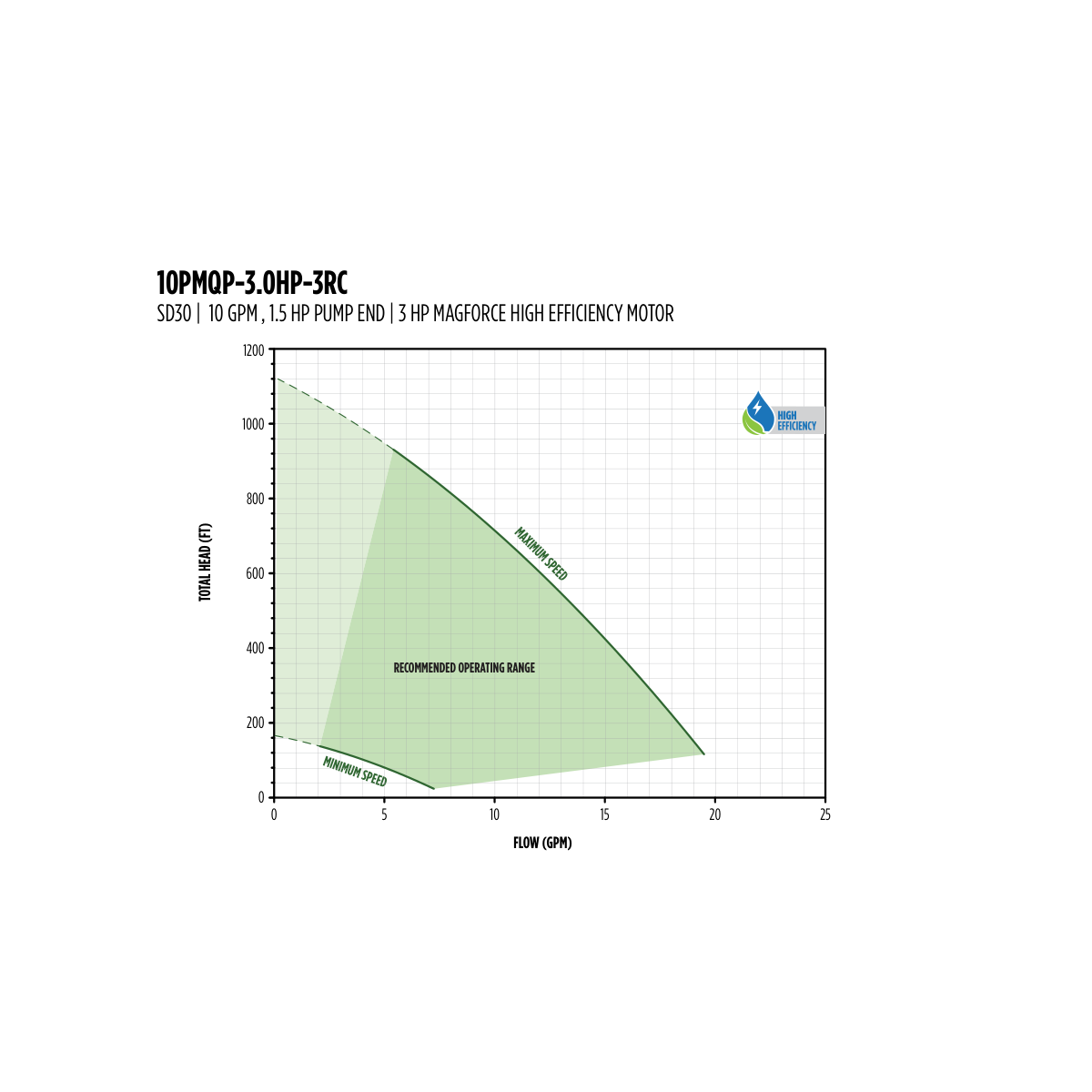

Franklin Electric 10PMQP-3.0HP-3RC SubDrive QuickPAK performance curve

Franklin Electric 15PMQP-1.5HP-3RC SubDrive QuickPAK performance curve

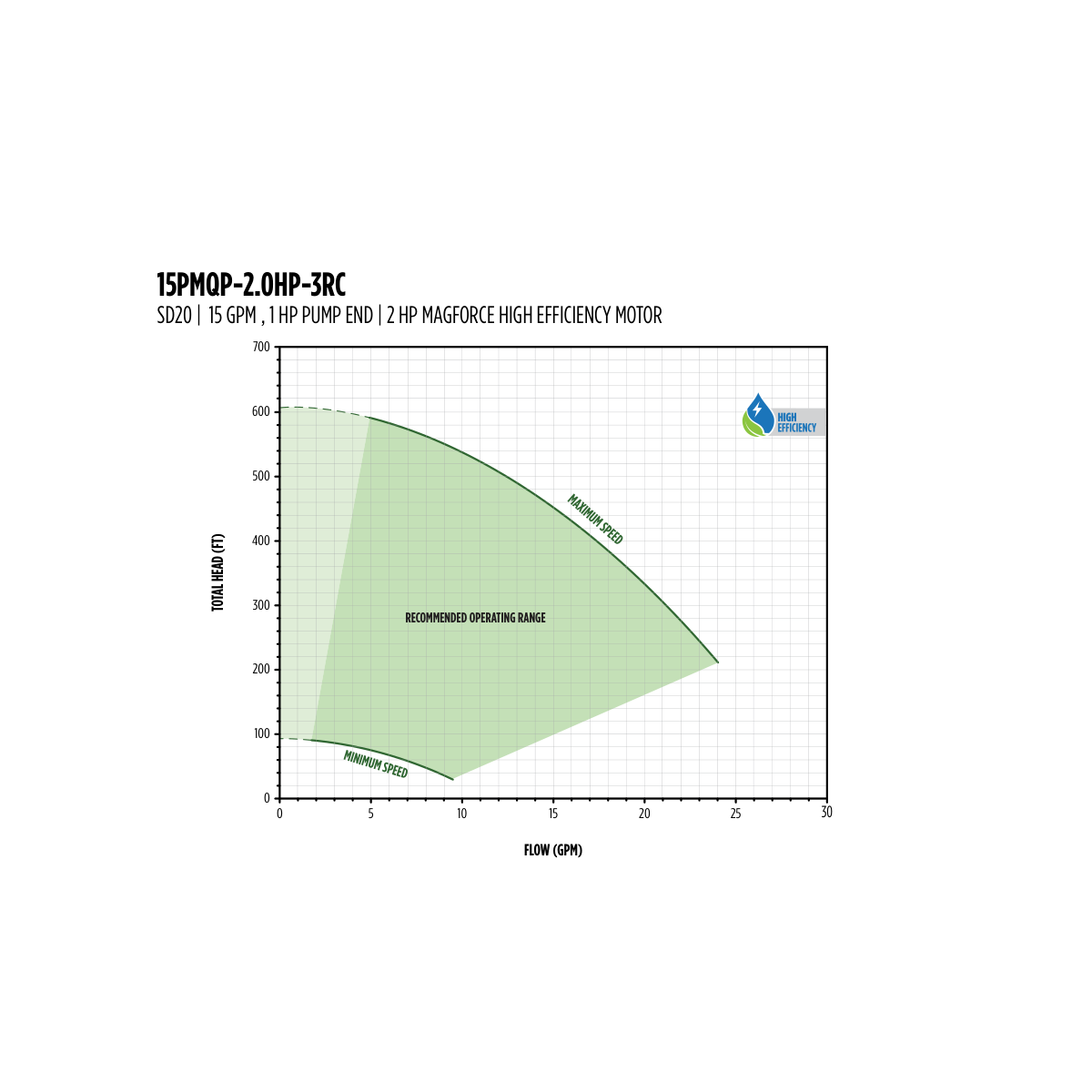

Franklin Electric 15PMQP-2.0HP-3RC SubDrive QuickPAK performance curve

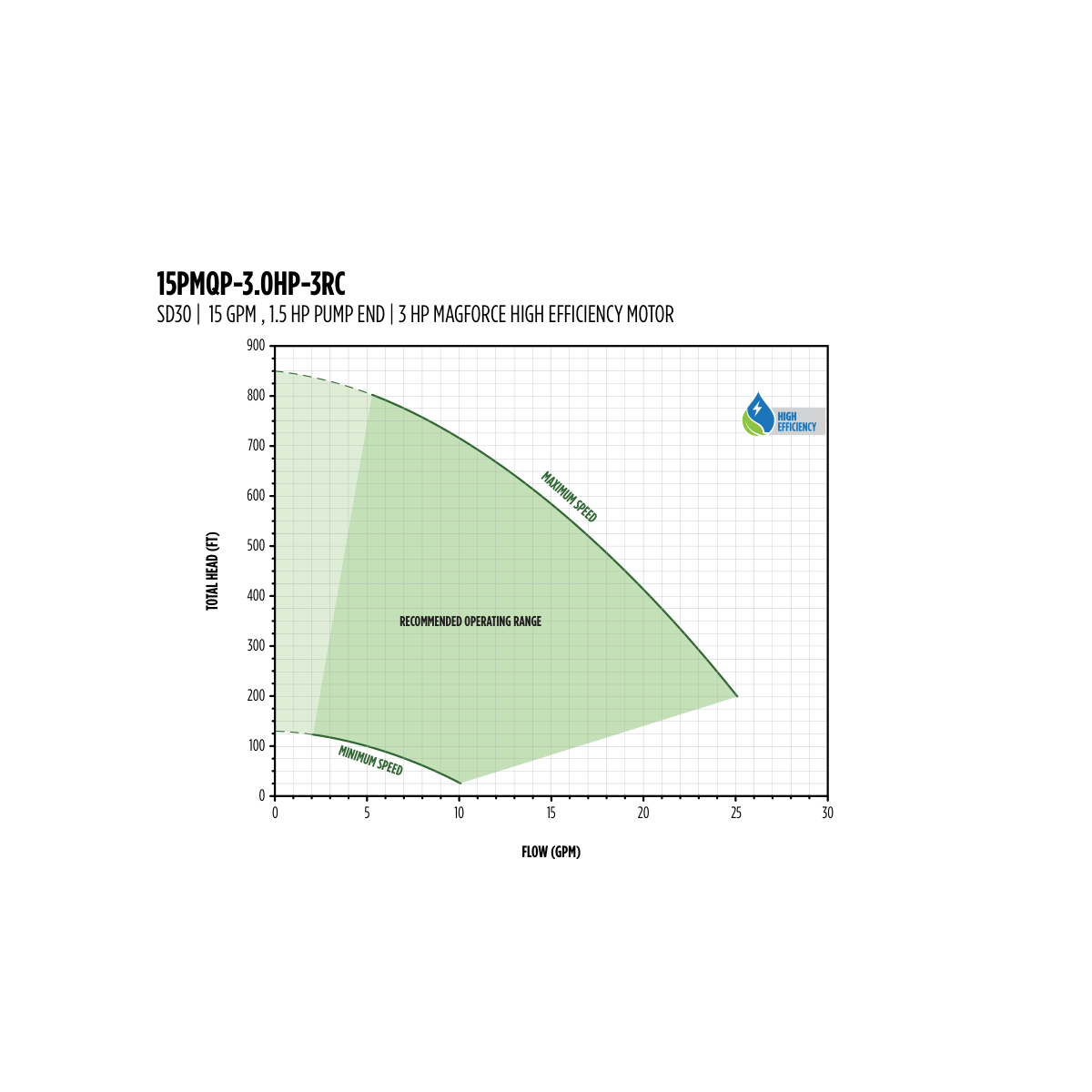

Franklin Electric 15PMQP-3.0HP-3RC SubDrive QuickPAK performance curve

Franklin Electric 20PMQP-1.5HP-3RC SubDrive QuickPAK performance curve

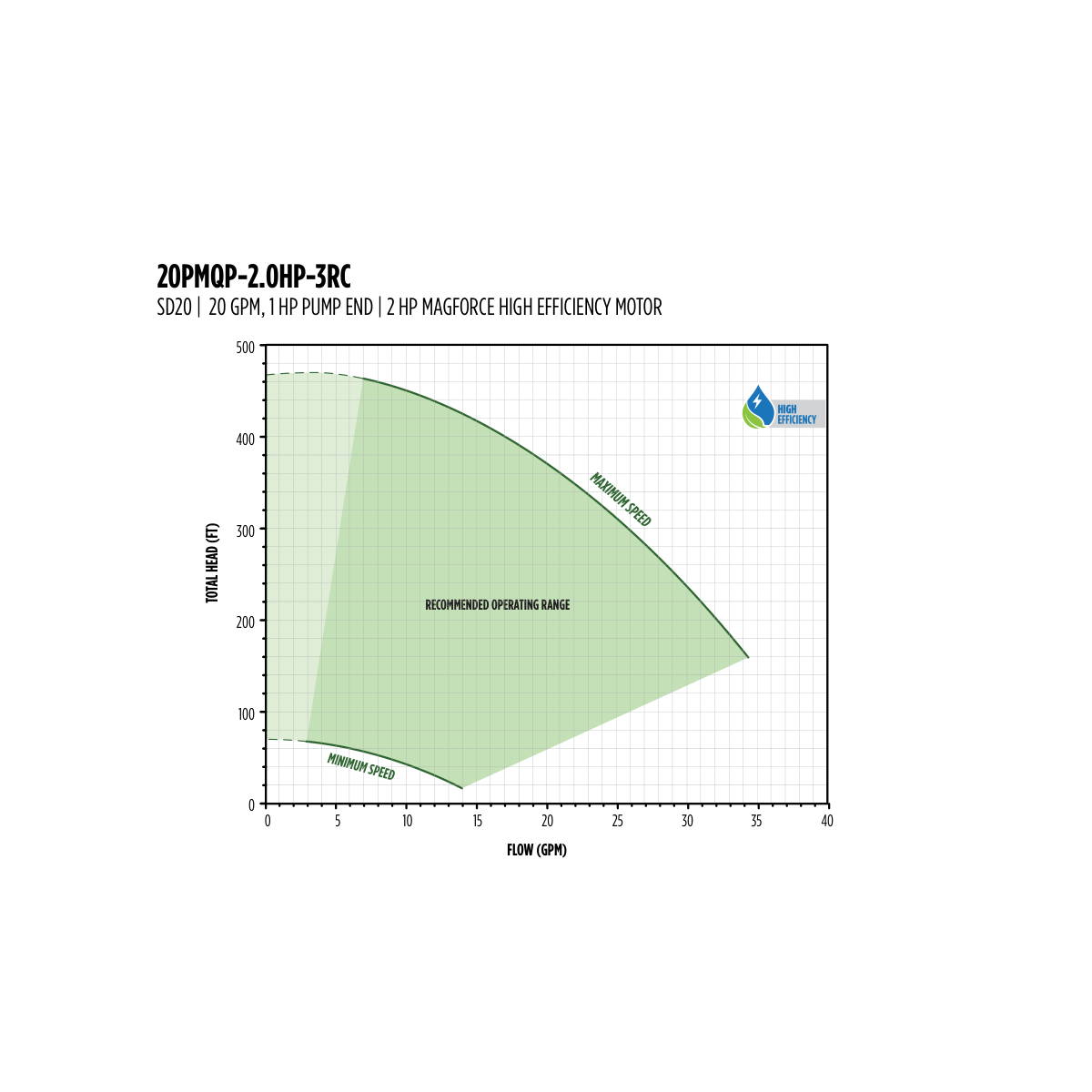

Franklin Electric 20PMQP-2.0HP-3RC SubDrive QuickPAK performance curve

Franklin Electric 20PMQP-3.0HP-3RC SubDrive QuickPAK performance curve

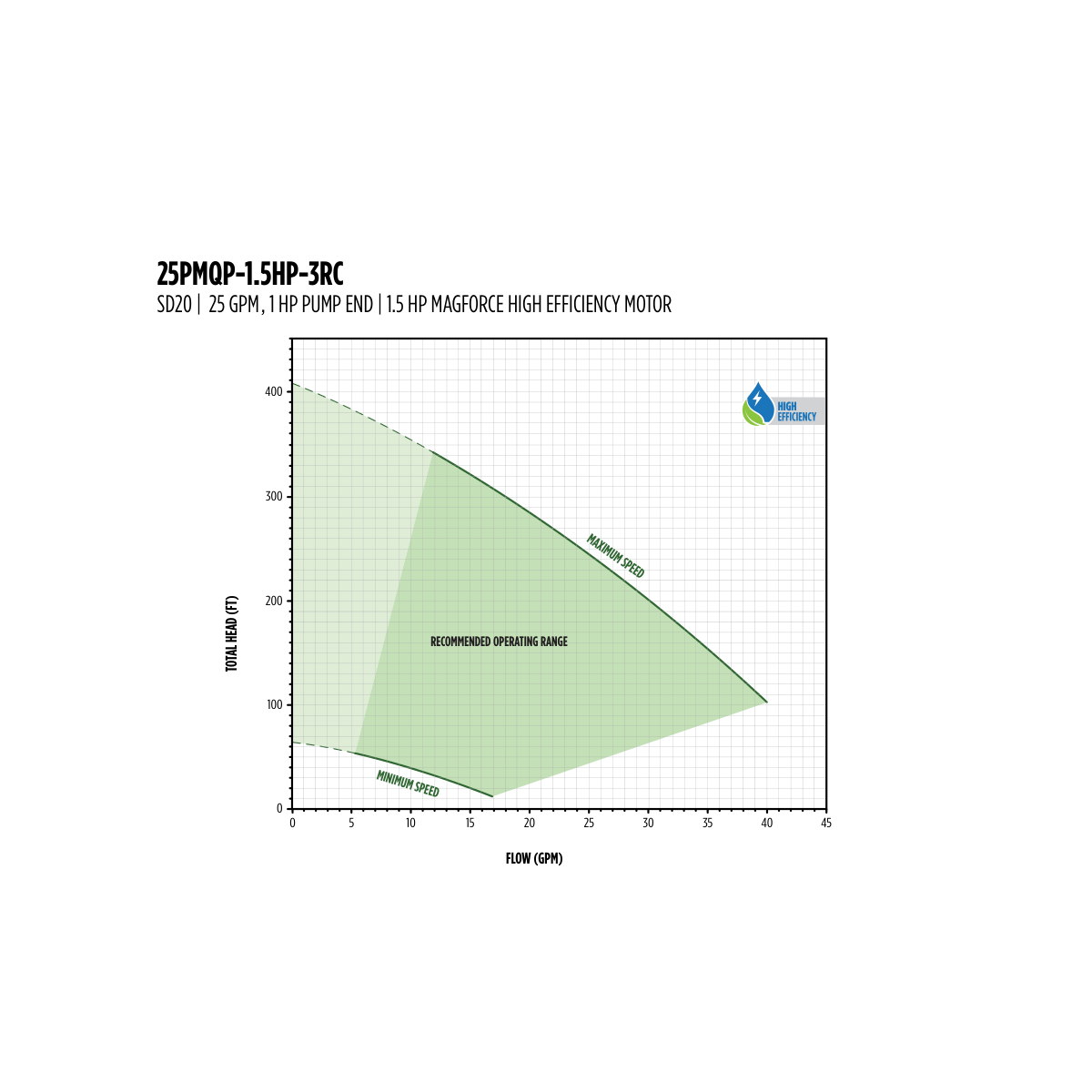

Franklin Electric 25PMQP-1.5HP-3RC SubDrive QuickPAK performance curve

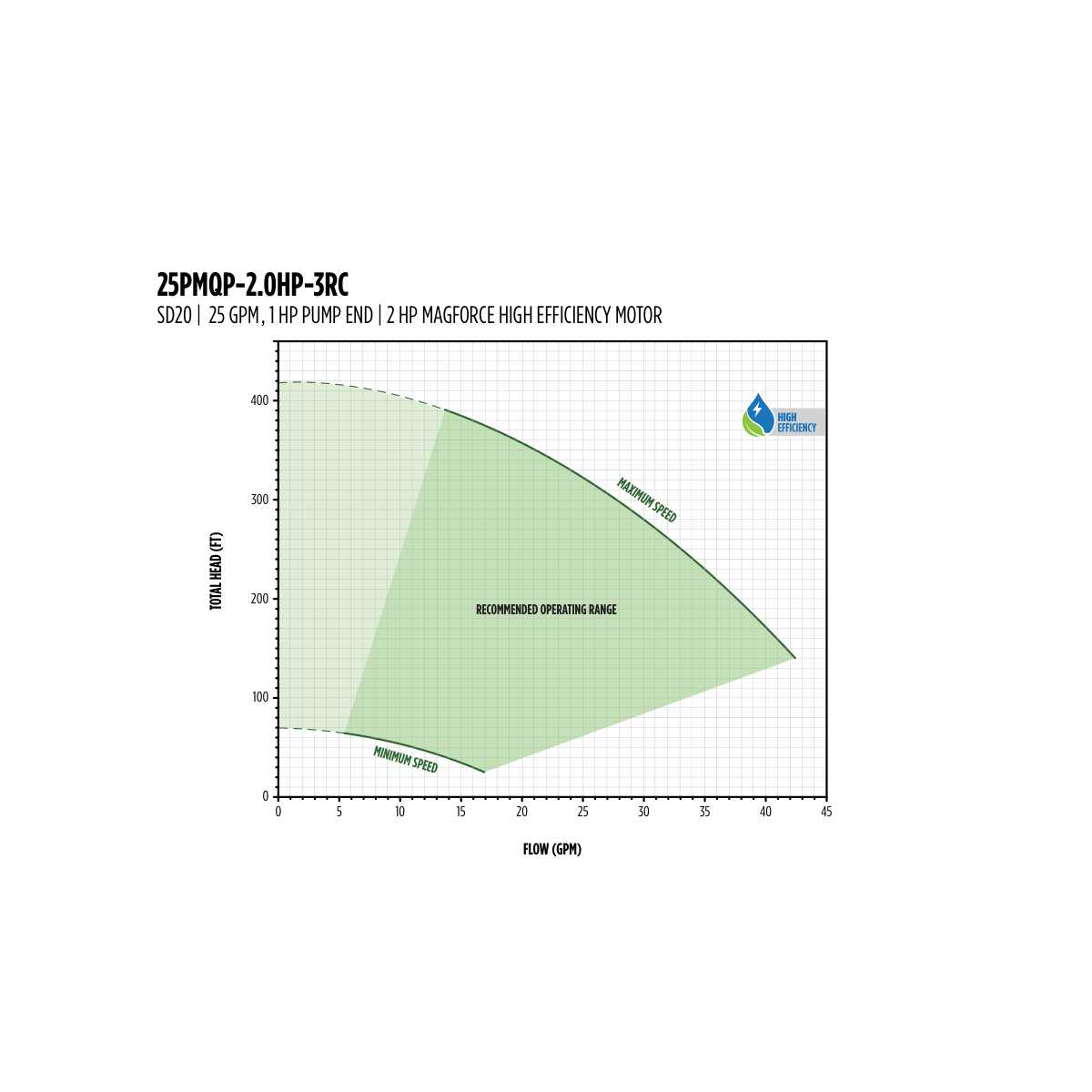

Franklin Electric 25PMQP-2.0HP-3RC SubDrive QuickPAK performance curve

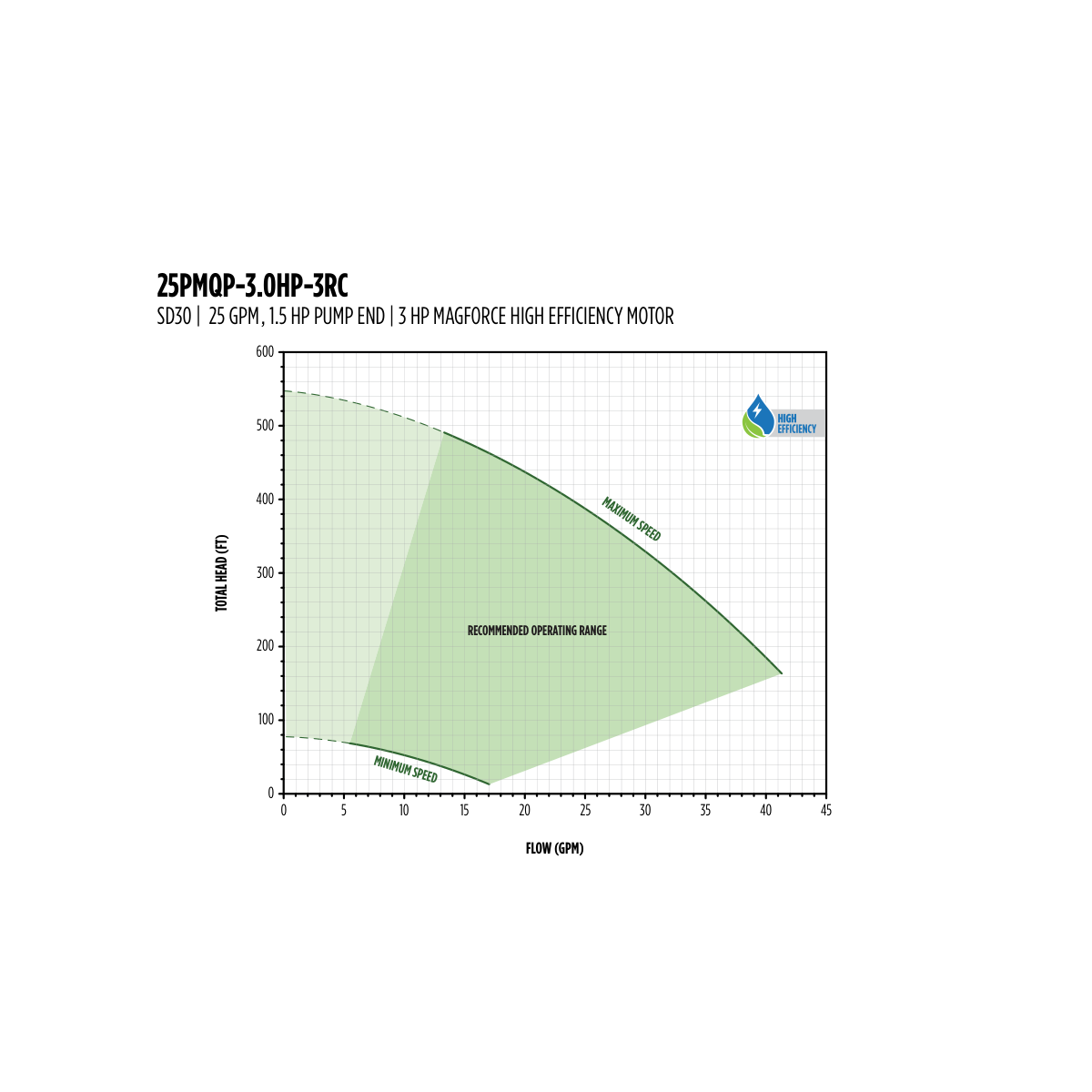

Franklin Electric 25PMQP-3.0HP-3RC SubDrive QuickPAK performance curve

Franklin Electric 35PMQP-1.5HP-3RC SubDrive QuickPAK performance curve

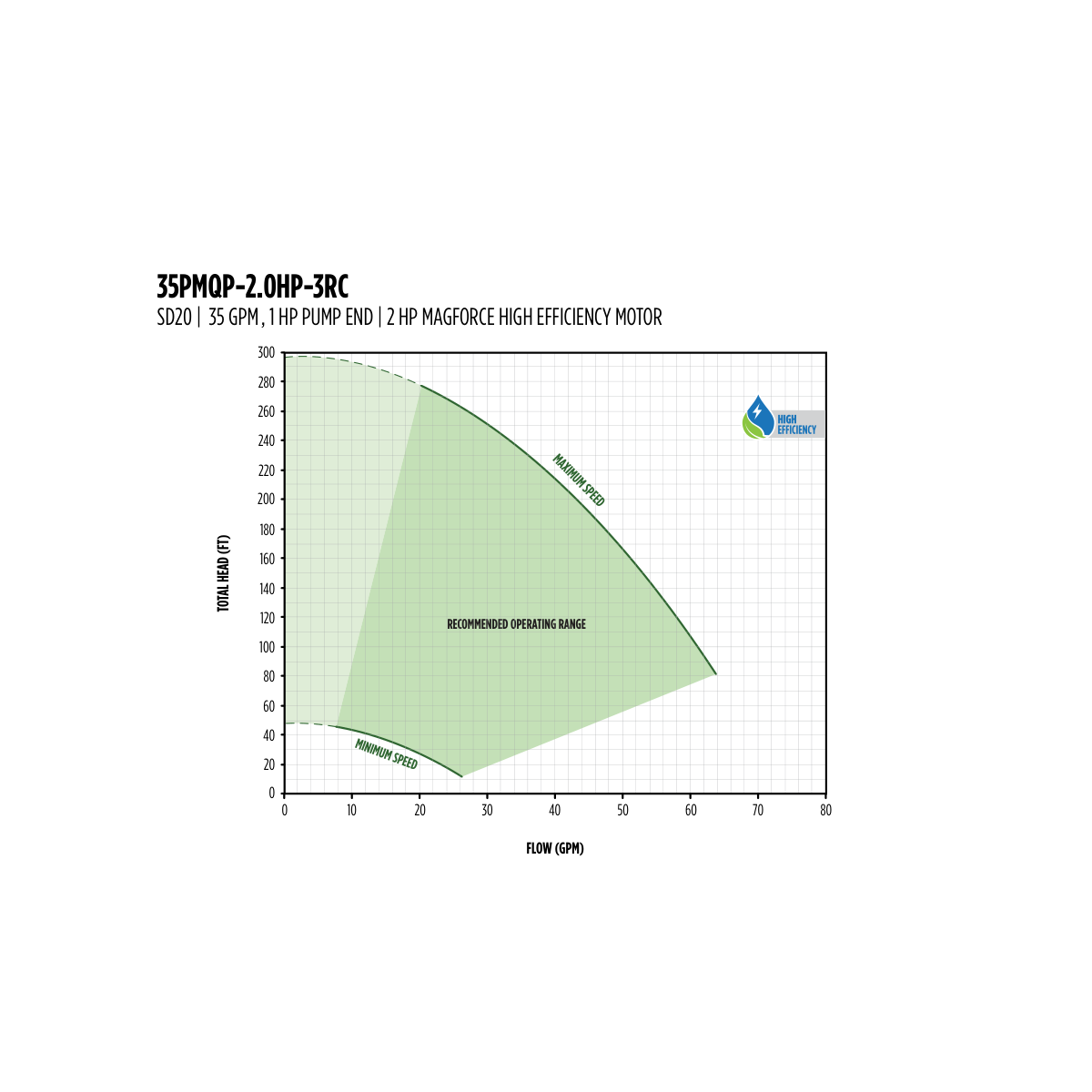

Franklin Electric 35PMQP-2.0HP-3RC SubDrive QuickPAK performance curve

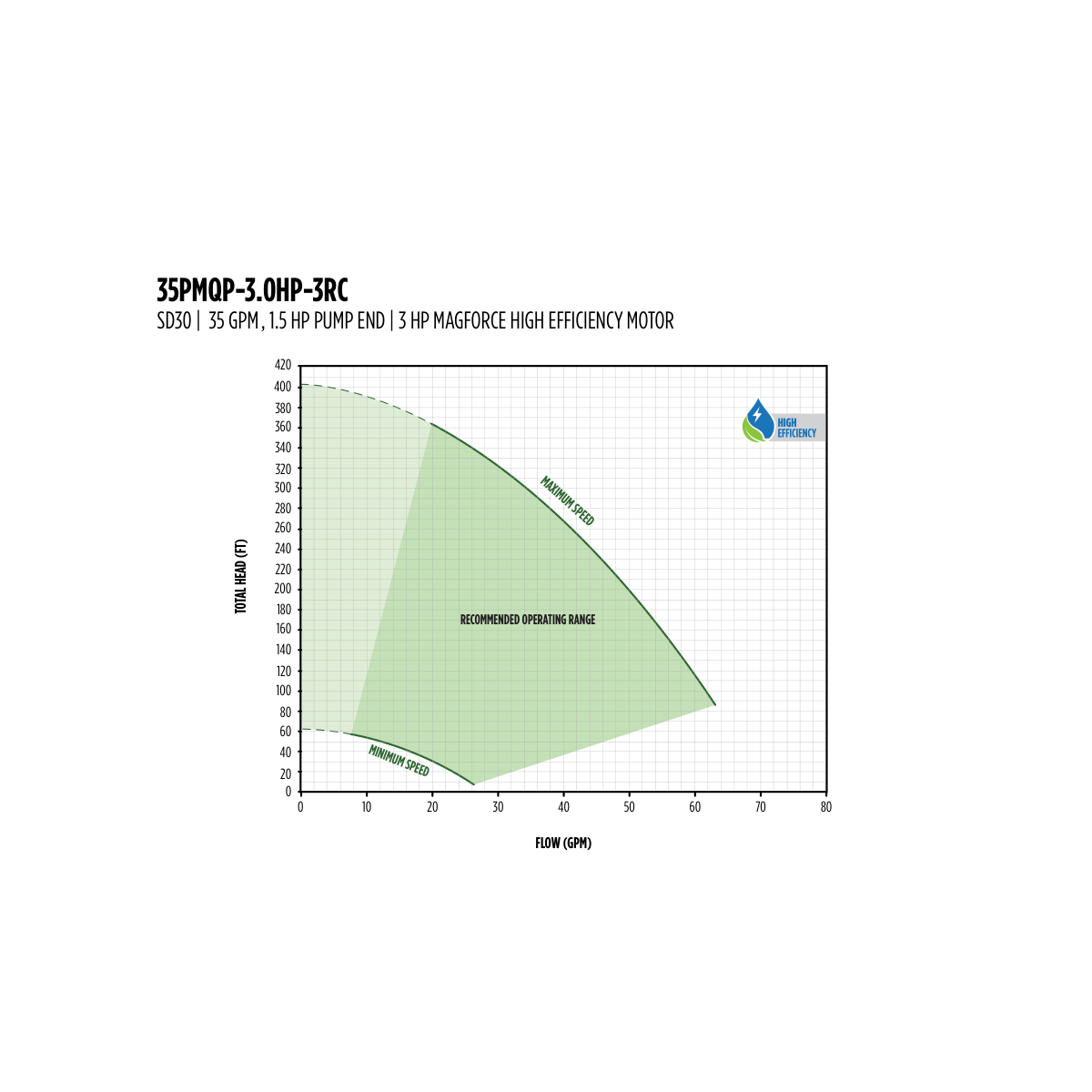

Franklin Electric 35PMQP-3.0HP-3RC SubDrive QuickPAK performance curve

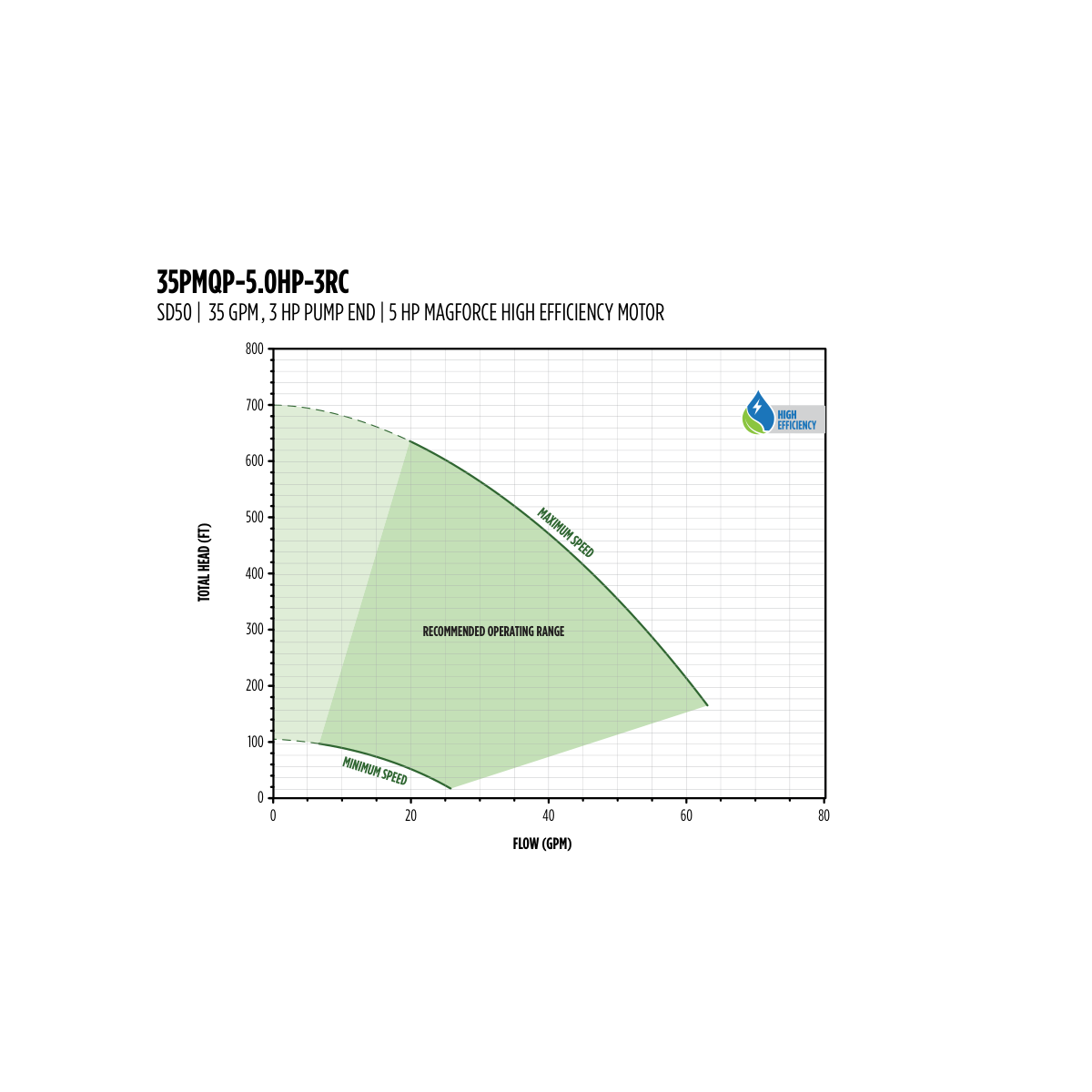

Franklin Electric 35PMQP-5.0HP-3RC SubDrive QuickPAK performance curve

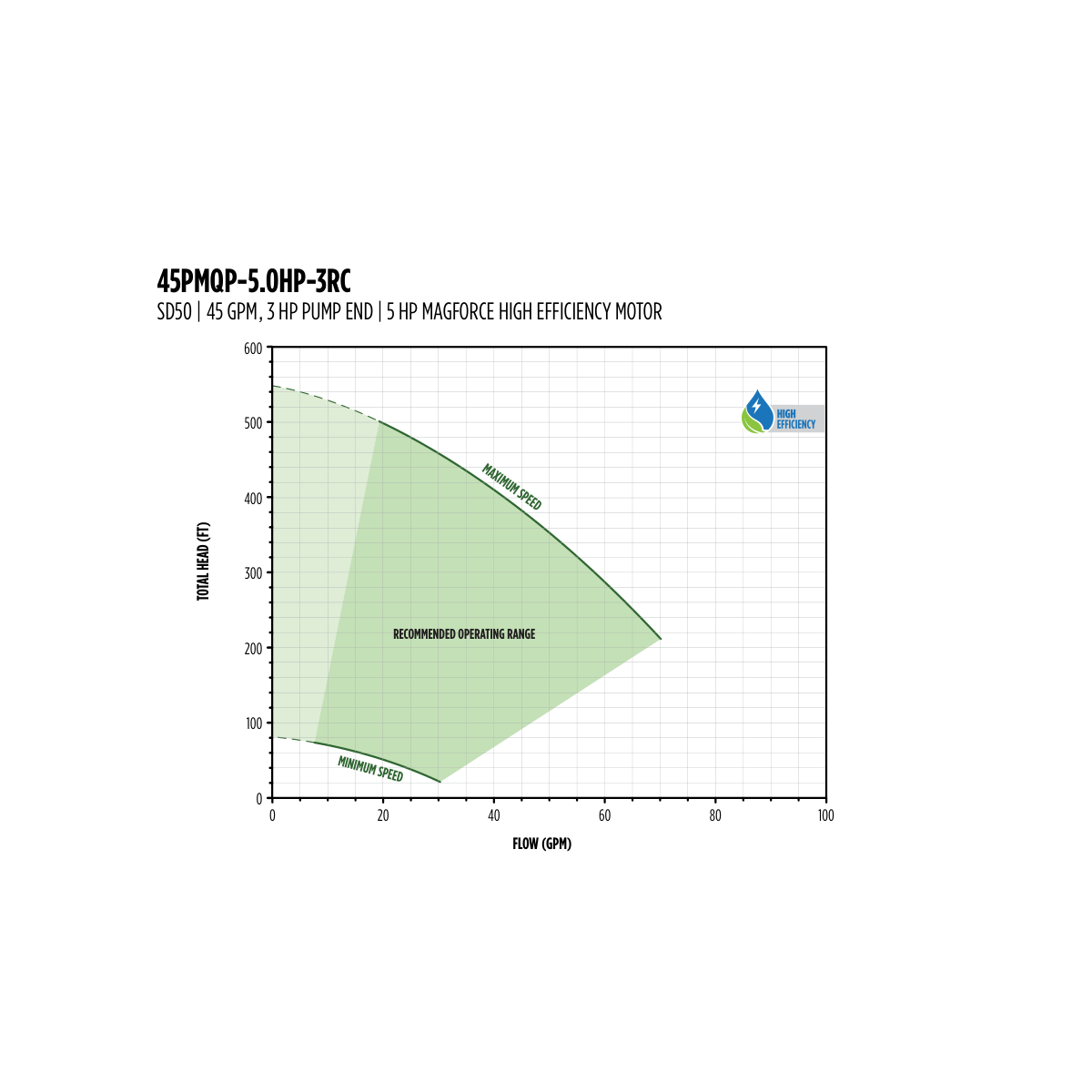

Franklin Electric 45PMQP-5.0HP-3RC SubDrive QuickPAK performance curve

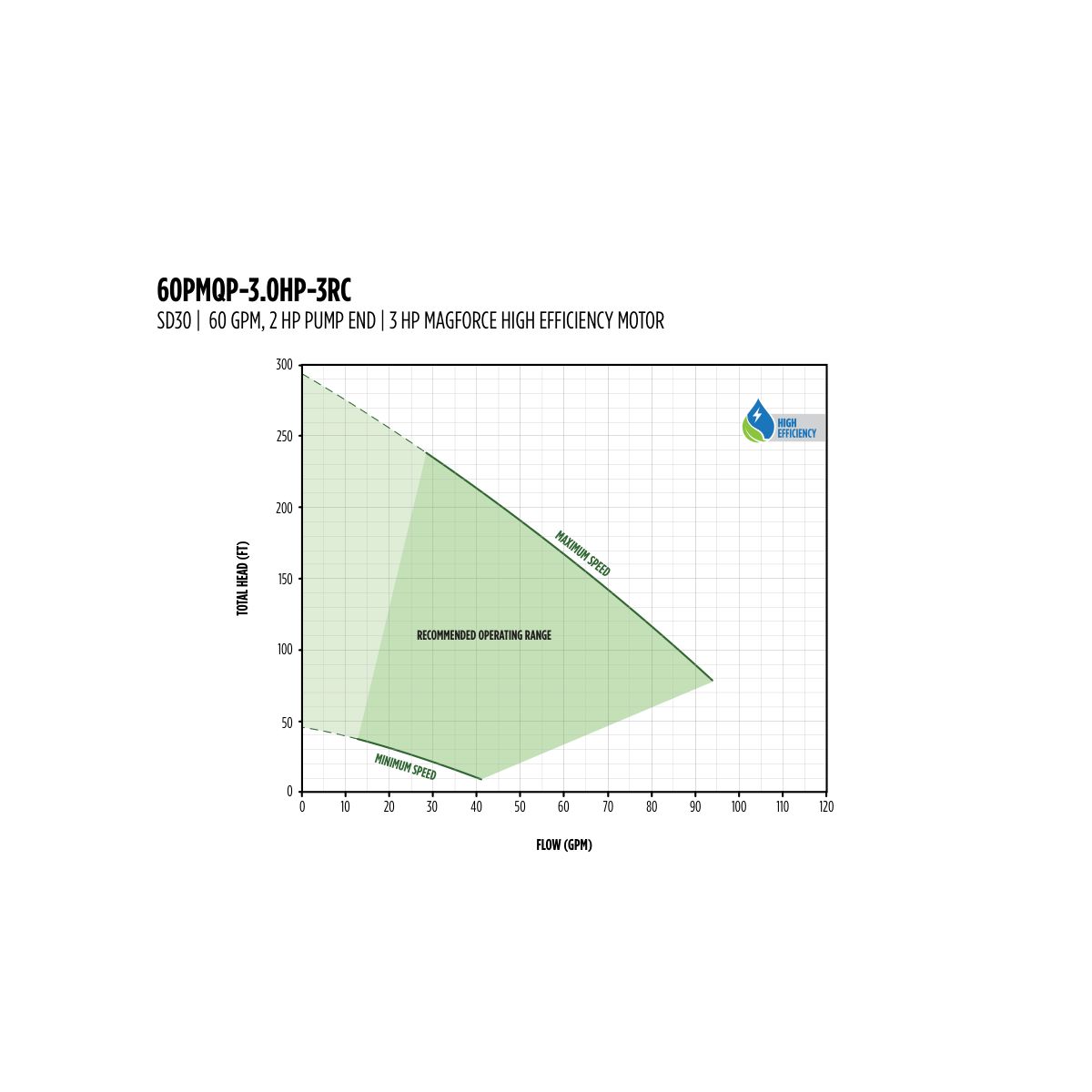

Franklin Electric 60PMQP-3.0HP-3RC SubDrive QuickPAK performance curve

Franklin Electric 60PMQP-5.0HP-3RC SubDrive QuickPAK performance curve

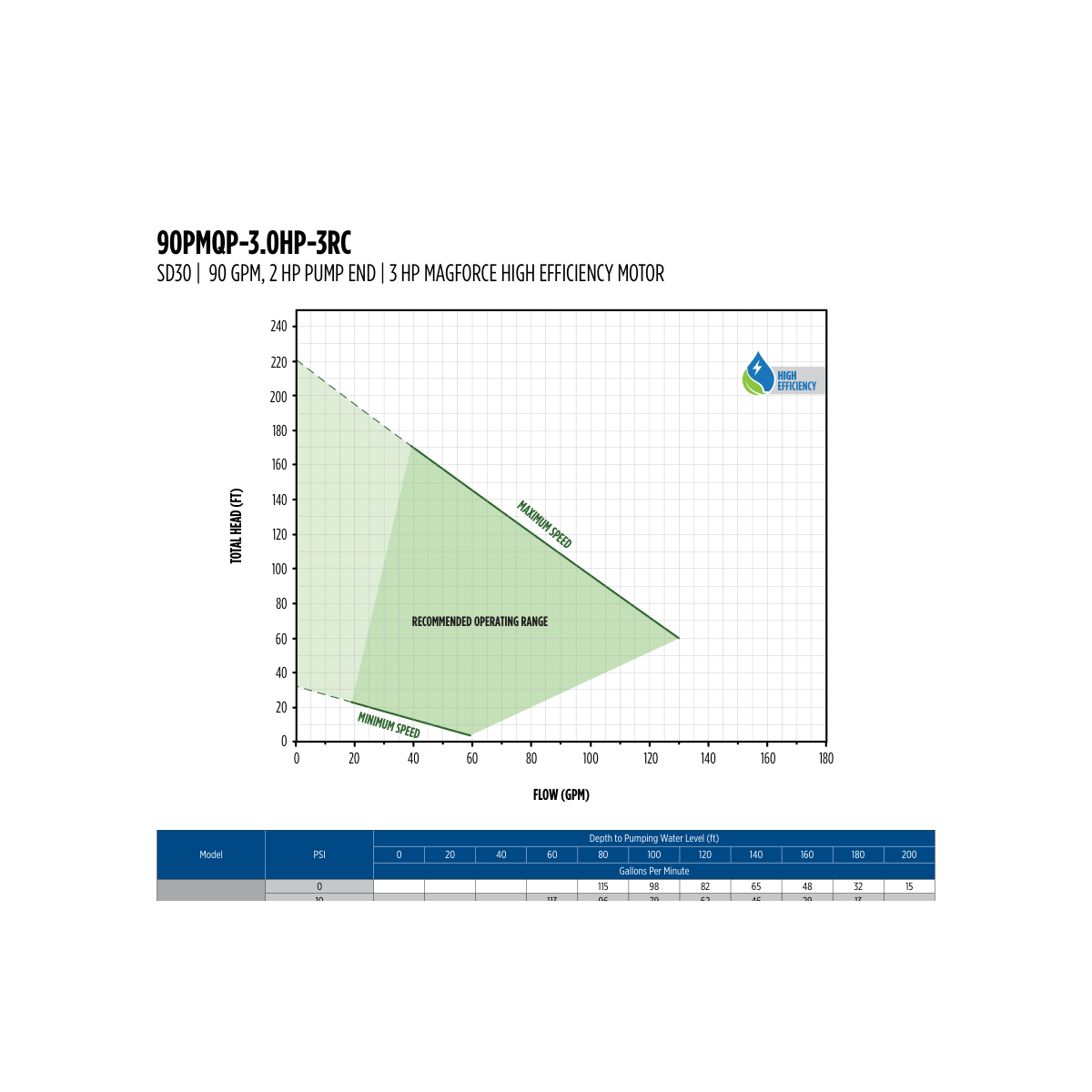

Franklin Electric 90PMQP-3.0HP-3RC SubDrive QuickPAK performance curve

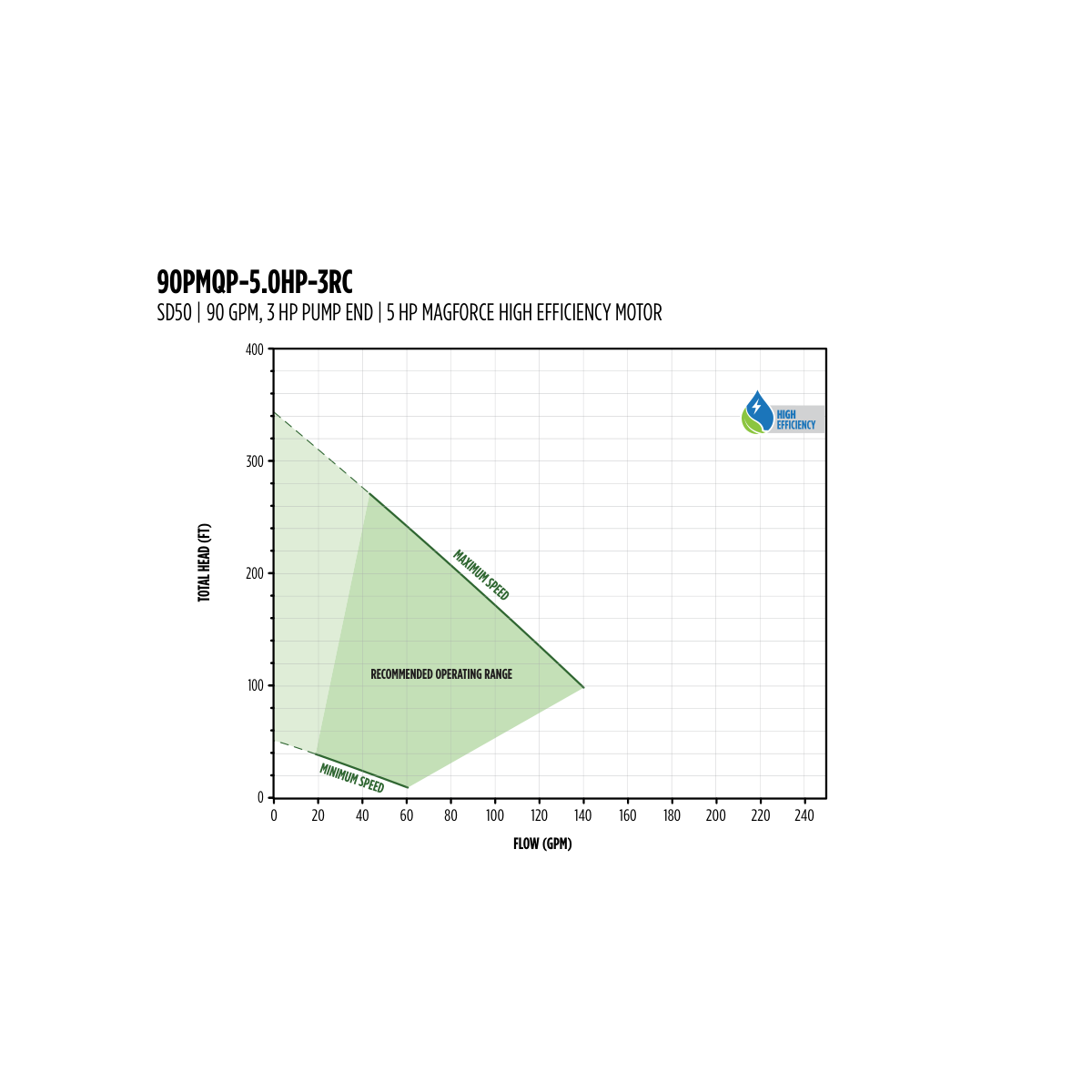

Franklin Electric 90PMQP-5.0HP-3RC SubDrive QuickPAK performance curve

Franklin Electric MagForce 4 in High Efficiency Motors

Franklin Electric MagForce QuickPAK Constant Pressure Well Pump Package

Quantity

Price: $4,182.93

SKU: 93806224C

Weight : 66.0 lb

Vendor : Franklin Electric

Loading locations...

Free Shipping $499 or more

Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available

Description

Franklin Electric · Constant Pressure System

MagForce QuickPAK Constant Pressure Well Pump Package

24 Franklin builds, 7-90 GPM, 1-1/2 to 5 HP MagForce motors.

7-90 GPM · Lifts to 1250 ft at 50 PSI

1-1/2 to 5 HP MagForce Motor

208/230 V 1Ph Supply

SubDrive Connect, NEMA 3R

12-17% More Efficient Motor

FE Connect App

Factory Set 50 PSI

What Ships and What It Needs to Run

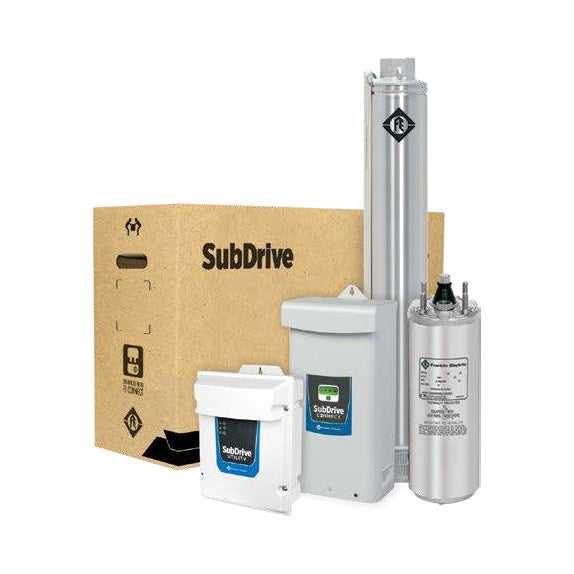

Included: the 4 in MagForce High Efficiency permanent magnet motor, the matched Franklin pump end and the SubDrive Connect drive (NEMA 3R) with its pressure transducer, as one package.

Power supply: the SubDrive Connect drive runs on 208/230 V single-phase service and drives the 230 V three-phase MagForce motor.

Pressure tank, drop cable, splice kit and pipe: sized to your installation and ordered separately; the drive works with a small pressure tank or an existing larger tank.

Check valve on 35 GPM and larger builds: Franklin supplies high capacity pumps (35 GPM and higher) in QuickPAKs without an internal check valve; plan one in the drop pipe.

Overview

SubDrive QuickPAK is Franklin’s all-in-one constant pressure package: a Franklin submersible pump, motor and SubDrive variable frequency drive selected to work together, so the system is chosen by flow and total dynamic head and installed as one unit.

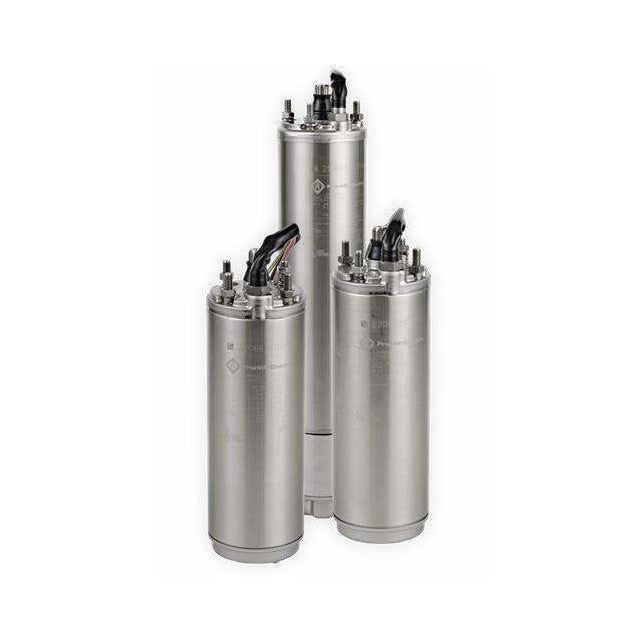

This version is powered by the 4 in MagForce High Efficiency Motor. Franklin rates the MagForce motor 12-17% more efficient than the comparable three-phase induction motor, and lighter and shorter: the 5 HP motor is 7 in shorter and 18 lb lighter than a traditional system. Running less current per horsepower, MagForce motors allow on average 22% longer motor cable per wire size. The SubDrive Connect drive adds the FE Connect app for setup, settings and monitoring.

Constant pressure across the system, with no fluctuation as faucets and appliances open and close
Motor, pump and drive selected as one package by flow and total dynamic head
MagForce permanent magnet motor: 12-17% more efficient than a comparable three-phase induction motor
Smaller, lighter motor; on average 22% longer cable runs per wire size
SubDrive Connect with FE Connect app for advanced settings and monitoring

Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.

12-Month Franklin Electric Warranty

Franklin warrants its products for 12 months from the date of installation, but no more than 24 months from the date of manufacture.

Source: Franklin Electric limited warranty, Submersible Pumps AG/Industrial/Municipal Product Catalog.

Specifications

Flow builds	7, 10, 15, 20, 25, 35, 45, 60 and 90 GPM
Motor	4 in MagForce permanent magnet, 230 V three-phase, 1-1/2, 2, 3 or 5 HP
Drive	SubDrive20, SubDrive30 or SubDrive50 Connect, NEMA 3R enclosure for indoor or outdoor use
Power supply	208/230 VAC single-phase, 60/50 Hz (SubDrive Connect)
Pressure	Factory preset 50 psi; pressure transducer included for pressure display
Pump hydraulics	3200 Series, Tri-Seal and 4 in High Capacity pump ends, as listed per build
Built-in protection	Underload (dry-run) with adjustable sensitivity, overload and locked pump, undervoltage, electrical surge, broken pipe detection, output short and open circuit, overheated controller
Other features	Soft start, RFI filtering, power factor correction, FE Connect app

Source: Franklin Electric SubDrive QuickPAK Constant Pressure Systems Product Catalog (M5008 04-26), pp. 3-6.

Models & Performance — Will It Do What You Need?

Find your horsepower in the row, then read across. Total head is the lift from the pumping water level, plus the system pressure the drive holds (2.31 ft for every PSI), plus friction in the drop pipe. The output tables give the flow at a 30 or 50 PSI pressure setting for your depth to water.

7 GPM class · 3 builds, 1-1/2 to 3 HP

7 GPM class — total head in feet (curves end at 12.9-13 GPM)

HP	0 GPM (Shut-off)	2 GPM	6 GPM	9 GPM	12 GPM
1-1/2 HP	760	725	625	520	391
2 HP	1058	1024	872	711	505
3 HP	1365	1333	1130	923	664

GPM at 30 PSI by depth to water

HP	500 ft	550 ft	600 ft	650 ft	700 ft	750 ft	800 ft
1-1/2 HP	7	6	4	2	—	—	—
2 HP	11	10	9	9	8	7	6
3 HP	—	—	—	11	10	10	9

GPM at 50 PSI by depth to water

HP	500 ft	550 ft	600 ft	650 ft	700 ft	750 ft	800 ft
1-1/2 HP	6	4	2	—	—	—	—
2 HP	10	10	9	8	7	6	5
3 HP	—	—	11	11	10	9	9

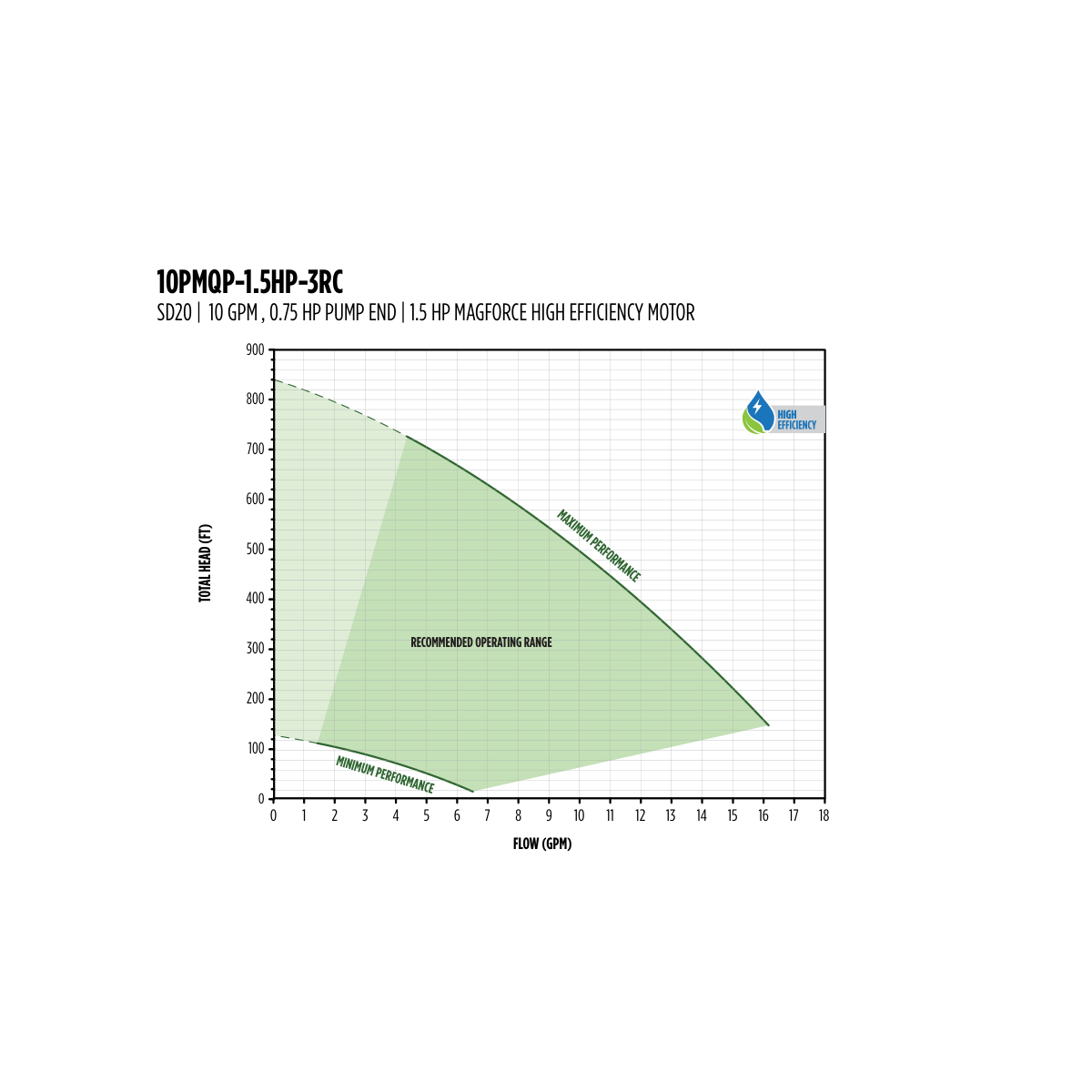

10 GPM class · 3 builds, 1-1/2 to 3 HP

10 GPM class — total head in feet (curves end at 16.1-19.4 GPM)

HP	0 GPM (Shut-off)	3 GPM	8 GPM	12 GPM	16 GPM
1-1/2 HP	827	768	587	394	158
2 HP	1123	1044	787	516	191
3 HP	1414	1025	814	605	360

GPM at 30 PSI by depth to water

HP	440 ft	480 ft	500 ft	550 ft	600 ft	650 ft	700 ft
1-1/2 HP	9	9	8	7	6	4	3
2 HP	12	11	11	10	10	9	8
3 HP	13	13	12	12	11	11	10

GPM at 50 PSI by depth to water

HP	440 ft	480 ft	500 ft	550 ft	600 ft	650 ft	700 ft
1-1/2 HP	8	8	7	6	4	3	1
2 HP	11	11	10	10	9	8	7
3 HP	13	12	12	11	11	10	10

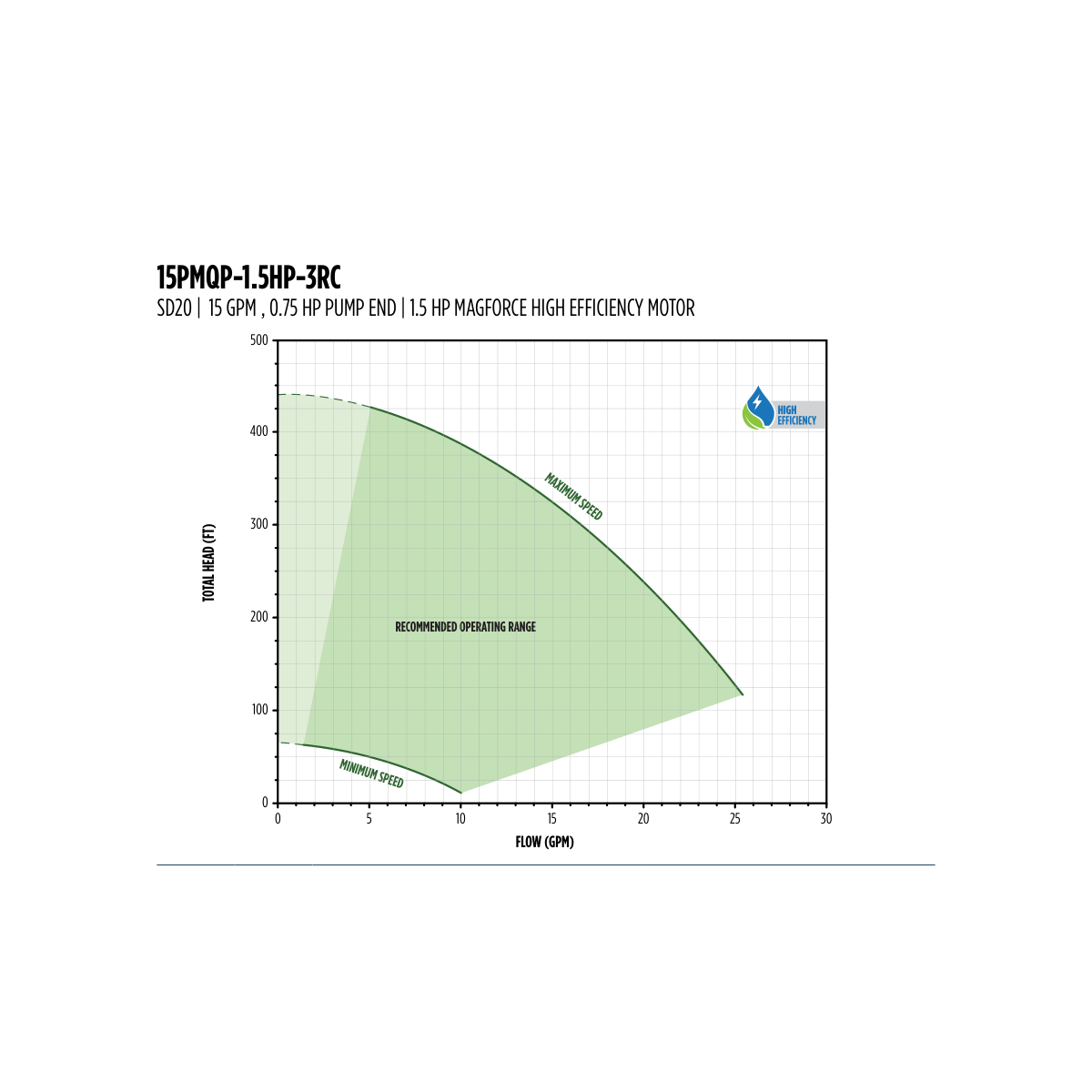

15 GPM class · 3 builds, 1-1/2 to 3 HP

15 GPM class — total head in feet (curves end at 24-25.4 GPM)

HP	0 GPM (Shut-off)	5 GPM	12 GPM	18 GPM	24 GPM
1-1/2 HP	467	427	365	275	151
2 HP	617	590	506	384	212
3 HP	859	806	667	485	248

GPM at 30 PSI by depth to water

HP	140 ft	160 ft	180 ft	200 ft	240 ft	280 ft	320 ft
1-1/2 HP	22	21	20	19	17	14	11
2 HP	24	23	23	22	21	19	18
3 HP	24	24	23	23	22	21	20

GPM at 50 PSI by depth to water

HP	140 ft	160 ft	180 ft	200 ft	240 ft	280 ft	320 ft
1-1/2 HP	20	19	17	16	14	11	6
2 HP	22	22	21	20	19	17	16
3 HP	23	23	22	22	21	20	19

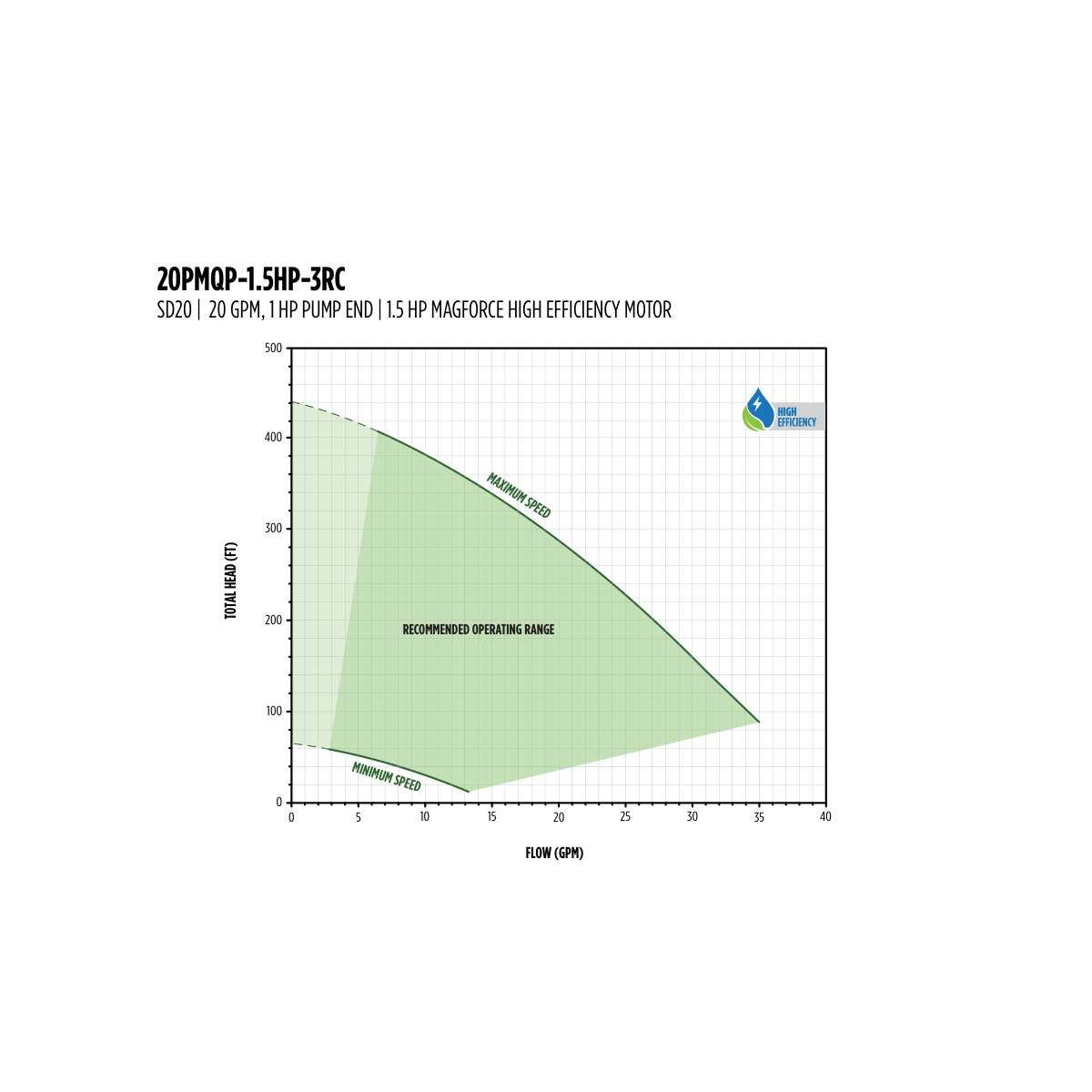

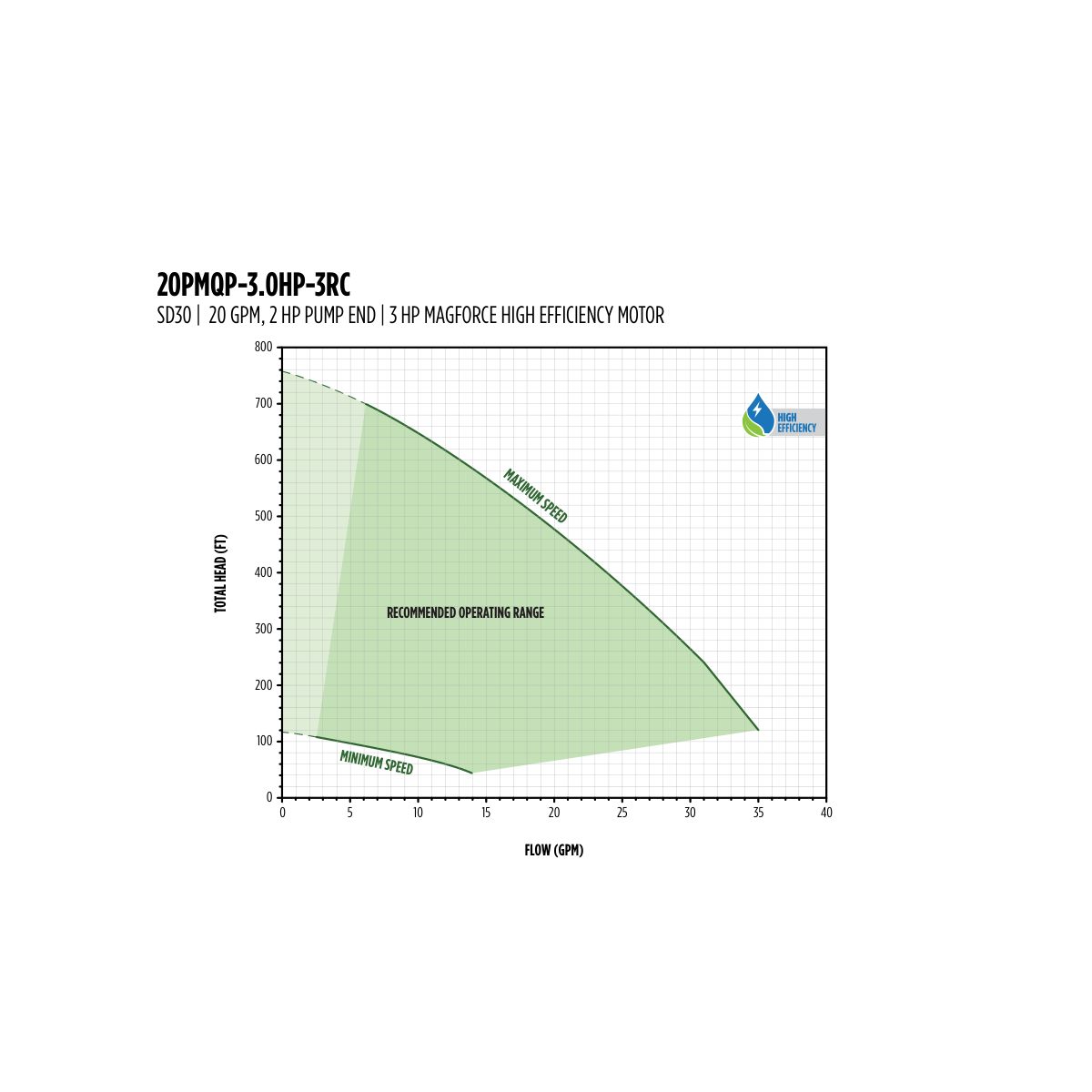

20 GPM class · 3 builds, 1-1/2 to 3 HP

20 GPM class — total head in feet (curves end at 34.2-34.9 GPM)

HP	0 GPM (Shut-off)	7 GPM	17 GPM	26 GPM	34 GPM
1-1/2 HP	448	403	319	215	102
2 HP	476	463	399	296	164
3 HP	772	689	532	354	150

GPM at 30 PSI by depth to water

HP	140 ft	160 ft	180 ft	200 ft	240 ft	280 ft	320 ft
1-1/2 HP	26	25	23	22	18	14	9
2 HP	31	30	29	27	25	21	18
3 HP	32	31	30	29	28	26	24

GPM at 50 PSI by depth to water

HP	140 ft	160 ft	180 ft	200 ft	240 ft	280 ft	320 ft
1-1/2 HP	23	21	19	17	13	8	2
2 HP	28	27	26	24	21	17	12
3 HP	30	29	28	27	26	24	22

25 GPM class · 3 builds, 1-1/2 to 3 HP

25 GPM class — total head in feet (curves end at 39.9-42.4 GPM)

HP	0 GPM (Shut-off)	8 GPM	20 GPM	29 GPM	39 GPM
1-1/2 HP	402	366	284	210	113
2 HP	404	410	357	288	183
3 HP	547	521	437	341	201

GPM at 30 PSI by depth to water

HP	120 ft	140 ft	160 ft	180 ft	200 ft	240 ft	280 ft
1-1/2 HP	30	28	26	24	21	16	10
2 HP	37	36	34	32	30	25	19
3 HP	40	38	37	36	34	31	28

GPM at 50 PSI by depth to water

HP	120 ft	140 ft	160 ft	180 ft	200 ft	240 ft	280 ft
1-1/2 HP	25	23	21	18	15	9	2
2 HP	33	31	29	27	24	18	9
3 HP	37	35	34	32	31	28	24

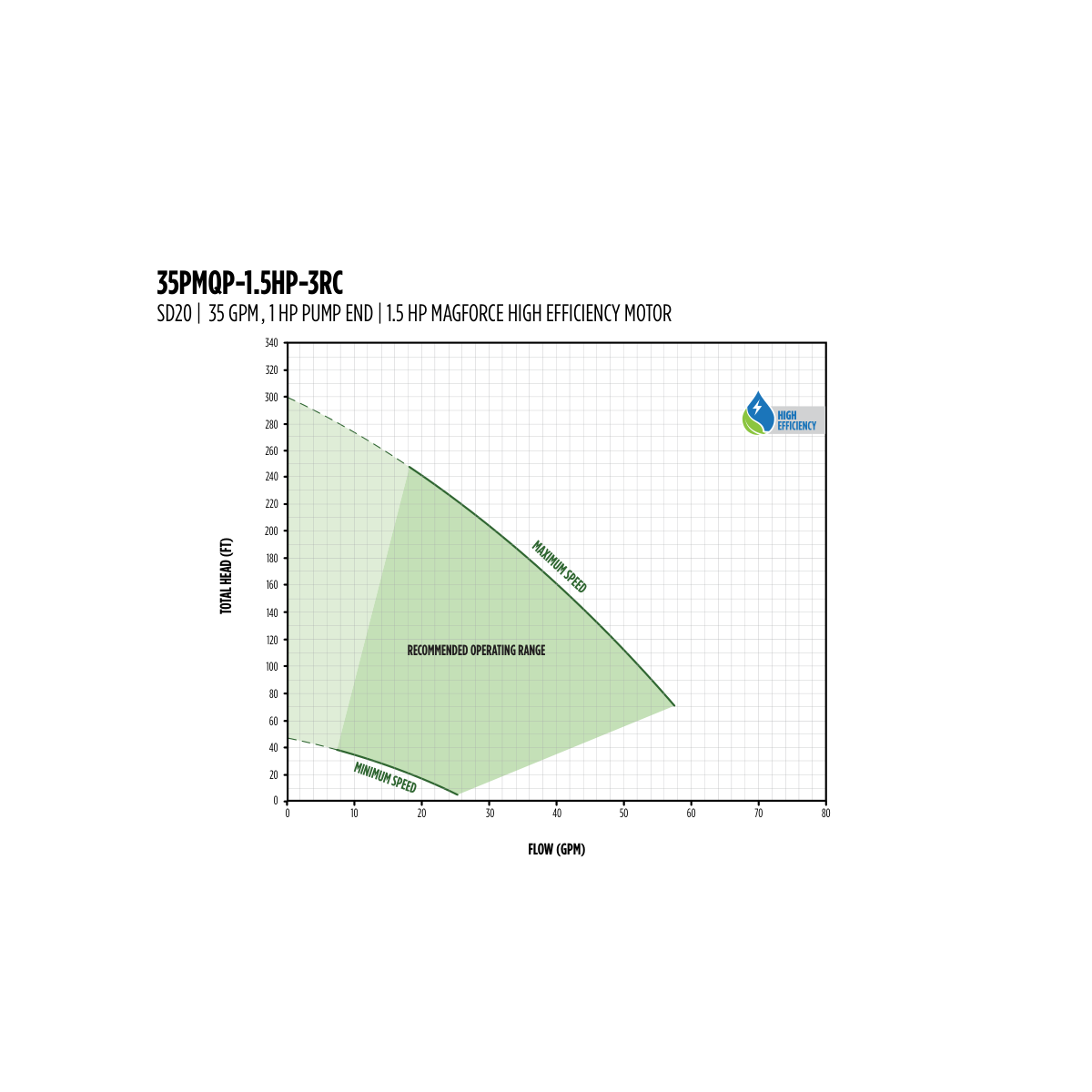

35 GPM class · 4 builds, 1-1/2 to 5 HP

35 GPM class — total head in feet (curves end at 57.5-63.7 GPM)

HP	0 GPM (Shut-off)	11 GPM	29 GPM	43 GPM	57 GPM
1-1/2 HP	296	270	208	147	73
2 HP	293	292	254	200	125
3 HP	404	388	326	248	141
5 HP	693	677	572	438	257

GPM at 30 PSI by depth to water

HP	60 ft	80 ft	100 ft	120 ft	140 ft	160 ft	180 ft
1-1/2 HP	46	42	37	33	28	23	17
2 HP	55	52	48	44	40	35	30
3 HP	57	55	53	50	48	45	42
5 HP	—	—	—	—	59	58	57

GPM at 50 PSI by depth to water

HP	60 ft	80 ft	100 ft	120 ft	140 ft	160 ft	180 ft
1-1/2 HP	36	31	27	21	15	9	1
2 HP	47	43	39	34	28	20	5
3 HP	52	50	47	44	42	38	35
5 HP	—	—	59	58	56	55	54

45 GPM class · 1 build, 5 HP

45 GPM class — total head in feet

HP	0 GPM (Shut-off)	14 GPM	35 GPM	53 GPM	70 GPM (Max)
5 HP	536	517	434	333	212

GPM at 30 PSI by depth to water

HP	180 ft	200 ft	240 ft	280 ft	320 ft	360 ft	400 ft
5 HP	65	62	56	50	44	36	27

GPM at 50 PSI by depth to water

HP	180 ft	200 ft	240 ft	280 ft	320 ft	360 ft	400 ft
5 HP	58	56	49	43	35	26	14

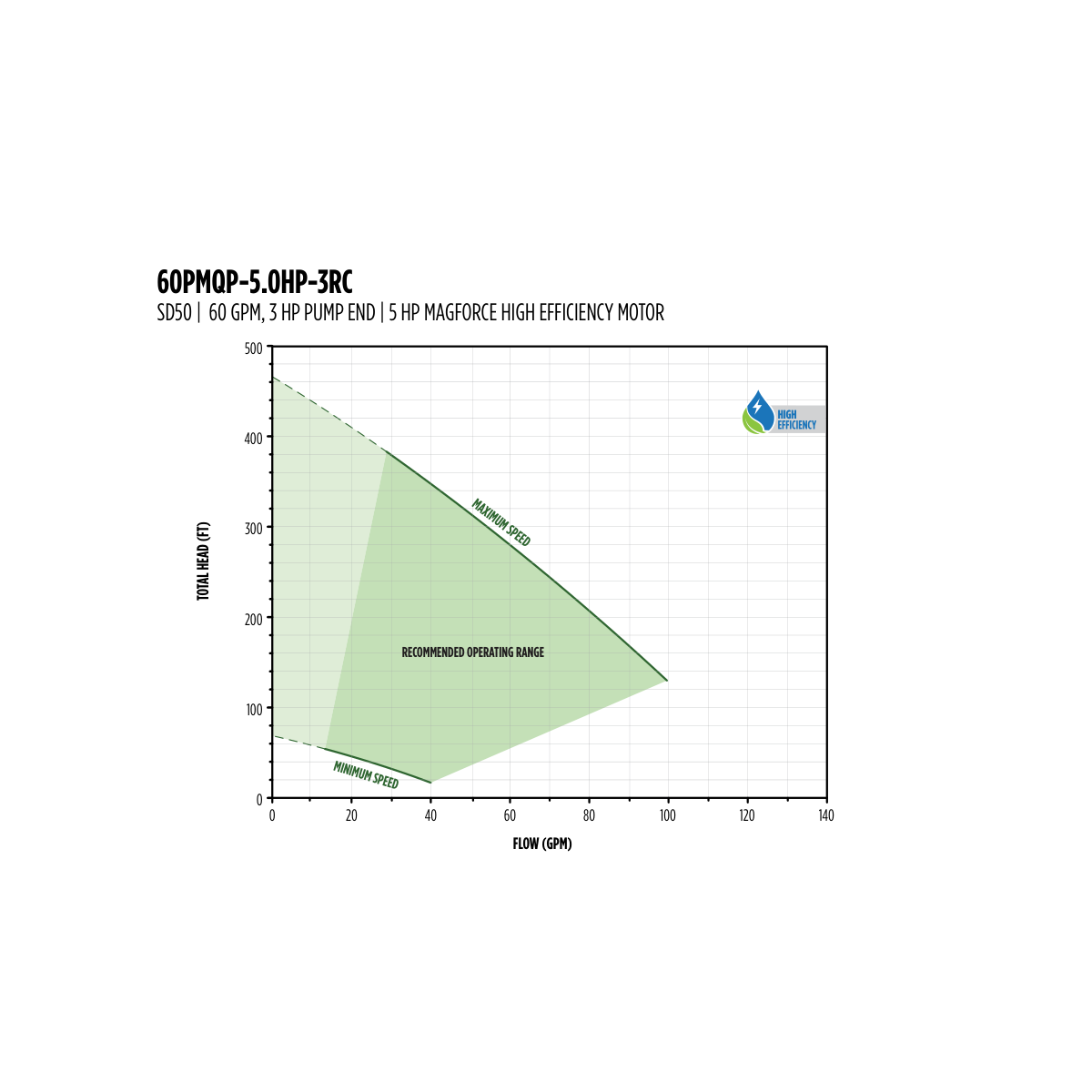

60 GPM class · 2 builds, 3 to 5 HP

60 GPM class — total head in feet (curves end at 93.9-99.6 GPM)

HP	0 GPM (Shut-off)	19 GPM	47 GPM	70 GPM	93 GPM
3 HP	291	257	197	142	81
5 HP	464	412	324	244	156

GPM at 30 PSI by depth to water

HP	60 ft	80 ft	100 ft	120 ft	140 ft	160 ft	180 ft
3 HP	73	65	57	48	39	30	21
5 HP	—	—	89	84	79	74	68

GPM at 50 PSI by depth to water

HP	60 ft	80 ft	100 ft	120 ft	140 ft	160 ft	180 ft
3 HP	54	45	37	27	17	7	—
5 HP	88	83	77	72	67	61	55

90 GPM class · 2 builds, 3 to 5 HP

90 GPM class — total head in feet (curves end at 130-139.9 GPM)

HP	0 GPM (Shut-off)	26 GPM	65 GPM	98 GPM	130 GPM
3 HP	215	187	139	98	60
5 HP	342	300	233	175	116

GPM at 30 PSI by depth to water

HP	20 ft	40 ft	60 ft	80 ft	100 ft	120 ft	140 ft
3 HP	107	91	74	57	40	24	7
5 HP	—	—	123	112	101	90	78

GPM at 50 PSI by depth to water

HP	20 ft	40 ft	60 ft	80 ft	100 ft	120 ft	140 ft
3 HP	69	52	35	19	2	—	—
5 HP	119	108	97	86	75	63	52

Total head at maximum drive speed, read from the published curves in Franklin’s SubDrive QuickPAK catalog (M5008), pp. 8-51, digitized and rounded down to whole feet, at the plotted flows nearest 20%, 50% and 75% of where the curves end. 0 GPM is Franklin’s printed shut-off pressure at zero lift, in feet (PSI × 2.31). Franklin’s published curves and printed tables differ by more than 3% on the 10 GPM 3 HP and 15 GPM 1-1/2 HP builds. The head table follows the published curve, re-checked against Franklin’s chart; the 0 GPM column and the output tables follow the printed figures. Output tables as printed in M5008, pp. 8-51, at the 30 and 50 PSI rows; Franklin rounds them to whole GPM. Drop-pipe friction is not included. — marks a point Franklin does not print.

The 25 GPM curves rise a few feet above the printed shut-off at low flow before they fall, so a low-flow column can read slightly above the shut-off.

Best operating range: Franklin marks the recommended operating range on each published curve and prints no figures for it. The curves are in the image gallery.

Submersible Calculator

Before You Buy — The Limits That Decide the Fit

Supply: 208/230 V single-phase to the drive; the motor is 230 V three-phase and runs only from its SubDrive
Match the build to your pumping water level and pressure using the table above; Franklin’s system limit is the SubDrive, based on the maximum allowable motor amps
Size motor cable from Franklin’s output wire sizing table for the MagForce motor (M5008, p. 6)

Data Sheet

SubDrive QuickPAK Constant Pressure Systems Catalog (M5008)4 in MagForce High Efficiency Motor Spec Sheet (M5307)SubDrive Connect Owner’s Manual
