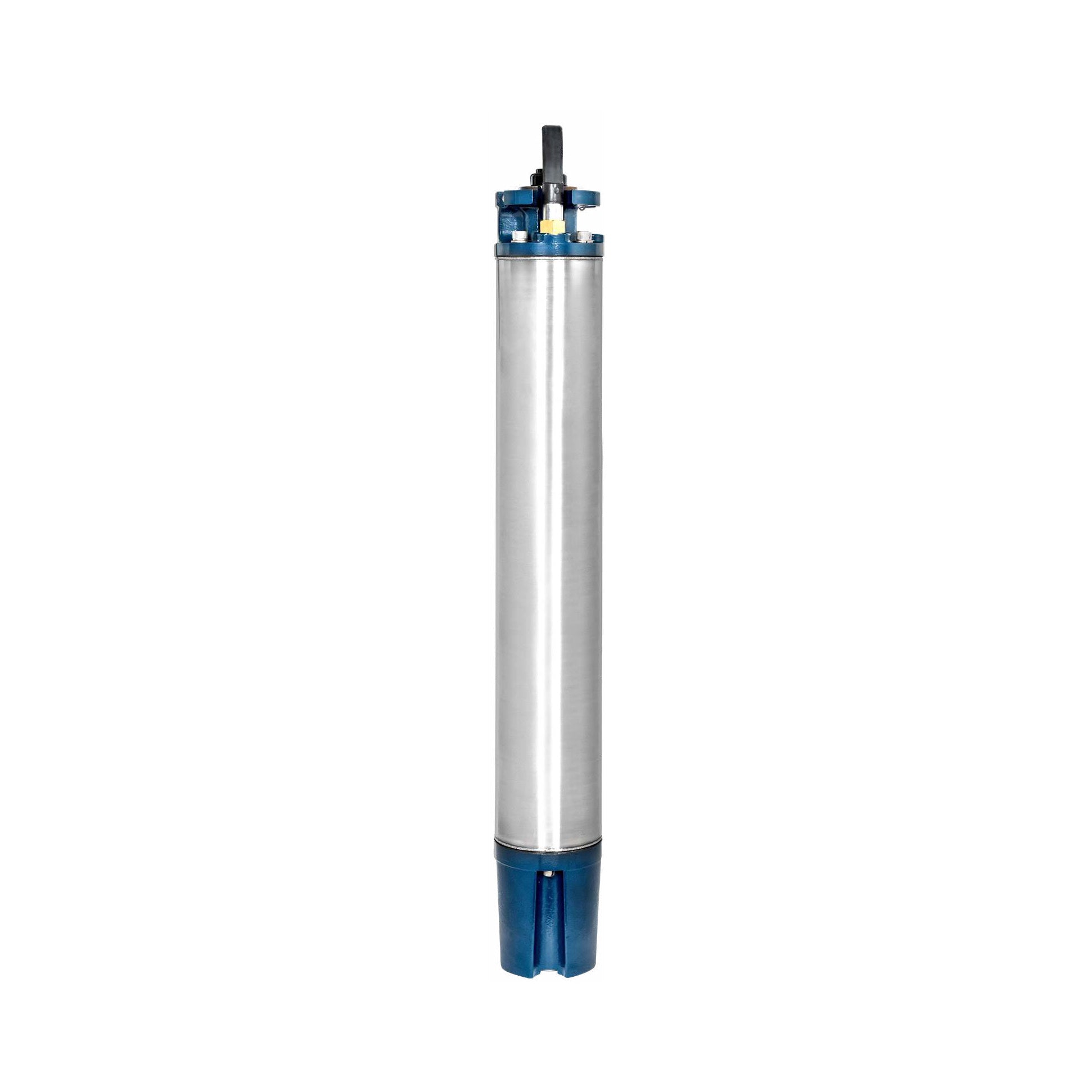

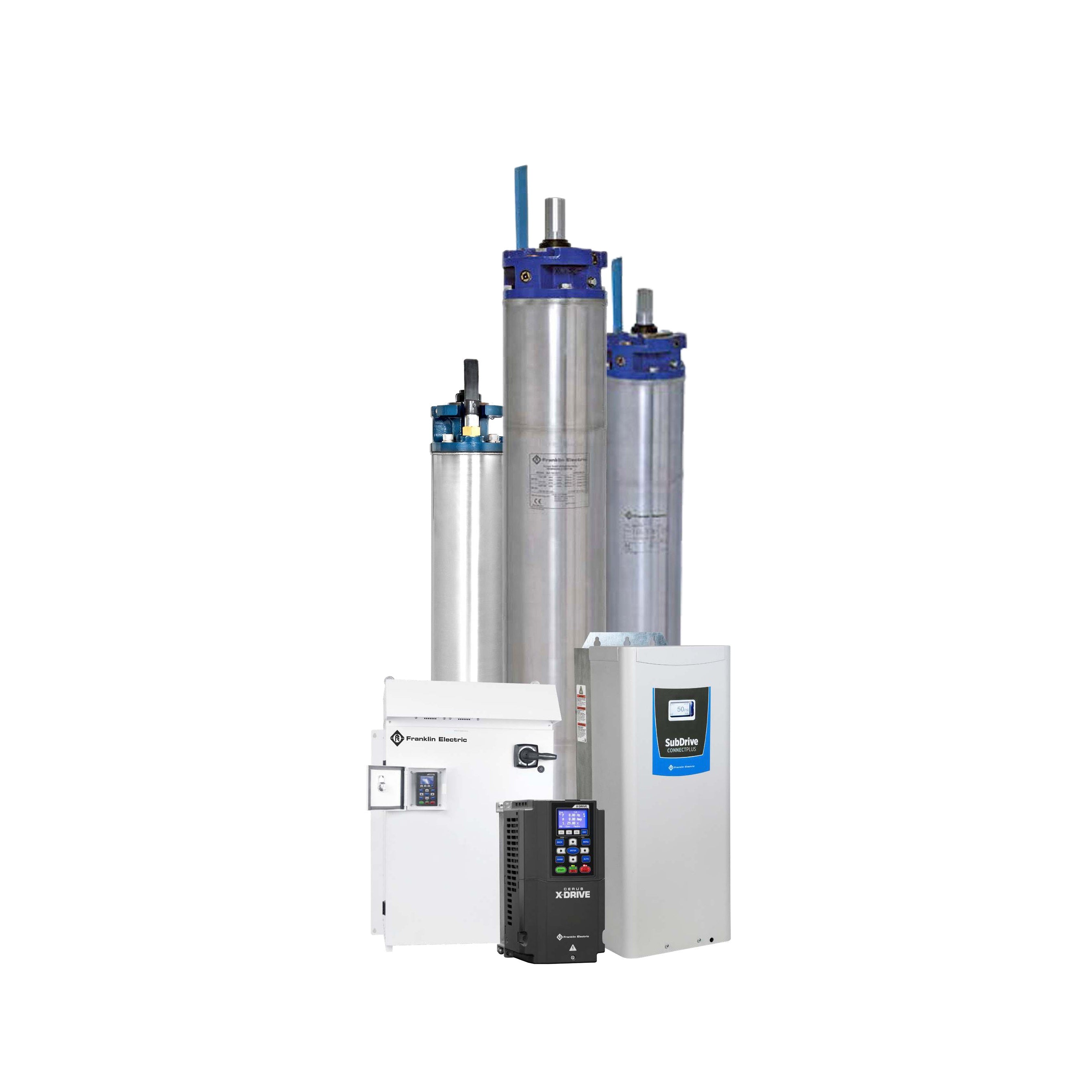

Franklin Electric MagForce Permanent Magnet Submersible Motor and Drive

Each MagForce High Efficiency System is powered with a permanent magnet motor that operates at a fraction of the energy consumption when compared to traditional induction systems. Plus, each system is paired with an innovative Franklin Electric engineered drive for intuitive startup and reliable protection for submersible pumping application.

• GROUNDBREAKING EFFICIENCY: Powered by MagForce High Efficiency Motor with 90% efficiency rating that is 10-12% greater than standard induction motor construction. Typical duty rate systems can have a payback* of 1 to 2 years.
• SIMPLIFIED INVENTORY MANAGEMENT: Three motor sizes cover pump horsepower ranging from 7.5 to 60. Fewer SKUs simplify your inventory.
• SLASH ELECTRICITY CONSUMPTION: Since the motor has rare earth magnets, there is less electrical energy loss, which translates into greater power output per dollar spent on power input. This saves operational costs every time the motor is run; the more it is used, the more can be saved.
• SMALLER FOOTPRINT: Lighter and easier to handle than standard induction motors and, like all submersible motor systems, provides a smaller above ground footprint when compared to other pumping solutions.
• BUILT TOGETHER TO WORK TOGETHER: All components come from a single source for the ultimate in operational compatibility and optimized operation.

Source: Franklin Electric Submersible Motors and Control Boxes product catalog and Franklin price list effective 15 Jun 2026. Length is Franklin's motor “L” dimension; Franklin publishes motor weights as shipping weights, so they are not shown. A blank means Franklin publishes no figure for that build.

• 460 V input, 60 Hz minimum frequency; 4-pole, 120 Hz maximum (3,600 rpm).
• Runs only from a Franklin drive programmed for the MagForce motor.
• Maximum ambient 86 °F (30 °C).
