Dresser Style 711 Insulating Line Cap - Cast Iron Gas Pipe

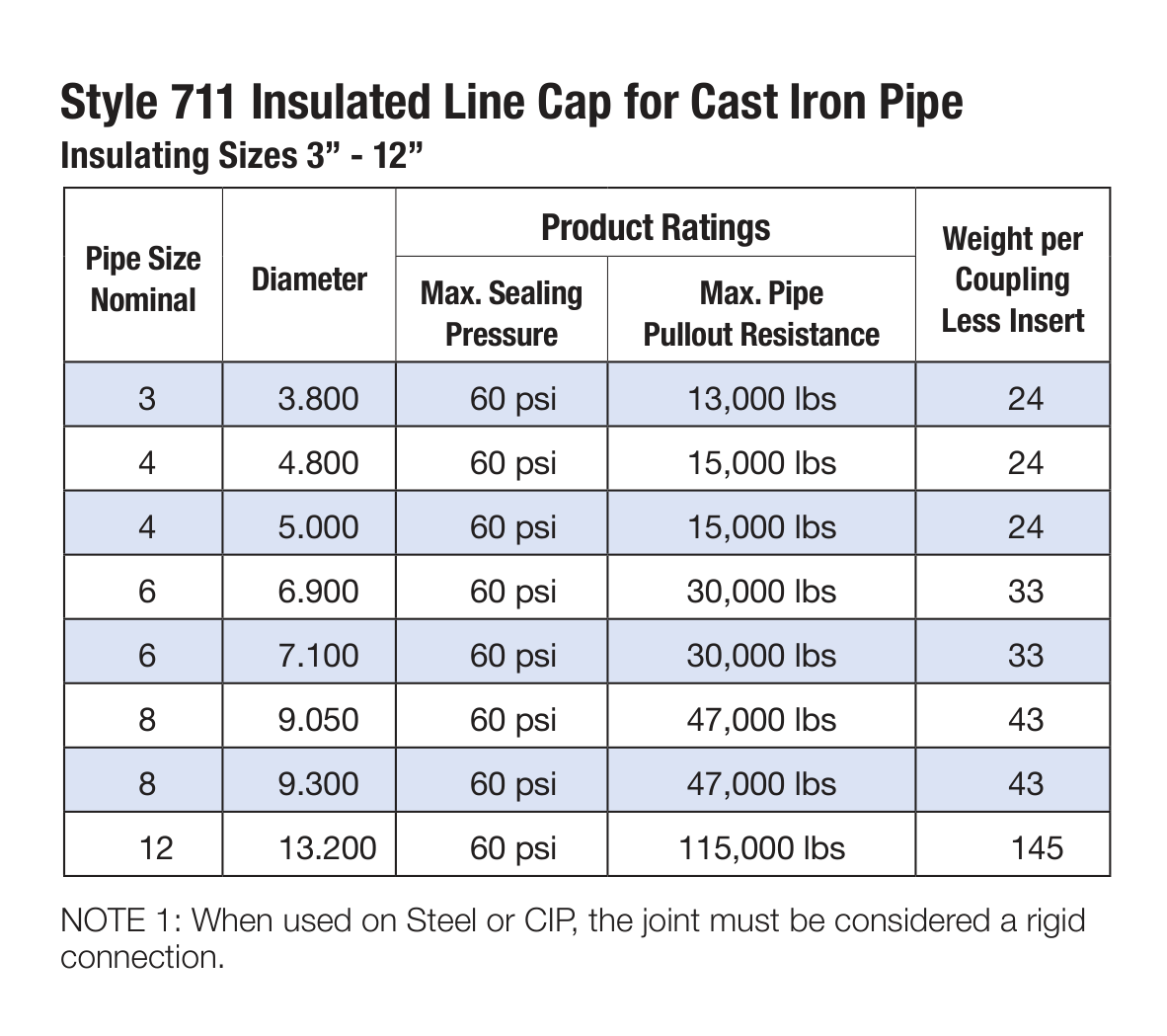

Dresser Style 711 Insulating Line Cap specification table
Dresser Style 711 Insulating Line Cap - Cast Iron Gas Pipe
Dresser Style 711 Insulating Line Cap specification table

Dresser Style 711 Insulating Line Cap - Cast Iron Gas Pipe

Nominal Size - OD: 3 in - 3.80 in OD
Part No.: 0711-0351-216

Product variant with selected options does not exist!
$1,240.68
SKU: 0711-0351-216
Weight : 24.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Dresser · Gas Coupling

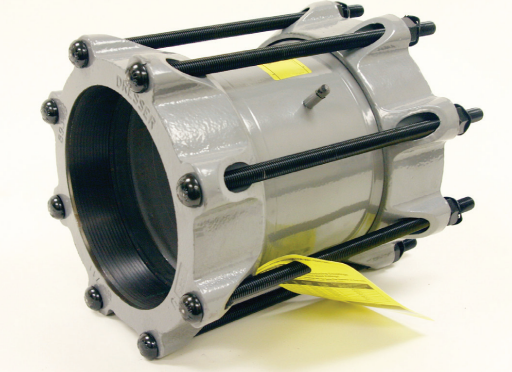

Style 711 Insulating Line Cap
Insulating line cap for cast iron gas mains, 3 in to 8 in.
Seal and Restraint, DOT 192.281(e)
ASTM F1948 Category 1
Steel, PE and Cast Iron Pipe
Natural Gas Service
24-43 lb Weight
Overview

The Style 711 Insulating Line Cap closes off a cast iron gas main and insulates the cap from the pipe.

Application: Capping cast iron gas main ends.

  • Assembled stab design: little or no disassembly in the ditch
  • Metallic grip mechanism locks the pipe against pullout
  • PE pipe needs the matching color-coded insert stiffener
  • Every variant ends with the Dresser part number
What Ships and What It Needs to Run

Included: insulating line cap, insulators, gasket, bolts and nuts, assembled.

Also needed: insert stiffener for PE pipe, sized to the pipe SDR (sold separately).

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty

Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

Working Pressure

Cast iron products carry a 60 PSI rating in the Style 711 brochure.

Source: Dresser Style 711 Bolted Coupling Brochure (2021). The rating on the product label is the actual rating of each part.

Materials Specifications
Grip rings 4140 carbon steel, slotted
Insulation PPO thermoplastic follower insulators, PP body insulators, HDPE or PVC pipe end separators
Gaskets Insulating gasket and armored gasket
Compliance DOT 192.281(e), ASTM F1948 Category 1

Source: Dresser Style 711 Bolted Coupling Brochure (2021).

Before You Order. Confirm pipe OD and, for PE, the SDR, so the right grip ring and insert stiffener are supplied. For other sizes, builds or a factory submittal, email sales@watermainsupply.com with the pipe OD, material and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
© Watermain Supply — A division of E4 Industrial LLC
Data Sheet
Style 711 Bolted Coupling Brochure Gas Product Selection Guide (NGS-DPS-015)
Videos

Product videos are being added to this listing. For a walkthrough in the meantime, email sales@watermainsupply.com.
