Cerus X-Drive Stand-Alone VFD

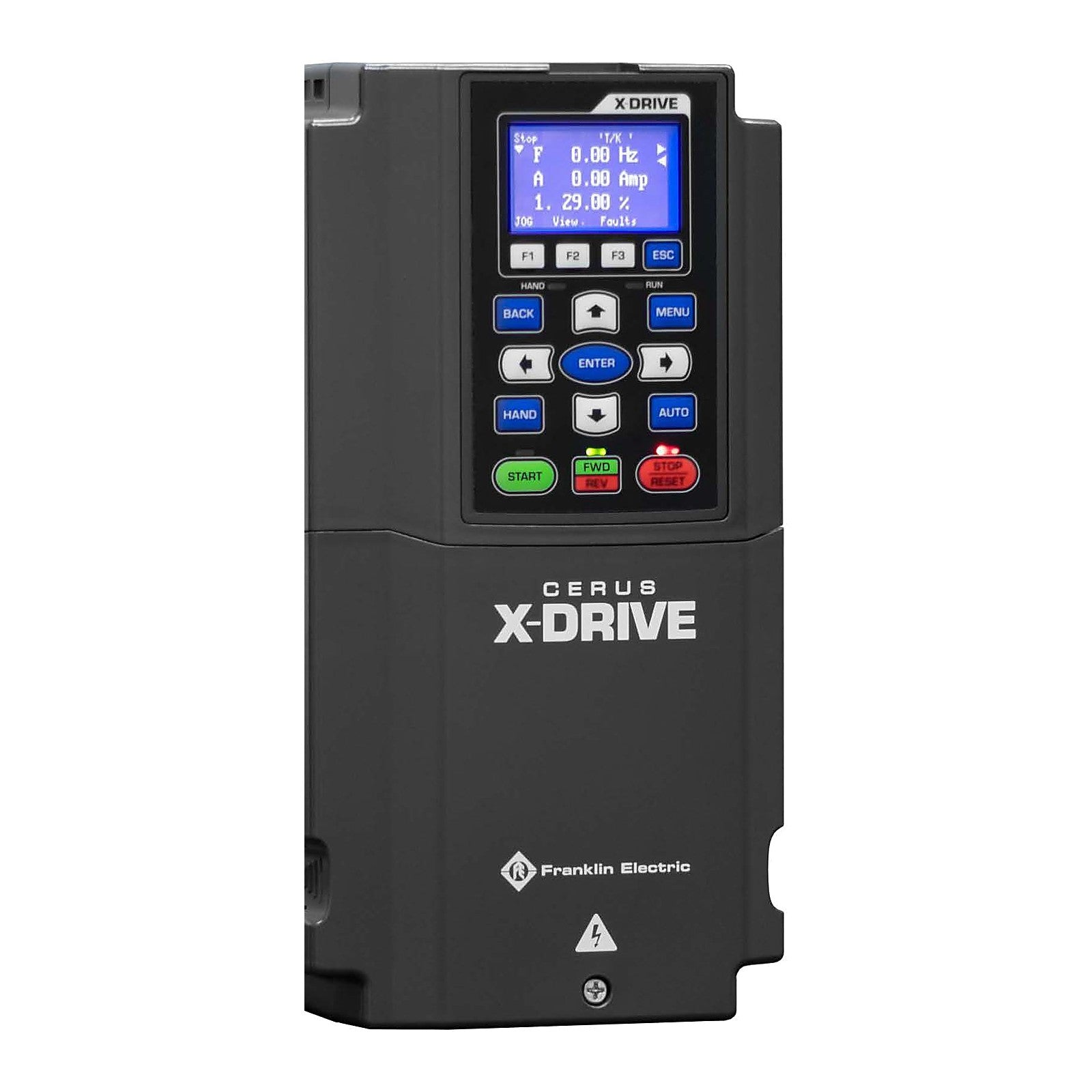

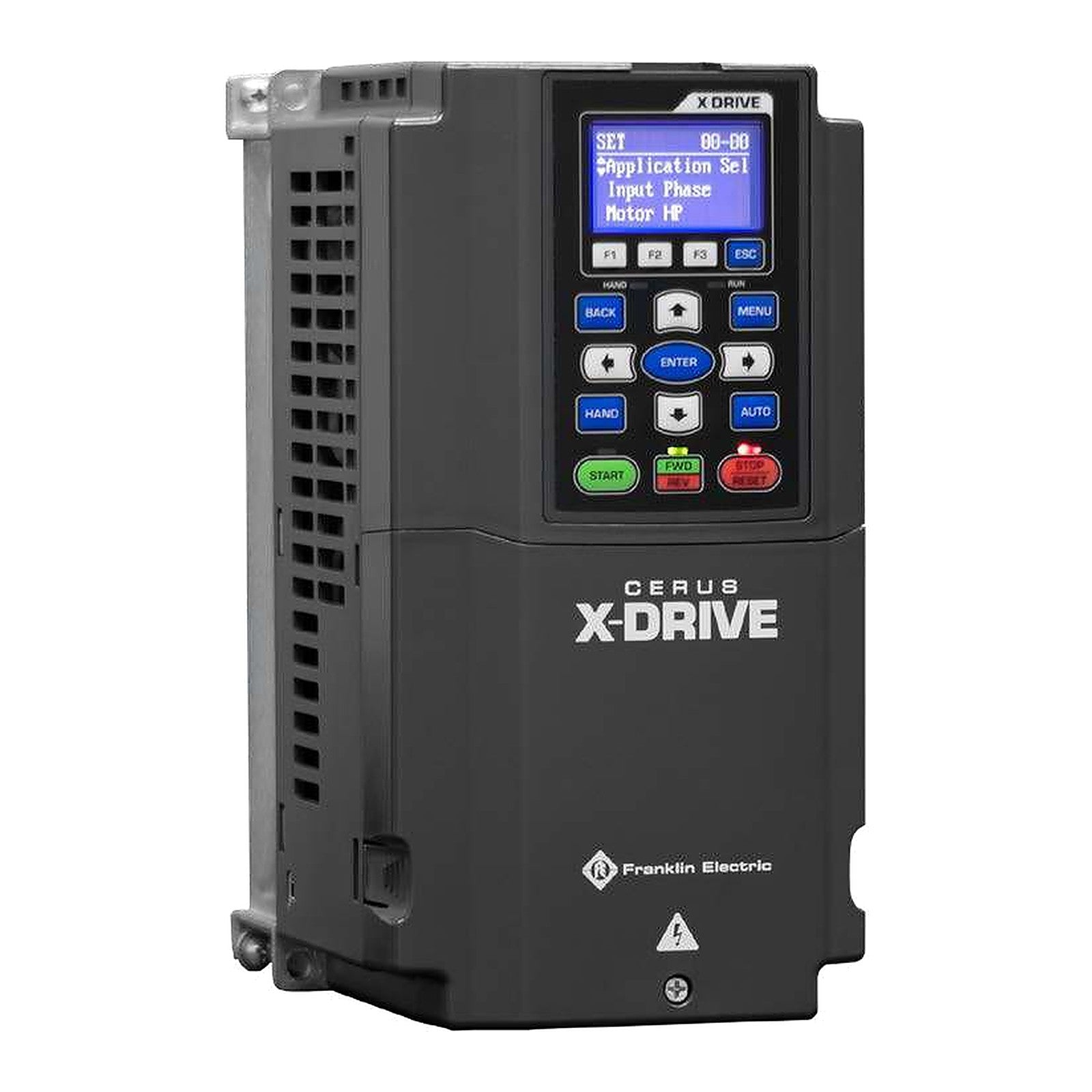

The X-Drive variable frequency drive without a panel, NEMA 1 for indoor mounting or for building into a control panel.
NEMA 1 Indoor
Open Type Convertible
200-240V, 380-480V, 575V
1Ph or 3Ph Input
Built-In PLC
Modbus and BACnet
MagForce Ready
Overview
The Cerus X-Drive is Franklin Electric’s drive for variable-torque pumping. The stand-alone drive is rated NEMA 1 for indoor use. For panel builders it converts to an open-type drive, which raises the ambient operating limit from 113 °F to 122 °F and saves on panel cooling. Its compact form factor keeps panels small.
Choose by output amps and voltage class. Where the table shows a single-phase figure, the drive also runs on single-phase input at that reduced output.
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Key Features
-
Application firmware — presets for submersible pumps, centrifugal pumps, cooling tower and circulating pumps for quick startups and protection.
-
Advanced pump control — multi-VFD control of up to 8 drives, pre-PID pipe fill, a second PID loop, dual demand and pipe leak protection.
-
Phase conversion — UL-listed single-phase or three-phase input.
-
Harmonics — built-in DC choke from 50 HP at 230V and 60 HP at 460V and 575V.
-
Automation — built-in PLC; Modbus RTU or ASCII and BACnet MS/TP; optional Ethernet IP and Modbus TCP/IP or FE Connect Bluetooth cards.
-
Display — UL Type 4X removable display, remote mountable on a standard CAT-5 cable.
-
FE Connect app — with the optional Bluetooth card and firmware 1.2 or later: phone-based setup, monitoring and troubleshooting.
-
MagForce ready — quick startups and protection with Franklin MagForce permanent-magnet motors.
Models & Ratings
| Part No. |
Voltage Class |
Rated Output (3Ph) |
Output on 1Ph Input |
| CXD-005A-2V |
200-240V |
5A |
2.5 A |
| CXD-007A-2V |
200-240V |
7.5A |
3.75 A |
| CXD-010A-2V |
200-240V |
10A |
5 A |
| CXD-015A-2V |
200-240V |
15A |
7.5 A |
| CXD-021A-2V |
200-240V |
21A |
10.5 A |
| CXD-031A-2V |
200-240V |
31A |
15.5 A |
| CXD-046A-2V |
200-240V |
46A |
23 A |
| CXD-061A-2V |
200-240V |
61A |
30.5 A |
| CXD-075A-2V |
200-240V |
75A |
37.5 A |
| CXD-090A-2V |
200-240V |
90A |
45 A |
| CXD-105A-2V |
200-240V |
105A |
52.5 A |
| CXD-146A-2V |
200-240V |
146A |
48.1 A |
| CXD-180A-2V |
200-240V |
180A |
59.4 A |
| CXD-215A-2V |
200-240V |
215A |
70.9 A |
| CXD-276A-2V |
200-240V |
276A |
91 A |
| CXD-322A-2V |
200-240V |
322A |
106.2 A |
| CXD-003A-4V |
380-480V |
3A |
1.5 A |
| CXD-004A-4V |
380-480V |
4.2A |
2.1 A |
| CXD-005A-4V |
380-480V |
5.5A |
2.75 A |
| CXD-008A-4V |
380-480V |
8.5A |
4.25 A |
| CXD-010A-4V |
380-480V |
10.5A |
5.25 A |
| CXD-013A-4V |
380-480V |
13A |
6.5 A |
| CXD-018A-4V |
380-480V |
18A |
9 A |
| CXD-024A-4V |
380-480V |
24A |
12 A |
| CXD-032A-4V |
380-480V |
32A |
16 A |
| CXD-038A-4V |
380-480V |
38A |
19 A |
| CXD-045A-4V |
380-480V |
45A |
22.5 A |
| CXD-060A-4V |
380-480V |
60A |
30 A |
| CXD-073A-4V |
380-480V |
73A |
36.5 A |
| CXD-091A-4V |
380-480V |
91A |
30 A |
| CXD-110A-4V |
380-480V |
110A |
36.3 A |
| CXD-150A-4V |
380-480V |
150A |
49.5 A |
| CXD-180A-4V |
380-480V |
180A |
59.4 A |
| CXD-220A-4V |
380-480V |
220A |
72.6 A |
| CXD-260A-4V |
380-480V |
260A |
85.8 A |
| CXD-310A-4V |
380-480V |
310A |
102.3 A |
| CXD-370A-4V |
380-480V |
370A |
122.1 A |
| CXD-460A-4V |
380-480V |
460A |
151.8 A |
| CXD-530A-4V |
380-480V |
530A |
174.9 A |
| CXD-616A-4V |
380-480V |
616A |
203.28 A |
| CXD-683A-4V |
380-480V |
683A |
225.39 A |
| CXD-770A-4V |
380-480V |
770A |
254.1 A |
| CXD-003A-6V |
575V |
3A |
1.5 A |
| CXD-004A-6V |
575V |
4.3A |
2.15 A |
| CXD-006A-6V |
575V |
6.7A |
3.35 A |
| CXD-009A-6V |
575V |
9.9A |
4.95 A |
| CXD-012A-6V |
575V |
12.1A |
6.05 A |
| CXD-018A-6V |
575V |
18.7A |
9.35 A |
| CXD-024A-6V |
575V |
24.2A |
12.1 A |
| CXD-030A-6V |
575V |
30A |
15 A |
| CXD-036A-6V |
575V |
36A |
18 A |
| CXD-045A-6V |
575V |
45A |
22.5 A |
| CXD-054A-6V |
575V |
54A |
17.82 A |
| CXD-067A-6V |
575V |
67A |
22.11 A |
| CXD-086A-6V |
575V |
86A |
28.3 A |
| CXD-104A-6V |
575V |
104A |
— |
| CXD-125A-6V |
575V |
125A |
— |
| CXD-150A-6V |
575V |
150A |
— |
| CXD-180A-6V |
575V |
180A |
— |
| CXD-220A-6V |
575V |
220A |
— |
| CXD-290A-6V |
575V |
290A |
— |
| CXD-350A-6V |
575V |
350A |
— |
| CXD-430A-6V |
575V |
430A |
— |
| CXD-465A-6V |
575V |
465A |
— |
| CXD-590A-6V |
575V |
590A |
— |
| CXD-675A-6V |
575V |
675A |
— |
Source: Franklin Electric Large Drives and Controls price list effective 15 Jun 2026.

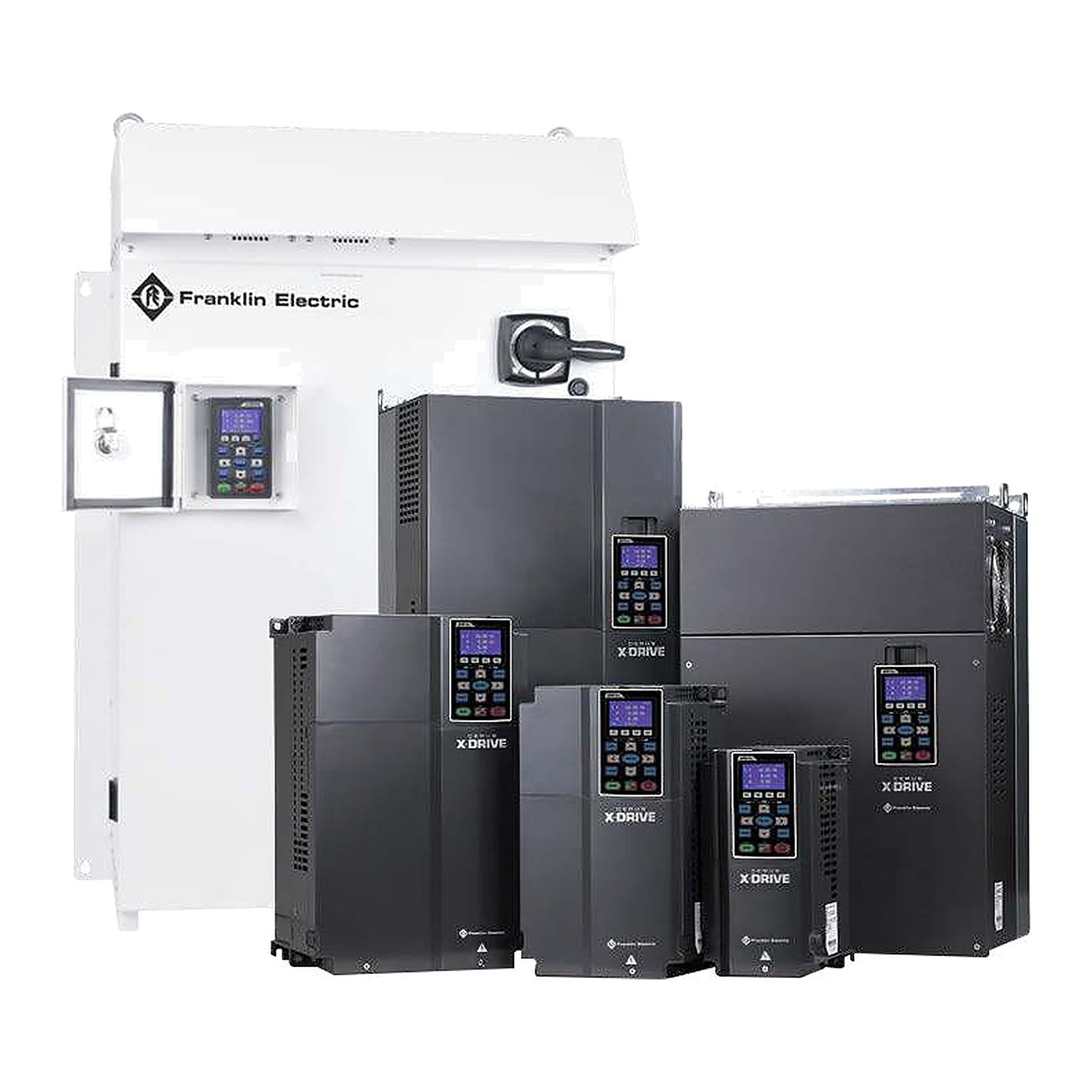

X-Drive Range
| HP |
Voltage |
Max Amps |
| 1 to 100 |
200-208V |
322 A |
| 1 to 125 |
230V |
322 A |
| 1 to 600 |
480V |
770 A |
| 1 to 700 |
575V |
675 A |
Source: Franklin Electric Cerus X-Drive brochure.
Before You OrderSize the drive on motor full-load amps, not horsepower alone, and allow for single-phase derating where used. A line reactor is not needed where the drive has the built-in DC choke (50 HP and up at 230V, 60 HP and up at 460V and 575V).
