Franklin Electric · Pump End

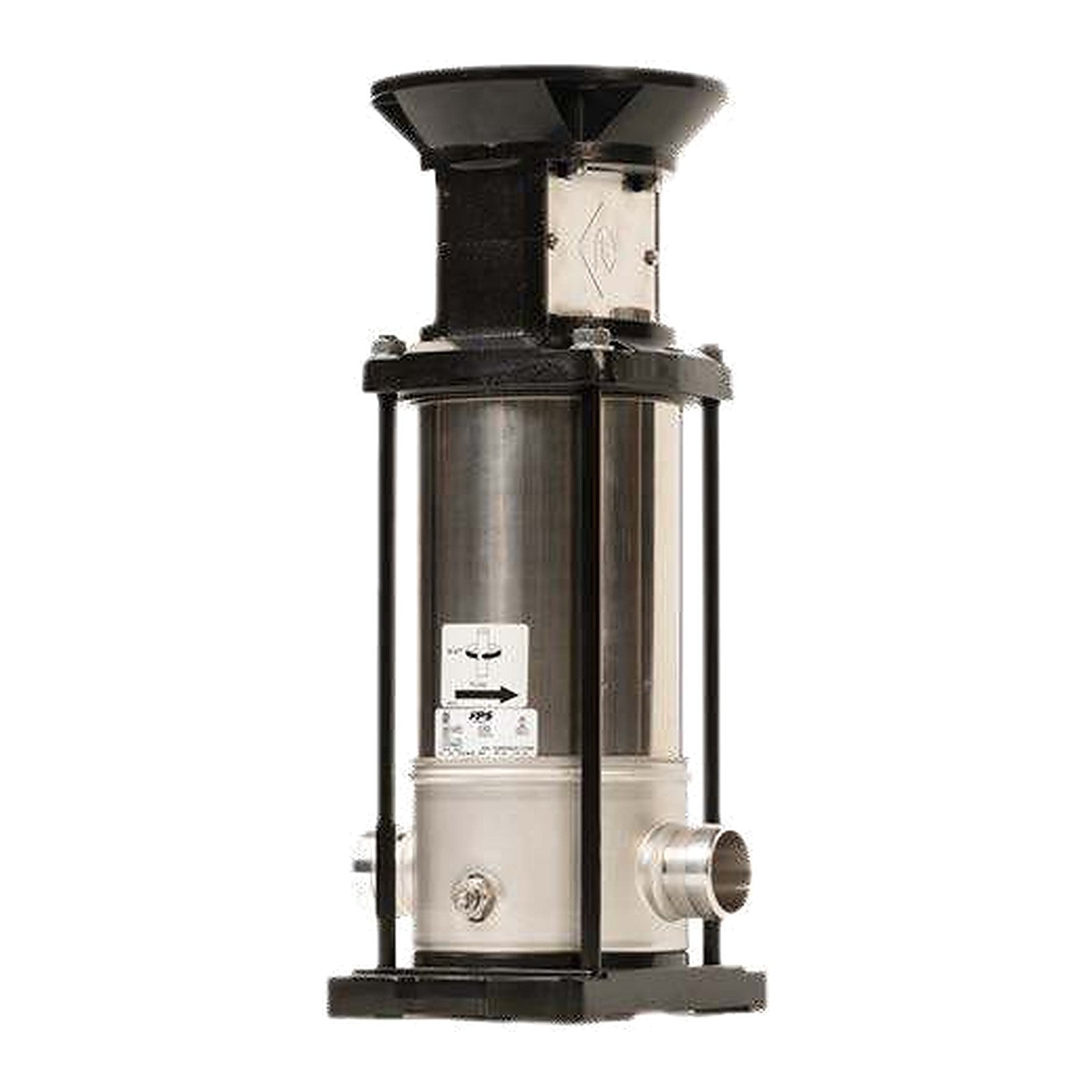

65VR and 65VRL Pump End — No Motor
VR Series pump end supplied without motor, for a standard NEMA C-face motor. The PE code in the part number names the motor frame it takes.
No Motor
4.00 in Round Flange
316 SS Hydraulics
Type 1 Cartridge Seal
NEMA C-Face Mount
Oversized Thrust Bearing
NSF/ANSI 61 + 372
Overview
A complete 65VR or 65VRL pump end — casing, stack, seal and motor mount — without the motor. The pump end carries the thrust load on its own oversized bearing, so it runs on stock NEMA motors in a wide range of ratings and enclosures; special high-thrust motors are not required.
This size is the G version: cast iron casing and upper flange with 316 stainless steel hydraulics. 30, 45, 65 and 95VR pumps carry two rotatable steel flanges with oval-shaped bolt holes that fit both DIN and ANSI flanges.
Pump end codes: PE56 = 56C, PE14 = 140TC, PE18 = 180TC, PE21 = 210TC, PE25 = 250TC, PE28 = 280TC, PE32 = 320TSC, PE36 = 360TSC.
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Models & Ratings
| Part No. |
Series |
Stages |
Motor Frame |
Pump Speed (RPM) |
| 65VR011AGF1A-PE18 |
65VR |
1 (trim 1A) |
182-4TC |
3600 |
| 65VR011AGF1A-PE21 |
65VR |
1 (trim 1A) |
213-5TC |
3600 |
| 65VR0100GF1A-PE21 |
65VR |
1 |
213-5TC |
3600 |
| 65VR0100GF1A-PE25 |
65VR |
1 |
254-6TC |
3600 |
| 65VR022AGF1A-PE21 |
65VR |
2 (trim 2A) |
213-5TC |
3600 |
| 65VR022AGF1A-PE25 |
65VR |
2 (trim 2A) |
254-6TC |
3600 |
| 65VR021AGF1A-PE25 |
65VR |
2 (trim 1A) |
254-6TC |
3600 |
| 65VR0200GF1A-PE25 |
65VR |
2 |
254-6TC |
3600 |
| 65VR0200GF1A-PE28 |
65VR |
2 |
284-6TSC |
3600 |
| 65VR032AGF1A-PE25 |
65VR |
3 (trim 2A) |
254-6TC |
3600 |
| 65VR032AGF1A-PE28 |
65VR |
3 (trim 2A) |
284-6TSC |
3600 |
| 65VR031AGF1A-PE28 |
65VR |
3 (trim 1A) |
284-6TSC |
3600 |
| 65VR0300GF1A-PE28 |
65VR |
3 |
284-6TSC |
3600 |
| 65VR0300GF1A-PE32 |
65VR |
3 |
324-6TSC |
3600 |
| 65VR042AGF1A-PE28 |
65VR |
4 (trim 2A) |
284-6TSC |
3600 |
| 65VR042AGF1A-PE32 |
65VR |
4 (trim 2A) |
324-6TSC |
3600 |
| 65VR041AGF1A-PE32 |
65VR |
4 (trim 1A) |
324-6TSC |
3600 |
| 65VR0400GF1A-PE32 |
65VR |
4 |
324-6TSC |
3600 |
| 65VR052AGF1A-PE32 |
65VR |
5 (trim 2A) |
324-6TSC |
3600 |
| 65VR051AGF1A-PE36 |
65VR |
5 (trim 1A) |
364-5TSC |
3600 |
| 65VRL011AGF1A-PE56 |
65VRL |
1 (trim 1A) |
56C |
1800 |
| 65VRL0100GF1A-PE56 |
65VRL |
1 |
56C |
1800 |
| 65VRL022AGF1A-PE56 |
65VRL |
2 (trim 2A) |
56C |
1800 |
| 65VRL022AGF1A-PE18 |
65VRL |
2 (trim 2A) |
182-4TC |
1800 |
| 65VRL021AGF1A-PE18 |
65VRL |
2 (trim 1A) |
182-4TC |
1800 |
| 65VRL0200GF1A-PE18 |
65VRL |
2 |
182-4TC |
1800 |
| 65VRL032AGF1A-PE18 |
65VRL |
3 (trim 2A) |
182-4TC |
1800 |
| 65VRL031AGF1A-PE18 |
65VRL |
3 (trim 1A) |
182-4TC |
1800 |
| 65VRL0300GF1A-PE18 |
65VRL |
3 |
182-4TC |
1800 |
| 65VRL042AGF1A-PE18 |
65VRL |
4 (trim 2A) |
182-4TC |
1800 |
| 65VRL041AGF1A-PE18 |
65VRL |
4 (trim 1A) |
182-4TC |
1800 |
| 65VRL0400GF1A-PE21 |
65VRL |
4 |
213-5TC |
1800 |
| 65VRL052AGF1A-PE21 |
65VRL |
5 (trim 2A) |
213-5TC |
1800 |
| 65VRL051AGF1A-PE21 |
65VRL |
5 (trim 1A) |
213-5TC |
1800 |
| 65VRL0500GF1A-PE21 |
65VRL |
5 |
213-5TC |
1800 |
| 65VRL062AGF1A-PE21 |
65VRL |
6 (trim 2A) |
213-5TC |
1800 |
| 65VRL061AGF1A-PE21 |
65VRL |
6 (trim 1A) |
213-5TC |
1800 |
| 65VRL0600GF1A-PE21 |
65VRL |
6 |
213-5TC |
1800 |
| 65VRL072AGF1A-PE21 |
65VRL |
7 (trim 2A) |
213-5TC |
1800 |
| 65VRL071AGF1A-PE21 |
65VRL |
7 (trim 1A) |
213-5TC |
1800 |
| 65VRL0700GF1A-PE21 |
65VRL |
7 |
213-5TC |
1800 |
| 65VRL082AGF1A-PE25 |
65VRL |
8 (trim 2A) |
254-6TC |
1800 |
| 65VRL081AGF1A-PE25 |
65VRL |
8 (trim 1A) |
254-6TC |
1800 |
| 65VRL0800GF1A-PE25 |
65VRL |
8 |
254-6TC |
1800 |
Source: Franklin Electric price list effective 15 Jun 2026 and Franklin Electric VR Series Catalog (60 Hz). VR = 2-pole, VRL = 4-pole.
Specifications
| Specification |
Value |
| Connections |
In-line, round flange, 4.00 in |
| Flange rating |
PN16 on lower stage counts, PN25 or PN32 on higher stage counts; see the flange table in the VR catalog |
| Mechanical seal |
Type 1 cartridge seal: graphite / silicon carbide faces, EPDM, stainless steel |
| Liquid temperature |
+14 °F to +248 °F |
| Rotation |
Clockwise, looking at the pump from the top down |
Before You OrderPick the motor to match the complete pump: the same frame as the PE code, the horsepower Franklin pairs with that stage count, and the pump speed (2-pole 3600 RPM for VR, 4-pole 1800 RPM for VRL). The motor ratings for each model are on the matching complete-pump listing. Companion flanges are ordered separately on 1 to 20VR sizes.
Materials of Construction
| Specification |
Value |
| Pump casing and upper flange (G version) |
Cast iron, ASTM A48 Class 35 |
| Outer case |
Stainless steel, AISI 316 |
| Pump shaft |
Stainless steel, AISI 329 |
| Impellers, stage housings and diffusers |
Stainless steel, AISI 316 |
| Journal sleeve |
Stainless steel, tungsten carbide |
| Floating neck ring |
PTFE |
| Mechanical seal |
Silicon carbide, graphite, EPDM, stainless steel |
| O-rings |
EPDM |
Source: Franklin Electric VR Series Catalog (60 Hz), materials tables.
